With a compact body design taking up less space in the pipeline this 2 port motorised full bore stainless steel ball valve will save you time on installation by reducing the overall weight and cost of the actuated valve package when compared to 3 piece ball valves. This ball valve package is available with screwed connections NPT & BSP and they work great in any application where a flow control device is needed. They're fully compliant with safety standards so they'll keep your workplace safe while being easy on your budget at the same time. If you’re looking for an alternative solution then look no further than our AV-L2000 Series Actuated Ball Valves. The 2 port motorised valve offers improved sealing capabilities while also reducing operating costs thanks to their low torque requirements.

Shop Help Me

Key features and benefits of AV-L2000AV Actuated Ball Valves.

Key Features

The industry-leading AV-L2000 Ball Valve has been designed specifically for small to medium sized control systems with reduced torques. This can help reduce costs and increase performance by allowing smooth operation from your valves.

Key Features

The AV-L2000 2 port motorised valve has been designed for use in high applications where space is limited or weight reduction is paramount. This compact unit reduces overall package size compared to 3 piece designs resulting in a lighter weight actuated valve.

Key Features

All of our Actuated Valve Assemblies are manufactured in house with the help from automation experts. Every completed unit comes equipped to meet high standards and can be traced back via two page test report detailing opening/closing times.

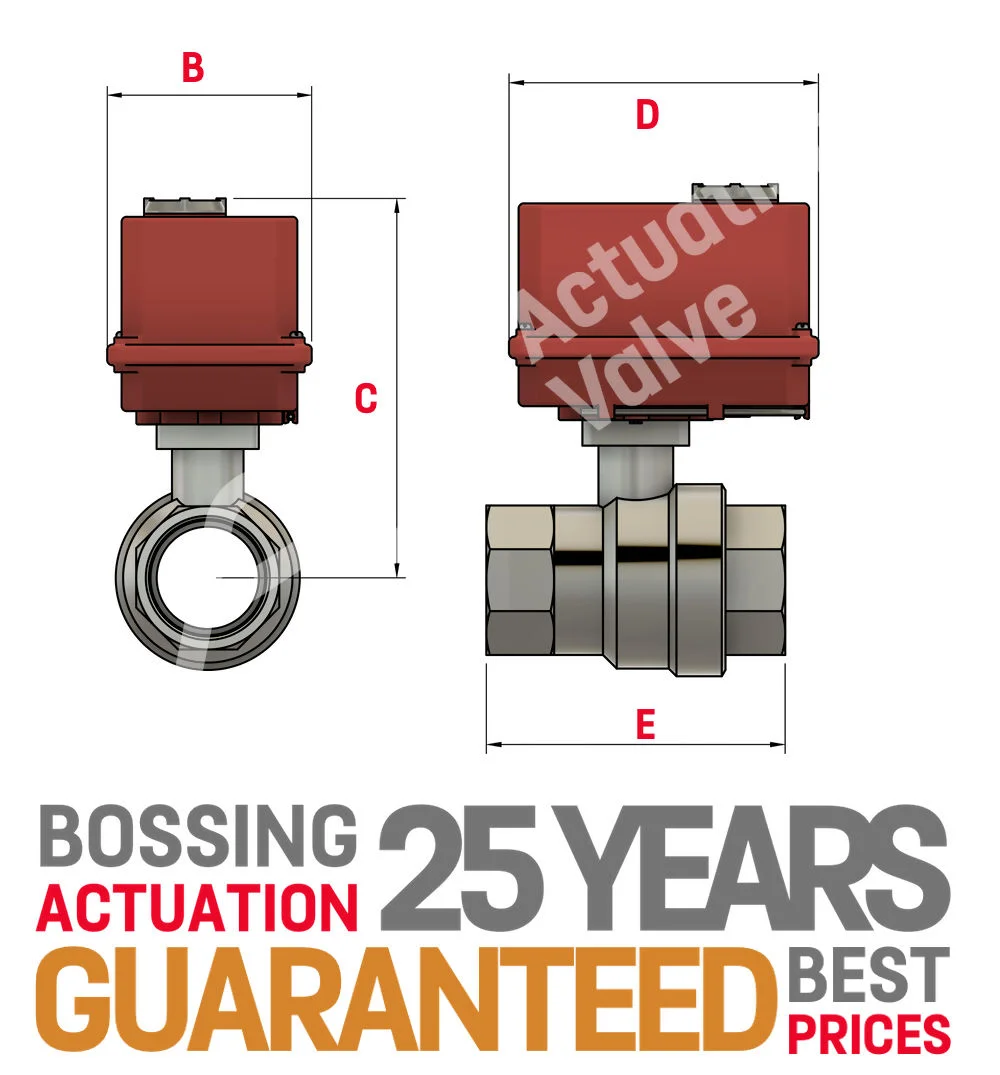

	B	C	D	E	Model

1/4"	TBA	TBA	TBA	TBA	TBA
3/8"	100.00	153.00	145.00	67.00	AV-02
1/2"	100.00	153.00	145.00	67.00	AV-02
3/4"	100.00	159.50	145.00	70.40	AV-02
1"	100.00	168.50	145.00	85.00	AV-02
1 1/4"	100.00	173.00	145.00	94.00	AV-02
1 1/2"	121.90	213.00	117.00	105.00	AV-03
2"	121.90	220.00	117.00	125.00	AV-03
2 1/2"	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA
4"	TBA	TBA	TBA	TBA	TBA

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	ASME B16.34
Wall Thickness:	ASME B16.34
Inspection & Testing:	API 598
Face 2 Face:	ASME B16.10
Pressure Rating:	1000 PSI

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.

No.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.
