Electric Koei Carbon Steel PN40 Actuated Ball Valves

The AV-L6N00 line of carbon steel ball valves is designed with you in mind. They're easy to install and incredibly durable so you get the most out of your product without worrying about repairs or replacements down the road. Koei Actuators have been producing Electric Actuators from their factory in Japan since the beginning of 2000 and they've quickly established themselves amongst one the leading manufacturers for electric actuator sales. We offer express shipping with delivery within 24-48 hours for in-stock components. The Koei UNIC Electric Actuator is equipped with convenient features such as an Allen Key Manual Override, an overload protection system, and an electric stop at the end of travel. Additionally, it incorporates a mechanical limit/mechanical switch to provide open and close status indication on your control panel.

Key Features

Key features and benefits of the AV-L6NC0-EK Actuated Ball Valves.
1

Key Features

The AV-L6NC0EK DIN PN40 actuated ball valves provide a high pressure full flow operation with a bore of up to 8 inches.
2

Key Features

Koei UNIC electric actuators are compact and lightweight which makes them easy to install almost anywhere without sacrificing performance or durability. These lightweight units offer all the features and benefits found in our standard models with none of the bulkiness.
3

Key Features

Koei Actuators have been producing Electric Actuators from their factory in Japan since the beginning of 2000 and they've quickly established themselves amongst one the leading manufacturers for electric actuator sales.

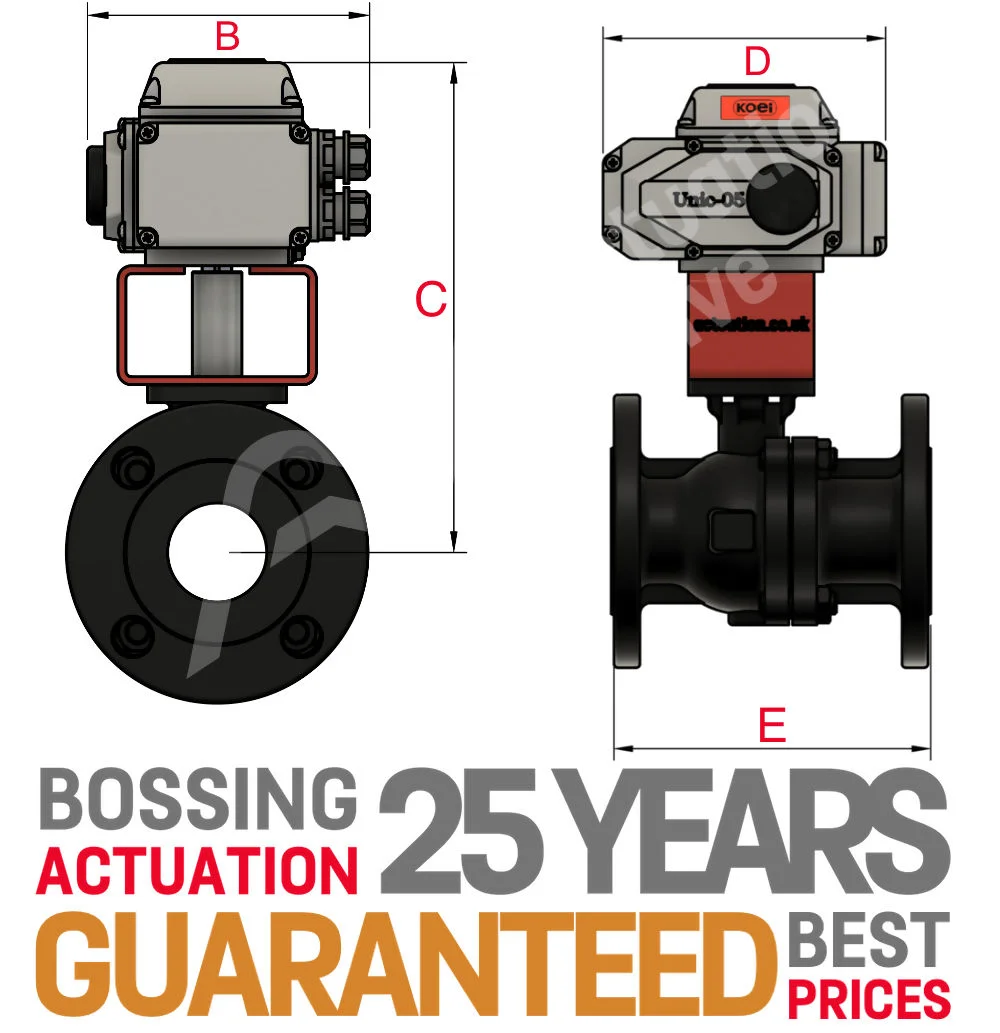

AV-L6NC0-EK Ball Valve Technical Stuff

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" 72.00 120.00 137.00 72.00 120.00 137.00 59.00
3/4" 72.00 126.00 137.00 72.00 126.00 137.00 69.00
1" 72.00 130.00 137.00 72.00 130.00 137.00 83.00
1 1/4" 93.00 168.50 203.50 72.00 135.50 137.00 94.00
1 1/2" 93.00 180.00 203.50 84.50 163.00 153.50 102.00
2" 106.00 200.50 153.50 84.50 170.50 153.50 124.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

AV-L6NC0-EK Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Body Seal
Stem Packing Material: Grafoil
Design Standard: EN 12516-1
Wall Thickness: EN 12516-1
Inspection & Testing: EN 12266-1
Face 2 Face: DIN 3202 F-4 (1/2" - 4") DIN 3202 F-5 (5" - 6")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
