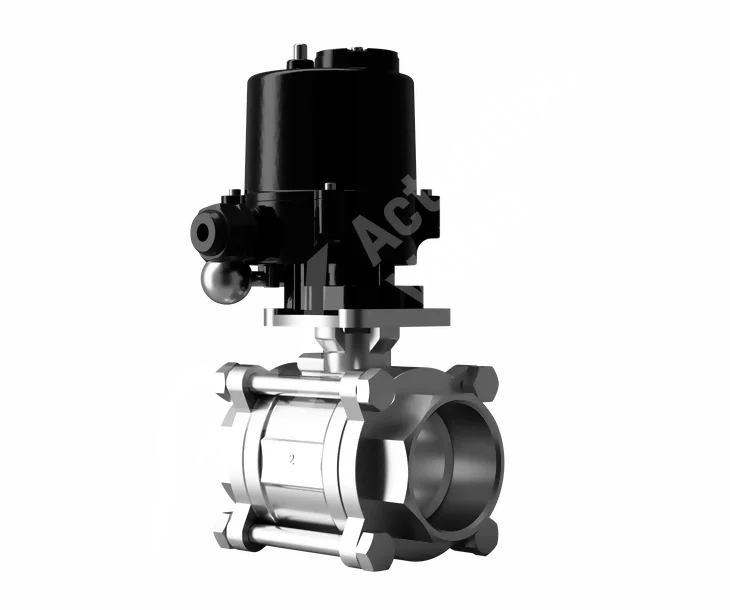

These ball valves are available in screwed connections NPT & BSP and they work great in any application where a flow control device is needed. They're fully compliant with safety standards so they'll keep your workplace safe while being easy on your budget at the same time. AV-ARES Electric Valve Actuator is one of the most compact electric valve actuators on the market. With its innovative design, it can be installed in any direction or position where space may be at a premium or restrictive. We've made it easy for anyone to maintain the valve by replacing individual parts if necessary (Seats & Seals). This makes preventive maintenance much cheaper and easier than traditional ball valves, which require complete disassembly every time something needs to be fixed or replaced.

Shop Help Me

Key features and benefits of the AV-A3000AR, AV-A3100AR & AV-A3200AR

Key Features

Low Torque requirements from the AV-A3000 Ball Valve allow for smooth operation and reduce the costs of Actuated Ball Valves with smaller Actuators able to automate Valves usually demanding large units.

Key Features

Our team has decades of experience working with complex automation systems, which means we can provide high quality products quickly and affordably. Simply tell us what you need, and we'll take care of everything else.

Key Features

AV-ARES range of electric actuators offer high torque with low noise levels at an affordable price point. Our quiet technology allows you to run your actuators at full capacity while also maintaining operator comfort levels during extended periods of operation.

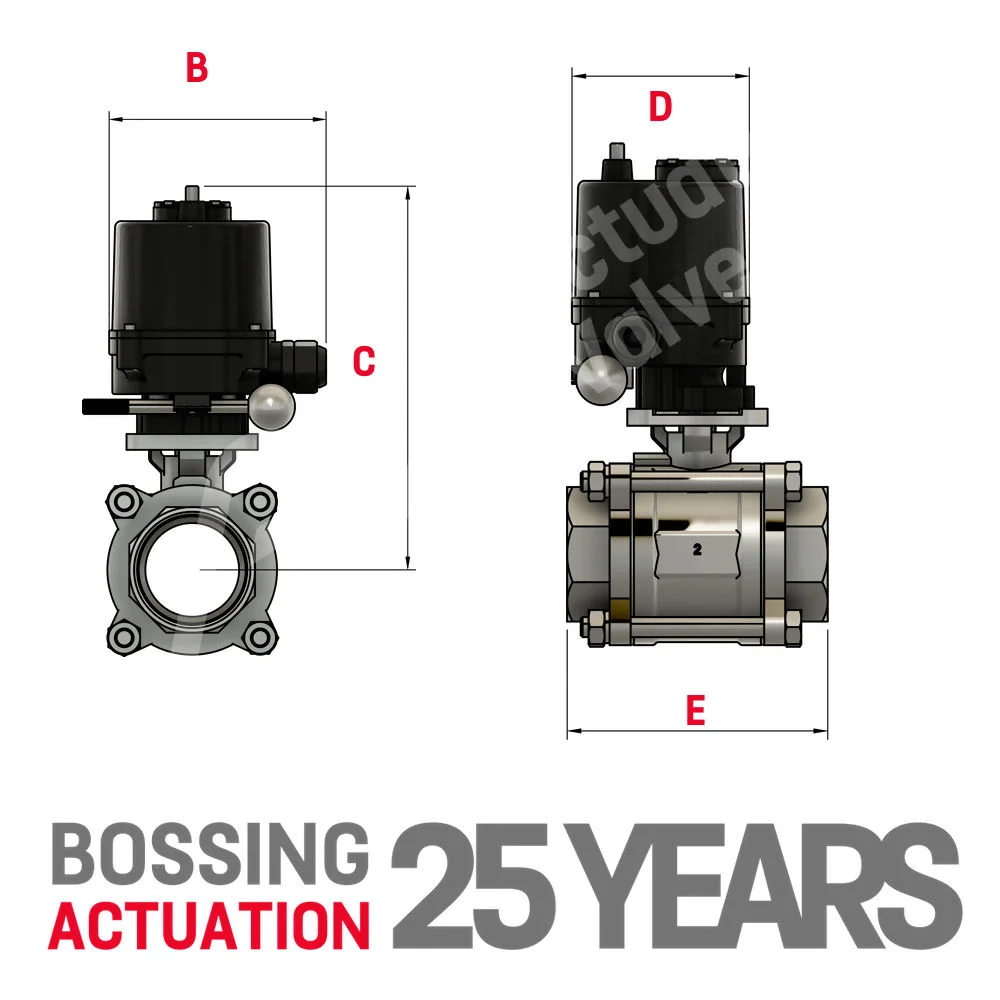

	B	C	D	E	Model

1/4"	115.00	175.50	88.00	75.00	AV-A1
3/8"	115.00	175.50	88.00	75.00	AV-A1
1/2"	115.00	175.50	88.00	75.00	AV-A1
3/4"	115.00	181.50	88.00	80.00	AV-A1
1"	115.00	191.50	88.00	90.00	AV-A1
1 1/4"	115.00	196.00	88.00	110.00	AV-A1
1 1/2"	115.00	269.30	88.00	120.00	AV-A1
2"	115.00	276.20	88.00	140.00	AV-A1
2 1/2"	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA
4"	TBA	TBA	TBA	TBA	TBA

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

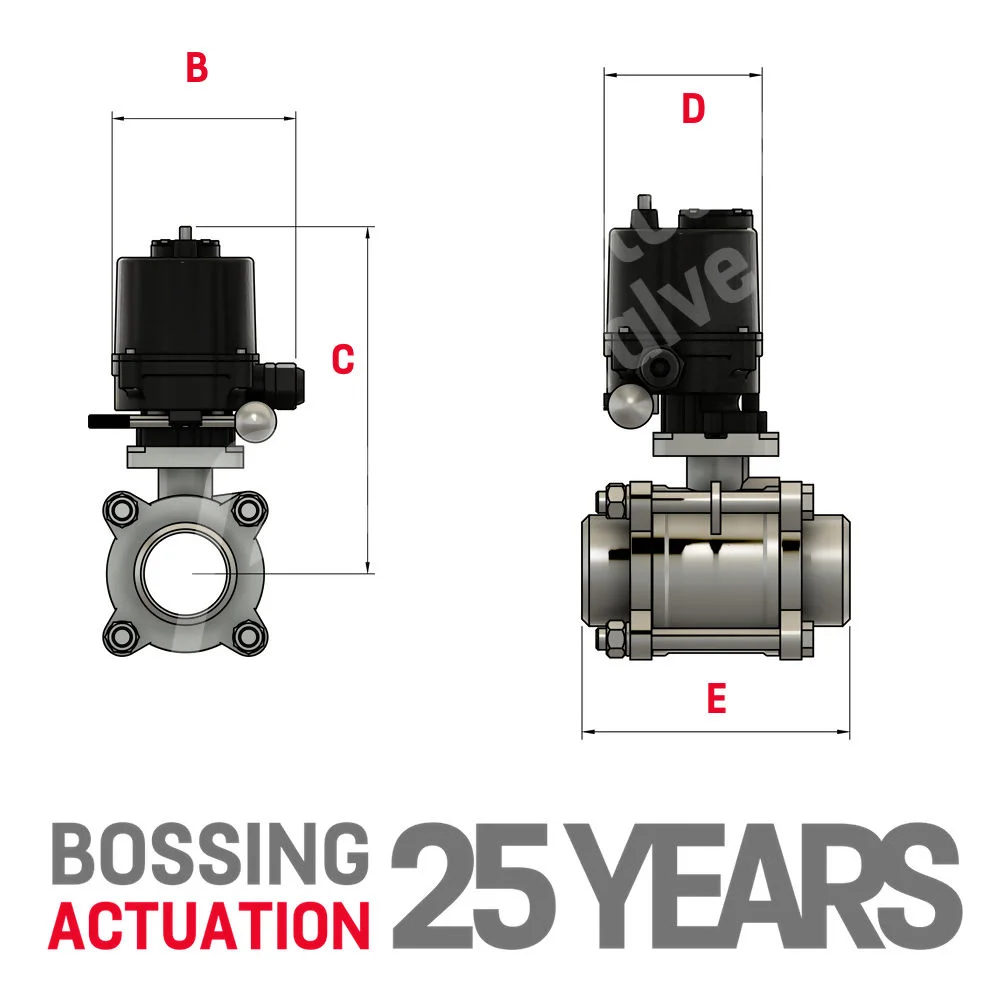

	B	C	D	E	Model

1/4"	115.00	175.50	88.00	75.00	AV-A1
3/8"	115.00	175.50	88.00	75.00	AV-A1
1/2"	115.00	175.50	88.00	75.00	AV-A1
3/4"	115.00	181.50	88.00	80.00	AV-A1
1"	115.00	191.50	88.00	90.00	AV-A1
1 1/4"	115.00	196.00	88.00	110.00	AV-A1
1 1/2"	115.00	269.30	88.00	120.00	AV-A1
2"	115.00	276.20	88.00	140.00	AV-A1
2 1/2"	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA
4"	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Design Standard:	MSS SP-110
Wall Thickness:	EN 12516-3
Inspection & Testing:	MSS SP-110
BSP Ends: (AV-L3000)	BSP IS0 7-1 (DIN 2999)
NPT Ends: (AV-L3000)	ASME B1.20.1
Socket Weld Ends: (AV-L3100)	ASME B16.11
Butt Weld Ends: (AV-L3200)	ASME B16.25 (Sch 40)
Pressure Rating:	1000 PSI

A 3 Piece Premium Ball Valve is a type of ball valve consisting of three main components: a central ball with a hole through it, and two end caps. It is known for its durability and ease of maintenance.

These valves are commonly used in various industries for controlling the flow of fluids, including water, oil, gas, and chemicals. They are ideal for isolation and throttling applications.

Premium ball valves often feature high-quality materials, precision machining, and better sealing capabilities, making them more reliable and suitable for critical applications.

Yes, many premium ball valves are available in materials resistant to corrosion, such as stainless steel, making them suitable for handling corrosive substances.

Yes, 3 Piece Premium Ball Valves are often designed to withstand high-pressure environments, making them suitable for industrial and process control systems.

Maintenance typically involves periodic cleaning, lubrication, and replacement of seals or gaskets when necessary. Refer to the manufacturer's guidelines for specific maintenance instructions.

They provide excellent flow control, tight shut-off, and minimal pressure drop, making them a preferred choice for many applications. Their disassembly for maintenance without cutting into the pipeline is another advantage.

Yes, many of these valves can be automated by adding actuators, making them suitable for remote or automated control systems.

The temperature range depends on the materials used, but many premium ball valves can handle temperatures from -20°C to 200°C or higher, depending on the design and materials.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.
