Brass Ball Valves with ISO Top

Brass Ball Valves with ISO Top are a type of ball valve that features an ISO top flange, allowing for easy integration with various actuation and automation devices. These valves are commonly used in industrial applications where remote or automated control of fluid flow is essential. The ISO top flange standardises the valve's interface, making it compatible with a wide range of actuators, positioners, and accessories, simplifying the process of adapting the valve for specific control requirements. The brass construction provides corrosion resistance and durability, making them suitable for a variety of environments, including chemical processing, water treatment, and HVAC systems, where precise fluid control is necessary.

Key Features

Key features and benefits of Brass Ball Valves with an ISO Top
1

Key Features

Brass ball valves with an ISO Top feature a standardised interface that allows for easy integration with various actuation and automation devices, such as electric or pneumatic actuators, providing flexibility in controlling fluid flow.
2

Key Features

These valves are constructed from brass, an alloy of copper and zinc known for its excellent mechanical properties. Brass offers durability and corrosion resistance, making these valves suitable for a wide range of applications.
3

Key Features

Brass ball valves are designed for reliable sealing, reducing the risk of leakage over their lifespan. This is crucial for maintaining system integrity and preventing fluid loss.
4

Key Features

The compact structure of brass ball valves with ISO Tops makes them space-efficient and suitable for installations where size constraints are a concern.
5

Key Features

These valves can be used with various non-aggressive media, including drinking water, gas, mineral oils, and compressed air, making them versatile for applications across different industries.
6

Key Features

Brass ball valves are known for their simple structure and ease of operation. With the ISO Top interface, they can be controlled remotely, providing convenient fluid control solutions in industrial settings.

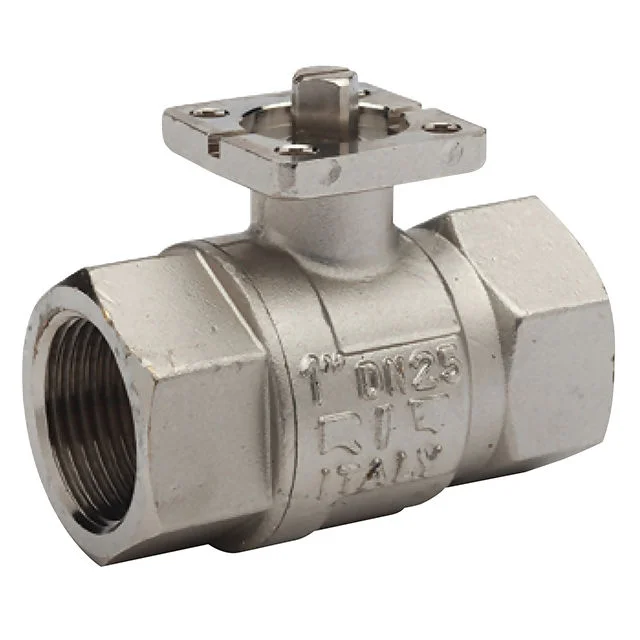

AV-4500 Brass Ball Valve - ISO Top

The AV-4500 Brass Ball Valve with ISO Top is a versatile valve designed for various industrial applications. It features a Screwed BSPP (British Standard Pipe Parallel) end connection, making it suitable for easy installation in pipeline systems. The valve's body is made of nickel-plated brass, offering excellent corrosion resistance and durability. With a temperature range of -20 to 95 degrees Celsius, it can effectively control the flow of fluids in a wide range of operating conditions, from sub-zero temperatures to moderately high temperatures, making it a reliable choice for fluid control in diverse environments.

Size Range: 1/2" to 2"
Body Materials: Brass
Body Type: Nickel Plated Brass Body
Applications:
Pressure Rating: PN40
End Connections: Screwed BSPP
Contact Us

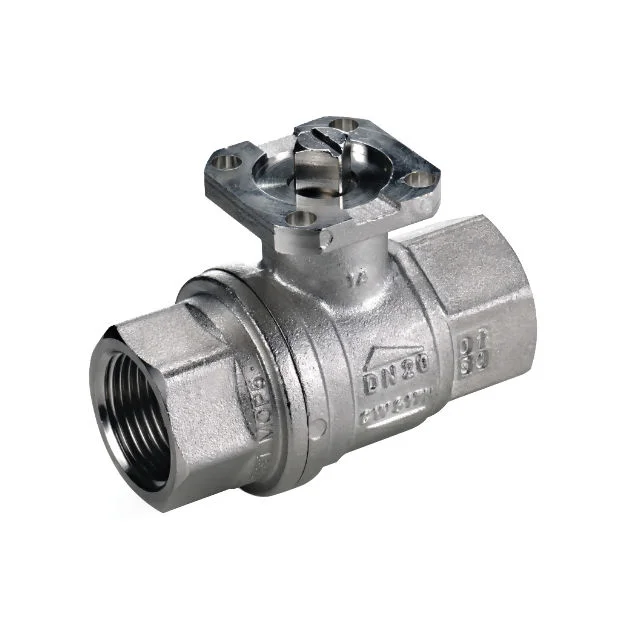

AV-4502 Brass Ball Valve - EN331 Gas Approved - ISO Top

The AV-4502 is a gas-approved valve designed for reliable gas control in industrial applications. It features a Screwed BSPP end connection, ensuring secure installation. The nickel-plated brass body enhances corrosion resistance and durability, making it suitable for harsh environments. With a temperature range of -40 to 170 degrees Celsius, it can handle a wide range of operating conditions. This valve's ISO top allows for easy actuation and control. It meets stringent EN331 gas approval standards, ensuring safety and performance in gas-related applications, and its robust design makes it ideal for demanding industrial settings.

Size Range: 1/2" to 2"
Body Materials: Brass
Body Type: Nickel Plated Brass Body
Applications:
Pressure Rating: PN40
End Connections: Screwed BSPP
Contact Us

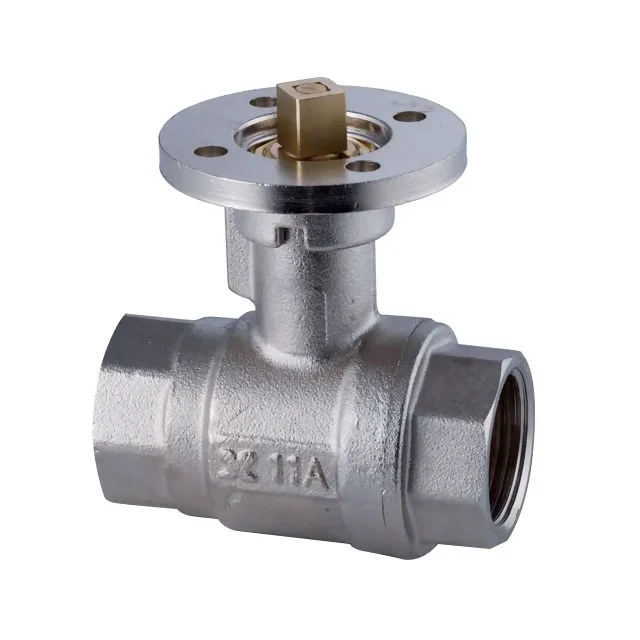

AV-4505 Brass Ball Valve - ISO Top - Low Torque

The AV-4505 is a precision-engineered valve designed for efficient and low-torque operation. Featuring a Screwed BSPP end connection, it ensures a secure and leak-free connection. Its nickel-plated brass body not only provides excellent corrosion resistance but also enhances its durability. With a temperature range spanning from -10°C to 100°C, this valve is suitable for a broad range of applications, ensuring reliable flow control in both low and high-temperature environments. Its ISO top allows for easy actuator or automation integration, making it a versatile choice for industrial and commercial applications that require precise fluid control.

Size Range: 1/4" to 4"
Body Materials: Brass
Body Type: Nickel Plated Brass Body
Applications:
Pressure Rating: PN40 (1/4" - 2 1/2") PN25 (3") PN16 (4")
End Connections: Screwed BSPP
Contact Us

AV-4507 / 08 Brass Ball Valve - V-Notch Ball - ISO Top

The AV-4507 and 4508 are precision-engineered valves designed for precise flow control in industrial applications. They feature a Screwed BSPP end connection for easy installation, a nickel-plated brass body for corrosion resistance, and a chrome-plated brass ball for enhanced durability. These valves incorporate a carbographite reinforced PTFE seat, ensuring a tight seal and long service life. With a temperature range of -20 to 180 degrees Celsius, these valves are suitable for a wide range of operating conditions, making them a reliable choice for applications where precise control and temperature flexibility are crucial. The AV-4507 features a 30 degree V-Notch, and the AV-4508 features a 60 degree V-Notch allowing for a finer level of control.

Size Range: 1/2" to 1"
Body Materials: Brass
Body Type: Nickel Plated Brass Body
Applications:
Pressure Rating: PN40
End Connections: Screwed BSPP
Contact Us

AV-4509 Brass Ball Valve - Extended Neck - ISO Top

The AV-4509 is a versatile valve designed for precise fluid control in various industrial applications. Featuring a Screwed BSPP end connection, it can be easily installed in pipelines. The ISO 5211 Connection for Direct Mount allows for the direct attachment of actuation devices, enhancing automation possibilities. With a temperature range of -20 to 180 degrees Celsius, it is suitable for both cold and hot fluid handling, making it a reliable choice for applications requiring precise temperature control. This valve's extended neck design ensures efficient operation and maintenance while maintaining durability and performance in demanding environments.

Size Range: 1/2" to 2"
Body Materials: Brass
Body Type: TBA
Applications:
Pressure Rating: PN40
End Connections: Screwed BSPP
Contact Us

Frequently Asked Questions

A brass ball valve is a type of valve used to control the flow of fluids in plumbing systems and other applications. It features a spherical closure (ball) with a hole through it for fluid to pass.

Brass ball valves are known for their durability, corrosion resistance, and reliability. They are suitable for a wide range of applications and provide a secure shut-off.

Brass ball valves work by turning the handle, which rotates the ball inside the valve. When the hole in the ball aligns with the flow direction, fluid can pass through; when closed, it blocks the flow.

Brass ball valves come in various configurations, including full-port, reduced-port, and multi-port options, each designed for specific applications.

Wafer pattern valves are designed for installation between two flanges at intermediate points within the process pipeline, while lugged pattern valves use threaded lugs for precise self-centering capabilities and are commonly used as dead-end service valves or for maintenance purposes.

Brass ball valves can be used in high-pressure systems, but it's essential to choose the right type and size to match the pressure requirements.

Brass ball valves generally require minimal maintenance. Regular inspection and lubrication of the handle may be needed for smooth operation.

Yes, brass ball valves can be used for controlling gas flow, but it's crucial to select models designed for gas applications.

Yes, brass ball valves are suitable for potable water systems, but it's essential to use lead-free valves for drinking water. These can be identified through whether such valve has WRAS Approval.

Installing and replacing brass ball valves typically involves cutting and soldering or threading the pipe ends to connect the valve securely.

FAQ

Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

ISO Top Brass Ball Valves
