The AV-L6NC0-ROM DIN PN40 actuated ball valves offer full-flow, high-pressure performance with a maximum bore of 6 inches. These ball valves can be conveniently installed between two different flanges in a pipeline. They hold certifications from DNV, SIL 2, Lloyds Register, and Nace MR-0175. Additional options for the ball valves include the presence of upstream and cavity relief holes, along with a high-temperature spindle extension for insulation and steam actuation. For all your automation needs, you can place your trust in Rotork Electric Actuators. With manufacturing facilities, service centres, and sales offices spanning the globe, we ensure unparalleled customer service with swift delivery and ongoing accessible support.

Shop Help Me

Key features and benefits of the AV-L6NC0-ROM Actuated Ball Valves.

Key Features

The AV-L6NC0ROM DIN PN40 actuated ball valves provide a high pressure full flow operation with a bore of up to 6 inches.

Key Features

Rotork’s vast network of manufacturing sites, service centres and sales offices throughout the world allows them to provide unrivalled customer services with an ongoing support system in place for when you need it most.

Key Features

Rotork Electric Actuators are a trusted brand for all your automation needs. With manufacturing sites, service centres and sales offices throughout the world to provide unrivalled customer services with fast delivery as well as ongoing accessible support.

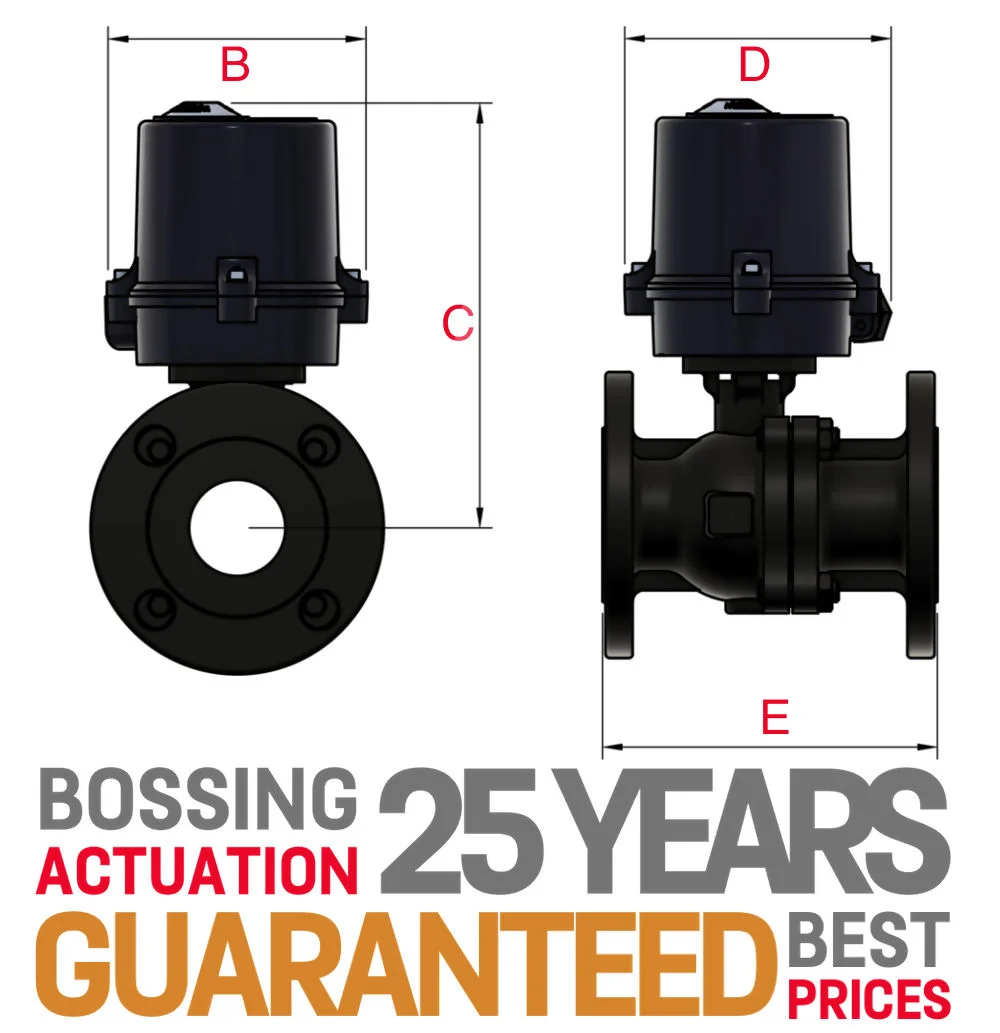

	B	C	D	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA
1/4"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3/8"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
1/2"	72.00	120.00	137.00	72.00	120.00	137.00	59.00
3/4"	72.00	126.00	137.00	72.00	126.00	137.00	69.00
1"	72.00	130.00	137.00	72.00	130.00	137.00	83.00
1 1/4"	93.00	168.50	203.50	72.00	135.50	137.00	94.00
1 1/2"	93.00	180.00	203.50	84.50	163.00	153.50	102.00
2"	106.00	200.50	153.50	84.50	170.50	153.50	124.00
2 1/2"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Body Seal
Stem Packing Material:	Grafoil
Design Standard:	EN 12516-1
Wall Thickness:	EN 12516-1
Inspection & Testing:	EN 12266-1
Face 2 Face:	DIN 3202 F-4 (1/2" - 4") DIN 3202 F-5 (5" - 6")

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.

No.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

BROCHURES

OPERATIONS

CERTIFICATES & APPROVALS
