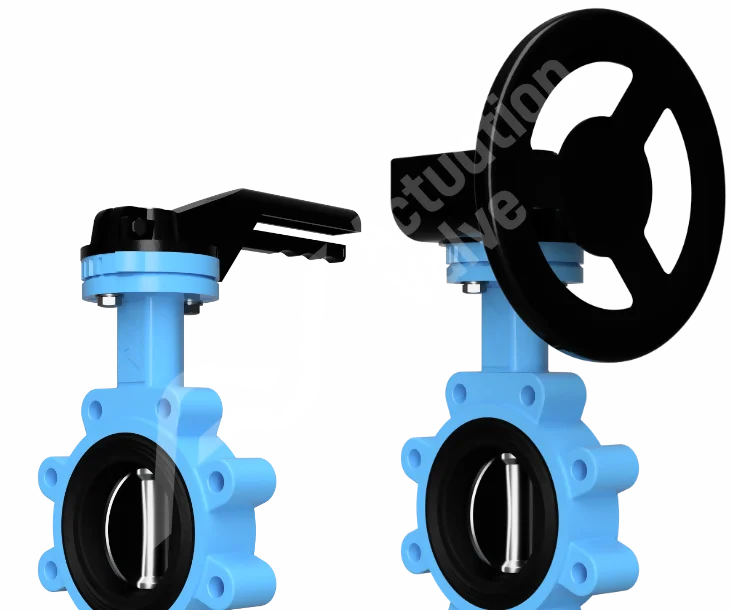

10L9020 Lugged Gear-Lever Operated Butterfly Valves

The TTV 10L9020 Butterfly Valve stands out as an exceptionally cost-effective and economically designed valve within the TTV lineup. Its high-grade GJS500 Cast Iron disc and rubber seat-liner ensure robust resistance to a wide spectrum of mediums and temperatures, adding to its economical value. Additionally, the external cast iron body not only shields against typical weathering effects but also contributes to its extended lifespan, making it a prudent investment. Moreover, the inclusion of a lockable lever operator as standard in the 10L9020 Butterfly Valves further enhances its economic appeal, providing a reliable and cost-effective solution for various applications.
Shop

Key Features

Key features and benefits of 10L9020 Lugged Butterfly Valves.
1

Key Features

The valve is constructed with a high-quality ductile iron disc and a rubber seat-liner, ensuring reliable performance while keeping costs in check.
2

Key Features

Thanks to its internal wetted materials, the valve demonstrates remarkable resistance to a wide range of mediums and temperatures, reducing the need for frequent replacements or maintenance.
3

Key Features

The external cast iron body provides exceptional protection against general weathering, contributing to an extended operational life and minimising replacement costs.

Choose Your Rubber

Material Applications Temperature
EPDM Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines -20°C +110°C
High Temperature EPDM Super Heated Water -20°C +130°C
NBR Buna Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air -10°C +80°C
Hypalon Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions -10°C +80°C
Viton Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels -5°C +180°C
Polyisoprene Water, Alcohols, Abrasive Substances (Call To Check), Ketones, -10°C +60°C
Silicone Low & High Temperature Resistance Applications -30°C +150°C
High Temp Silicone Super Heated Water -50°C +160°C
Epichlorohydrin Ozone Resistance, Hydrocarbons, Aromatic Oils -25°C +145°C

Take A Seat

Common Soft Seat Materials

  • PDF
EPDM

DN32-DN200
  • PDF
EPDM

DN250-DN400
  • PDF
EPDM

DN450-DN1600
  • PDF
NBR BUNA

DN32-DN200
  • PDF
NBR BUNA

DN250-DN400
  • PDF
NBR BUNA

DN450-DN1600

Top Notch.

All Butterfly Valves come as standard with a Top Notch Lock Plate. Adjustable at set degrees throughout the Valve travel cycle. Are your current supplies as good? We very much doubt it.

HOT Stuff

  • PDF
High Temp EPDM

DN32-DN200
  • PDF
High Temp EPDM

DN250-DN400
  • PDF
High Temp EPDM

DN450-DN1600
  • PDF
High Temp Silicone

DN32-DN200
  • PDF
High Temp Silicone

DN250-DN400
  • PDF
High Temp Silicone

DN450-DN1600

OTHER Stuff

  • PDF
Hypalon

DN32-DN200
  • PDF
Hypalon

DN250-DN400
  • PDF
Hypalon

DN450-DN1600
  • PDF
Polyisoprene

DN32-DN200
  • PDF
Polyisoprene

DN250-DN400
  • PDF
Polyisoprene

DN450-DN1600

Valve Standards & Stuff
Body Material: GJL250 (Gris/ Cast Iron)
Seats Material: EPDM
Design Standard: Concentric, Soft Seat
Face To Face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, 100% Tight Shut Off, API 598
