Actuated Ball Valves

Recognised as leaders for Valve Automation services in the UK, Actuation Valve are able to offer a comprehensive range of actuated ball valves to suit all applications and industries. All of our Valves are assembled & tested in house by a team of highly experienced, skilled engineers who take pride in their work whether this be via direct mount or precision machined, custom bracket & shaft assemblies.

2 Piece Full Bore Wras Approved Brass Actuated Ball Valves

Wras Ball Valves are designed with The Water Regulations Advisory Scheme in mind. They have been created so that it's easier for you to comply with WRAS regulations and ensure your business or organisation is safe from fines or prosecution due to non-compliance. The Wras approved ball valve features a full bore flow which allow for maximum flow with minimal pressure drop. The quality brass body allows for operating pressures capable of meeting PN40 ratings. Actuation Valve provide fast turnaround times without sacrificing quality or expertise and all orders come with a two page test report detailing all opening/closing times on each valve tested. Whether you need one product or several hundred off-the-shelf parts, we can deliver.

Size Range: DN15-DN100 (1/2"-4")
Body Materials: Brass CW 617 N
Body Type: Full Bore, 2 Piece
Applications: Water, Gas, Air, Drinking Water, Waste Water (See Chart For More)
Pressure Rating: 1000 PSI
End Connections: Screwed BSPP
Find Out More

2 Piece Full Bore Screwed Stainless Steel Actuated Ball Valves

The AV-L2000 two piece full bore stainless steel ball valves feature a compact body design taking up less space in the pipeline. This also reduces overall weight and cost of the actuated valve package when compared to the 3 piece ball valves. The industry-leading AV-L2000 Ball Valve has been designed specifically for small to medium sized control systems with reduced torques. This can help reduce costs and increase performance by allowing smooth operation from your valves. We assemble and test all of our products in-house so we can control everything and make sure you get a high quality product that will last. All of our products come with a two page test report detailing every aspect of operation including opening/closing times and pressure ratings.

Size Range: DN08-DN80 (1/4"-3")
Body Materials: Stainless Steel A351 CF8M 316
Body Type: Full Bore, 2 Piece
Applications: Water, Gas, Air, Oil, Waste Water (See Chart For More)
Pressure Rating: 1000 PSI
End Connections: Screwed BSPP/NPT
Find Out More

3 Piece Full Bore Stainless Steel Premium Actuated Ball Valves

This isolation Ball Valve features an innovative 3 piece body design that allows for future proof preventive maintenance schedules by easily removing one section of the body at a time for seal replacements instead of having to take apart the entire valve each time your schedule requires. These ball valves are available in screwed connections NPT & BSP and they work great in any application where a flow control device is needed. They're fully compliant with safety standards so they'll keep your workplace safe while being easy on your budget at the same time. Our stainless steel ball valves come pre-tested so you can get them up and running immediately. You will also receive a two page test report detailing all opening/closing times after your order has been completed.

Size Range: DN08-DN100 (1/4"-4")
Body Materials: Stainless Steel A351 CF8M 316
Body Type: Full Bore, 3 Piece
Applications: Water, Gas, Air, Oil, Waste Water (See Chart For More)
Pressure Rating: 1000 PSI
End Connections: Screwed BSPP/NPT, Butt Weld, Socket Weld
Find Out More

3 Piece Heavy Duty Stainless Steel Full Bore Actuated Ball Valves

The AV-L8000FS heavy duty ball valves is suitable for use on heavy duty industrial applications where higher pressure ranges or temperatures may be required. The Valve features PTFE TFM 4215 ball seats with grafoil stem sealing. Our team has decades of experience working with complex automation systems, which means we can provide high quality products quickly and affordably. Simply tell us what you need, and we'll take care of everything else. Low Torque requirements from the AV-L8000FS Ball Valve allow for smooth operation and reduce the costs of Actuated Ball Valves with smaller Actuators able to automate Valves usually demanding large units.

Size Range: DN08-DN50 (1/4"-2")
Body Materials: Stainless Steel A351 CF8M 316
Body Type: Full Bore, 3 Piece
Applications: Water, Gas, Air, Oil, Waste Water, Steam (See Chart For More)
Pressure Rating: 2000 PSI (1/4" - 1") 1500 PSI (1 1/4" - 2")
End Connections: Screwed, Butt Weld, Socket Weld
Find Out More

3 Piece Heavy Duty Full Bore Carbon Steel Actuated Ball Valves

Suitable for working pressures up 2000 PSI (1” and below), the AV-L8000FC heavy duty ball valves off superior performance to that of our standard range of Valves. Designed to firesafe standards API 607 5th ED 2005 (Valve only) this heavily certified valve is reliable and robust. These heavy duty carbon steel ball valve is ideal for use in process industries such as chemical processing plants, oil refineries and water treatment facilities. With its rugged carbon steel body you can be sure your equipment will perform reliably no matter the environment. Actuation Valve provide fast turnaround times without sacrificing quality or expertise and all orders come with a two page test report detailing all opening/closing times on each valve tested. Whether you need one product or several hundred off-the-shelf parts, we can deliver.

Size Range: DN08-DN50 (1/4"-2")
Body Materials: ASTM A216 WCB Carbon Steel
Body Type: Full Bore, 3 Piece
Applications: Water, Gas, Air, Oil, Waste Water, Steam (See Chart For More)
Pressure Rating: 2000 PSI (1/4" - 1") 1500 PSI (1 1/4" - 2")
End Connections: Screwed, Socket Weld
Find Out More

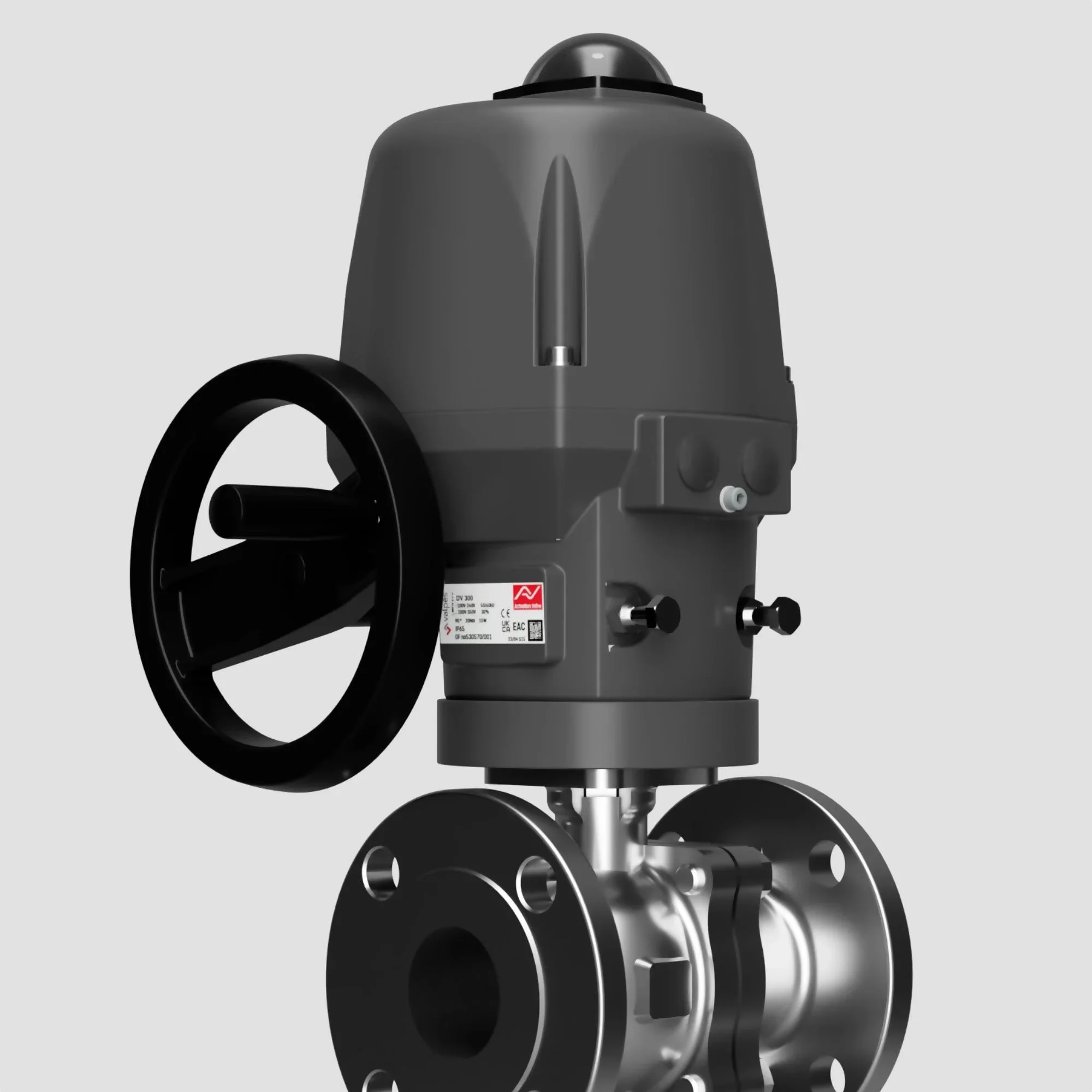

2 Piece FB Flanged ANSI 150 Actuated Stainless Steel Ball Valves

If you’re looking for an alternative solution then look no further than our AV-L6100 Series Actuated Ball Valves. These products offer improved sealing capabilities while also reducing operating costs thanks to their low torque requirements. The AV-L6100 line of stainless steel ball valves is designed with you in mind. They're easy to install and incredibly durable so you get the most out of your product without worrying about repairs or replacements down the road. The AV-L6100 Ball Valves are silicone free and suitable for use on oils based paint products and applications. This allows complete assurance that the Valve will not apply any contamination to the medium that could effect the end finish. Extremely important in car manufacturing.

Size Range: DN15-DN200 (1/2"-8")
Body Materials: Stainless Steel A351 CF8M 316
Body Type: Full Bore, 2 Piece
Applications: Water, Gas, Air, Oil, Waste Water (See Chart For More)
Pressure Rating: 20 Bar
End Connections: Flanged ANSI 150
Find Out More

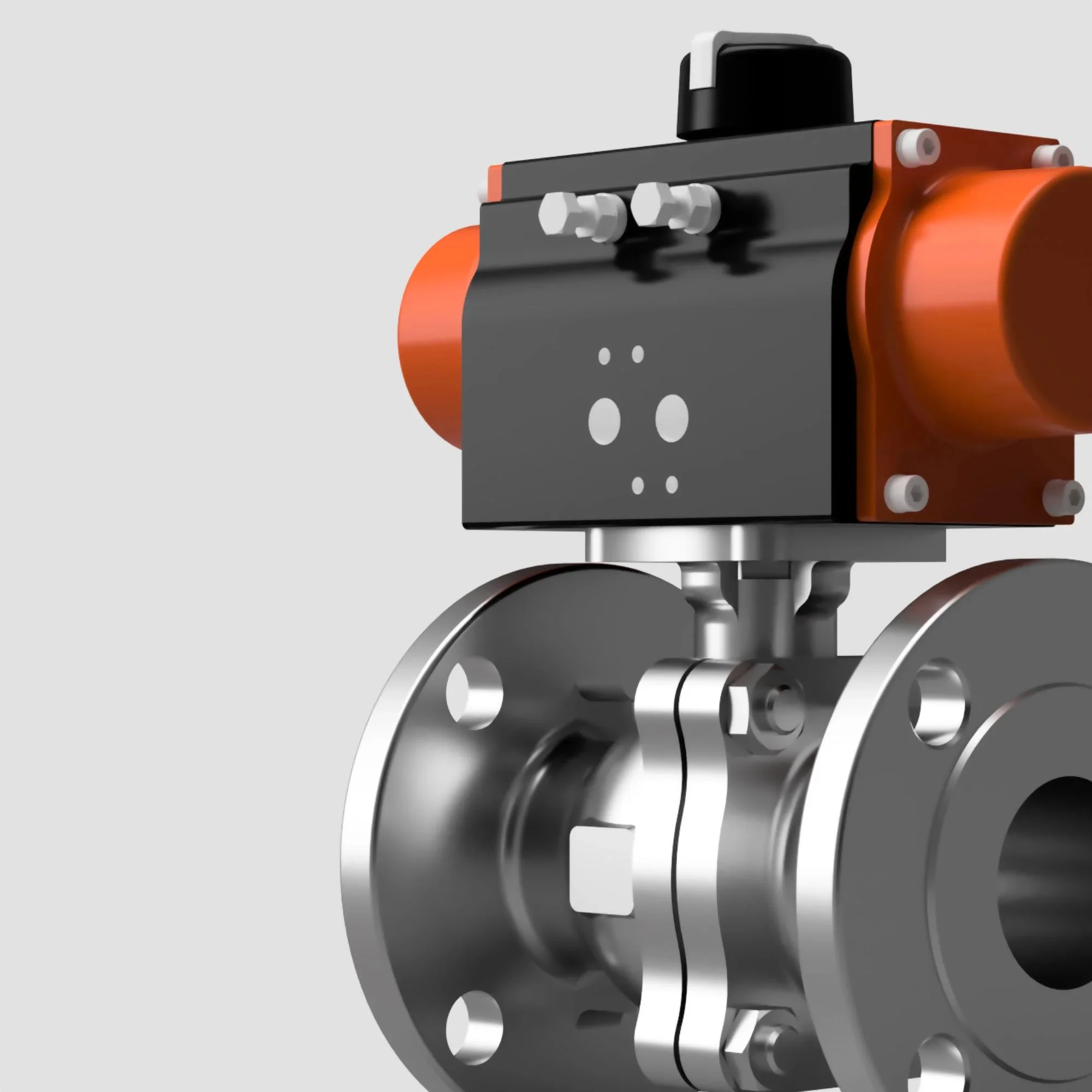

2 Piece FB Flanged PN16 Actuated Stainless Steel Ball Valves

The AV-L6K00 is an affordable line of high-quality stainless steel ball valves that won't break your budget. These durable products will give you years of trouble-free service at a fraction of the price that other companies charge for similar products. The valve features a direct mount actuation pad for quick and easy automation. This allows us to get products out of the door to you quicker whilst also reducing the overall footprint of package and most importantly wight and cost. WRAS approved TFM 1600 PTFE seats ensure safe operation while our FDA-approved materials provide peace of mind knowing your products will be handled safely without compromising quality or performance when used correctly.

Size Range: DN15-DN150 (1/2"-6")
Body Materials: Stainless Steel A351 CF8M 316
Body Type: Full Bore, 2 Piece
Applications: Water, Gas, Air, Oil, Waste Water (See Chart For More)
Pressure Rating: 16 Bar
End Connections: Flanged DIN PN16
Find Out More

2 Piece FB Flanged DIN PN40 Actuated Stainless Steel Ball Valves

The AV-L6N00 DIN PN40 actuated ball valves provide a high pressure full flow operation with a bore of up to 6 inches. The actuated ball valves connections offer installation between two alternate flanges within a pipleine. Valve approvals include DNV, SIL 2, Lloyds Register & Nace MR-0175. Additional ball valve options include an upstream and cavity relief hold drilled into the ball and high temperature spindle extension for insulation and steam actuation. We assemble and test all of our products in-house so we can control everything and make sure you get a high quality product that will last. All of our products come with a two page test report detailing every aspect of operation including opening/closing times and pressure ratings

Size Range: DN15-DN150 (1/2"-6")
Body Materials: Stainless Steel A351 CF8M 316
Body Type: Full Bore, 2 Piece
Applications: Water, Gas, Air, Oil, Waste Water (See Chart For More)
Pressure Rating: 40 Bar
End Connections: Flanged DIN PN40
Find Out More

Hygienic Full Bore Tri Clamp & Weld OD Actuated Ball Valves

The AV-L91B0 & AV-L9CB0 form part of the sanitary and hygienic full bore actuated valve packages from actuation valve. This 3 piece body valve has a swing out centre section that is perfect for scheduled maintenance and seat replacements. The full bore body design and cavity filled seats create a freee flow path that does not allow debris or contaminents to build up with temperatures suitable for up to 200 DegC steam cleaning CIP and SIS. Various approvals inlcude FDA & Wras approved seats with a bovine free supply. Our team has decades of experience working with complex automation systems, which means we can provide high quality products quickly and affordably. Simply tell us what you need, and we'll take care of everything else.

Size Range: DN15-DN100 (1/2"-4")
Body Materials: Stainless Steel A351 CF8M 316, CF3M 316L Weld Ends
Body Type: Full Bore, 3 Piece
Applications: Food & Beverage, Brewing, Dairy, Consumer Health, Pharma
Pressure Rating: 400 PSI
End Connections: Clamp & Hygienic Weld BS4825
Find Out More

3-Way PN16/PN40 Full Bore Stainless Steel Actuated Ball Valves

3-Way Ball Valves are available as an L Port or T Port can be used in heating and hot water applications to regulate temperature. The valves control the flow of liquid passing through them to either allow flow in one direction or another, or divert flow from one path to another. Configurable as an L or T Port Operation the AV-L5N00 3-Way Multi Port Ball Valves will handle the widest variety of applications with minimal pressure drop, minimal cavitation and excellent flow characteristics. The Stainless Steel 3-Way Ball Valve is affordable enough for residential use and durable enough for commercial applications. It's made from high quality materials that will last for many years without excessive wear seen in some other Manufacturers Valves.

Size Range: DN15-DN100 (1/2"-4")
Body Materials: Stainless Steel A351 CF8M 316
Body Type: Full Bore, 3-Way, Diverting, L Port, T Port
Applications: Water, Gas, Air, Oil, Waste Water (See Chart For More)
Pressure Rating: 16-40 Bar
End connections: Flanged PN16/PN40
Find Out More

3-Way Reduced Bore Screwed Stainless Steel Actuated Ball Valves

The AV-L5000 & 5100 3-Way Ball Valve is suitable for mixing, distributing or diverting water or other mediums. The stainless steel construction provides durability and corrosive resistance to chemicals and external factors. Options for L or T Port Configurations at point of order. The AV-L5000 & 5100 3-Way Ball Valves are silicone free and suitable for use on oils based paint products and applications. This allows complete assurance that the Valve will not apply any contamination to the medium that could effect the end finish. Available in screwed connections NPT & BSP the versatile and economical Valve comes with a WRAS (Water Regulations Advisory Scheme) Certified TFM 1600 PTFE Seat which is also FDA approved.

Size Range: DN08-DN100 (1/4"-4")
Body Materials: Stainless Steel A351 CF8M 316
Body Type: Reduced Bore, 3-Way, Diverting, L Port, T Port
Applications: Water, Gas, Air, Oil, Waste Water (See Chart For More)
Pressure Rating: 1000 PSI
End connections: Screwed BSPP/NPT
Find Out More

3-Way Full Bore Screwed Stainless Steel Actuated Ball Valves

The AV-L5300 & 5400 Full Bore Screwed 3-Way Stainless Steel Ball Valve is a versatile, economical and durable valve which has been developed specifically to provide long service life for applications where reliability is key. The 3-Way diverter valve features a direct mount actuation pad for quick and easy automation. This allows us to get products out of the door to you quicker whilst also reducing the overall footprint of package and most importantly wight and cost. The AV-L5300 & 5400 Full Bore 3-Way Ball Valve is available with two configurations. L Port & T Port. The difference between the two is that the L Port version can offer complete shutoff depending on actuator type where as the T Port offers diversion only or constant flow form one port to another.

Size Range: DN08-DN100 (1/4"-4")
Body Materials: Stainless Steel A351 CF8M 316
Body Type: Full Bore, 3-Way, Diverting, L Port, T Port
Applications: Water, Gas, Air, Oil, Waste Water (See Chart For More)
Pressure Rating: 1000 PSI
End Connections: Screwed BSPP/NPT
Find Out More

Benefits Of Actuated Ball Valves

Actuated ball valves are the perfect process control choice for Shut Off/On-Off/Isolation duties where a manual ball valve would not suffice whether this be for liquids, gases, steam or another medium. This could be for a number reasons including the remote location of the Valve, Torque required to operate larger sized units, Synchronised timing, Reliability and also security to avoid any possible misuse.

Best Engineers In The Business

Our team of experts are capable of specifying the correct Actuated Ball Valve to meet your requirements based on Flow, Temperature, Pressure, Media and any other limitations/restrictions you may have. All of our valves are assembled & tested in house by a team of highly experienced, skilled engineers who take pride in their work whether this be via direct mount or precision machined, custom bracket & shaft assemblies.

Actuated Ball Valve Videos

Electric Or Pneumatic Actuated Ball Valves

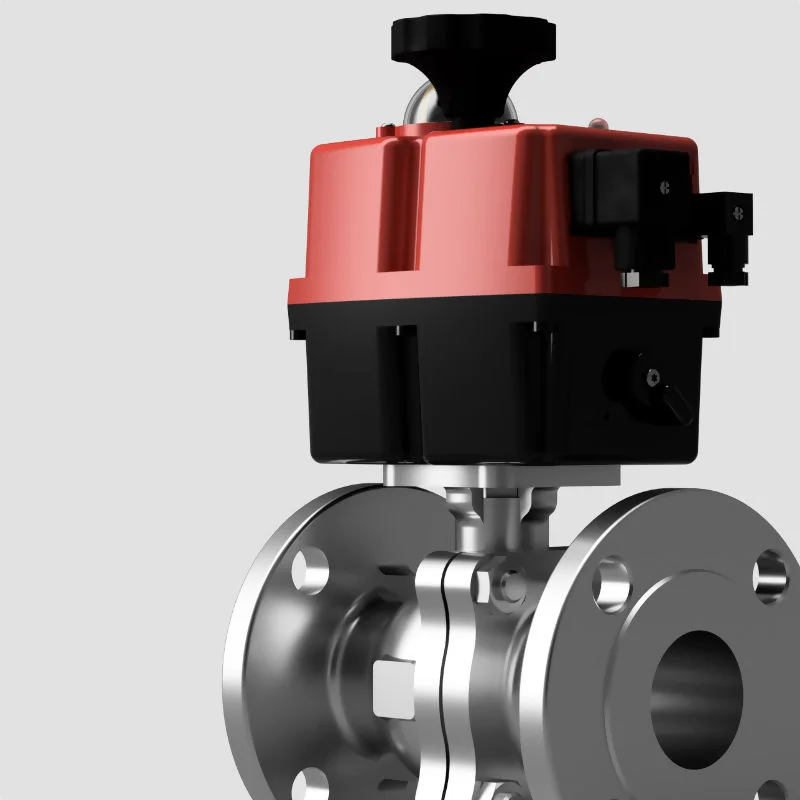

Our ball valves can be offered Electrically or Pneumatically operated depending on your specifications and onsite usability. The Actuators offered have been chosen carefully over our previous 20 years of experience in the Industry to ensure we are able to deliver High Quality, Reliable, Compact & Lightweight assemblies for all environment and protection zones from the very best of American, European & Japanese Manufacturers.

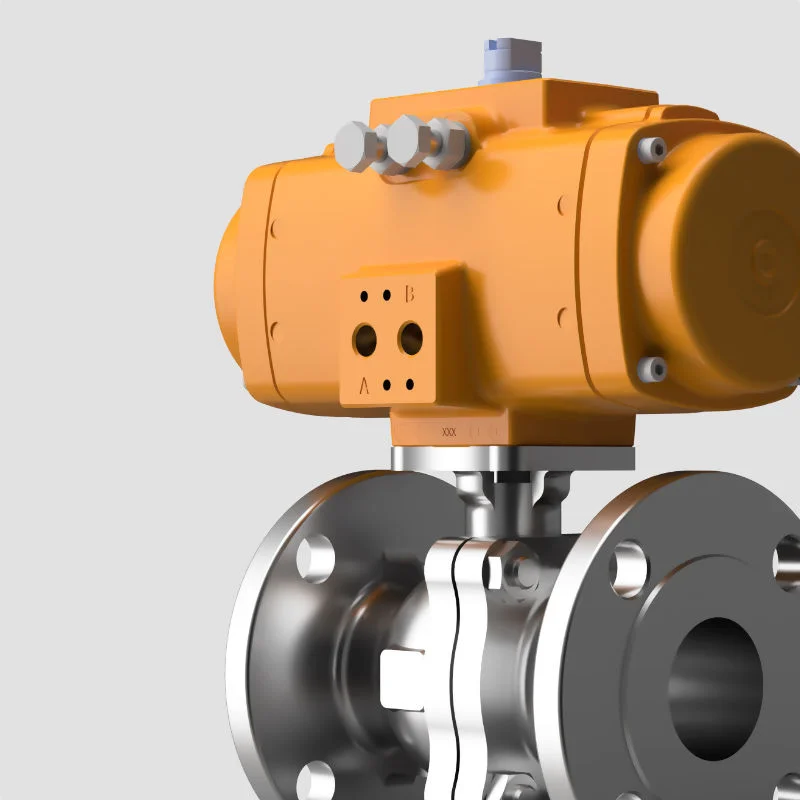

The Quarter Turn, Air Torque Pneumatic Actuator is available in both Spring Return and Double Acting (Air to open/Air to close) setups. All of our pneumatically actuated ball valves are based on an air supply of 5.5 Bar and unless otherwise specified, have a minimum of 30% safety included in sizing, ensuring the Valve will operate in all situations.

The Air Torque Actuator comes with an Anodised Aluminium Body as standard and Stainless Steel/Epoxy Coated versions are available for areas which require further protection. An Anti-Blowout shaft completes the safety features with many approval ratings including Atex 94/9EC, SIL3 IEC 61508 & ISO 9001-2000.

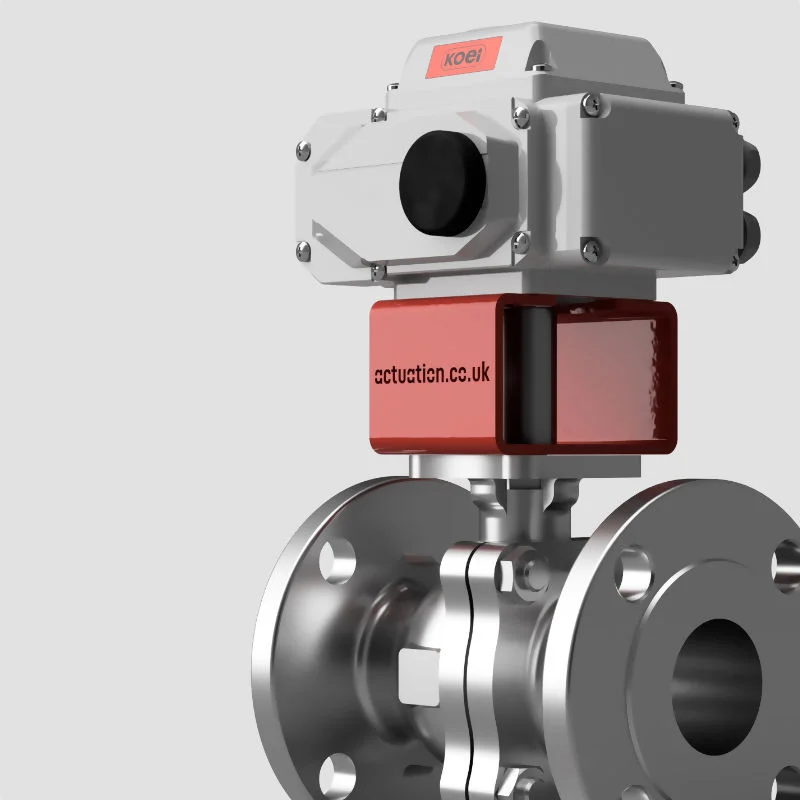

Electrically actuated valves form part of our Fire Protection services that we provide for the Ministry of Defence and our experience, quality and reliability offered are second to none in the industry. From our Koei, Asahi & Rotork range of Electric Actuators, we are able to offer a comprehensive scope of voltages and protection classes up to NEMA 9 (Nema 4/4X-IP65 as standard) with low cost, maintenance-free operation.

Immense Stocks

Powerful Specifications

Size Range: DN08-DN1500 (1/4"-60")
Body Materials: Carbon Steel, Stainless Steel, Bronze, Duplex, Super Duplex
Body Type: Floating Ball, DBB, Fully Welded, Sub Sea, Side/Top Entry
Seat Materials: PTFE, RPTFE, Devlon, Derlin, PCTFE, Peek, Vespel, UHMWPE, Metal
Shaft Materials: Stainless Steel, Bronze, Monel, Duplex, Super Duplex
Applications: Chemical, Marine, Food/Beverage, Consumer Health, Petrochemical, Oil & Gas, Water
Pressure Rating: PN10-PN420, ANSI 150-ANSI 2500, 1000-6000 WOG
Temperature Rating: Min-250°C Max700°C
End Connections: Flanged, Screwed BSP/NPT, Socket Weld/Butt Weld, Hygienic Tri Clamp/Weld OD
Actuation: Pneumatic, Electric, Hydraulic, Electro-Pneumatic
