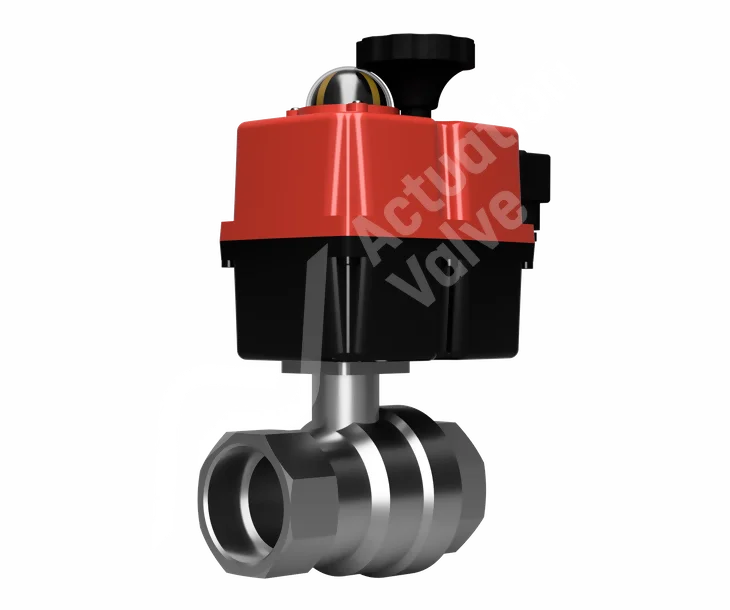

J4CS J&J Electric Actuator 2 Piece Stainless Steel Valves

The Stainless Steel Ball Valve is affordable enough for residential use and durable enough for commercial applications. It's made from high quality materials that will last for many years without excessive wear seen in some other Manufacturers Valves. The AV-L2000 two piece full bore stainless steel ball valve has been designed for use in high applications where space is limited or weight reduction is paramount. This compact unit reduces overall package size compared to 3 piece designs resulting in a lighter weight actuated valve. J&J Electric Actuators offers a digital positioner that allows for precise control of your valves, with operation torques ranging from 20NM - 300NM. The instrumentation signals accepted by the DPS kit include 4-20mA, 0-20mA, 0-10V or 1-10V.

Key Features

Key features and benefits of AV-L2000JJ Actuated Ball Valves.
1

Key Features

The AV-L2000 Ball Valves are silicone free and suitable for use on oils based paint products and applications. This allows complete assurance that the Valve will not apply any contamination to the medium that could effect the end finish. Extremely important in car manufacturing.
2

Key Features

Our range of stainless steel ball valves have been designed to meet your needs from high to low pressure applications where long life expectancy is important. We also offer our ball valves in numerous sizes so you can be sure we’ll have what you need at an affordable price.
3

Key Features

The J&J J4CS electric valve actuators are designed for 75% duty rating. The electric actuator offers significant cost savings compared to that of pneumatic valve actuators with little ongoing maintenance costs from initial purchase.

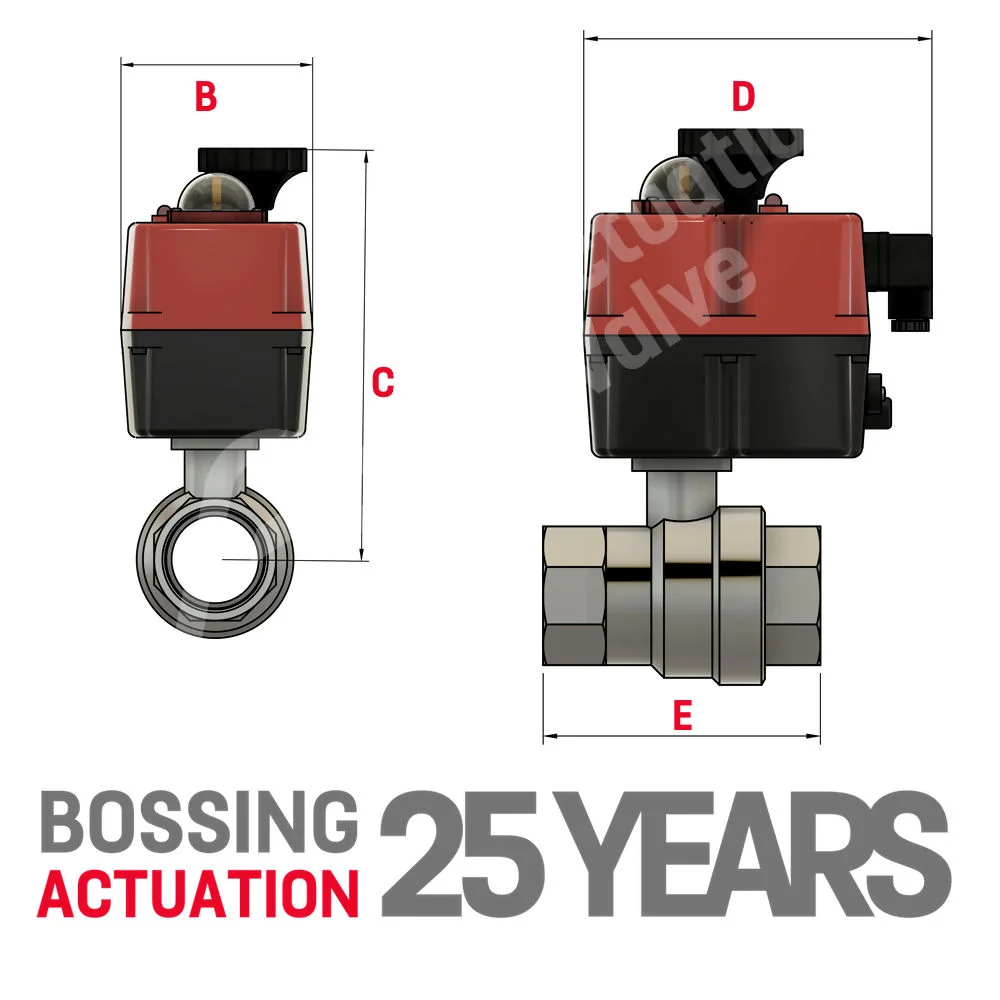

AV-L2000JJ Ball Valve Technical Stuff

B C D E Model
1/4" 110.00 213.50 179.00 67.00 J4CS20
3/8" 110.00 213.50 179.00 67.00 J4CS20
1/2" 110.00 213.50 179.00 67.00 J4CS20
3/4" 110.00 220.00 179.00 70.40 J4CS20
1" 110.00 229.00 179.00 85.00 J4CS20
1 1/4" 110.00 233.50 179.00 94.00 J4CS20
1 1/2" 110.00 242.50 179.00 105.00 J4CS35
2" 110.00 274.50 181.00 125.00 J4CS55
2 1/2" 110.00 296.00 181.00 155.00 J4CS85
3" 214.00 363.00 235.00 173.00 J4CS140
4" TBA TBA TBA TBA TBA

AV-L2000JJ Ball Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10
Pressure Rating: 1000 PSI

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
