Butterfly Valves

Butterfly Valves are commonly used in applications that require isolation or flow control of liquids, gases and even some solid particles as part of a pipeline. These Industries can include Petroleum, Oil & Gas, Water, Wastewater, Chemical, Power, HVAC & Pharmaceutical. Allowing for a quick shut off, these types of butterfly valves are now commonly being used in place or as an alternative to Ball Valves. This is due to the generally lower cost, weight and installation difficulties that can come with larger sized Ball style with Butterfly requiring less space and support in the pipeline.

10W9020 - Wafer Pattern - Concentric Design

The TTV 10W9020 is a highly economical and versatile option in the TTV lineup of concentric designs. It is constructed with a high-quality GJS500-7 disc and a rubber seat-liner, providing cost-effective resistance to a wide range of substances and temperatures. Its external cast iron body not only withstands harsh weather conditions but also guarantees a long operational lifespan, making it a wise financial choice. Additionally, the valve comes with a lockable lever operator as a standard feature, enhancing its usability and cost-effectiveness for a variety of uses.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJL250 Cast Iron
Disc Materials: GJS500-7 Ductile Iron)
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air
Find Out More

10L9020 - Lugged Pattern - Concentric Design

The TTV 10L9020 is a standout choice in the TTV lineup, known for its exceptional cost-effectiveness and well-thought-out design. Its high-quality GJS500 Cast Iron disc and rubber seat-liner provide strong resistance to a wide range of substances and temperatures, adding to its overall value. Furthermore, the external cast iron body not only protects against typical weathering effects but also contributes to its extended lifespan, making it a wise investment. Additionally, the inclusion of a lockable lever operator as a standard feature in the 10L9020 further enhances its economic appeal, offering a reliable and cost-effective solution for a variety of applications.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJL250 Cast Iron
Disc Materials: GJS500-7 Ductile Iron
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air
Find Out More

20W3040 - Wafer Pattern - Concentric Design

The TTV 20W3040 is a Rilsan Coated Ductile Iron Bodied Valve with a CF8M Stainless Steel Disc & 304 Stainless Steel Shaft. A one piece body concentric design features four entering lugs which allows for easy installation between two flanges at intermediate points within the process pipeline. Suitable for General Purpose applications for a range of industries the 20W3040 is both economical and versatile. A single piece shaft design brings high strength and engineering with direct mount capabilities for actuation assemblies. The “Dry Shaft” feature ensures fluid is again isolated from both the shaft and the body of the valve.

Size Range: DN32-DN1600 (1 1/4"-64")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air
Find Out More

20L3040 - Lugged Pattern - Concentric Design

The 20L3040 are commonly used in piping systems as a dead end service Valve or where regular/predicted disconnecting of the pipe on either side may need to be removed for maintenance and installation without disruption to both sides of the line. The single piece body with threaded lugs is installed using two sets of bolts (One set for each flange) and enables the installer precise self centering capabilities of the valve due to the body design between flanges. This valve, with its concentric design and replaceable seat that takes the shape of both sides to form a perfect seal. This is suitable for use on either an off or throttle setting in applications where you want complete flexibility for temperature or flow.

Size Range: DN32-DN1600 (1 1/4"-64")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air
Find Out More

50W3040 - Wafer Pattern - WCB Carbon Steel

The TTV 50W3040 is a Rilsan Coated WCB Carbon Steel Bodied Valve with a CF8M Stainless Steel Disc & 304 Stainless Steel Shaft. A one piece body concentric design features four entering lugs which allows for easy installation between two flanges at intermediate points within the process pipeline. Suitable for more demanding and rigorous applications to that of the 20W3040, this carbon steel valve offers solutions for both on and off or throttling applications. The quarter turn action offers quick opening or closing with ease of operation and the valve has good flow control characteristics. In the wide open position, the only obstruction to flow is that due to the thickness of the disk, so the pressure drop across the valve is small.

Size Range: DN32-DN1600 (1 1/4"-64")
Body Materials: WCB Carbon Steel
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air
Find Out More

50L3040 - Lugged Pattern - WCB Carbon Steel

Lug valves are a great way to make repairs in the field easy. They have threaded inserts at both sides of their body, which means you can install them with no nuts. If one side needs servicing all you need do is detach whichever suits best. The circular shaped disk turns about a dia­metrical axis within the cylindrical bore of the valve body and a quarter turn rotation of the disk opens or closes the valve. The basic simplicity of the design provides a compact and relatively low weight valve having few component parts. The streamlined design allows for very low pressure drops making them ideal for commercial applications where energy costs need to be kept as low as possible. Their compact size makes them perfect for situations where space is limited.

Size Range: DN32-DN1600 (1 1/4"-64")
Body Materials: WCB Carbon Steel
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air
Find Out More

40W4040 - Wafer Pattern - CF8M Stainless Steel

The 40W4040 Manual Butterfly range from Actuation Valve provides positive shutoff performance and reliability for both external and internal corrosive applications. The stainless steel valve body promotes longevity with a replaceable concentirc rubber lined seat. Whether you are looking for a simple Lever Operated solution or multi turn Gear Box operated product, we have a range of Worm Gear and Chain Wheel valve packages to suit your requirements. Fully stainless steel materials. This package is designed to be used in harsh, external environments and mediums that are aggressive towards the material itself. It can be used for a variety of applications ranging from food & beverage to chemicals & petrochemicals.

Size Range: DN32-DN1600 (1 1/4"-64")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air, Corrosive, Chemical
Find Out More

40L4040 - Lugged Pattern - CF8M Stainless Steel

These valves are used to control the flow of fluids in a piping system. They have threaded inserts on both sides. The lugged design of these valves is great because it allows you to easily disconnect either side of the piping system without having to remove the valve itself. The 40L4040 is the ideal Valve design for protection against external corrosive elements aswell as medium duties. A combination of soft seat rubber materials are available for process and temperature requirements to suit most applications.

Size Range: DN32-DN1600 (1 1/4"-64")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air
Find Out More

20WP4040F0T - Wafer Pattern - PTFE Lined

Mainly for use in highly corrosive environments and higher service temperatures, the High Performance Wafer Pattern PTFE 20WP4040F0T features a split body design with four flanged hole drillings for easy maintenance and installation between flanges at desired locations within the pipeline where weight and space saving is a priority. The complete PTFE Seat avoids any possibility of cross-contamination providing a valve that is extremely resistant to chemicals and solvents with complete insolubility to 300°C. For additional abrasion resistance the option of a UHMWPE also is available.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

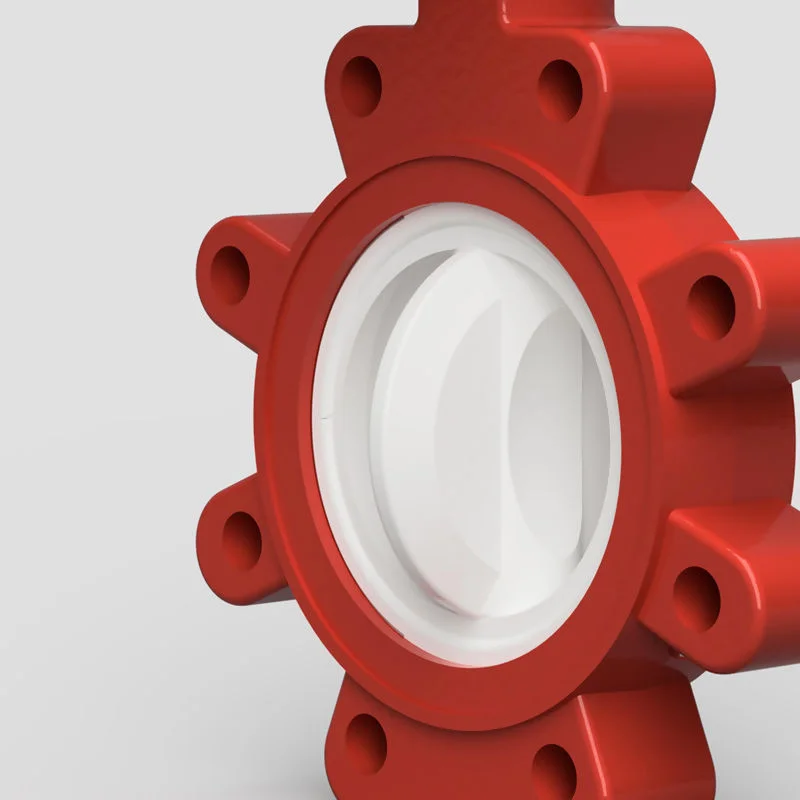

20LP4040F0T - Fully Lugged Pattern - PTFE Lined

This valve is suitable for both end of line shut off isolation and predictive maintennance schedules without disrupting both sides of the process. The PTFE seat and disc are fully encapsulated to offer a clean FDA approved contact surface with prolonged life expectancy. Higher temperatures are also acheived with this high performance valve. The split body design also provides replacement seat spares options when required. The TTV PTFE Seat Valves are suitable for applications with slurries, liquids and bulk solids. The valves are intended for use in the chemical, food and beverage, pulp and paper industry or with seawater or other aggressive media where standard material are not suitable.

Size Range: DN32-DN300 (1 1/4"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

40WP4040F0T - Wafer Type - PTFE Lined - CF8M SS

The 40WP4040F0T offers a very similar aggressive resistance and food grade option to that of the standard Valve whilst also providing external protection including corrosive environments as well as covering wash down requirements. The CF8M 316 stainless steel body material is extemely corrosion resistant to extternal deisgn factors and prolongs the life of the vlave. PTFE seats are replaceable as standard with easy interchangeability through the split body design. TTV's valve seat design offer alsmost universal chemical application coverage (Please check if not detailed) and in non toxic as standard.

Size Range: DN32-DN300 (1 1/4"-12")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

40LP4040F0T - Lugged Type - PTFE Lined - CF8M Stainless Steel

The 40LP4040F0T offers a bi-directional sealing solution with threaded screwed body lugs that allows for downstream pipe removal with maintenance schedules. The CF8M 316 stainless steel body material is extemely corrosion resistant to extternal deisgn factors and prolongs the life of the vlave. PTFE seats are replaceable as standard with easy interchangeability through the split body design. TTV's valve seat design offer alsmost universal chemical application coverage (Please check if not detailed) and in non toxic as standard. These valves are mainly used for highly corrosive applications that require optimum material resistance as well as clean or food grade requirements. The TTV PTFE material is approved by FDA.

Size Range: DN32-DN300 (1 1/4"-12")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

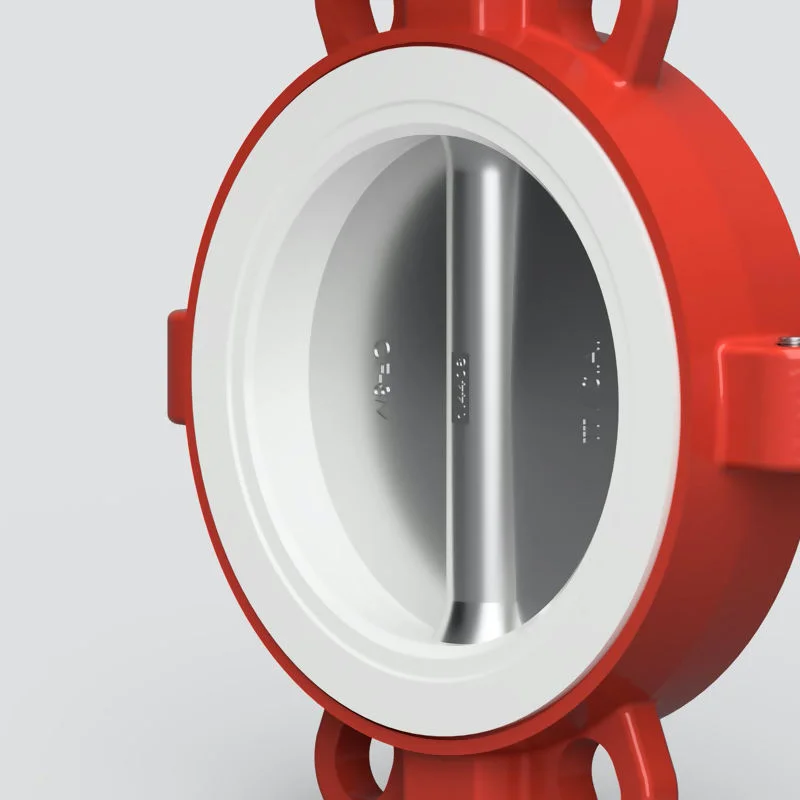

20WP4040F0 - Wafer Pattern - PTFE Seat

Mainly for use in semi corrosive environments and higher service temperatures the 20WP4040F0 features a split body single piece design with CF8M stainless steel disc. The featured valve is suitable for both on and off or throttling applications with approvals for the PTFE seat including FDA. The CF8M disc model is slightly more cost effective than the full lined option and also feautures redcued torque values for lower cost and redcued size. This valve is a high-temperature, chemical resistant valve that can handle extreme conditions. The internal seal of this unit consists of non-toxic and durable material.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

20LP4040F0 - Fully Lugged Pattern - PTFE Seat

The 20LP4040F0 is suitable for both end of line shut off isolation and predictive maintennance schedules without disrupting both sides of the process. The PTFE seat and CF8M disc offer a clean FDA approved contact surface with prolonged life expectancy. Higher temperatures are also acheived with these valves. The split body design also provides replacement seat spares options when required. Lower torque values than that of the full PTFE lined valves reduce actuation costs. Polished discs are available on a short factory lead time. For applications where you need your valve seals protected from corrosion and heat, our specialist design offers the perfect solution by using specially designed components made out of PTFE which can withstand even the most extreme operating conditions.

Size Range: DN32-DN300 (1 1/4"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

40WP4040F0 - Wafer PTFE Lined - CF8M Stainless Steel

The 40WP4040F0T Manual Butterfly range from Actuation Valve provides positive shutoff performance and reliability for both external and internal corrosive or food grade FDA approved applications. The stainless steel valve body promotes longevity with a replaceable PTFE seat. The PTFE Seat or Lined options are designed to shut off liquids, slurries and bulk solids with excellent reliability in highly aggressive environments. They're suitable for use on a wide range of processes from pharmaceuticals manufacturing through to petrochemical. The split body design on of the PTFE Seat and PTFE Lined ranges allow for quick and easy future maintenance requirements. Two body bolts allow the construction to be split into two components with the solid seat design interchangeable within minutes.

Size Range: DN32-DN1600 (1 1/4"-24")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

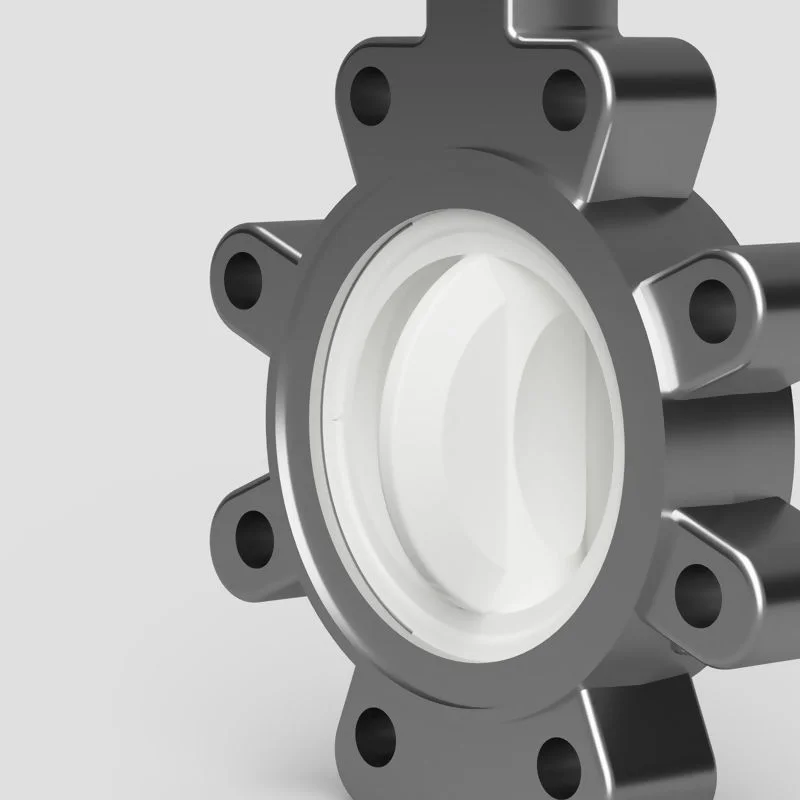

40LP4040F0 - Fully Lugged Pattern - PTFE Seat Stainless Steel

The 40LP4040F0 is suitable for both end of line shut off isolation and predictive maintennance schedules without disrupting both sides of the process. The PTFE seat and CF8M disc offer a clean FDA approved contact surface with prolonged life expectancy. Higher temperatures are also acheived with these valves. The split body design also provides replacement seat spares options when required. Lower torque values than that of the full PTFE lined valves reduce actuation costs. Polished discs are available on a short factory lead time.

Size Range: DN32-DN300 (1 1/4"-12")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

Colossus Manual High Performance - Double Offset

High-performance Metal Seated Manual Valves are designed for use in exceptionally harsh conditions with critical shutoff isolation and throttling control applications for both gases and liquids.  The aptly named Colossus is available in Double Eccentric Metal Seated, Double Eccentric PTFE Seated and Triple Eccentric Metal Seated body designs. These Firesafe Valves are now more commonly being used over that of equivalent sized Gate, Globe & Ball Valves. The Colossus Series offers exceptional performance at an affordable price point, making them perfect for a wide range of industrial applications. These PTFE  and metal seated valves feature double offset construction which allows them to handle higher operating pressures.

Size Range: DN50-DN600 (2"-24")
Body Materials: Cast Carbon Steel A216 WCB, Stainless Steel CF8M
Disc Materials: Stainless Steel CF8M
Seat Materials: RPTFE Soft Seat, F-316L Stainless Steel Hard Seat, Stellite, Hard Chromium
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel
Applications: Vacuum, Chemical, LPG/LNG, Hydrocarbons, Steam, Air, Bitumen, Corrosive, Thermal Oil
Find Out More

Lugged Type High Performance - Double Offset

Lug-style valves have threaded inserts at both sides of the body that allow them to be installed with only bolts and no nuts. The valve is placed between two flanges, one on each side. This setup permits either piece of piping disconnected without affecting the complete process. Due to the double offset movement, the rotation of the disc is eccentric over the seat. The rotational circular movement of the disc turns into an elliptical movement. So, the disc achieves just a few degrees contact with the seat before the valve is fully closed. The Colossus is one of our most reliable products because it's made from high-quality materials that can withstand the harshest conditions while still working reliably over long periods of time with minimal maintenance required.

Size Range: DN50-DN600 (2"-24")
Body Materials: Cast Carbon Steel A216 WCB, Stainless Steel CF8M
Disc Materials: Stainless Steel CF8M
Seat Materials: RPTFE Soft Seat, F-316L Stainless Steel Hard Seat, Stellite, Hard Chromium
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel
Applications: Vacuum, Chemical, LPG/LNG, Hydrocarbons, Steam, Air, Bitumen, Corrosive, Thermal Oil
Find Out More

Triple Offset Butterfly Valves

Size Range: DN50-DN1600 (2"-64")
Body Materials: Rilsan Coated
Disc Materials: CF8M 316 Stainless Steel
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel, Pneumatic, Electric, Hydraulic
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

80LM580 - Lugged Pattern - Marine Duty

The 80LM580 builds on the previously succesful 80LK8N & TTV-ABABM ranges of Aluminium Bronze Valves that are predominantly supplied for seawater applications or valves that are exposed to the open marine environment. Aluminium Bronze is favoured for its corrosion resistance and used in marine applications where it may be subject to salt water or brackish conditions. Ali Bronze maintains long term stability and is used on fire protection, potable water, cooling, ballast & HVAC systems. Actuation Valve have extensive experience providing these valves within the Marine and Offshore Industry sectors providing quality product solutions for some of the most remote and demanding environments. Alumiunium Bronze Valves are available for next day delivery for sizes up to 12".

Size Range: DN32-DN1600 (1 1/4"-64")
Body Materials: B148 C9500 Aluminium Bronze
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air, Desalination, Marine Applications
Find Out More

80WM580 - Wafer Pattern Bronze - Marine Duty

Available with a range of actuation possibilities the 80WM580 offers all of the benefits of the 80LM580 whilst reducing the overall cost and weight that comes with a fully lugged valve. Suitbale for applications that do not require dead end service or regular maintenance either side of the valve this is the perfect choice for your marine isolation manual valve applications. This TTV range offers an ideal solution to most marine applications and come with approvals from recognised bodies such as DNV, Bureau Veritas, Lloyds & ABS. Our products are corrosion resistant with the highest quality of foundry raw materials. Pneumatic and electric actuation is performed in house with stock components for a rapid turnaround from point of order.

Size Range: DN32-DN1600 (1 1/4"-64")
Body Materials: B148 C9500 Aluminium Bronze
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air, Desalination
Find Out More

20W3080 - Wafer Pattern - Bronze Disc

Available with seat materials suitable for almost any marine, chemical and petrochemical concentric lever valve requirements, the 20W3080 offers corrosive medium protection with reduced costs for non aggressive external factors. The B148 Aluminium Bronze Disc is both highly reliable and durable with sustainable spares available from stock for ongoing maintenace schedules. Flange connections suitable for ANSI 150, PN10, PN16 & JIS. We can provide a range of certifications inluding witness testing, 3.1 certification, and standard pressure test requirements. Additional certification is available upon request. The 20W3080, with its concentric design and replaceable seat that takes the shape of both sides to form a perfect seal. This is suitable for use on either an off or throttle setting in applications where you want complete flexibility for temperature or flow.

Size Range: DN32-DN1600 (1 1/4"-64")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air
Find Out More

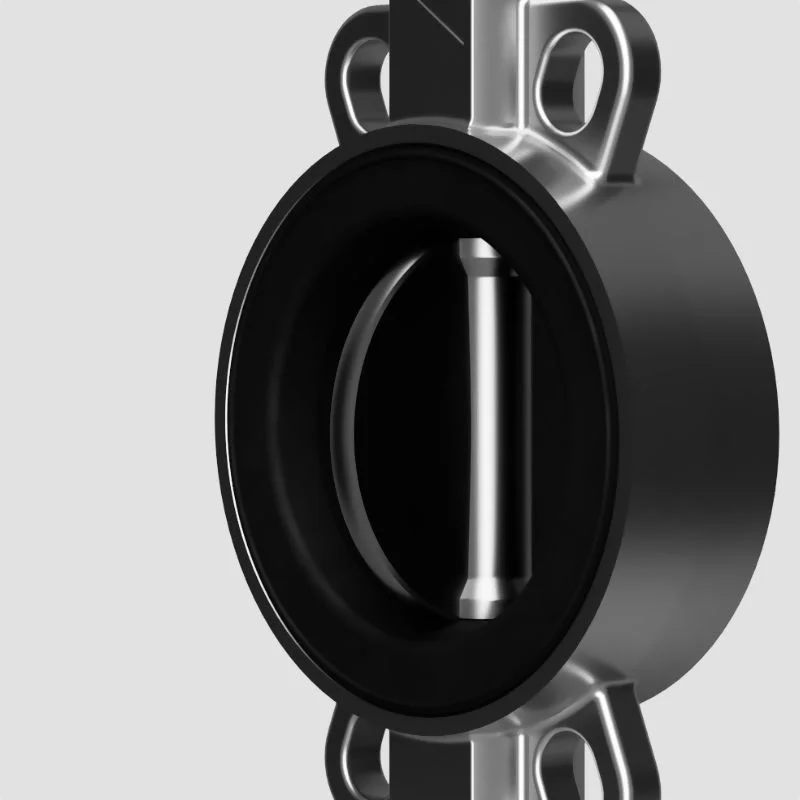

S4WS4S4 - Super Duplex Wafer Pattern

Size Range: DN50-DN200 (2"- 8")
Body Materials: UNS S32750
Disc Materials: UNS S32750
Seat Materials: NBR
Actuated Function: Pneumatic, Electric, De-Clutchable Gear, Fail Safe, Spring Return, Battery Backup, Double Acting
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

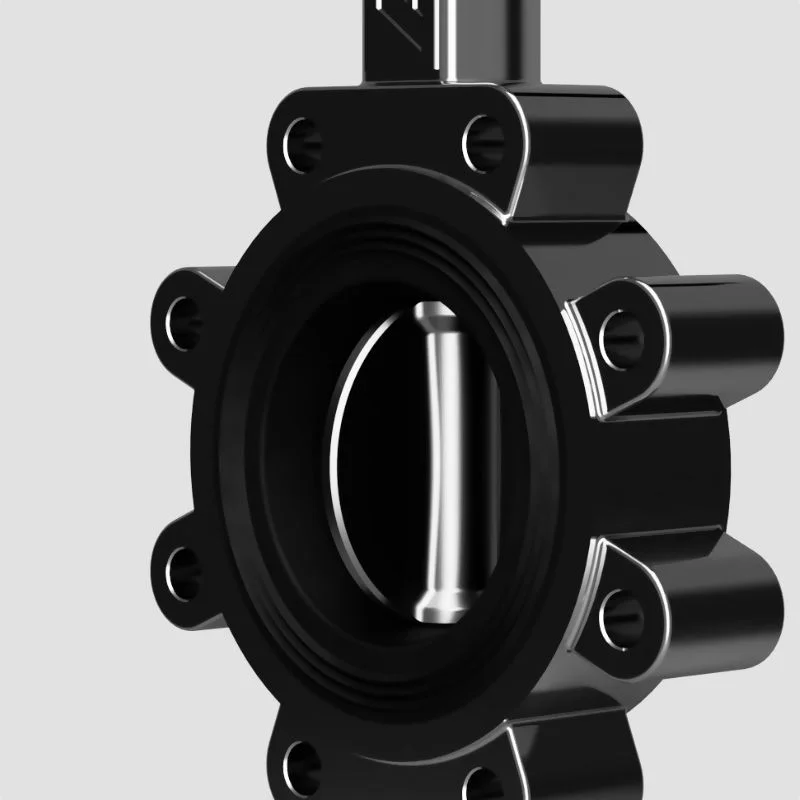

S4LS4S4 - Super Duplex Lugged Pattern

Size Range: DN50-DN200 (2"- 8")
Body Materials: UNS S32750
Disc Materials: UNS S32750
Seat Materials: NBR
Actuated Function: Pneumatic, Electric, De-Clutchable Gear, Fail Safe, Spring Return, Battery Backup, Double Acting
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

Immense Stocks

Powerful Specifications

Size Range: DN32-DN3000 (1 1/4"-120")
Body Materials: Ductile Iron, WCB, Stainless Steel, Duplex, Super Duplex, Aluminium Bronze
Disc Materials: Ductile Iron, WCB, Stainless Steel, Duplex, Super Duplex, Aluminium Bronze
Seat Materials: Buna, EPDM, Viton, Silicone, PTFE, Silicone, Hypalon, Stainless Steel
Shaft Materials: 420/304/316 Stainless Steel, Monel, Duplex, Super Duplex
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air, Consumer Health, Chemical, Petrochemical
Pressure Rating: PN10/16/25/50/64/100-ANSI 150/300 LBS
Temperature Rating: Min-196°C Max760°C
Actuation: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel

Less Space In The Pipeline

Less space, results in less material, bringing significantly lower costs in the process. As part of Isolation applications, our valves can be fully open or fully closed with quarter turn movement (90 Degrees) of the functioning lever or actuator. When closed, the reliable seal and disc can provide 100% leak tight downstream shutoff and low-pressure loss across the valve when opened through a streamlined, energy saving metallic disc. These types of valves can also be used to regulate flow pressure or temperature through a multi-position lockable lever or 4-20mA 3-15 psi control.

Main Components

The main components consist of the Body, Shaft, Disc, Elastic Ring (Seat/Seal) O-Ring, Circlip, Washer & Mounting Flange. All of which are available in different materials and specifications to suit your application requirements including Ductile/Cast Iron, Stainless Steel, Duplex, Aluminium Bronze, Carbon Steel & Super Duplex. Depending on application requirements, these valves are also available in a number of body designs including Wafer, Lugged, Flanged, Double Flanged, Triple Offset, Grooved End and High Performance.

Actuated Butterfly Valves

These valves are available in both pneumatic and electric operation and can be beneficial for use in remotely accessed areas, valves that require larger torque figures to operate, timing or synchronisation and reliability. Pneumatically Actuated Butterfly Valves provide the quickest form of operational control for open/close functionality and are available in both double acting and spring return units with either direct/solenoid operation. Spring Return units can be set up in a fail-safe closed mode for critical lines were the Valve will return to the closed position upon the event of power failure through the loaded springs. Fail-safe open Valves are also available upon request.

Electric Operated Valves

Our actuated offers are available in both pneumatic and electric operation and can be beneficial for use in remotely accessed areas, valves that require larger torque figures to operate, timing or synchronisation and reliability. Pneumatically Actuated Butterfly Valves provide the quickest form of operational control for open/close functionality and are available in both double acting and spring return units with either direct/solenoid operation. Spring Return units can be set up in a fail-safe closed mode for critical lines were the Valve will return to the closed position upon the event of power failure through the loaded springs. Fail-safe open Valves are also available upon request.

Lever Or Gear Operated

Our manually operated ranges are available both lever and gear box operated for quarter and multi turn operation. Manually lever operated valves offer quick acting open and close solutions with all units as standard available with a notch plate lockable notch plate design. Gear operators are more commonly found found on larger units of 8" and above however can still be supplied on valves as small as 2". As well as our standard mild steel coated lever and gear operators Actuation Valve also stock stainless steel and aluminium bronze. Our stainless steel and aluminium bronze lever and gear boxes are suitable of harsh, hazardous and corrosive environemnts typically seen in the chemical, petro-chemical and off shore industries. Additional options that can be made to order include extensions, chain wheel operators and pedestal stands.

Limit Switch Position Feedback

Actuation Valve offer a number of options for valve position sensing and monitoring. Encorporating product solutions from various manufacturing partners including TopWorx and Viz Switch we are able to provide discrete and reliable position sensing to enable a more intelligent production operation that can both improve efficiency and reduce downtime. All of our position sensing units are sourced from carefully chosen manufacturers and approvals include IP67 safe area for standard process industry requirments to ATEX hazardous area. Visual indication is also provided by a top beacon with red, green, black and yellow the most common site requirements (Others available upon request). The TopWorx DXP unit also offers a flat top design without beacon for confined space or where visual indication is not a critcal on site requirment.

Frequently Asked Questions

Depednding on the butterfly valve type valves can require gaskets to create a tight seal and prevent leaks in the system. Gaskets are not requried for rubber lined butterfly valves as the rubber provides this function.

Butterfly valves act as a rotating disc within the valve body and pipeline to control the flow of fluid or gas. This simple yet efficient design allows for quick on/off functionality and precise flow modulation.

Butterfly valves are typically installed by bolting them between two pipe flanges. Proper alignment and torque are essential during installation to ensure leak-free operation. Guide lugs assist with installation as well as threaded fully lugged designs.

Butterfly Valves are used to control fluids, including water, air, gases, and corrosive chemicals. Their wide range of applications suit industries including HVAC, Water Treatamnet, Food & Beverage, Chemical or Oil & Gas.

A double-offset butterfly valve features two distinct offsets in the design to reduce wear and improve sealing performance. Double offset butterfly valves are ideal for high-pressure and high-temperature applications. Redcued actuation cost is provided by lower torque values.

A triple-offset butterfly valve incorporates three offsets to further minimize leakage, making it suitable for critical applications where tight shut-off is essential, such as in the oil and gas industry. Torque and actuation costs are again reduced.

Butterfly valves are an excellent for flow regulation due to their ability to precisely modulate flow rates and medium. They provide efficient control in systems where throttling is required. 4-20mA positioners can be added to build assemblies.

Yes, butterfly valves are suitable for throttling. The degree at which they are throttled should be within the manufacturers specified limits to prevent excessive wear and maintain performance and sealing abilities.

Butterfly valves usually have a flow direction which will be indicated by an arrow on the valve body. Correct installation ensures optimal performance and prevents flow reversal issues. Bi-directional valves are also available without arrow markings.

Advantages of butterfly valves include a  compact design, lightweight construction, and cost-effectiveness compared to ball valves and gate valves. They also require minimal maintenance and offer reliable shut off performance.

When comparing butterfly valves to gate valves, factors for considerations can be application, cost, and space / weight constraints. Butterfly valves excel in applications where space-saving and efficient flow control are crucial.

The lifespan of butterfly valves varies depending on factors such as material compatibilty, usage conditions, and proper maintenance schedules. Follwoing manufacturers O&M manuals valves and seals can last for many years.

FAQ

Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

Butterfly Valves

(11122 Items)
Refine
Hide Filters Show Filters
Sort By
  • Low to High
  • High to Low
  • A to Z
  • Z to A
  • New In
You've viewed 36 of 11122 products
