2 Piece Multi Voltage Electric AV-ARES Actuated Ball Valves

We recommend using these 2 Piece Full Bore Stainless Steel Ball Valves if you have limited space, or want to reduce total package weight and cost without compromising performance or reliability. Reduced torque also allow the use of a more compact actuator. The AV-ARES Electric Actuator is the perfect solution for your next industrial automation project. This compact, lightweight actuator is easy to install and use, saving you time and money on your valve actuation next project. AV-ARES Electric Valve Actuators are made with a durable aluminium alloy housing that is polyethylene coated. Our actuators also have ingress protection of IP67, meaning they are completely weatherproof and can be used in indoor or outdoor settings.

Key Features

Key features and benefits of AV-L2000AR Actuated Ball Valves.
1

Key Features

Our range of stainless steel ball valves have been designed to meet your needs from high to low pressure applications where long life expectancy is important. We also offer our ball valves in numerous sizes so you can be sure we’ll have what you need at an affordable price.
2

Key Features

AV-ARES Electric Valve Actuator is a multi voltage electric actuator that allows for site standardisation without the need for changing models. The AV-ARES features a specially designed circuit board with the electric actuator capable of receiving 24-240V AC or DC supply.
3

Key Features

AV-ARES Valve Actuator comes with a robust manual override lever that provides a reliable mechanical backup in the event of a power failure. This safety feature allows you to switch between open and closed positions until systems or power is restored.

AV-A2000AR Ball Valve Technical Stuff

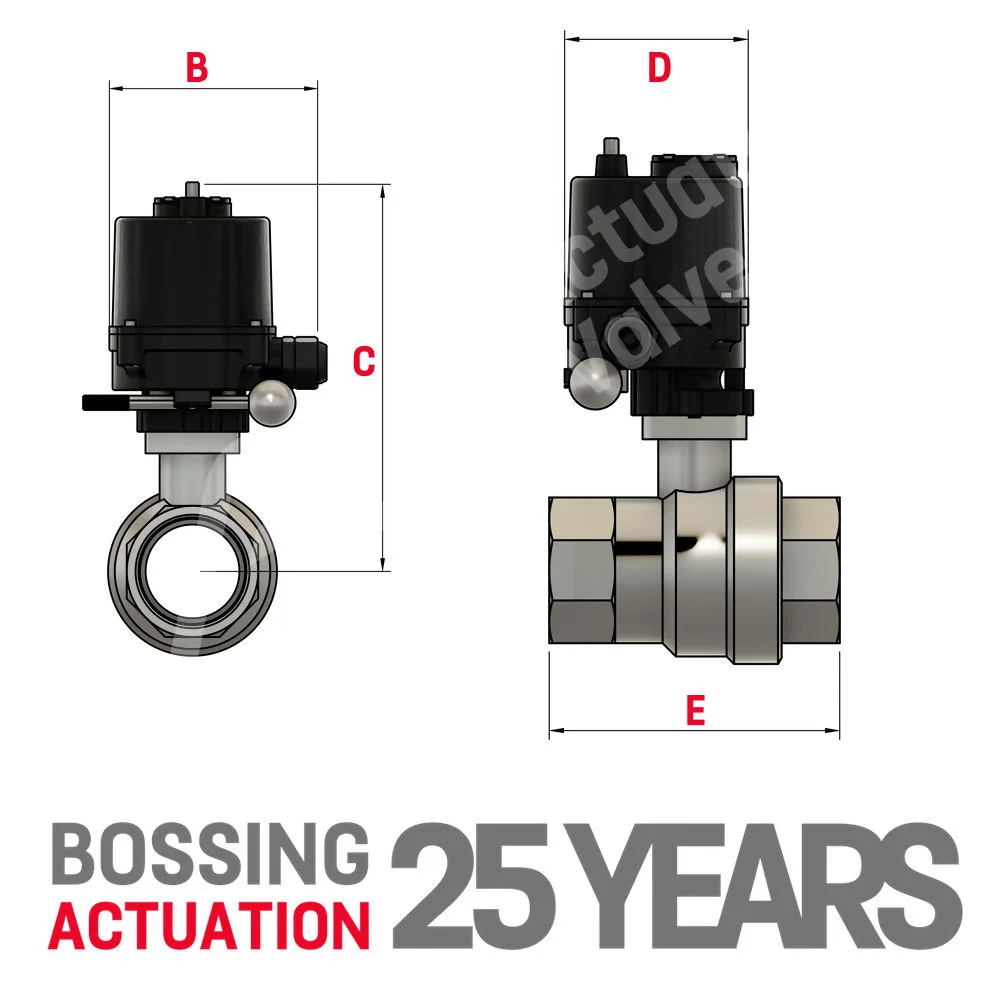

B C D E Model
1/4" 115.00 175.50 88.00 67.00 AV-A1
3/8" 115.00 175.50 88.00 67.00 AV-A1
1/2" 115.00 175.50 88.00 67.00 AV-A1
3/4" 115.00 182.00 88.00 70.40 AV-A1
1" 115.00 191.00 88.00 85.00 AV-A1
1 1/4" 115.00 195.50 88.00 94.00 AV-A1
1 1/2" 115.00 269.50 88.00 105.00 AV-A1
2" 115.00 276.50 88.00 125.00 AV-A1
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA

AV-A2000AR Ball Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10
Pressure Rating: 1000 PSI

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
