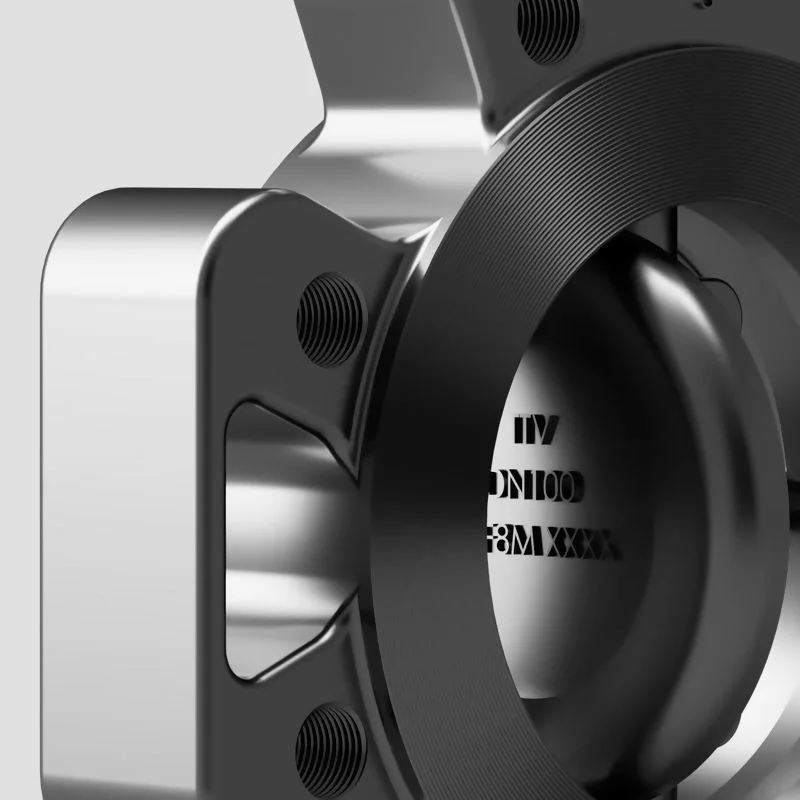

High Performance Lugged Actuated Butterfly Valves

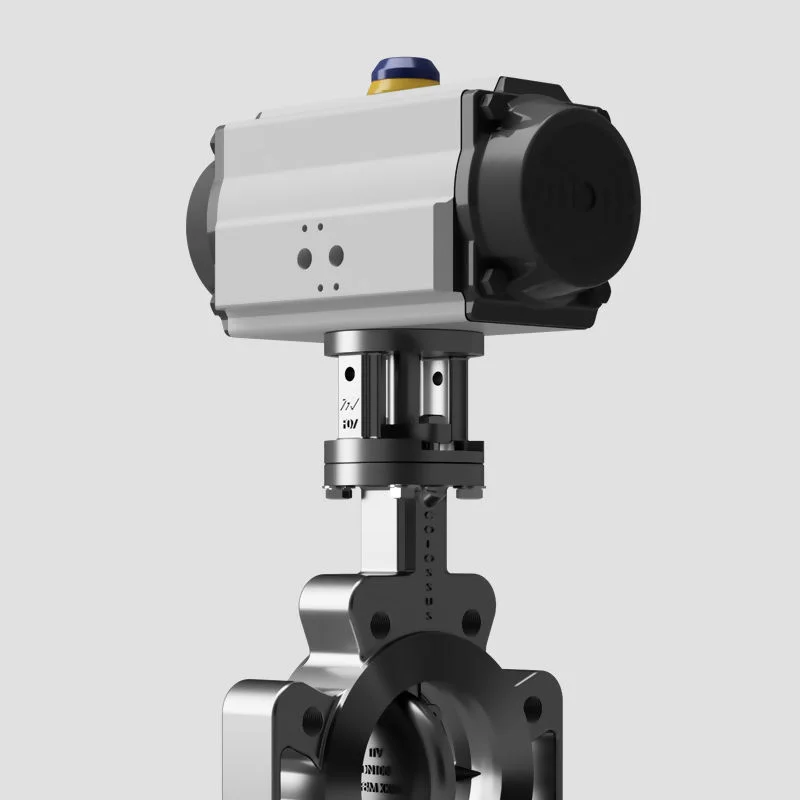

The Colossus is a high performance grade butterfly valve with superior performance characteristics that makes it ideal for use in demanding environments where most other butterfly valves would not survive andÂhas been designed for use with both gasses and liquids. Due to the double offset movement, the rotation of the disc is eccentric over the seat. The rotational circular movement of the disc turns into an elliptical movement. So, the disc achieves just a few degrees contact with the seat before the valve is fully closed. The aluminium body of the actuator inside and outside is coated with hard anodizing, with extremely abrasion resistance, low surface roughness and optimal resistance.

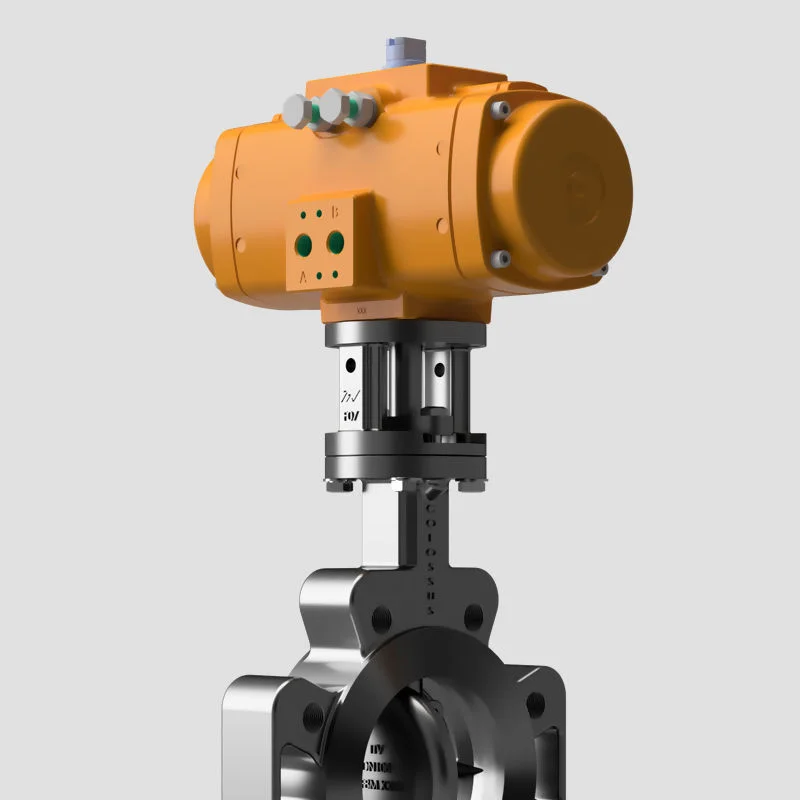

High-performance Double Offset Butterfly Valves are the ultimate solution to your needs for extreme conditions. No matter whether you're working with gases or liquids, these valves can deliver when it matters most. The Colossus is available in two versions Metal and PTFE seated. Compliance to NAMUR interface standard allows the actuator to be packaged with a wide range of accessories. This makes it easy to integrate the El-O-Matic Pneumatic Actuator into existing systems where there are already components available for attachment on site. EL-O-Matic offers an affordable solution with their F Series line of pneumatic actuators which can run continuously without failure for over 1 million cycles. The F Series has been tested by independent laboratories and proven reliable in continuous duty applications.

All butterfly valves are rigorously tested to meet ever-changing industry requirements with our research and development team constantly creating design improvements to future proof the next generation. Typical applications include HVAC, Power Generation and Hydro Carbon Processing. All of our actuated butterfly valves can be set up in either the Fail Safe Close/Open Position with several manual override features across the range. Control and Indication add-ons can be specified at the time of order. Each individual actuator retains its full traceability all the way back to the factory with a unique serial number. All assemblies performed by Actuation Valve in house also detail and cross reference this serial number with accompanying valves and accessories in a build sheet format.

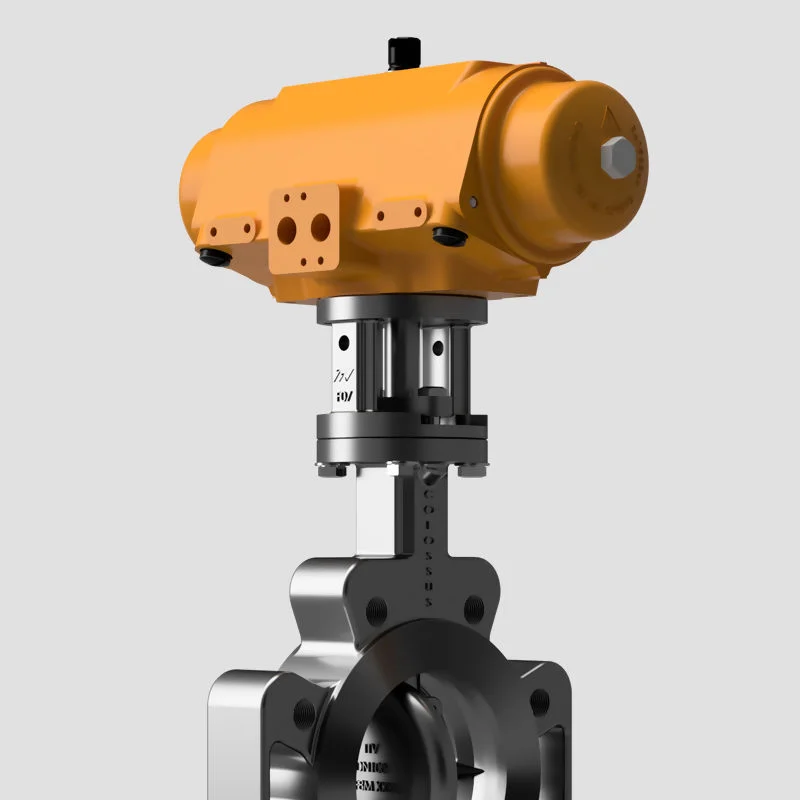

Double offset butterfly valves are designed for use in exceptionally harsh conditions with critical shutoff isolation and throttling control applications. The Colossus is available in Metal Seated or PTFE seated designs depending on the application needs of the End User. TTV Butterfly Valves feature an innovative disc design that greatly increases Cv values resulting in lower energy costs and improved efficiency with no sacrifice in performance or durability compared to other manufacturers valves on the market. They Hytork XL bi-directional travel stops allow easy setting of the valve stroke which prevents premature valve failures. With the Hytork actuator installed on your existing valves you can rest assured that they will last longer than the previous brand.

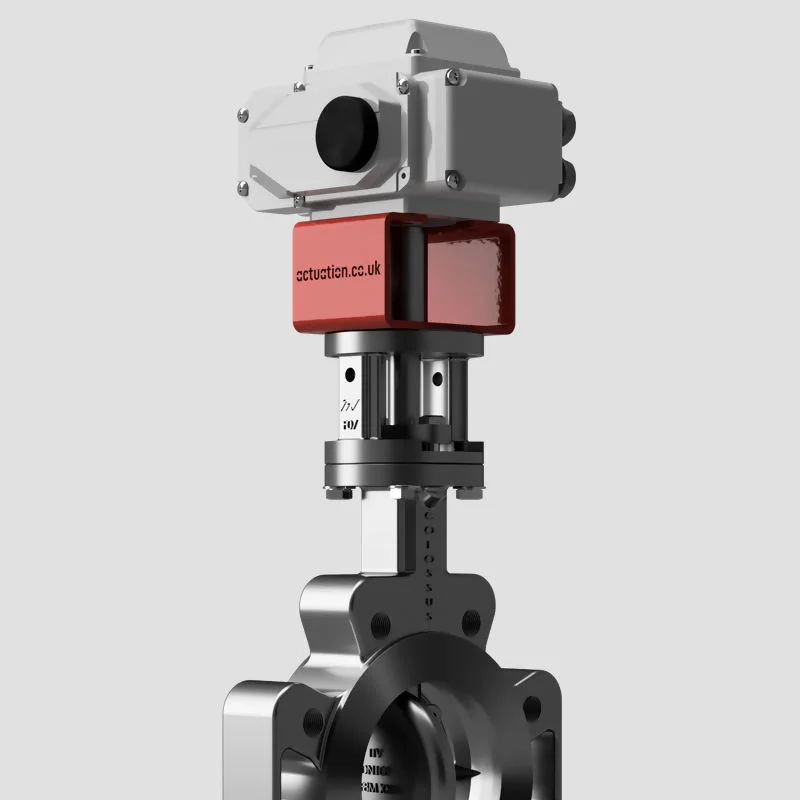

Due to the double offset movement, the rotation of the disc is eccentric over the seat. The rotational circular movement of the disc turns into an elliptical movement. So, the disc achieves just a few degrees contact with the seat before the valve is fully closed. Koei UNIC electric actuators are engineered specifically for 100% continuous operation in harsh environments where reliability is key. They deliver consistent performance over time with no maintenance or downtime required. The Actuator's rugged construction of high quality Die-Cast Aluminium Body encased with a grey stove enamel finish provides protection up to IP65/NEMA4X offering increased durability in harsh condition industries and applications.

The Asahi electric actuator features a thermally bonded powder coated corrosion resistant housing (Series 92) rated to Nema 4X with stainless steel trim. ABS Product Type Approved for use in Marine and Offshore Applications. Asahi electric actuators are provided with gear trains pre-lubricated at the factory prior to despatch. The specially formulated lubricant offers extended life cycles whilst also covering a wide range of temperature options for various ambient and operating requirements, as well as reducing wear. Motors used with the Asahi Electric Actuator housings are CE compliant and stamped for all 120VAC and 220VAC electric actuator motors. Extended duty cycles offer versatility to modulate high operation/cycle requirements, while providing sturdiness needed in harsh environments.

Combining the MT range of actuators from Max Air Technologies and TTV's Colossus butterfly valve provides an extremely cost effective automated shut off solution. The Max Air actuator utilizes the same body design and end caps for both double acting and spring return applications allowing customizable stock profiles. This allows us to offer large quantities on short lead times with all assmebly and testing performed in house. Attention to detail features special epoxy coated internal springs to increase corrosion resistance. Your perfect choice for pneumatic butterfly valves on a restricted budget.

A quality package from both Rotork (ROM) and TTV's double offset butterfly valves. Reliability when it matters for frequent or infrequent use the Rotork ROM electric actuator is there when you need it and offers worldwide customer service and support with an extremely low cost of ownership. The compact and lightweight valve package has a non clucth manual override design and can be operatred without any lever upon power failure. Corrosion protection offered to C5-M (Actuator) as standard. Additional options include Profibus, Modbus & Fieldbus from the ROMpak range of actuated butterfly valves.

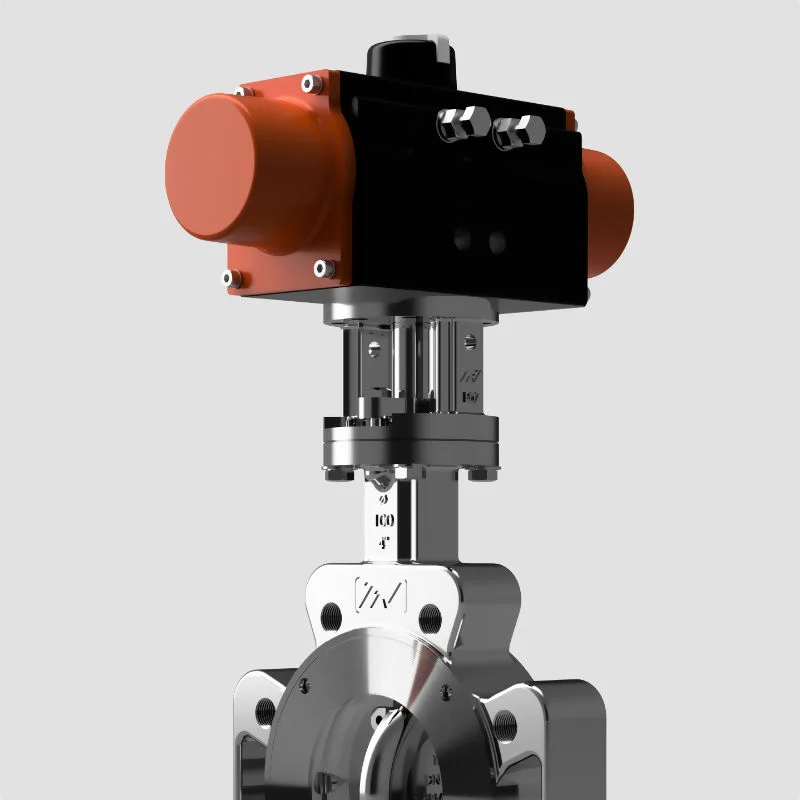

The Colossus Bettis combines a robust 6063T6 aluminium bodied pneumatic actuator and high quality Double Offset butterfly valve from Emerson Bettis & TTV respectively. This brand new actuated butterfly valve package offers a more cost effective solution to that of the Hytork & El-O-Matic from Emerson whilst still incorporating the core values of market leading manufacturers. Pre compressed spring designs and an anti-blowout drive pinion ensure safe operation and maintenance procedures throughout the product life cycle.

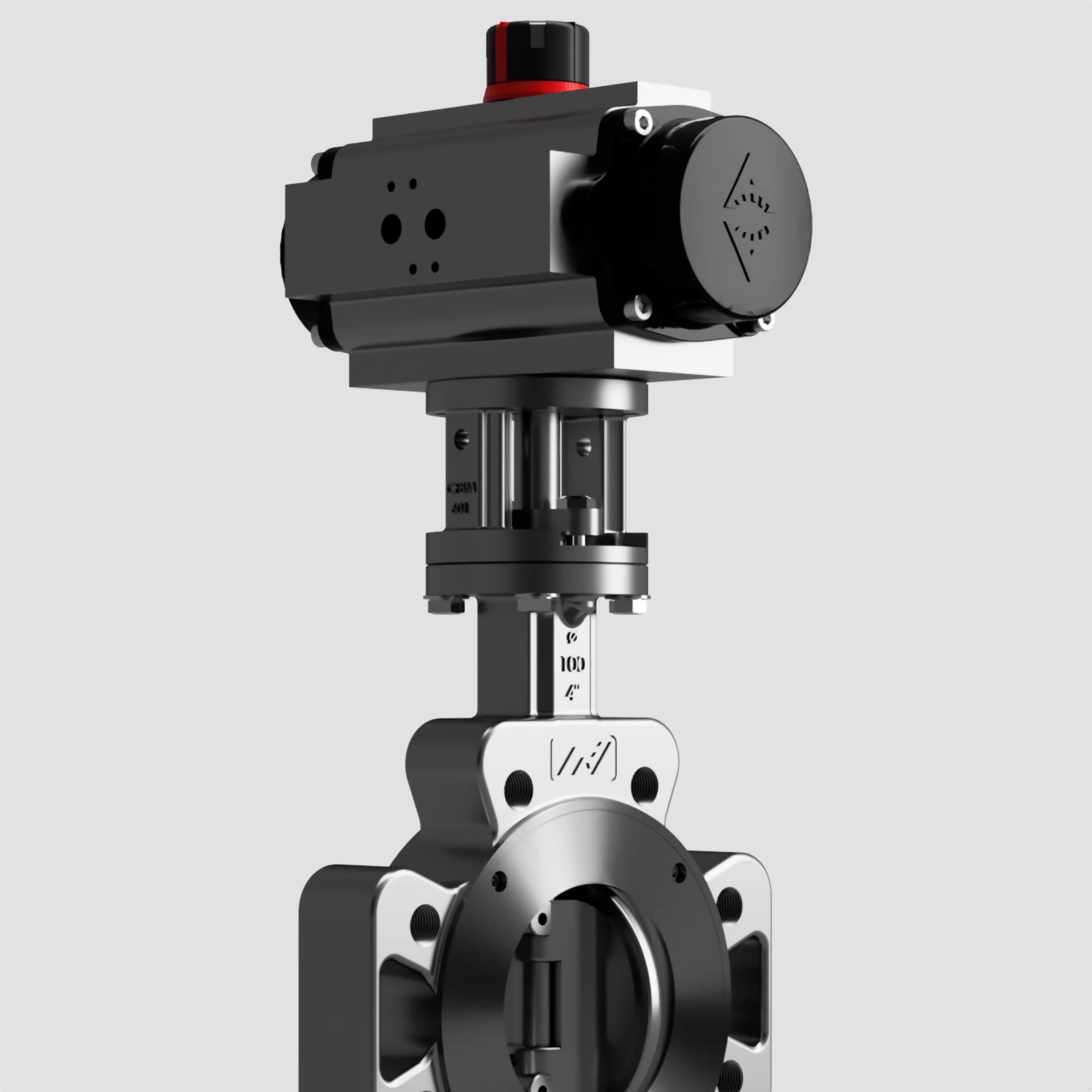

AV-Ventus' Compact, Patented Aluminium-Free Rack & Pinion Pneumatic Rotary Actuator embodies innovation in industrial automation with its wear-proof aluminium-free design, ensuring durability for diverse applications. Its compact design minimises air consumption while maximising torque, aligning with AV-Ventus' sustainability focus. The hard-anodised body enhances corrosion resistance for reliable performance in challenging environments. Precision is evident in the smooth traveling stroke and finer teeth module, providing jerk-free sliding for heightened operational efficiency. The maintenance-free design adds to the actuator's user-friendly appeal, while the aluminium-extruded, hard-anodised body combines lightweight durability with corrosion resistance. In essence, the AV-Ventus actuator stands as a reliable, advanced solution, seamlessly blending innovation, efficiency, and reliability for pneumatic rotary actuation needs.

All butterfly valves are rigorously tested to meet ever-changing industry requirements with our research and development team constantly creating design improvements to future proof the next generation. Typical applications include HVAC, Power Generation and Hydro Carbon Processing. The Valpes Electric Actuator offers fail in position as well as battery backup failsafe return for critical applications. Modbus-RTU & bluetooth versions are also available on a short lead time with CE, DNV-GL, CSA/UL & EAC Approvals. Each individual actuator retains its full traceability all the way back to the factory with a unique serial number. All assemblies performed by Actuation Valve in house also detail and cross reference this serial number with accompanying valves and accessories in a build sheet format.

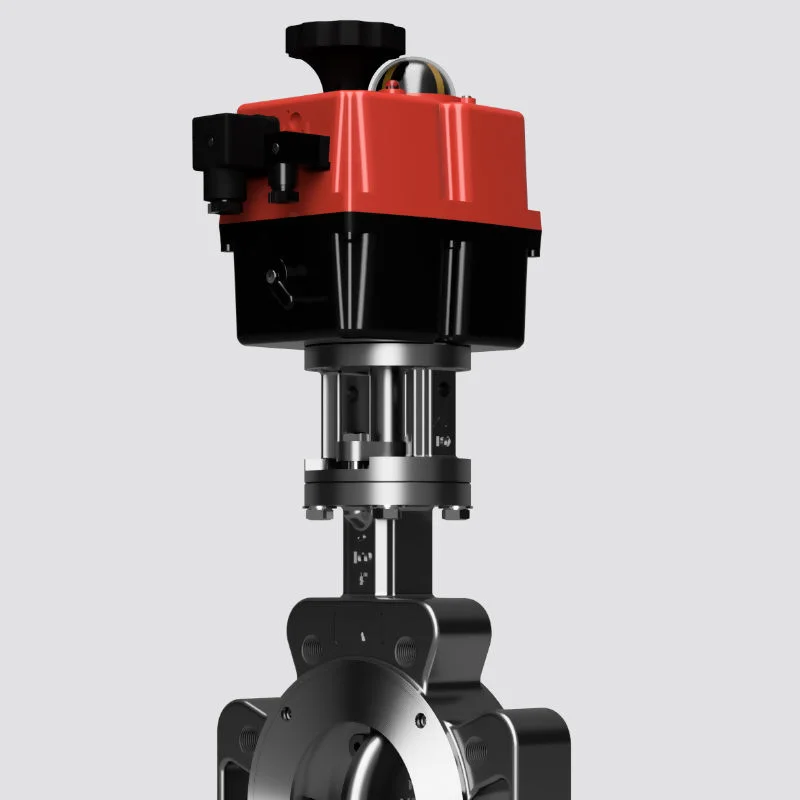

J&J Electric Valve Actuator comes as standard with a robust manual override handle designed to provide a reliable mechanical backup in the event of a power failure. This safety feature allows the user to switch between open and closed positions until systems or power is restored. Anti Corrosive and durable polyamide electric actuator housing is suitable for industrial environments both indoor and outdoor with complete weatherproof assurance of ingress protection to IP67 (Temporary Immersion). All of our actuated butterfly valves can be set up in either the Fail Safe Close/Open Position with several manual override features across the range. Control and Indication add-ons can be specified at the time of order.

The Colossus Valve is manufactured from high-quality components, giving it outstanding performance under extreme conditions. This valve will last longer than other valves on the market and has been proven by our customers as well as third party testing facilities. The double offset butterfly valves have offset, hand polished, streamlined discs to produce a much greater Cv than other butterfly valves on the market resulting in low-pressure drops and reduced energy costs. Festo’s Pneumatic Actuators provide high quality solutions for many demanding automation tasks. They offer long service life combined with low wear rates even under harsh conditions for various industries including automotive, electronics and food & beverage processing.
