Actuation Valve provide fast turnaround times without sacrificing quality or expertise and all orders come with a two page test report detailing all opening/closing times on each valve tested. Whether you need one product or several hundred off-the-shelf parts, we can deliver. AV-ARES electric valve actuators provide a safe, reliable, and efficient way to automate your industrial valves. With our components sourced under strict quality requirements, you can expect a life cycle of 50000 operations for your AV-ARES valves. The Stainless Steel ball valve is affordable enough for residential use and durable enough for commercial applications. It's made from high quality materials that will last for many years without excessive wear seen in some other Manufacturers Valves.

Shop Help Me

Key features and benefits of AV-A6N00AR Actuated Ball Valves.

Key Features

All of our Actuated Valve Assemblies are manufactured in house with the help from automation experts. Every completed unit comes equipped to meet high standards and can be traced back via two page test report detailing opening/closing times.

Key Features

AV-ARES electric actuator offers a manual override feature that allows the operator to control the process movement when power is not available or has failed. This safety feature is key for critical equipment in case of an emergency without having to wait until power is restored.

Key Features

AV-ARES is a multi-voltage electric valve actuator that allows you to standardise your operation without having to change models. The AV-ARES is designed with a specially-designed circuit board that allows it to operate on 24-240V AC or DC supply.

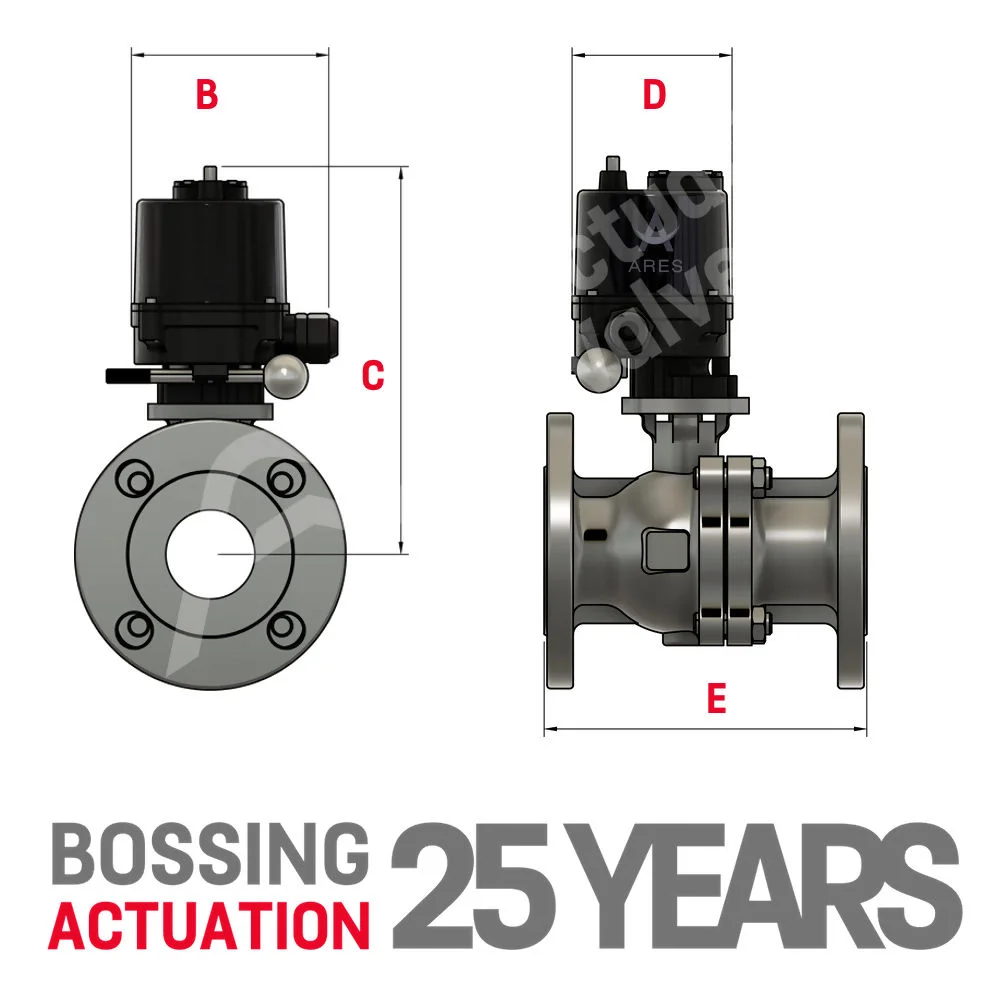

	B	C	D	E	Model

1/2"	115.00	181.00	88.00	115.00	AV-A1
3/4"	115.00	186.00	88.00	120.00	AV-A1
1"	115.00	192.00	88.00	125.00	AV-A1
1 1/4"	115.00	269.00	88.00	130.00	AV-A1
1 1/2"	115.00	274.00	88.00	140.00	AV-A1
2"	115.00	283.00	88.00	150.00	AV-A1
2 1/2"	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA
4"	TBA	TBA	TBA	TBA	TBA
5"	TBA	TBA	TBA	TBA	TBA
6"	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	ASME B16.34
Wall Thickness:	ASME B16.34
Inspection & Testing:	API 598
Face 2 Face:	ASME B16.10

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes. Position feedback switch boxes are available for this valve, giving remote indication of the open and closed positions. Please confirm your control and signal requirements when ordering so we can specify the correct switch box for your application.

Yes, in many cases. Please contact us with the valve size, actuator type and quantity required and we will provide a competitive quotation, including any volume discount available for larger orders.

These valves are manufactured to ASME B16.34 design standard, with inspection and testing carried out to API 598 as standard. Depending on the specification required, certification options including PED 2014/34/EU, ATEX, Firesafe API 607 5th Edition, SIL 2, NACE MR-0175 and Lloyd's Register approval can be provided - please confirm your requirements when ordering.

Yes. This AV-A6N00AR actuated ball valve range is available across a range of valve and actuator sizes, and larger combinations can be supplied to order. Please contact us with the valve size, pressure rating and control signal required and we will confirm availability and lead time.

Yes. We can deliver directly to your customer on a plain-labelled or unbranded delivery note if required. Please let us know at the time of order and send a copy of your delivery note so we can ensure it is attached to the shipment.

Yes, subject to status. We offer credit accounts to qualifying business customers, allowing you to order now and settle on agreed terms. Please contact our sales team to apply, or complete a credit account application form and we will confirm your terms.

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.
