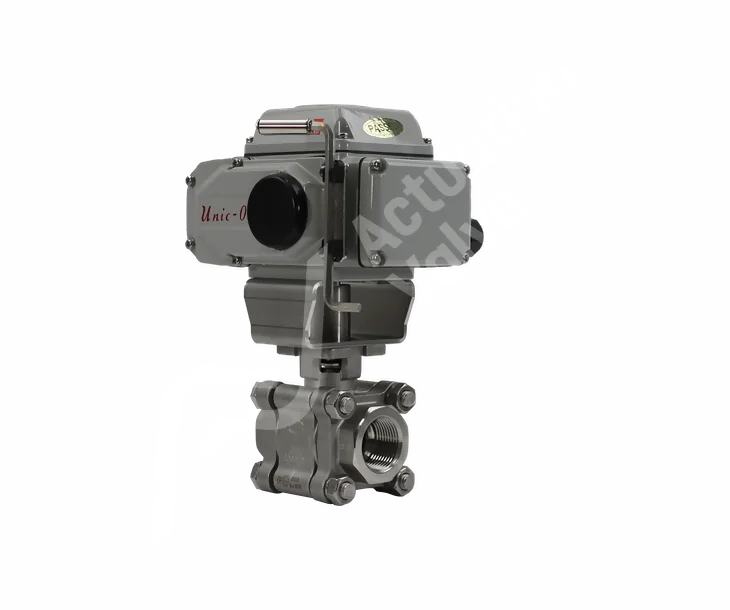

Heavy Duty Stainless Steel Koei Unic Actuated Valves

The AV-L8000FSEK, AV-L8100FSEK & AV-L8200FSEK stainless steel actuated ball valves offer a more robust solution to the standard range of 3 piece valves. Still featuring drop out centre section that is fully maintainable without the need for completely removing the valve. The heavy duty actuated ball valve delivers higher pressure and temperature options and is commonly used on steam applications. The stainless steel body also offers additional corrosive protection for both internal and external factors within the process. Thanks to its high-performance motor, this product is capable of operating at temperatures of -25 to 55 Deg C without sacrificing speed or power consumption. With its ability to operate in extreme environments this electric actuator is sure to deliver on all fronts when you need it most.

Key Features

Key features and benefits of AV-L8000EK, AV-L8100EK & AV-L8200EK Actuated Ball Valves.

Key Features

All units come complete with general operations and maintenance manuals as standard and free after sales support. Actuation Valve supply the Koei UNIC Actuator to a global network and can provide local technical support wherever you may be located around the world.

Key Features

The Koei UNIC Electric Actuator is an innovative product that provides vibration resistance and shock absorption in the most compact solution available on the market today. They will provide you with smooth operation over their entire speed range in high shock environments.

Key Features

The industry-leading AV-L8000FS Ball Valve has been designed specifically for small to medium sized control systems with reduced torques. This can help reduce costs and increase performance by allowing smooth operation from your valves.

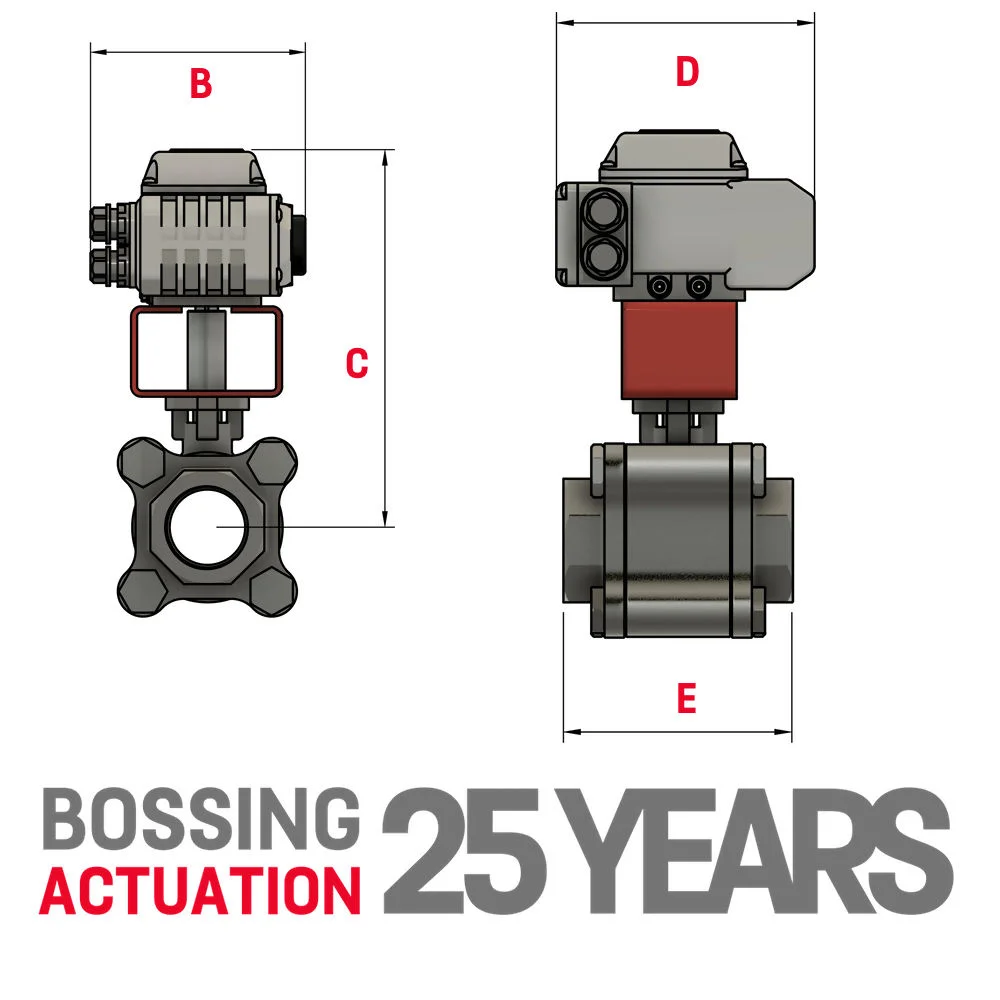

Screwed/Socket Weld Technical Stuff

B C D E Model
1/4" 145.00 219.00 159.00 75.00 UNIC 05
3/8" 145.00 219.00 159.00 75.00 UNIC 05
1/2" 145.00 219.00 159.00 75.00 UNIC 05
3/4" 145.00 227.00 159.00 80.00 UNIC 05
1" 145.00 234.00 159.00 90.00 UNIC 05
1 1/4" 145.00 239.00 159.00 110.00 UNIC 05
1 1/2" 145.00 251.00 159.00 120.00 UNIC 05
2" 155.00 288.00 208.00 140.00 UNIC 10

Screwed/Socket Weld Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Butt Weld Valve 3D Stuff

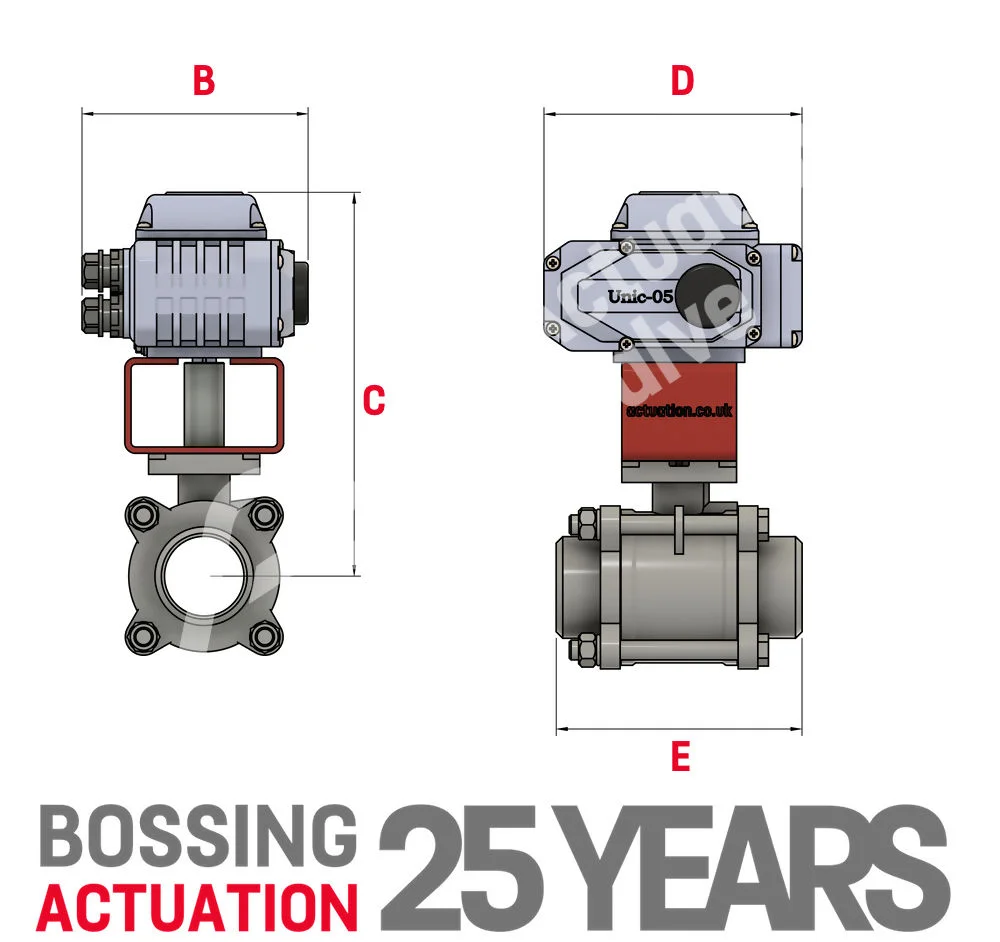

Butt Weld Valve Technical Stuff

B C D E Model
1/4" 145.00 219.00 159.00 70.00 UNIC 05
3/8" 145.00 219.00 159.00 70.00 UNIC 05
1/2" 145.00 219.00 159.00 75.00 UNIC 05
3/4" 145.00 227.00 159.00 90.00 UNIC 05
1" 145.00 234.00 159.00 100.00 UNIC 05
1 1/4" 145.00 239.00 159.00 110.00 UNIC 05
1 1/2" 145.00 251.00 159.00 125.00 UNIC 05
2" 155.00 288.00 208.00 150.00 UNIC 05

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: ISO 7-1 (DIN 2999)
NPT Ends: ASME B1.20.1
Socket Weld Ends: ASME B16.11
Butt Weld Ends: ASME B16.25 (Sch 80)

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
