Wafer Pattern Full PTFE Lined Actuated Butterfly Valves

The TTV Wafer Pattern Full PTFE Lined Actuated Butterfly Valves are mainly used for highly corrosive applications that require optimum material resistance as well as clean or food grade requirements. Wafer Pattern concentric design features a non-toxic PTFE internal seal which also partially covers the outer body of the valve for perfect sealing with counter flanges. Thus avoiding any possibility of cross-contamination and providing a butterfly valve that is extremely resistant to chemicals and solvents with complete insolubility to 300°C.

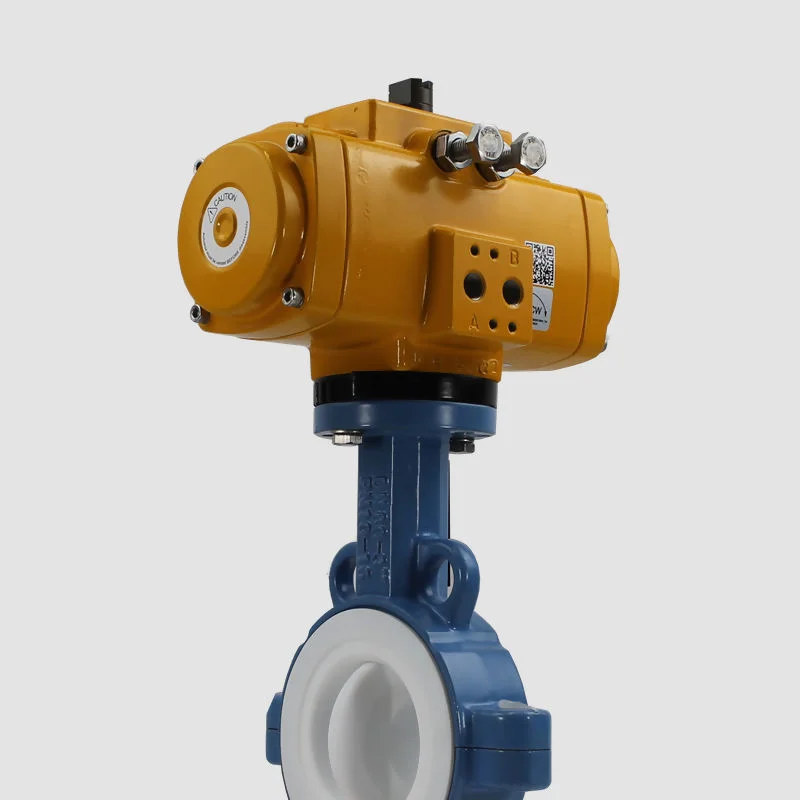

20WP4040F0TVT - Wafer V-Tork Butterfly Valves - PTFE Lined

The 20WP4040F0TVT Wafer V-Tork Butterfly Valve, featuring a PTFE lining, offers exceptional chemical resistance and durability for various industrial applications. This valve ensures reliable performance in controlling the flow of corrosive media, thanks to its PTFE lining, which provides superior protection against aggressive chemicals. Its design enables easy installation between pipe flanges, making it an efficient and versatile choice for maintaining flow control in demanding environments.

Size Range: DN40-DN600 (1 1/2"-24")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

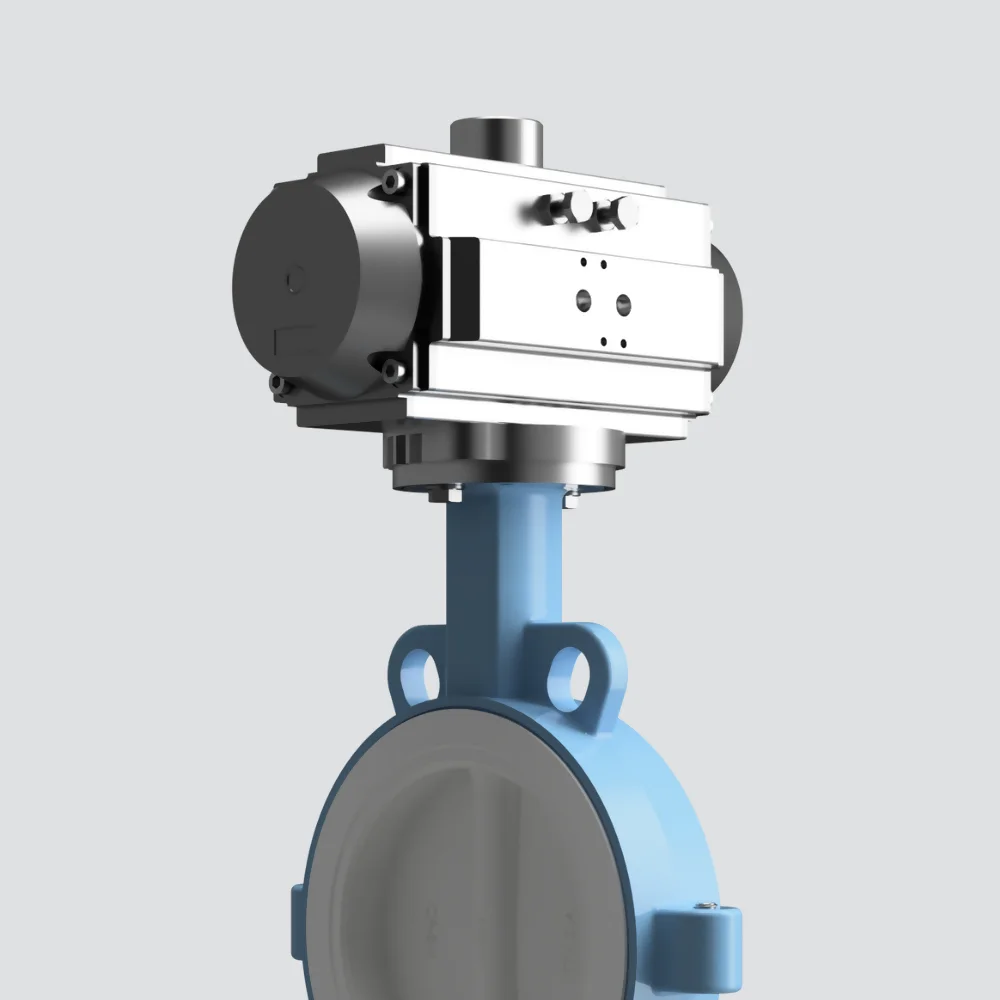

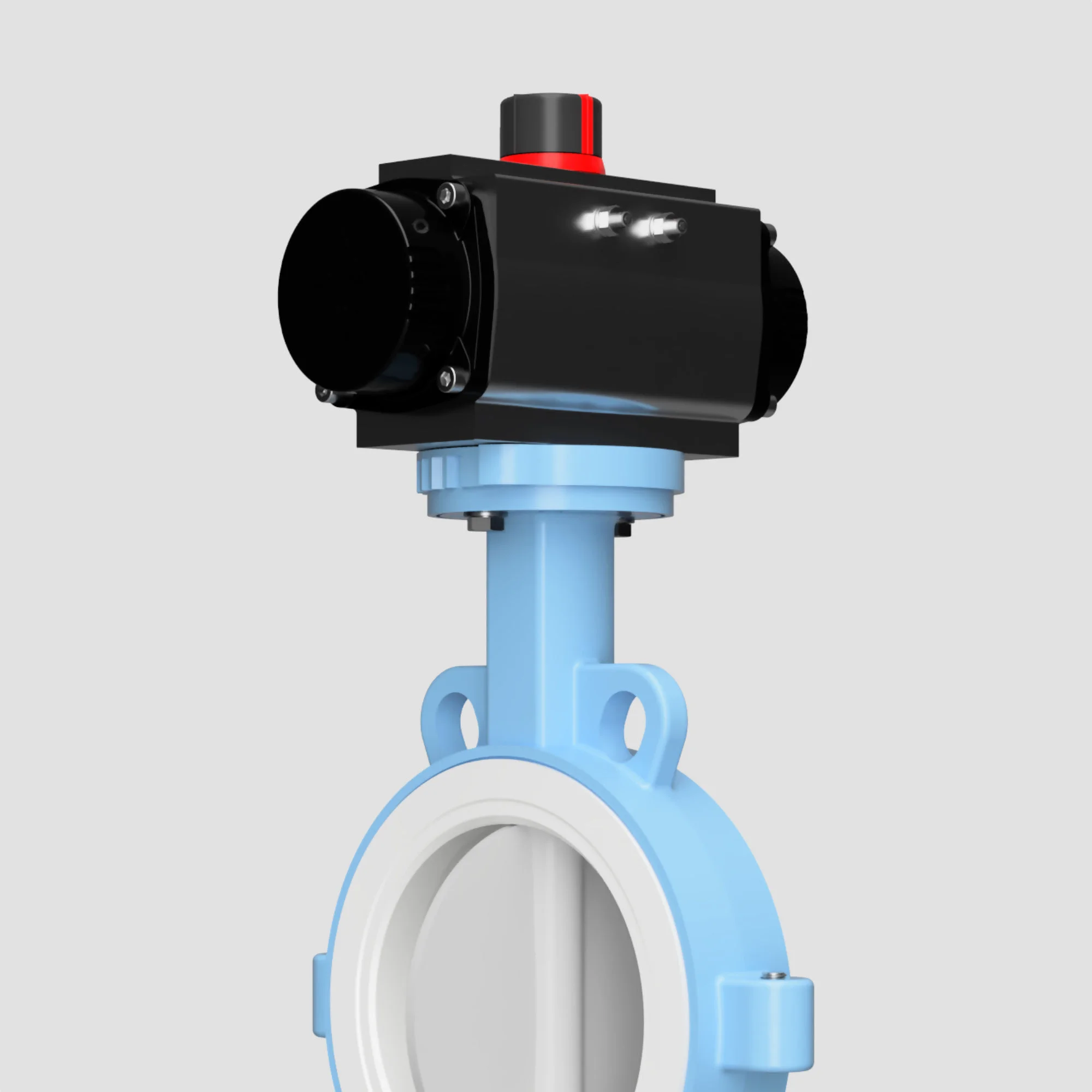

20WP4040F0TAC - Wafer Actreg Butterfly Valves - PTFE Lined

The complete PTFE Seat avoids any possibility of cross-contamination providing a butterfly valve that is extremely resistant to chemicals and solvents with complete insolubility to 300°C. For additional abrasion resistance the option of a UHMWPE also is available. The PTFE seat is mainly used for highly corrosive applications that require optimum material resistance as well as clean or food grade requirements. The TTV PTFE material is approved by FDA. When actuated with Actreg Spring return or Double acting actuator, the unit can be easily calibrated using the manual stops.

Size Range: DN40-DN600 (1 1/2"-24")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

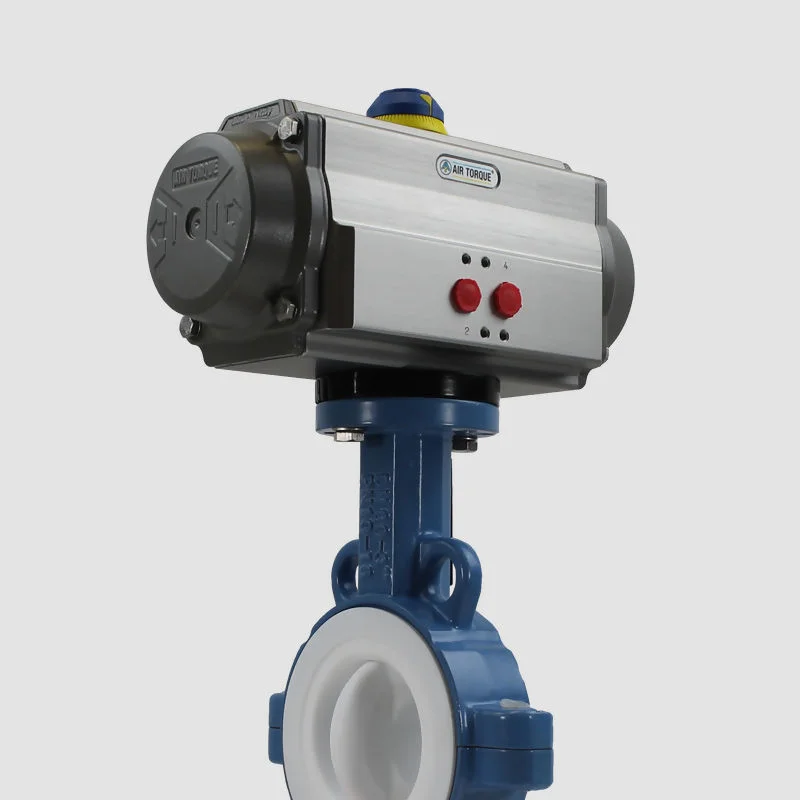

20WP4040F0TAT - Wafer Pattern Butterfly Valves - PTFE Lined

A combination of the TTV 20WP4040F0T and Air Torque actuator. Most commonly used amongst the chemical and food or beverage industries this actuated butterfly valve assembly outperforms most others on the market. A rilsan coated body butterfly valve and anodised aluminium actuator provide external protection for most non aggressive external application factors whilst the internal PTFE lining provides superior corrosion resistance as well as an FDA approved contact material for consumable products. A replaceable valve seat and actuator rated to SIL3 complete a robust high performance package that will go the distance and provide maximum life capacity. The Air Torque actuator is in field convertible should you ever require a change from the spring return and double acting functionalities.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

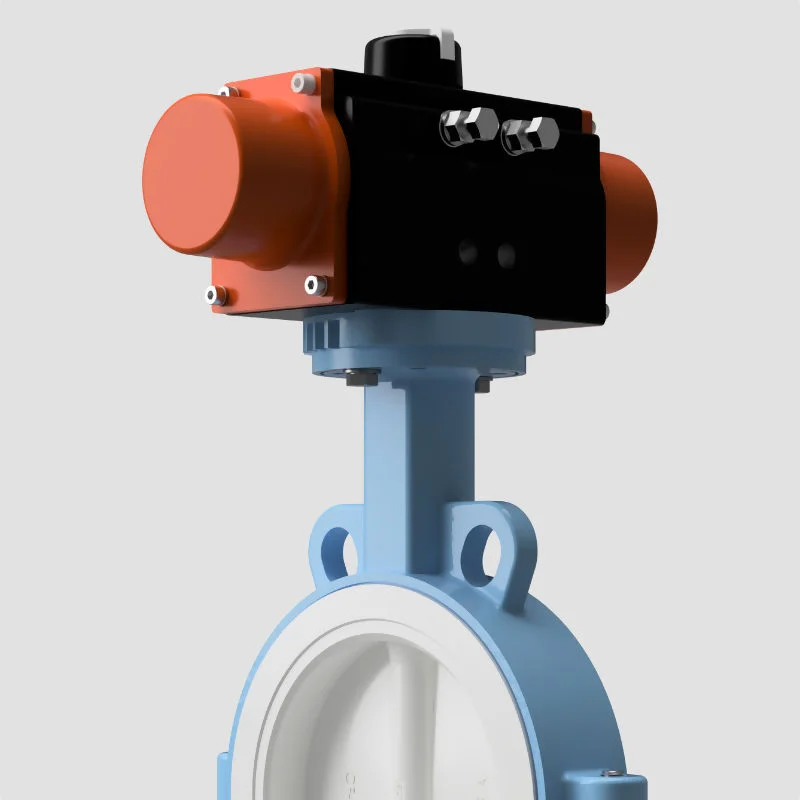

20WP4040F0TBE - Wafer Pattern Butterfly Valves - PTFE Lined

The 20WP4040F0TBE combines a robust 6063T6 aluminium bodied pneumatic actuator and high quality concentric PTFE Lined butterfly valve from Emerson Bettis & TTV respectively. This brand new actuated butterfly valve package offers a more cost effective solution to that of the Hytork & El-O-Matic from Emerson whilst still incorporating the core values of market leading manufacturers. Pre compressed spring designs and an anti-blowout drive pinion ensure safe operation and maintenance procedures throughout the product life cycle.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

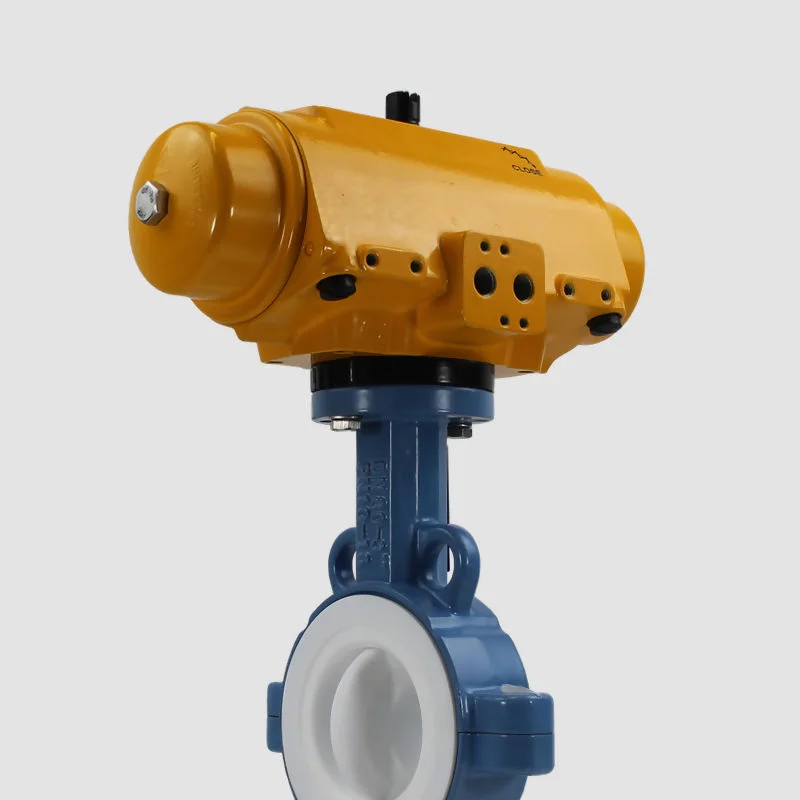

20WP4040F0TEL - Wafer Pattern Butterfly Valves - PTFE Lined

The High Performance Wafer Pattern PTFE Butterfly Valve has been designed to be in line with the most rigorous safety standards. With an internal seal made of non-toxic and durable material, this unit can withstand extreme conditions whilst meeting FDA approval standards for wetted PTFE parts. The EL-O-Matic Pneumatic Actuator is an affordable alternative to expensive electrically driven actuators that offer the same functionality at a fraction of the cost. They operate significantly faster than electric units of comparable size.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

20WP4040F0TXL - Wafer Pattern Butterfly Valves - PTFE Lined

The TTV concentric design butterfly valve features a non-toxic PTFE internal seal which also partially covers the outer body of the valve for perfect sealing with counter flanges. Thus avoiding any possibility of cross-contamination. Suitable for a wide range of applications and industries including chemical, pharmaceutical and food or beverage. The Hytork XL range of actuators are usually chosen for use in harsh and demanding applications due to its reliability performance. With the addition of Asco's pilot solenoid valves and topworx valve limit switch box, all components for actuation are now under one brand. This includes Hazardous & Safe Areas.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

20WP4040F0TJJ - Wafer Pattern JJ Actuated Butterfly Valves - PTFE Lined

The PTFE Seat or PTFE Lined Butterfly Valves satisfy the requirements for a reliable shut off performance on highly corrosive and aggressive process mediums. They are suitable for use on liquids, slurries and bulk solids. The split body design on of the PTFE Seat and PTFE Lined Butterfly Valves allow for quick and easy future maintenance requirements. Two body bolts allow the construction to be split into two components with the solid seat design interchangeable within minutes. Fail Safe Battery Backup option on the Actuator eliminates the need for use of the manual override in the event of a power or system failure to the actuator. Commonly used in critical application lines where failure is not an option. The Actuator will return the Valve to either open or closed position.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

Be Happy. Best Prices Guaranteed

Best pricing or we will donate some cash to a local dog charity. We like dogs, sorry cats. Loads of terms apply. Ask us for details. No fake rubbish Valves considered.

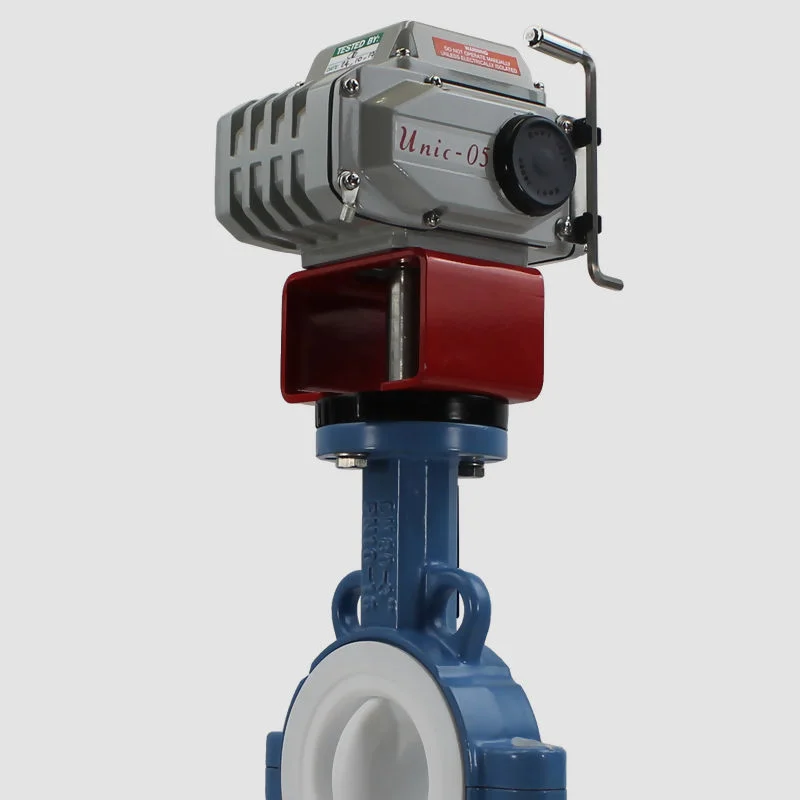

20WP4040F0TEK - Wafer Pattern Butterfly Valves - PTFE Lined

Actuation Valve is a world-class manufacturer of actuated butterfly valves, with in house assembly and testing. We offer Direct Mounted Assemblies as well custom build bracket/shaft arrangements to ensure any application can be met. Our Koei UNIC electric actuators provide an innovative product designed for reliability that requires little service over its lifetime making them ideal for use in harsh environments such chemicals applications where regular maintenance my be prohibitive. The Koei UNIC Electric Actuator is also available with battery backup for critical applications that require a form of fail safe position.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

20WP4040F0TVA - Wafer Valpes Butterfly Valves - PTFE Lined

A combination of the TTV 20WP4040F0T andand Valpes Electric Valve Actuator. Most commonly used amongst the chemical and food or beverage industries this actuated butterfly valve assembly outperforms most others on the market. A rilsan coated body butterfly valve and high durability coated aluminium actuator provide external protection for most  external application factors whilst the internal PTFE lining provides superior corrosion resistance as well as an FDA approved contact material for consumable products. A replaceable valve seat and actuator rated to IP68 complete a robust offering that will go the distance and provide maximum life capacity. The Valpes Electric Actuator offers fail in position as well as battery backup failsafe return for critical applications. Modbus-RTU & bluetooth versions are also available on a short lead time with CE, DNV-GL, CSA/UL & EAC Approvals.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 12VDC, 24VDC/AC, 110V/230VAC, Modbus-RTU, Bluetooth
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

Frequently Asked Questions

A PTFE Lined Actuated Butterfly Valve is a valve designed for precise flow control in industrial applications. It features a butterfly-shaped disc with a PTFE lining for chemical resistance and smooth operation.

These valves are commonly used in industries like chemical processing, pharmaceuticals, and water treatment due to their corrosion-resistant properties.

PTFE lining provides excellent chemical resistance, making the valves ideal for handling corrosive fluids without damaging the valve components.

Actuated butterfly valves use an electric or pneumatic actuator to control the valve's position, regulating the flow by turning the disc.

PTFE lined valves can handle moderately high temperatures, typically up to 260°C (500°F), depending on the design and materials.

While PTFE lining offers excellent chemical resistance, it may not be ideal for highly abrasive materials. Consult with the manufacturer for specific applications.

Regular inspection, cleaning, and lubrication of moving parts are recommended to ensure smooth operation and extend the valve's lifespan.

Yes, these valves can be installed in both horizontal and vertical pipelines. Proper installation orientation is essential for optimal performance.

Yes, Actuation Valve offers sustainable spares and replacement parts for ongoing maintenance schedules.

Consult with the valve manufacturer or a qualified engineer to determine the correct valve size based on your flow requirements and system specifications.
