3 Piece Premium Hytork Pneumatic Actuator Valves

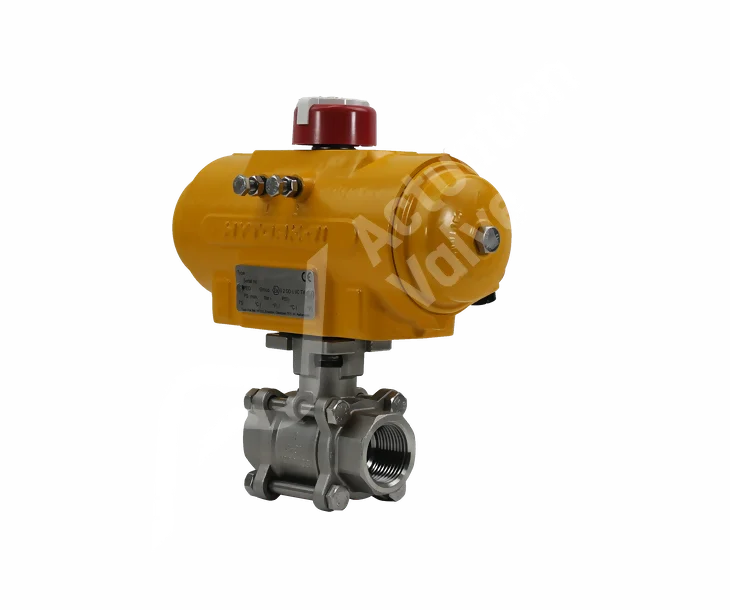

The AV-L3000XL, AV-L3100XL & AV-L3200XL actuated ball valves combine our compact premium ball valve with a Hytork pneumatic actuator. Many approvals and certifications included make this an extremely cost effective solution and with one of Emerson's market leading actuators. A direct mount ISO platform enables speedy assembly, testing and shipping. Sizes and options at the bottom of the page.

Key Features

Key features and benefits of AV-L3000XL, AV-L3100XL & AV-L3200XL Actuated Ball Valves.
1

Key Features

The AV-L3000 Ball Valve is an excellent choice for high volume pneumatic systems because it has low torque requirements, which reduce the costs of Actuated Valves with smaller actuators able to automate valves usually demanding large units.
2

Key Features

NAMUR mounting (VDE/VDI 3845) allows standardisation of mounting hardware for a wide range of accessories. This eliminates the need to purchase specific mounting kits or adapters which can increase costs and waste time during installation.
3

Key Features

Ideal for applications where frequent On/Off cycles are required such as material handling equipment (MHE) due to its high cycle life expectancy. Hytork actuators are SIL rated to several million cycles with a proven track record.

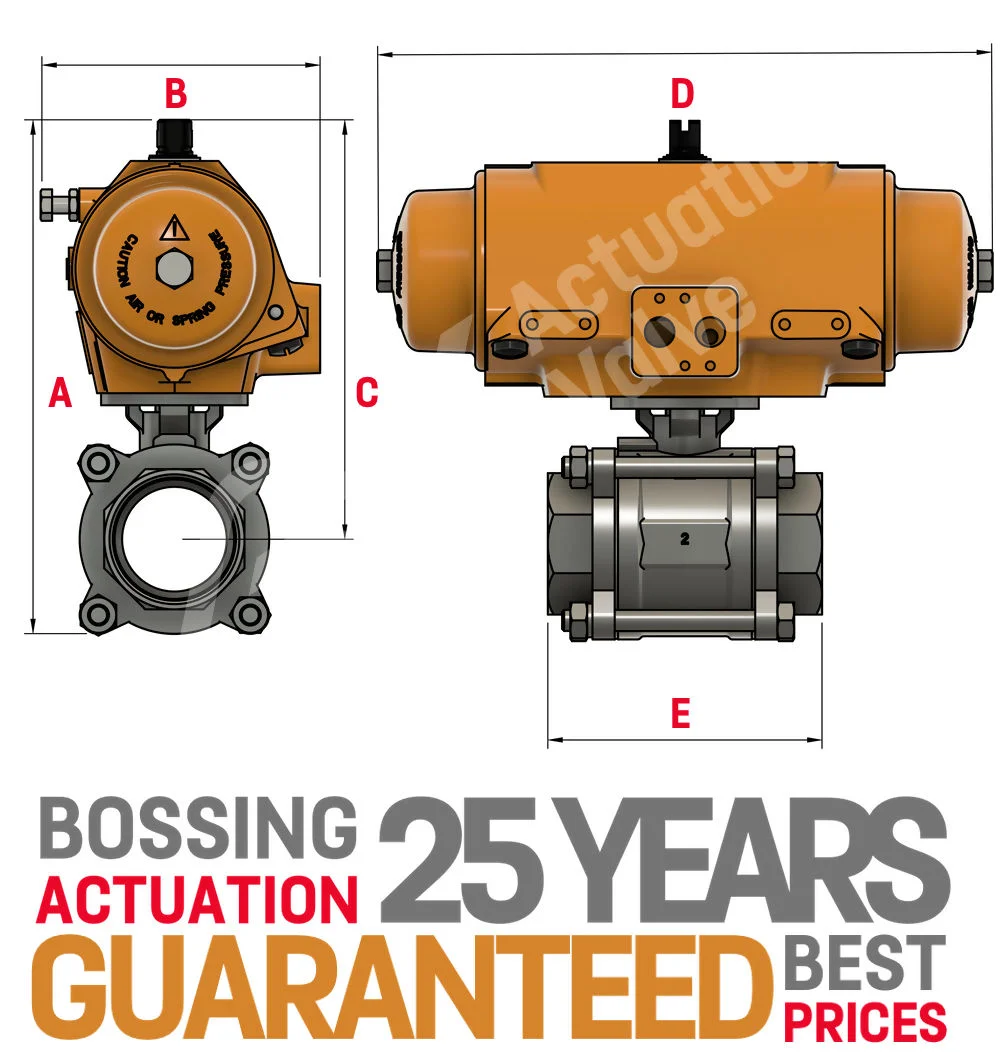

Screwed/Socket Weld Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 97.00 146.50 165.00 75.00 97.00 146.50 165 75.00
3/8" 97.00 146.50 165.00 75.00 97.00 146.50 165 75.00
1/2" 97.00 146.50 165.00 75.00 97.00 146.50 165 75.00
3/4" 97.00 153.00 165.00 80.00 97.00 153.00 165 80.00
1" 116.50 180.90 221.80 90.00 97.00 163.00 165 90.00
1 1/4" 116.50 185.40 221.80 110.00 97.00 167.50 165 110.00
1 1/2" 116.50 193.70 221.80 120.00 116.50 193.70 221.80 120.00
2" 133.50 216.60 292.00 140.00 116.50 200.60 221.80 140.00
2 1/2" 143.10 244.05 331.60 185.00 133.50 238.40 292.00 185.00
3" 158.50 268.40 349.80 205.00 143.10 252.55 331.60 205.00
4" 174.00 309.00 462.00 240.00 158.50 299.90 349.80 240.00

Screwed/Socket Weld Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Butt Weld Valve 3D Stuff

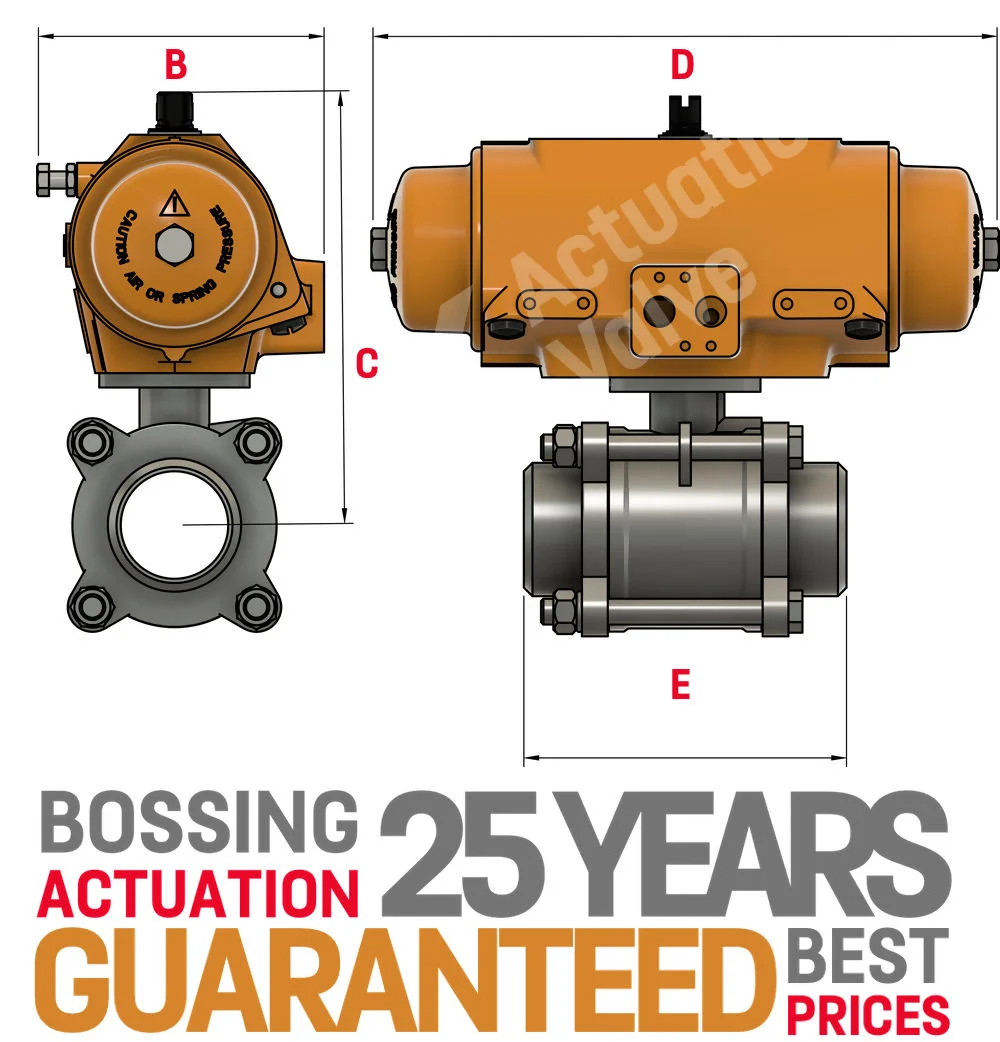

Butt Weld Valve Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 97.00 176.50 165.00 70.00 97.00 176.50 165.00 70.00
3/8" 97.00 176.50 165.00 70.00 97.00 176.50 165.00 70.00
1/2" 97.00 176.50 165.00 75.00 97.00 176.50 165.00 75.00
3/4" 97.00 183.50 165.00 90.00 97.00 183.50 165.00 90.00
1" 116.50 211.40 221.80 100.00 97.00 193.50 165.00 100.00
1 1/4" 116.50 215.40 221.80 110.00 97.00 197.50 165.00 110.00
1 1/2" 116.50 225.40 221.80 125.00 116.50 225.40 221.80 125.00
2" 133.50 248.40 292.00 150.00 116.50 232.40 221.80 150.00
2 1/2" 143.10 294.05 331.60 190.00 133.50 288.40 292.00 190.00
3" 158.50 318.90 349.80 220.00 143.10 303.05 331.60 220.00
4" 174.00 381.00 462.00 270.00 158.50 371.09 349.80 270.00

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Design Standard: MSS SP-110
Wall Thickness: EN 12516-3
Inspection & Testing: MSS SP-110
BSP Ends: (AV-L3000) BSP IS0 7-1 (DIN 2999)
NPT Ends: (AV-L3000) ASME B1.20.1
Socket Weld Ends: (AV-L3100) ASME B16.11
Butt Weld Ends: (AV-L3200) ASME B16.25 (Sch 40)
Pressure Rating: 1000 PSI

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Hytork Actuator Videos

TopWorx Limit Switch Box

TopWorx Valve Limit Switch Box available for this product. Keep everything within the Emerson Group of products with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Pneumatic Actuator prior to shipping.
