PTFE Seat Fully Lugged Type SS Actuated Butterfly Valves

Lugged Stainless Steel Actuated PTFE Seat Butterfly Valves are used in piping systems as a dead end service Valve or where regular/predicted disconnecting of the pipe on either side may need to be removed for maintenance and installation without disruption to both sides of the line. The TTV PTFE Seat Stainless Steel Butterfly Valves offer both external and internal protection to extreme corrosive environments and pipeline shut off applications as well as Food, Beverage or Pharma that require regular wash down.

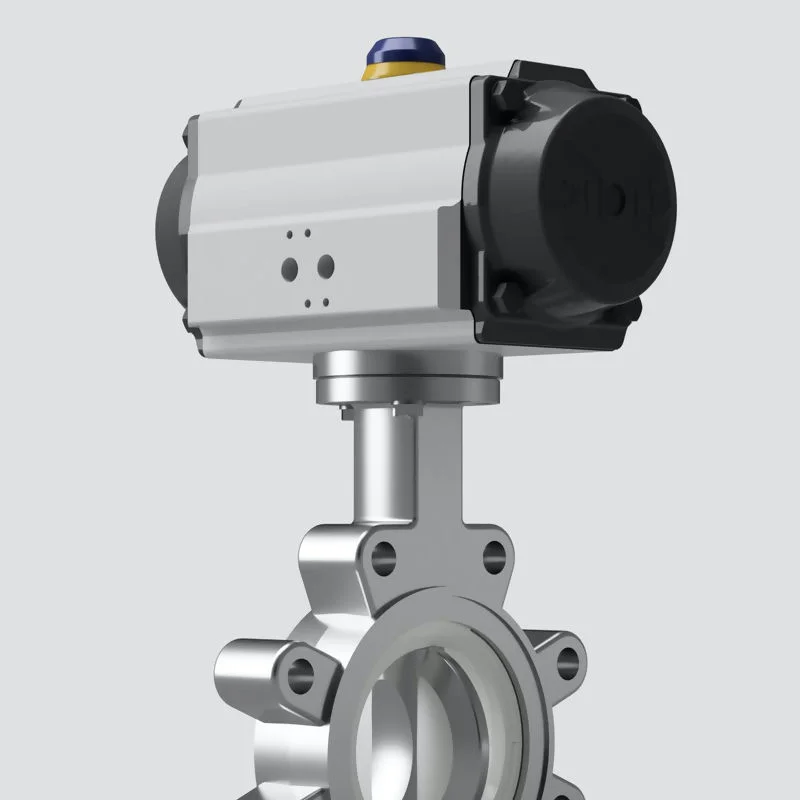

40LP4040F0AT - Lugged Type SS PTFE Seat Actuated Butterfly Valves

The TTV PTFE Lined and PTFE Seat Actuated Butterfly Valves are mainly used for highly corrosive applications that require optimum material resistance as well as clean or food grade requirements. The TTV PTFE material is approved by FDA. Our air torque actuators are made of high quality materials and have been designed for years of reliable service. However, it doesn't stop there - we also offer our customers with the option to choose from multiple materials including stainless steel or epoxy coated options. Optional Hand-polished, streamlined discs produce a much greater CV than other butterfly valves on the market which leads to low pressure drops and reduced energy costs. In addition they maintain a bi-directional bubble tight seal in their closed position.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: CF8M Stainless Steel
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

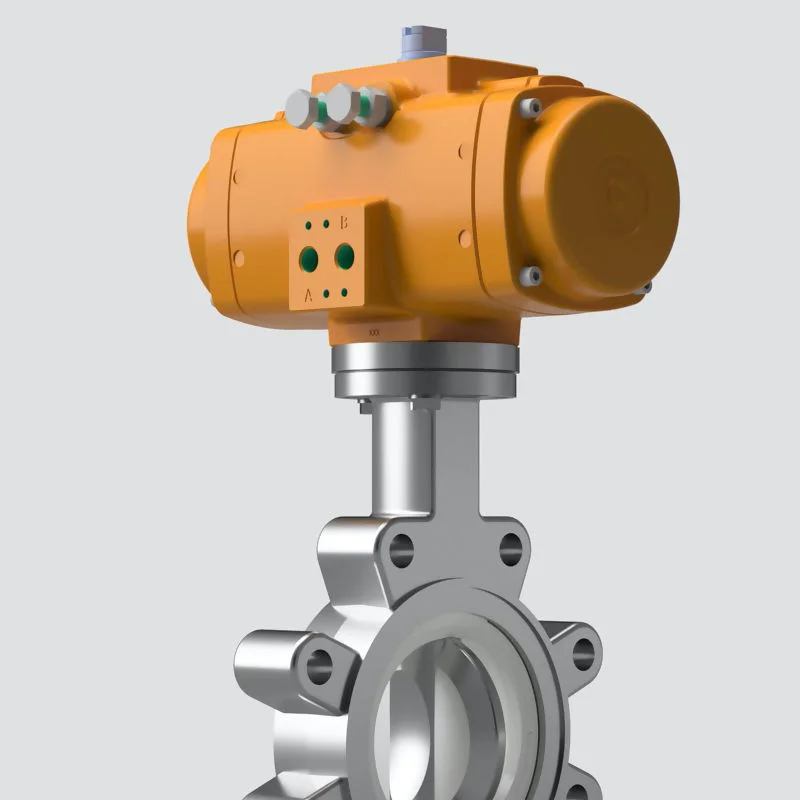

40LP4040F0EL - Fully Lugged Stainless Steel PTFE Seat Elomatic Valve

The single piece body with threaded lugs is installed using two sets of bolts (One set for each flange) and enables the installer precise self centering capabilities of the valve due to the body design between flanges. EL-O-Matic Pneumatic Actuators provide long life springs and precision engineering to ensure high reliability of the fail safe mechanism needed for safe plant operations. The PTFE Seat or PTFE Lined Butterfly Valves satisfy the requirements for a reliable shut off performance on highly corrosive and aggressive process mediums. They are suitable for use on liquids, slurries and bulk solids.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: CF8M Stainless Steel
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

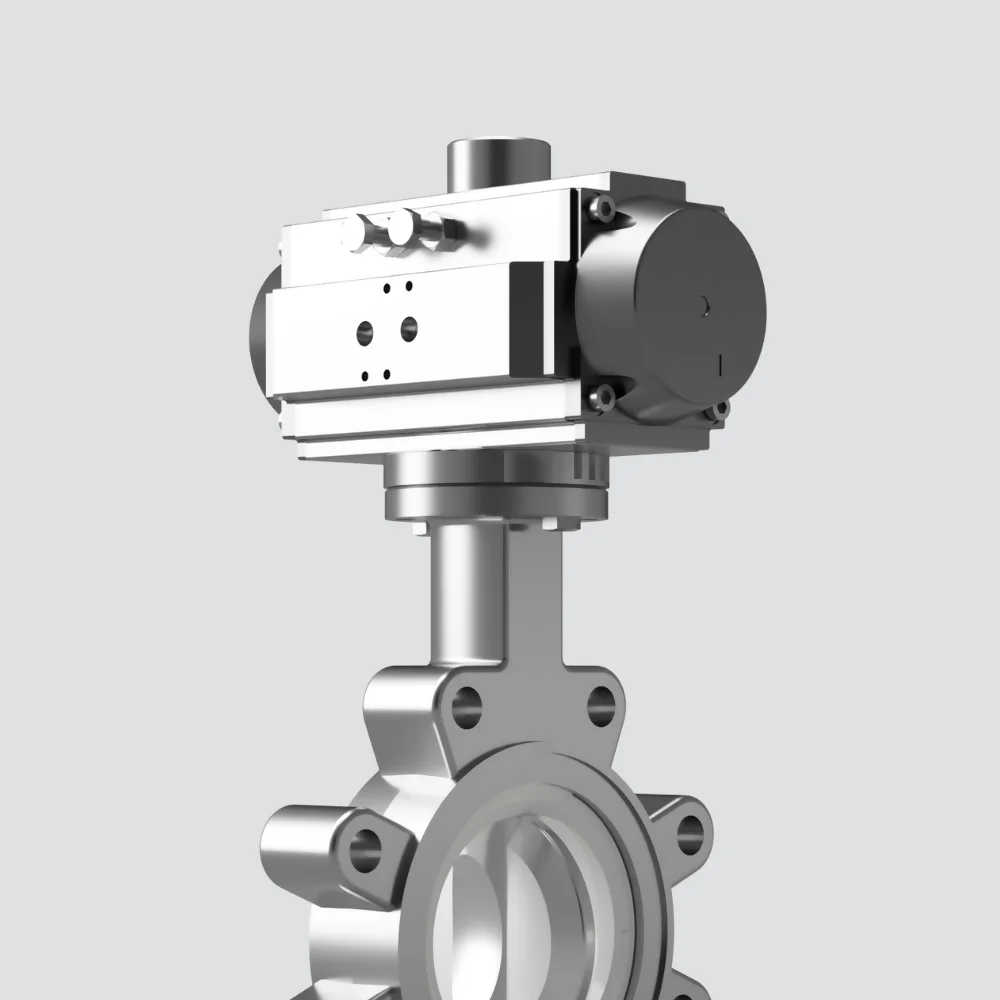

40LP4040F0FE - PTFE Seat Lugged SS Festo Actuator Butterfly Valves

All of our actuated butterfly valves can be set up in either the Fail Safe Close/Open Position with several manual override features across the range. Control and Indication add-ons can be specified at the time of order. The DFPD Series Pneumatic Actuators are designed to withstand harsh conditions that would destroy most standard pneumatic components. These high-quality actuators come with Festo’s reputation for build quality and reliability so you can be sure they will work when it matters most. Mainly for use in highly corrosive environments and higher service temperatures the High Performance Lugged Pattern PTFE Butterfly Valve features a non-toxic PTFE internal seal which also partially covers the outer body of the valve for perfect sealing with counter flanges.

Size Range: DN32-DN100 (1 1/4"-12")
Body Materials: CF8M Stainless Steel
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

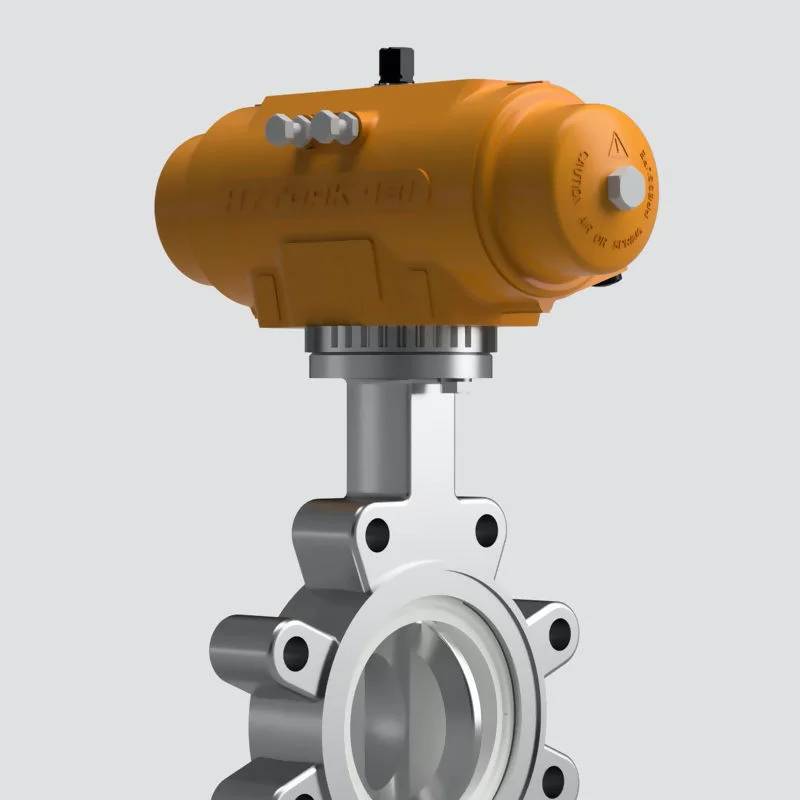

40LP4040F0XL - PTFE Seat Lugged Stainless Steel Actuated Butterfly

The TTV PTFE Lined and PTFE Seat Actuated Butterfly Valves are mainly used for highly corrosive applications that require optimum material resistance as well as clean or food grade requirements. The TTV PTFE material is approved by FDA. The Hytork XL pneumatic actuators springs are manufactured using the highest quality steel which means they will never break down, unlike other designs on the market today. This makes them ideal for industrial applications where safety is paramount. Lug valves are a great way to make repairs in the field easy. They have threaded inserts at both sides of their body, which means you can install them with no nuts. If one side needs servicing all you need do is detach whichever suits best.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: CF8M Stainless Steel
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

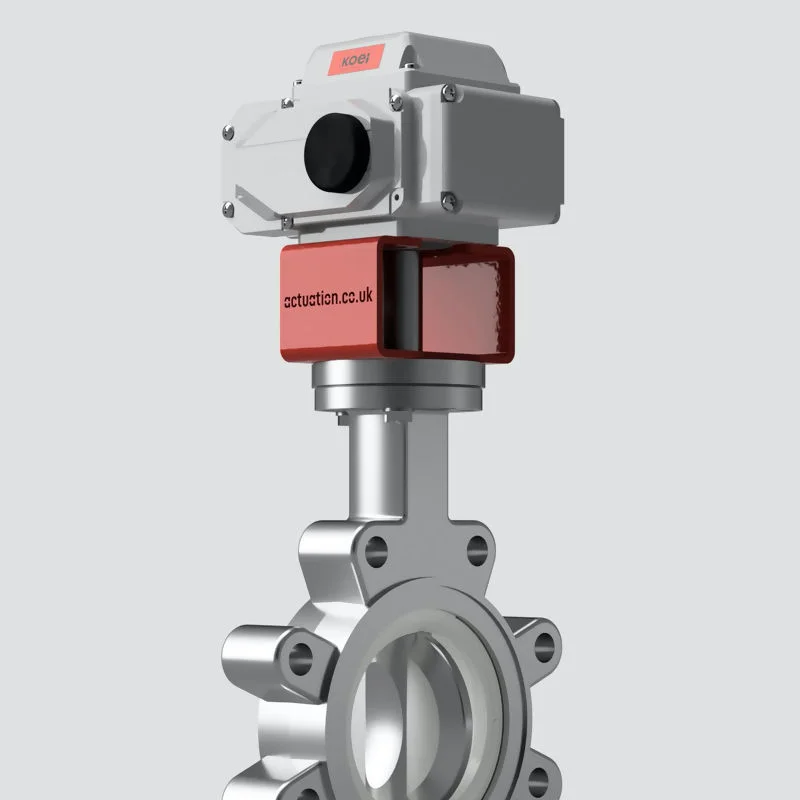

40LP4040F0EK - Electric Koei UNIC Actuated Butterfly Valves Lugged

Lugged Butterfly Valves are used to control the flow of fluids in a piping system. They have threaded inserts on both sides. The lugged design of these valves is great because it allows you to easily disconnect either side of the piping system without having to remove the valve itself. UNIC Electric Actuator by Koei Industry was made specifically for continuous process applications where frequent start/stop cycles would damage a traditional motorised actuators. The Koei UNIC electric actuator allows you to increase productivity and reduce costs. All units come complete with general operations and maintenance manuals as standard and free after sales support. Actuation Valve supply the Koei UNIC Actuator to a global network and can provide local technical support wherever you may be located around the world.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: CF8M Stainless Steel
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

40LP4040F0MC - Lugged Stainless Steel Actuated Butterfly Valves

The Asahi electric actuator features a thermally bonded powder coated corrosion resistant housing (Series 92) rated to Nema 4X with stainless steel trim. ABS Product Type Approved for use in Marine and Offshore Applications. Asahi electric actuators are provided with gear trains pre-lubricated at the factory prior to despatch. The specially formulated lubricant offers extended life cycles whilst also covering a wide range of temperature options for various ambient and operating requirements, as well as reducing wear. Motors used with the Asahi Electric Actuator housings are CE compliant and stamped for all 120VAC and 220VAC electric actuator motors. Extended duty cycles offer versatility to modulate high operation/cycle requirements, while providing sturdiness needed in harsh environments.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: CF8M Stainless Steel
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

40LP4040F0MA - MAX Air SS PTFE Seat Actuated Butterfly Valves

Combining the MT range of actuators from Max Air Technologies and TTV's 40LP4040F0MA butterfly valve provides an extremely cost effective automated shut off solution. The Max Air actuator utilizes the same body design and end caps for both double acting and spring return applications allowing customizable stock profiles. This allows us to offer large quantities on short lead times with all assmebly and testing performed in house. Attention to detail features special epoxy coated internal springs to increase corrosion resistance. Your perfect choice for pneumatic butterfly valves on a restricted budget.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: CF8M Stainless Steel
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

40LP4040F0ROM - Lugged Stainless Steel Actuated Butterfly Valves

A quality package from both Rotork (ROM) and TTV's conectric butterfly valves. Reliability when it matters for frequent or infrequent use the Rotork ROM electric actuator is there when you need it and offers worldwide customer service and support with an extremely low cost of ownership. The compact and lightweight valve package has a non clucth manual override design and can be operatred without any lever upon power failure. Corrosion protection offered to C5-M (Actuator) as standard. Additional options include Profibus, Modbus & Fieldbus from the ROMpak range of actuated butterfly valves.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: CF8M Stainless Steel
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

40LP4040F0RPX - Bettis RPX SS PTFE Seat Actuated Butterfly Valves

The 40LP4040F0RPX combines a robust 6063T6 aluminium bodied pneumatic actuator and high quality concentric PTFE Seat butterfly valve from Emerson Bettis & TTV respectively. This brand new actuated butterfly valve package offers a more cost effective solution to that of the Hytork & El-O-Matic from Emerson whilst still incorporating the core values of market leading manufacturers. Pre compressed spring designs and an anti-blowout drive pinion ensure safe operation and maintenance procedures throughout the product life cycle.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: CF8M Stainless Steel
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air
