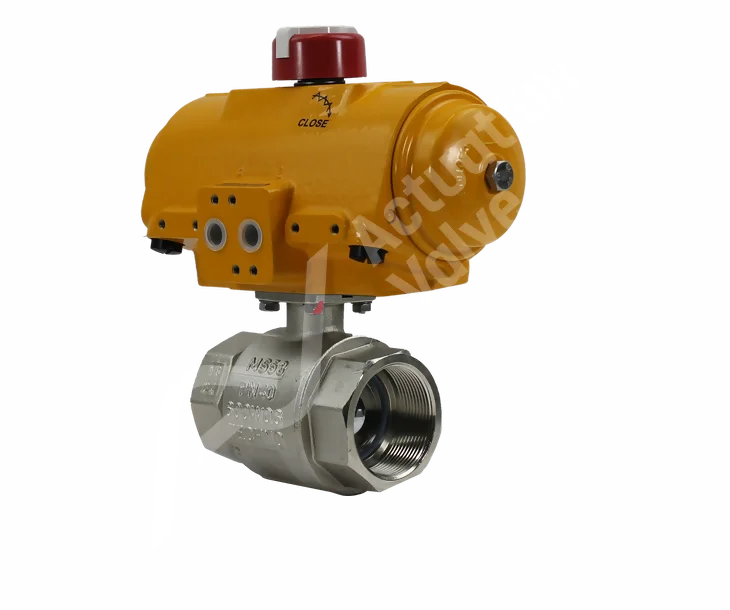

2 Piece FB Wras Approved Hytork Actuator Ball Valves

The Hytork XL Actuator offers extremely high mechanical strength designed to withstand heavy loads when subjected to external forces like shock or impact. Ideal for use in harsh environments such as mining or construction sites with long-lasting durability. Wras Ball Valves are the most efficient way of ensuring compliance within your organisation, solving all problems associated with leaks and wastage from potentially incorrect installation. This allows you to take advantage of the full potential of your system. The bi-directional travel stops allow easy setting of the valve stroke which prevents premature valve failures. Our Pneumatic Actuators can be used with other common ancillary components such as solenoid valves, position switches, gauges and pressure regulators.

Key Features

Key features and benefits of AV-L4500XL Actuated Ball Valves.
1

Key Features

Affordable alternative to standard quarter turn pneumatic actuators of lower quality. Offering overall reduced cost of ownership with precise high speed actuation. Can be used a stand alone unit or part of smart automated assembly lines.
2

Key Features

Products designed by engineers who understand how they work in real world environments. Shock resistant to vibrations and demeaning applications with efficient operation reducing the overall energy consumption costs to the end user.
3

Key Features

Actuation Valve provide fast turnaround times without sacrificing quality or expertise and all orders come with a two page test report detailing all opening/closing times on each valve tested. Whether you need one product or several hundred off-the-shelf parts, we can deliver.

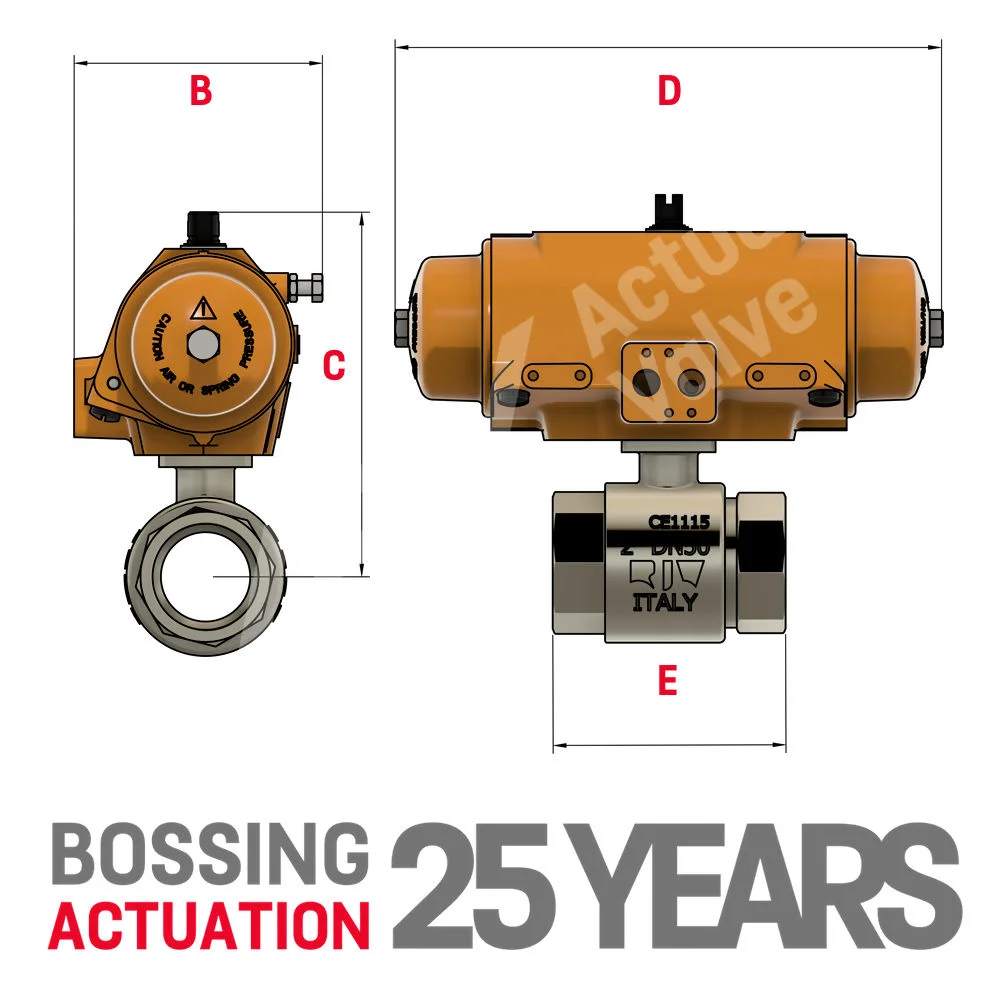

AV-L4500XL Ball Valve Technical Stuff

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" 97.00 135.50 165.00 97.00 135.50 165.00 59.00
3/4" 97.00 141.50 165.00 97.00 141.50 165.00 69.00
1" 97.00 145.50 165.00 97.00 145.50 165.00 83.00
1 1/4" 116.50 168.90 221.80 97.00 151.00 165.00 94.00
1 1/2" 116.50 180.40 221.80 116.50 180.40 221.80 102.00
2" 116.50 187.90 221.80 116.50 187.90 221.80 124.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

AV-L4500XL Ball Valve 3D Stuff

Wras Approved Actuated Ball Valves

WRAS approval is a mandatory requirement for any product that carries or receives drinking water from the public mains in the UK. It provides proof that our products have been tested by an independent body to ensure they meet all relevant standards and requirements as set out by Government. The AV4500 is a Wras Approved Ball Valve suitable for use drinking water.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: Brass CW 617 N
Seats Material: PTFE
Shaft Material: Brass CW 614 N
O-Rings Material: Viton
Ball Material: Brass CW 617 N
Approvals: Wras approved
Mounting: ISO 5211 Connection
End Connections: BSPP
Pressure Rating: PN40

Frequent Interrogation

Yes, this Valve is suitable for drinking water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Hytork Actuator Videos

TopWorx Limit Switch Box

TopWorx Valve Limit Switch Box available for this product. Keep everything within the Emerson Group of products with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Pneumatic Actuator prior to shipping.
