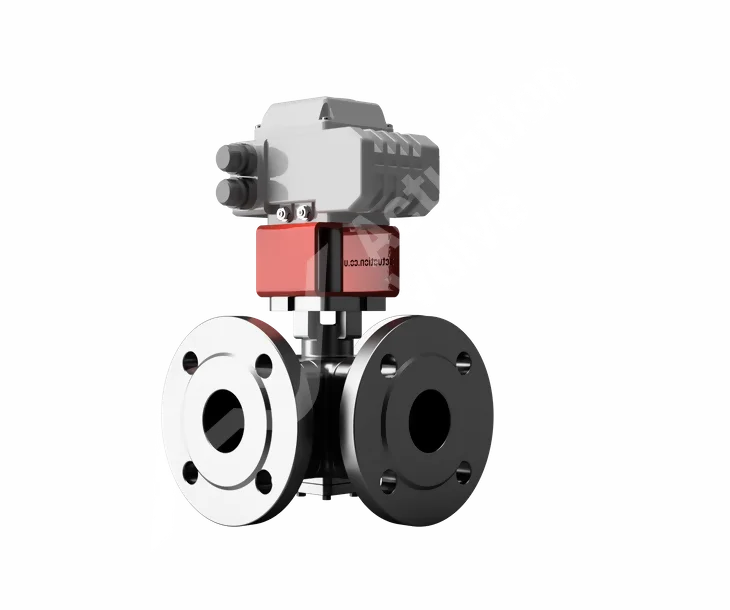

3-Way PN16-PN40 Full Bore Koei UNIC Electric Ball Valves

Our stainless 3-Way stainless steel ball valves come pre-tested so you can get them up and running immediately. You will also receive a two page test report detailing all opening/closing times after your order has been completed. The AV-L5K00 & 5N00 3-Way Ball Valve is available with two configurations. L Port & T Port. The difference between the two is that the L Port version can offer complete shutoff depending on actuator type where as the T Port offers diversion only or constant flow form one port to another. Thanks to its high-performance motor, this product is capable of operating at temperatures of -25 to 55 Deg C without sacrificing speed or power consumption. With its ability to operate in extreme environments this electric actuator is sure to deliver on all fronts when you need it most.

Key Features

Key features and benefits of AV-L5K00EK & AV-L5N00EK Actuated Ball Valves.
1

Key Features

Koei’s new UNIC series of electric actuators are designed for 100% continuous operation. Since they're powered by electricity instead of compressed air there's no risk of downtime due to maintenance issues with additional factors such as compressors.
2

Key Features

Koei UNIC is a world class manufacturer with long term relationships with some of the biggest names in industry including Toyota, Honda and BMW. Koei UNIC has been manufacturing their own high quality electric actuators for over 20 years.
3

Key Features

This multipart diverter valve package is a perfect choice for those who need to deal with medium aggressive water conditions and harsh external environments. It has been designed using only high quality materials from the manufacturer Kingdom Controls.

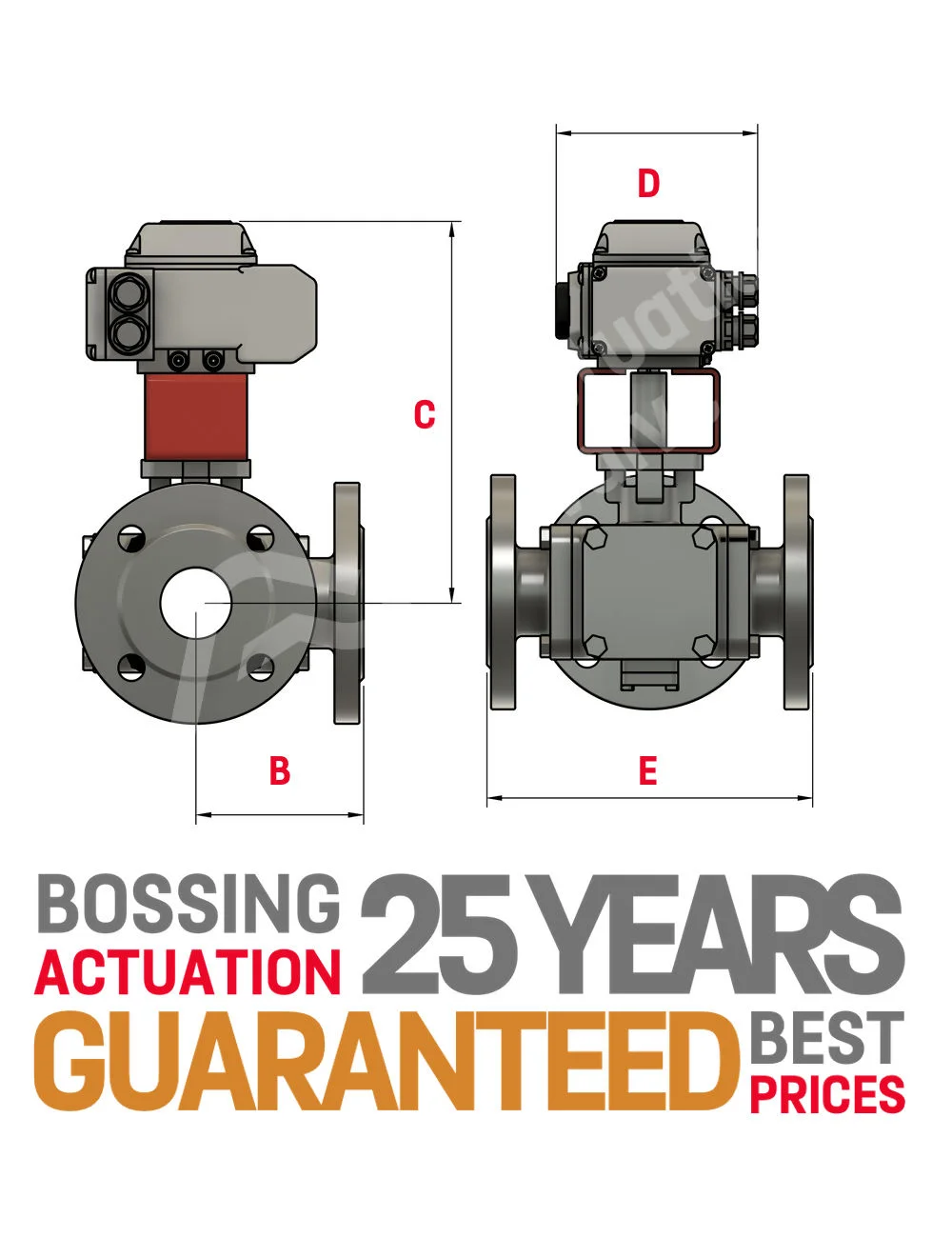

3-Way PN16 PN40 Technical Stuff

B C D E Model
1/4" TBA TBA TBA TBA UNIC 05
3/8" TBA TBA TBA TBA UNIC 05
1/2" TBA 229.00 145.00 150.00 UNIC 05
3/4" TBA 233.00 145.00 165.00 UNIC 05
1" TBA 244.00 145.00 181.00 UNIC 05
1 1/4" TBA TBA TBA TBA UNIC 05
1 1/2" TBA 261.00 145.00 190.00 UNIC 05
2" TBA 294.00 155.00 212.00 UNIC 10
2 1/2" TBA 309.00 155.00 230.00 UNIC 10
3" TBA 329.00 187.00 310.00 / 340.00 UNIC 20
4" TBA 360.00 187.00 352.00 / 386.00 UNIC 20
5" TBA TBA TBA TBA TBA
6" TBA TBA TBA TBA TBA

3-Way PN16 PN40 Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

3-Way Valve Configuration

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.
