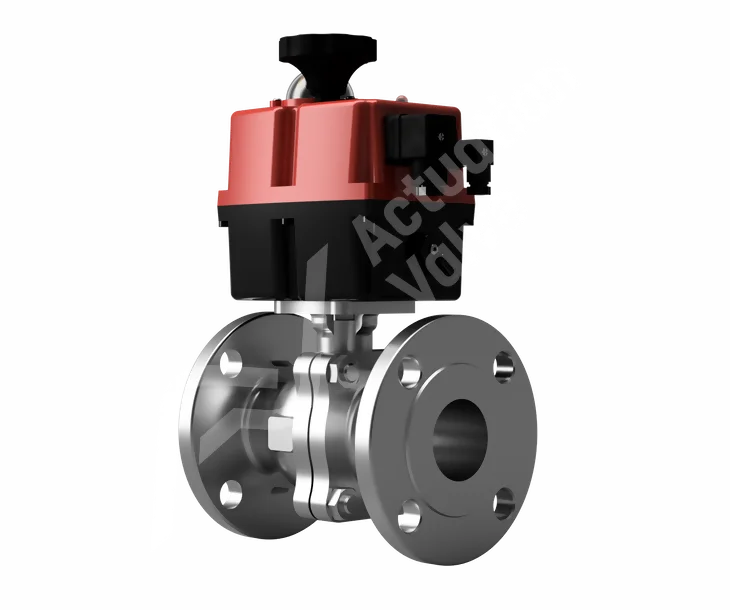

J4CS J&J Electric Actuator Ball Valves SS ANSI 150

By switching from conventional ball valves to our low torque AV-L6100 Ball Valve, you'll save money on installation costs and maintenance while improving overall reliability. Our product is designed with the end-user in mind and we understand what works best for industrial automation. J&J Electric Valve Actuator comes with a robust manual override handle that provides a reliable mechanical backup in the event of a power failure. This safety feature allows you to switch between open and closed positions until systems or power is restored. WRAS approved TFM 1600 PTFE seats ensure safe operation while our FDA-approved materials provide peace of mind knowing your products will be handled safely without compromising quality or performance when used correctly.

Key Features

Key features and benefits of AV-L6100JJ Actuated Ball Valves.
1

Key Features

This package is a perfect choice for those who need to deal with medium aggressive water conditions and harsh external environments. It has been designed using only high quality materials from the manufacturer Kingdom Controls.
2

Key Features

The J&J J4CS electric valve actuators are designed for 75% duty rating and has been proven reliable by thousands of customers around the world. The actuator comes with a 3 year 60000 cycle warranty as a result of continuous research and development.
3

Key Features

J&J Electric's DPS Kits are a great option for applications that require fine control of valves. The digital positioner allows for precise adjustment of valve operation, and the kit is compatible with both S and B model actuators.

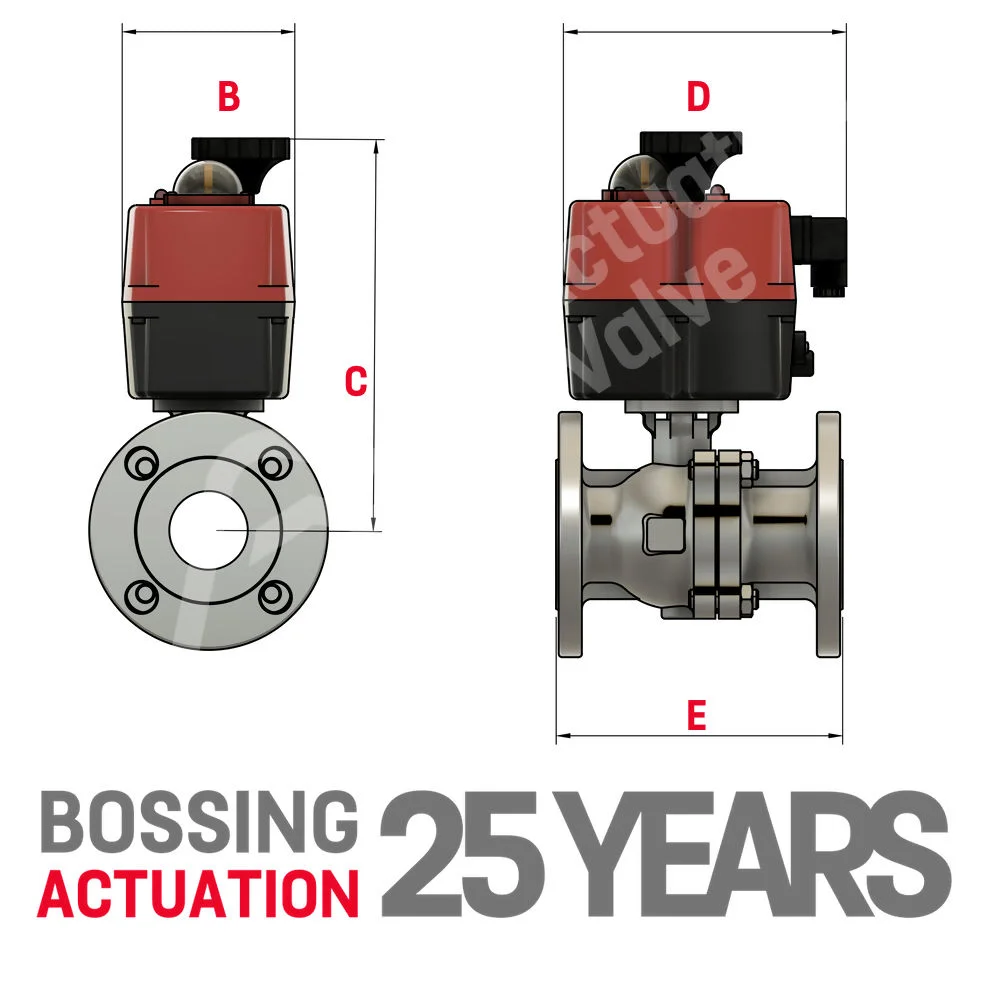

Flanged ANSI 150 Technical Stuff

B C D E Model
1/2" 110.00 220.00 179.00 108.00 J4CS20
3/4" 110.00 224.00 179.00 117.00 J4CS20
1" 110.00 230.00 179.00 127.00 J4CS20
1 1/4" 110.00 242.00 179.00 140.00 J4CS20
1 1/2" 110.00 247.00 179.00 165.00 J4CS35
2" 110.00 278.00 181.00 178.00 J4CS55
2 1/2" 110.00 298.00 181.00 190.00 J4CS85
3" 214.00 366.00 235.00 203.00 J4CS140
4" 214.00 394.00 235.00 229.00 J4CS140
5" 214.00 437.00 235.00 356.00 J4CS300
6" TBA TBA TBA TBA TBA

Flanged ANSI 150 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
