Hygienic Tri Clamp-Weld OD Manual Lever Operated Ball Valves

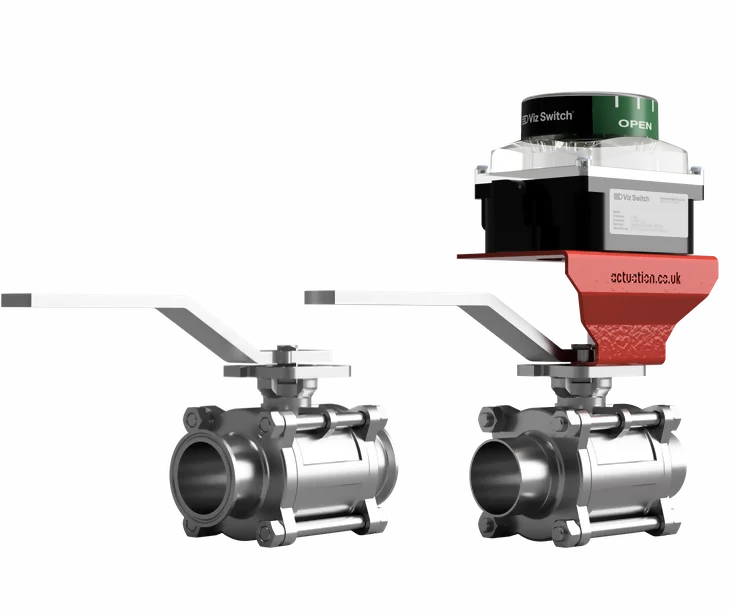

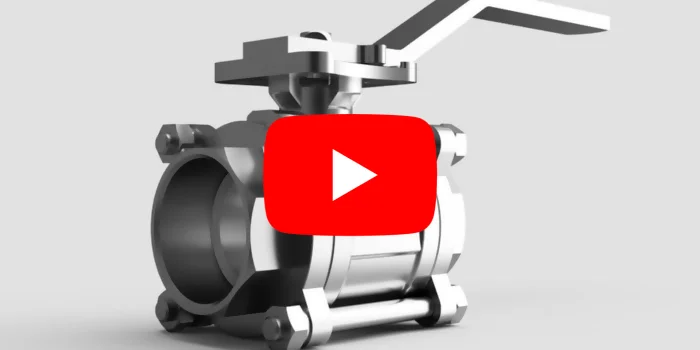

The The AV-L9CB0 & AV-L91B0 form part of the sanitary and hygienic full bore actuated valve packages from actuation valve. This 3 piece body valve has a swing out centre section that is perfect for scheduled maintenance and seat replacements. The full bore body design and cavity filled seats create a free flow path that does not allow debris or contaminents to build up with temperatures suitable for up to 200 DegC steam cleaning CIP and SIS. Various approvals include FDA & Wras approved seats with a bovine free supply.

Key Features

Key features and benefits of the AV-L9CB0 & AV-L91B0 Stainless Steel Manual Lever Operated Ball Valves.

Key Features

Actuation Valve’s 2 Port Hygienic Ball Valves have been designed for use in demanding process applications to meet a wide range of industry sector specification standards and are suitable for use with viscous liquids and liquids containing semi, or solid particles. The three-piece body design is constructed of an A351 CF8M Stainless Steel body with a chemically polished external surface.

Key Features

Along with the refined, polished internal surface area the Hygienic Ball Valves also offer a TFM 1600 3A, FDA and Wras approved cavity filled PTFE Seat preventing any further possible harmful entrapment and contamination build-up designed for use in high purity applications and other aseptic processes that can put a product at risk.

Key Features

Lending to the Ball Valves ISO mounting pad Actuation Valve are able to utilise large stocks of Pneumatic or Electric Actuators with in house assembly and testing provided same day if required. Pneumatic Spring Return Hygienic Ball Valves are offered as a fail-safe open or closed setup with Double Acting providing air to open air to close functionality.

Frequently Asked Questions

Ball valves consist of a spherical ball with a bore that is rotated to open or close the valve. When aligned with the valve body, the bore allows fluid flow; when perpendicular, it seals the valve. The ball seals against seats in the valve body when closed to stop flow. Ball valves are quick opening, achieve full bore operation, and have low pressure drop. They can be automated or manually operated, with the handle indicating open/closed status. Ball valves come in 2-way, 3-way and multi-way configurations and are commonly used for shutoff, throttling and flow control of liquids, gases, and slurries in various industries. Key advantages are tight sealing, quick on-off operation, and full bore flow when open.

A ball valve works by utilising a perforated spherical ball that rotates within the valve body to control flow. When the valve is open, the ball's bore is aligned parallel with the flow path, allowing fluid to travel through the valve's inlet, through the ball's bore, and out the outlet. When closed, the ball is rotated 90 degrees by the handle or actuator so that the bore is perpendicular to the flow, sealing off the inlet and outlet ports. As the ball rotates, it presses against valve seats on either side to form a tight seal and stop flow. The open/close state is clearly indicated by the handle position. Ball valves achieve tight shutoff and can be opened/closed quickly with a 1/4 turn of the ball. Their uncomplicated operation, full bore flow, and low pressure drop make ball valves ideal for shutoff, throttling and control applications.

The common types include full port, reduced port, V-port, trunnion, and multiport ball valves, each designed for specific flow control conditions and applications.

Ball valves are ideal for applications requiring low-pressure drop and quick, on-off service. They are commonly used in applications involving water, natural gas, and in certain industrial processes.

Ball valves are typically made from materials like brass, stainless steel, PVC, and CPVC, offering various levels of strength, corrosion resistance, and suitability for different temperatures and pressures.

The correct size depends on the pipeline size and the flow requirements. It's essential to match the valve size with the flow rate, pressure, and the physical properties of the fluid.

While primarily designed for on/off control, certain types of ball valves, like V-port valves, can modulate flow. However, they may not offer the precise control of a globe or needle valve.

Maintenance involves regular cleaning, inspecting for leaks or damage, and lubricating the valve components. It's crucial to follow the manufacturer's guidelines for maintenance.

The term "full bore" refers to the fact that the valve has a larger internal diameter, providing minimal resistance to the flow of the fluid. In other words, the internal diameter of the valve is the same as the internal diameter of the pipeline it is installed in.

Yes, specific types of ball valves are designed to withstand high temperatures, but it's important to choose a valve made from materials suitable for the intended application's temperature range.

Ball valves offer faster shut-off, better durability for frequent operation, and generally have a smaller footprint. However, gate valves provide better throttling capabilities and are better for sustained shutoff.

The lifespan of a ball valve depends on its material, usage, and the conditions it's exposed to. Generally, ball valves are known for their durability and can last for many years with proper maintenance.

Powerful Specifications

Size Range: DN15-DN200 (1/2"-4")
Body Materials: ASTM A351 CF8M 316 Stainless Steel body construction
Body Type: Full Bore, Reduced Bore
Seat Materials: PTFE, RPTFE, Devlon, Derlin, PCTFE, Peek, Vespel, UHMWPE, Metal
Applications: Chemical, Marine, Food/Beverage, Consumer Health, Petrochemical, Oil & Gas, Water
Pressure Rating: Upto 400°C
Temperature Rating: Upto 200°C
End Connections: Socket Weld/Butt Weld, Hygienic Tri Clamp/Weld OD
Actuation: Pneumatic, Electric, Hydraulic, Electro-Pneumatic

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
