Carbon Steel Actreg Actuated Ball Valves

3D CAD and Step files readily available for new product line and system designs allowing integration within minutes. We also offer various mounting options including direct and bespoke box section kits so you can get the right fit for your project needs. Each individual actuator retains its full traceability all the way back to the factory with a unique serial number. All assemblies performed by Actuation Valve in house also detail and cross reference this serial number with accompanying valves and accessories in a build sheet format. Whether your application requires an actuator to be perform hundred or cycles per day or a unit that may be operations several per month the Actreg actuator is there when you need it with the ability to instantly respond when tasked or spring fail closed upon air or signal failure.

Key Features

Key features and benefits of AV-L8000FCAC & AV-L8200FCAC Actuated Ball Valves.
1

Key Features

Suitable for working pressures up 2000 PSI (1” and below), the AV-L8000FC heavy duty ball valves off superior performance to that of our standard range of Valves. Designed to firesafe standards API 607 5th ED 2005 (Valve only) this heavily certified valve is reliable and robust.
2

Key Features

The AV-L8000FC heavy duty ball valves is suitable for use on heavy duty industrial applications where higher pressure ranges or temperatures may be required. The Valve features PTFE TFM 4215 ball seats with grafoil stem sealing.
3

Key Features

Optional installation for both across line. The design of the Actreg actuator allows for both setups depending on application requirements where space saving may be required. A typical inline mounting would be for uses involving hopper line actuation and bagging lines.

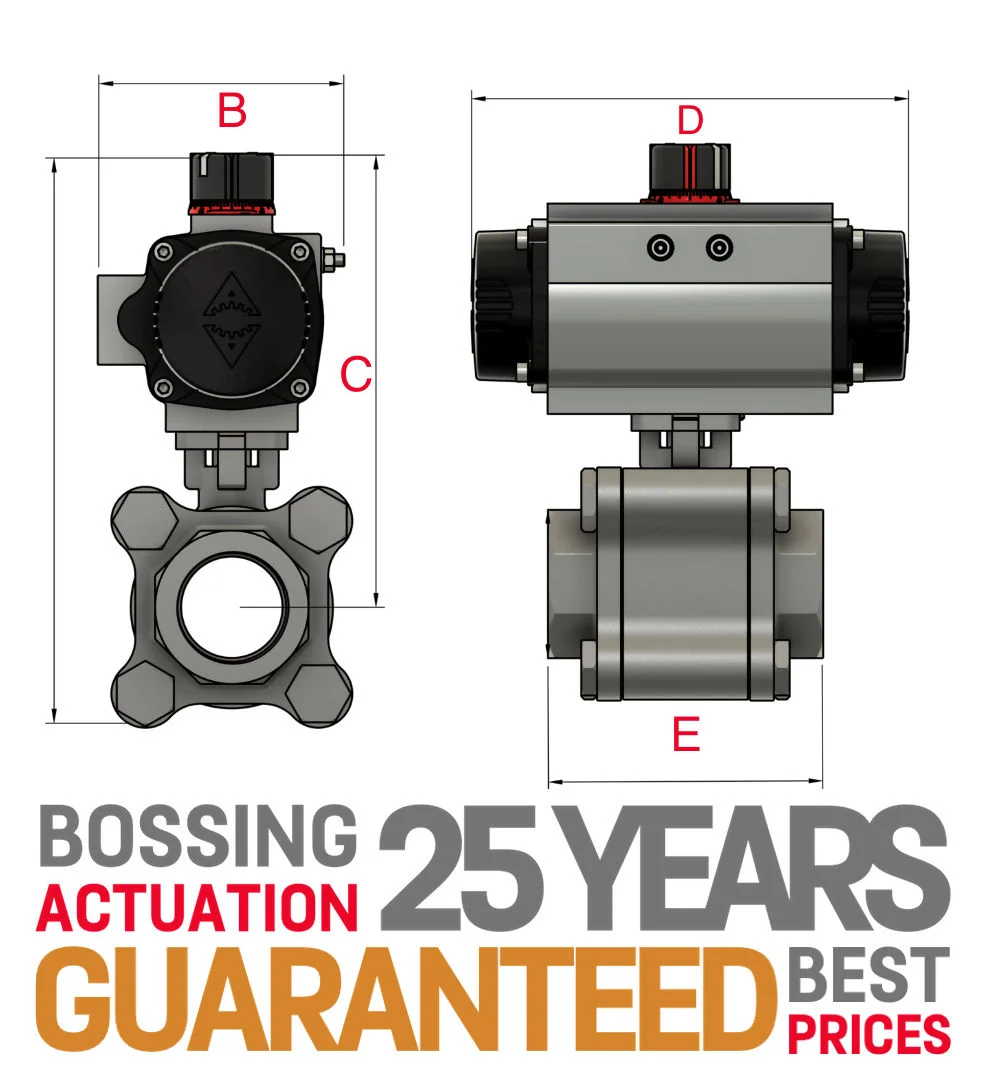

Screwed/Socket Weld Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 81.00 139.00 163.00 75.00 81.00 139.00 145.00 75.00
3/8" 81.00 139.00 163.00 75.00 81.00 139.00 145.00 75.00
1/2" 81.00 139.00 163.00 75.00 81.00 139.00 145.00 75.00
3/4" 81.00 147.00 163.00 80.00 81.00 147.00 145.00 80.00
1" 96.00 173.00 195.00 90.00 96.00 173.00 158.00 90.00
1 1/4" 96.00 178.00 195.00 110.00 96.50 178.00 158.00 110.00
1 1/2" 116.00 212.00 217.00 120.00 116.00 212.00 177.00 120.00
2" 116.00 223.00 217.00 140.00 116.00 223.00 177.00 140.00

Screwed/Socket Weld 3D Stuff

Actreg Actuator Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A216 WCB Carbon Steel & 304 SS Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 228/1
Socket Weld Ends: ASME B16.11
Silicone Free: Suitable For Oil Based Paints
Anti Static Device: Ball, Shaft & Valve Body

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
