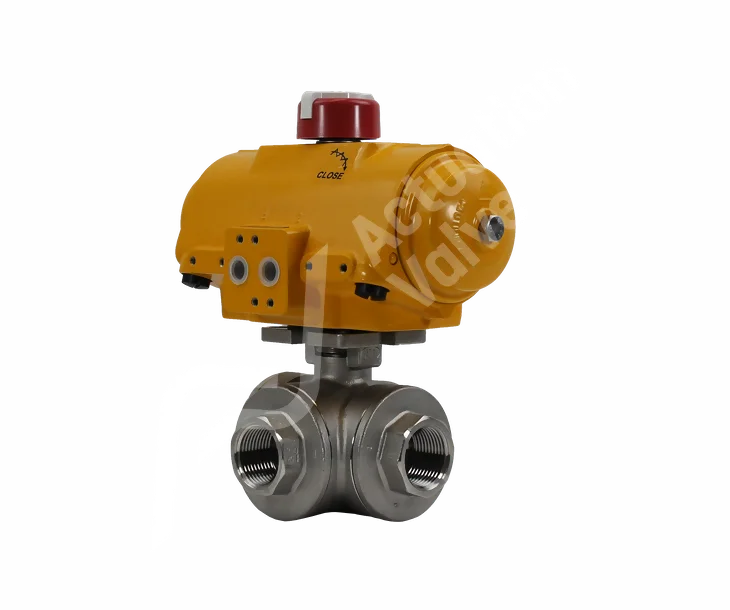

The AV-L5300XL & AV-L5400XL L & T port full bore actuated ball valves offer a full flow diverting solution for 90 and 180 degree operation. 1000 PSI of pressure enable this valve to be used in almost all process and industrial applications with a casting approved by TUV. Additional options include pilot operated solenoid valves and limit position feedback covering safe area and full ATEX zones. Gearbox manual overrides are also optional on all air actuated ball valves. Designed to provide the highest quality at the best price in the market today. The Hytork XL product is easy to install and use with no special tools required during installation or operation. Competitive warranties offered for standard use operation.

Shop Help Me

Key features and benefits of AV-L5300XL & AV-L5400XL Actuated Ball Valves.

Key Features

Hytork’s Pneumatic Actuator is designed with larger rack teeth than competitors' products, which provides superior strength and durability when compared to other brands on the market today. This innovative design allows our customers to have confidence in their equipment.

Key Features

With its compact design and simple mounting, you won't sacrifice performance for size with this industrial pneumatic actuator. This Hytork XL will allow you to increase production and profitability with minimal downtime and efficiency.

Key Features

The AV-L5300 & 5400 Full Bore is an affordable line of high-quality stainless steel ball valves that won't break your budget. These durable products will give you years of trouble-free service at a fraction of the price that other companies charge for similar products.

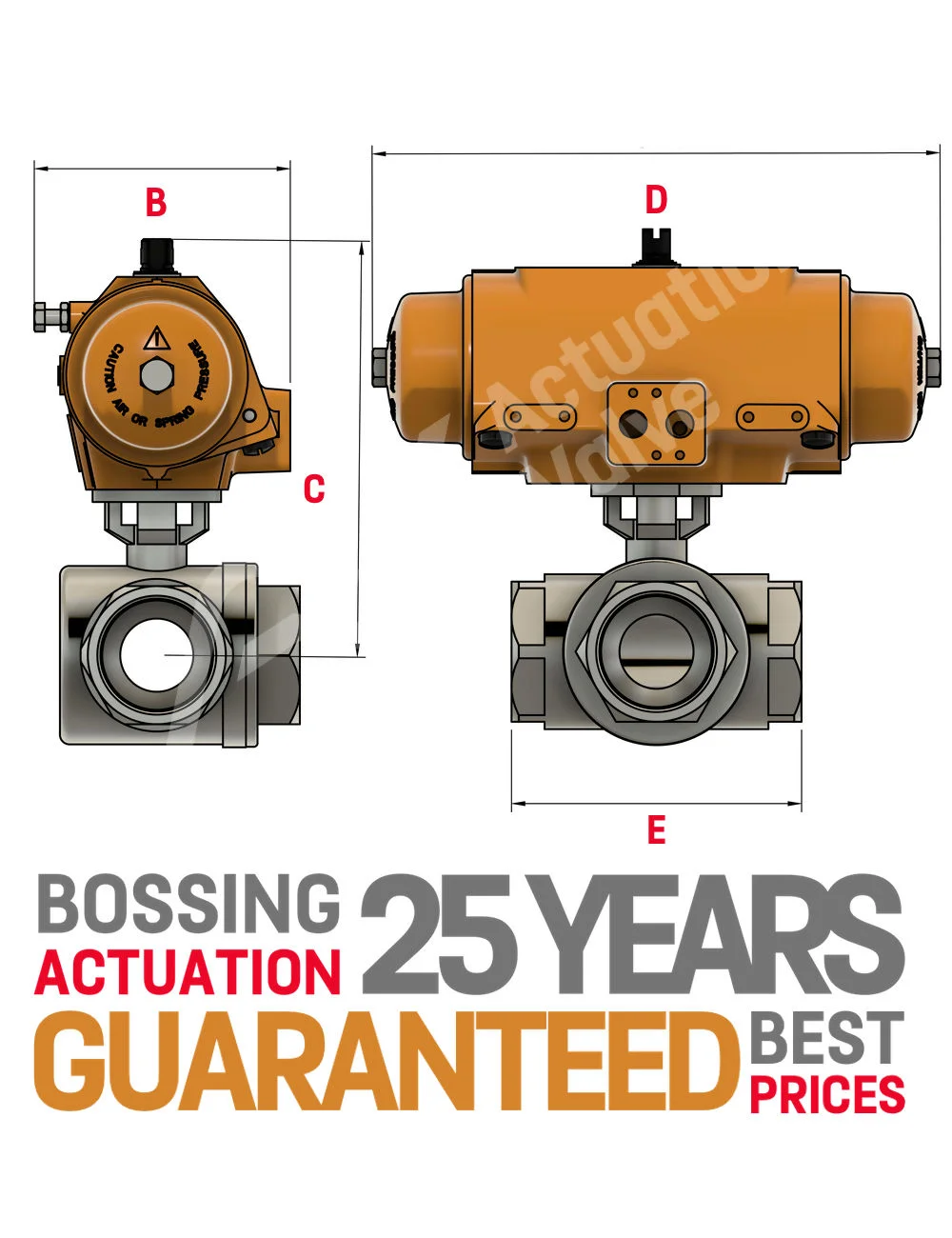

	B	C	D	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA

1/4"	97.00	147.50	165.00	97.00	147.50	165.00	79.00
3/8"	97.00	147.50	165.00	97.00	147.50	165.00	79.00
1/2"	116.50	171.40	221.80	116.50	171.40	221.80	88.00
3/4"	116.50	181.90	221.80	116.50	181.90	221.80	108.00
1"	116.50	185.40	221.80	116.50	185.40	221.80	124.00
1 1/4"	116.50	195.20	221.80	116.50	195.90	221.80	135.00
1 1/2"	133.50	221.20	292.00	116.50	205.20	221.80	164.00
2"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
2.5"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
4"	TBA	TBA	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	PTFE
Stem Packing Material:	PTFE
Design Standard:	MSS SP-110
Wall Thickness:	ASME B16.34 Class 400
Inspection & Testing:	MSS SP-110
BSP Ends:	BSPP IS0 7-1

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Yes, discounts are usually available on multi-unit or bulk orders of the AV-L5300XL and AV-L5400XL range. Get in touch with your required quantity and specification and our sales team will confirm the best pricing for your order.

Yes, the AV-L5300XL and AV-L5400XL range can be supplied compliant with REACH and RoHS regulations. Please confirm this requirement when ordering so the correct documentation is issued with your valve.

Yes, we can advise on larger sizes outside the standard AV-L5300XL and AV-L5400XL range. Send us your line size and process details by email or give us a call and we will confirm availability and lead time.

Yes, we can deliver directly to your customer on a plain, unbranded label. Send us a copy of your delivery note and we will include it with the shipment so your customer receives it under your company name.

Yes, we offer credit accounts for trade and repeat customers, subject to a credit check. Apply on the product page at checkout or contact our sales team directly and we will guide you through the application process.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
