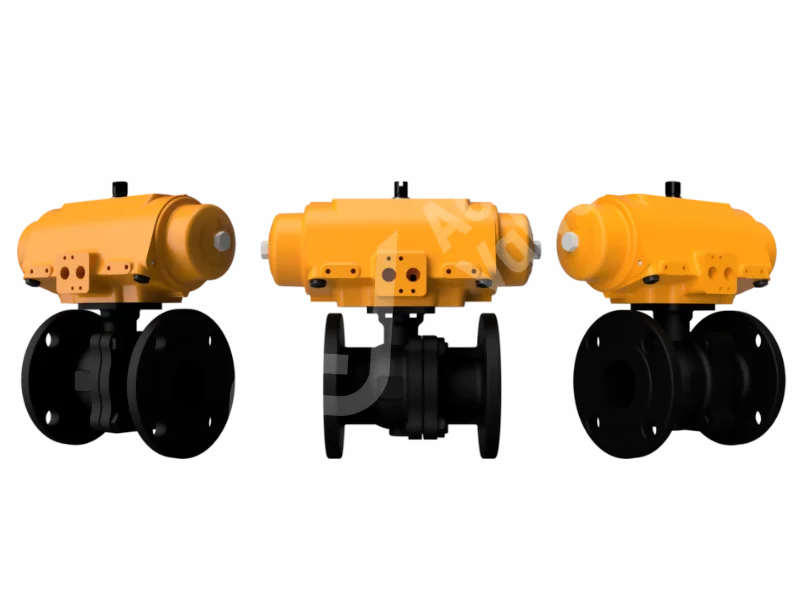

ANSI150 Carbon Steel Hytork Pneumatic Actuator Valves

The AV-L61C0-XL 2 piece full bore flanged actuated ball valves are available in sizes ranging from 1/2" to 6" for next day delivery. This flanged valve body offers installation between two pipeline flanges and end of line service with a reliable shut off performance. The AV-L60-C actuated ball valve offers TFM 1600 seats that are a WRAS & FDA certified material. The ISO 5211 Direct Mounting Pad allows actuation of the valve without the use of a mounting bracket so all assembly and testing procedures can be processed immediately after your order has been placed.
Shop Help Me

Key Features

Key features and benefits of the AV-L61C0-XL Actuated Ball Valves.
1

Key Features

Ideal for applications where frequent On/Off cycles are required such as material handling equipment (MHE) due to its high cycle life expectancy. Hytork actuators are SIL rated to several million cycles with a proven track record.
2

Key Features

Designed to provide the highest quality at the best price in the market today. The Hytork XL product is easy to install and use with no special tools required during installation or operation. Competitive warranties offered for standard use operation.
3

Key Features

Our pneumatically actuated rack and pinion system provides you with more precision than conventional designs while extending the life of your components by protecting against excessive wear. Contact us today for more information about how we can help improve your application!

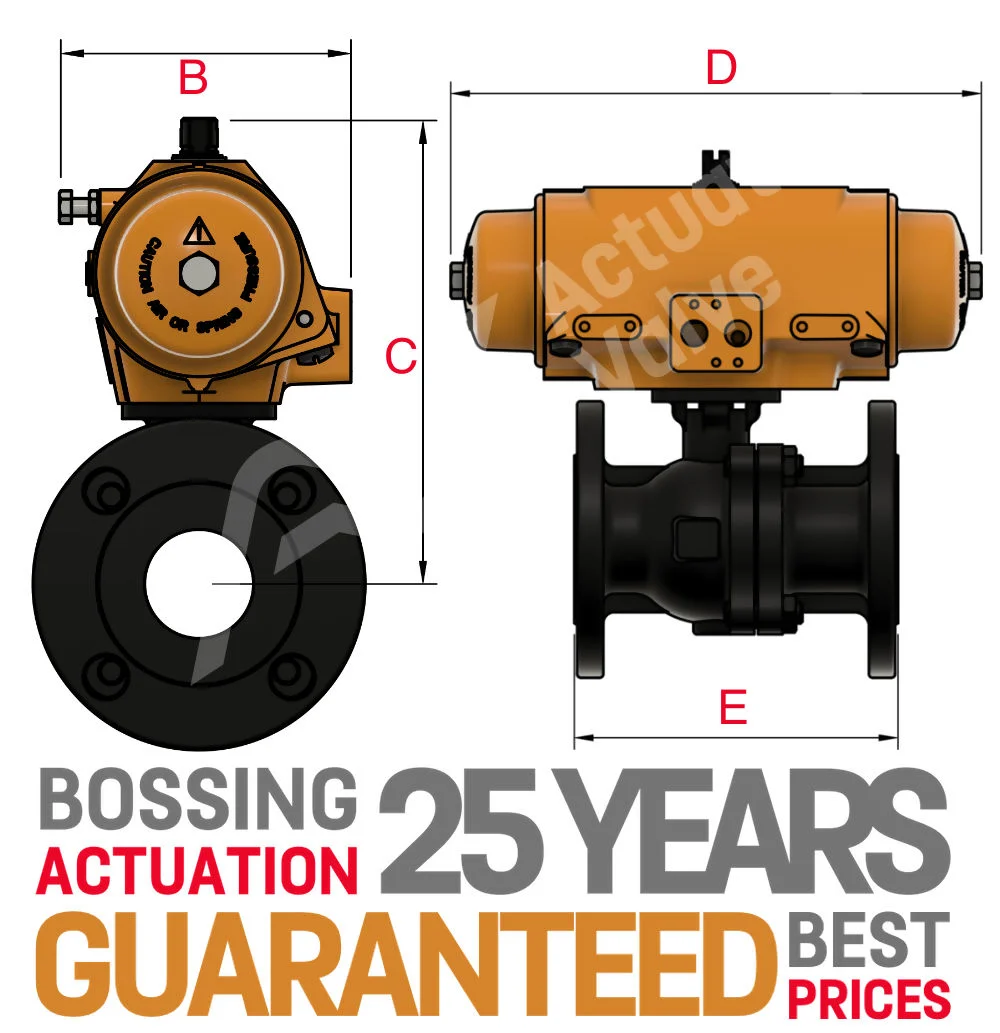

AV-L61C0-XL Ball Valve Technical Stuff

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" 72.00 120.00 137.00 72.00 120.00 137.00 59.00
3/4" 72.00 126.00 137.00 72.00 126.00 137.00 69.00
1" 72.00 130.00 137.00 72.00 130.00 137.00 83.00
1 1/4" 93.00 168.50 203.50 72.00 135.50 137.00 94.00
1 1/2" 93.00 180.00 203.50 84.50 163.00 153.50 102.00
2" 106.00 200.50 153.50 84.50 170.50 153.50 124.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

AV-L61C0-XL Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator Data.

  • PDF
DRAWINGS & SCHEMATICS

Hytork XL26
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL71
  • ZIP
DRAWINGS & SCHEMATICS

Hytork XL131
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL186
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL281
  • Document
DRAWINGS & SCHEMATICS

Hytork XL426

BIG Actuator Data.

  • PDF
DRAWINGS & SCHEMATICS

Hytork XL681
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL1127
  • ZIP
DRAWINGS & SCHEMATICS

Hytork XL1372
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL2586
  • PDF
DRAWINGS & SCHEMATICS

Hytork XL4581

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff
Body Material: ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

TopWorx Limit Switch Box

TopWorx Valve Limit Switch Box available for this product. Enable remote Valve monitoring of your High Performance Butterfly Valves with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Pneumatic Actuator prior to shipping.

Actuator Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

SIL
  • Document
CERTIFICATES & APPROVALS

TR 010 EAC Customs Union
  • Document
CERTIFICATES & APPROVALS

REACH, ROHS2, ROHS3
  • PDF
CERTIFICATES & APPROVALS

DOC
  • PDF
CERTIFICATES & APPROVALS

TR 012 EAC Customs Union
