Aluminium Bronze Lugged Actuated Butterfly Valves

A large number of Actuated Butterfly Valves supplied every year to the Marine Industry are made from Non Ferrous materials, mainly Aluminium Bronze. Bronze in Valve Manufacture is usually an alloy of Copper, Tin, Lead, and Zinc of the required 85/5/5/5 this or must 87/7/3/3 specified type. If a Zinc-Free Bronze is required this must be specified. The Physical Strength, Structural Stability and Corrosion Resistance of Bronze, in particular, makes it very suitable for a wide variety of applications in the mainstream of industrial requirements.

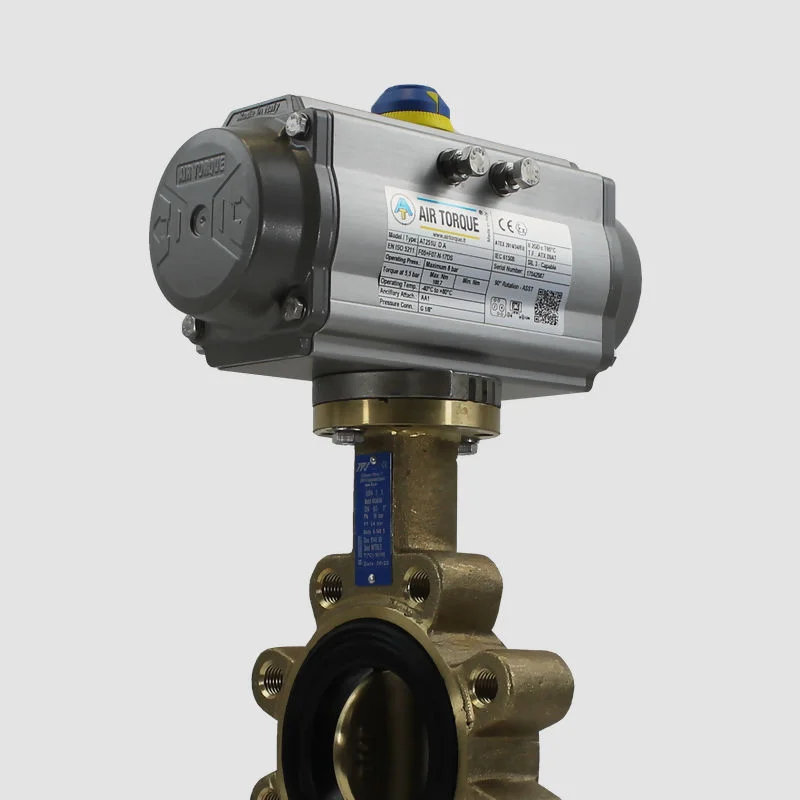

80LM580AT - Lugged Aluminium Bronze Actuated Butterfly Valves

Bronze and aluminium bronze valves offer a high level of corrosion resistance to mediums such as water and salt water. These characteristics make bronze and aluminium a suitable for many applications within the Marine environment. Air Torque Pneumatic Actuator provides a solution by offering modularity, spring-loaded design that offers fail-safe operation in harsh environments. This allows end users to achieve fast cycle times without sacrificing safety or reliability. Lug-style valves have threaded inserts at both sides of the body that allow them to be installed with only bolts and no nuts. The valve is placed between two flanges, one on each side. This setup permits either piece of piping disconnected without affecting the complete process.

Size Range: DN32-DN600 (1 1/4"-24")
Body Materials: B148 C9500 Aluminium Bronze
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Sea Water, Desalination, Cooling Water, Ballast, Oil, Gases, Ship Side
Find Out More

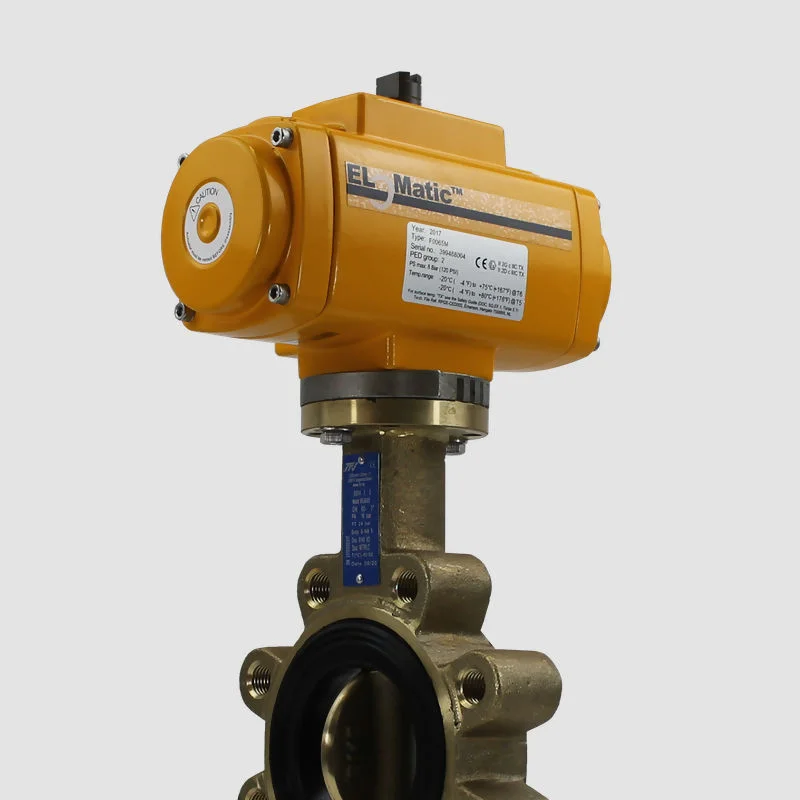

80LM580EL - Fully Lugged B148 C9500 Actuated Butterfly Valves

The TTV range of bronze butterfly valves are an ideal solution to most marine applications and come with approvals from recognised bodies such as DNV, Bureau Veritas, Lloyds & ABS. Our products are corrosion resistant with the highest quality of foundry raw materials. The EL-O-Matic Pneumatic Actuator uses a high grade aluminum (7075 T6) pinion that provides the best combination of corrosion resistance, high strength and lightweight construction available today. Ideal for any application where durability is required over many years of service life. Lugged Butterfly Valves are commonly used in piping systems as a dead end service Valve or where regular/predicted disconnecting of the pipe on either side may need to be removed for maintenance and installation without disruption to both sides of the line.

Size Range: DN32-DN500 (1 1/4"-20")
Body Materials: B148 C9500 Aluminium Bronze
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Sea Water, Desalination, Cooling Water, Ballast, Oil, Gases, Ship Side
Find Out More

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

80LM580FE - Festo Actuator Aluminium Bronze Butterfly Valves

Our standard corrosive resistant Butterfly Valves are available in a wide range of sizes to suit all industry standards with 2" to 12" Butterfly Valves all available from stock in ANSI or DIN Flanged Connections. Pneumatic Actuators are used in a wide variety of applications, from simple on-off control valves that activate when pressure is applied or released, through complex systems involving multiple actuators and sensors working together in close proximity. A single piece shaft design brings high strength and engineering with direct mount capabilities for actuation assemblies. The “Dry Shaft” feature ensures fluid is again isolated from both the shaft and the body of the butterfly valve.

Size Range: DN32-DN450 (1 1/4"-14")
Body Materials: B148 C9500 Aluminium Bronze
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Sea Water, Desalination, Cooling Water, Ballast, Oil, Gases, Ship Side
Find Out More

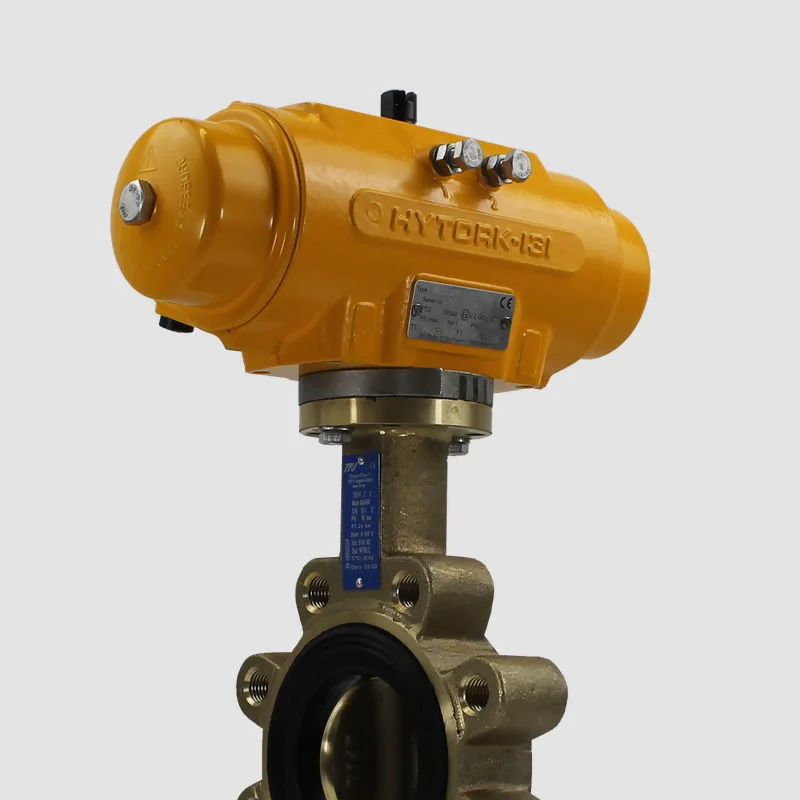

80LM580XL - Hytork Actuated Ali Bronze Actuated Butterfly Valves

The physical strength, structural stability, and corrosion resistance of bronze, in particular, makes it very suitable for a wide variety of applications in the mainstream of industrial re­quirements. Bronze in valve manufac­ture is usually an alloy of copper, tin, lead, and zinc. The Hytork Actuator Extremely high mechanical strength designed to withstand heavy loads when subjected to external forces like shock or impact. Ideal for use in harsh environments such as Marine or Oil & Gas with long-lasting durability. Lug valves are a great way to make repairs in the field easy. They have threaded inserts at both sides of their body, which means you can install them with no nuts. If one side needs servicing all you need do is detach whichever suits best.

Size Range: DN32-DN500 (1 1/4"-20")
Body Materials: B148 C9500 Aluminium Bronze
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Sea Water, Desalination, Cooling Water, Ballast, Oil, Gases, Ship Side
Find Out More

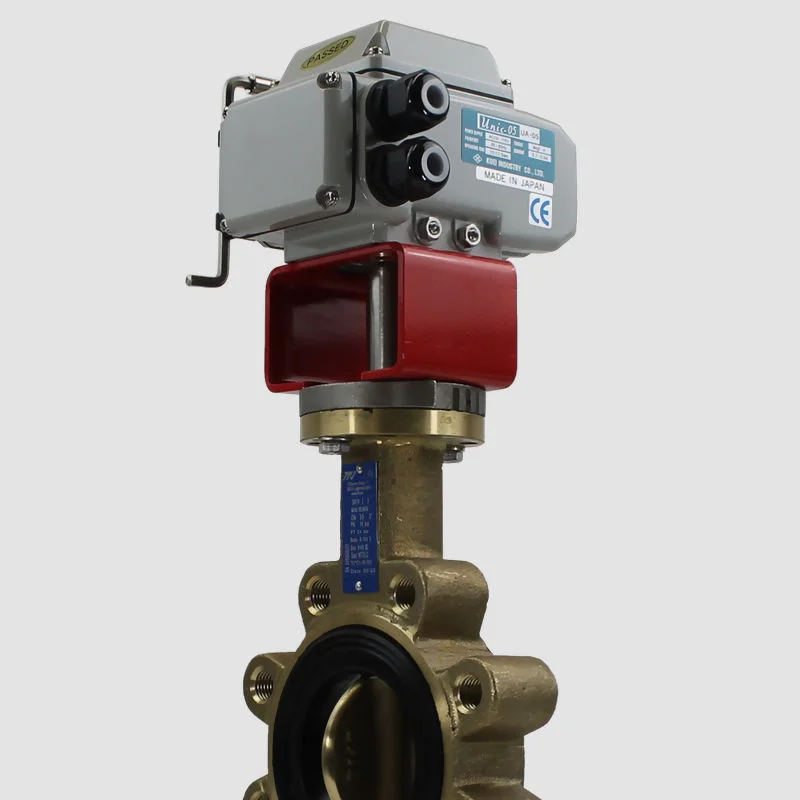

80LM580EK - Electric Koei UNIC Bronze Actuated Butterfly Valves

Actuation Valve are a market leading supplier of Aluminium Bronze Butterfly Valves within the UK & Worldwide working closely with Spanish Manufacturer TTV, predominantly servicing the Marine, Oil & Gas, Water, Fire Protection and Defence Industries for the last 40 years. Koei UNIC’s unique design is resistant to vibrations from all directions with no additional parts required. This makes it the ideal solution for use in areas where vibrations are an issue such as heavy machinery or shipping. The concentric design of the butterfly valves allows for an elastic, replaceable seat that takes on both shape and size to form a perfect seal. This TTV Butterfly Valve is suitable for use in either off or throttling applications with no loss of functionality.

Size Range: DN32-DN350 (1 1/4"-14")
Body Materials: B148 C9500 Aluminium Bronze
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air
Find Out More

80LM580MC - Asahi Lugged Aluminium Bronze Actuated Valves

The Asahi electric actuator features a thermally bonded powder coated corrosion resistant housing (Series 92) rated to Nema 4X with stainless steel trim. ABS Product Type Approved for use in Marine and Offshore Applications. Asahi electric actuators are provided with gear trains pre-lubricated at the factory prior to despatch. The specially formulated lubricant offers extended life cycles whilst also covering a wide range of temperature options for various ambient and operating requirements, as well as reducing wear. Motors used with the Asahi Electric Actuator housings are CE compliant and stamped for all 120VAC and 220VAC electric actuator motors. Extended duty cycles offer versatility to modulate high operation/cycle requirements, while providing sturdiness needed in harsh environments.

Size Range: DN32-DN350 (1 1/4"-14")
Body Materials: B148 C9500 Aluminium Bronze
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

Be Happy. Best Prices Guaranteed

80LM580ROM - Rotork Aluminium Bronze Actuated Butterfly Valves

A quality package from both Rotork (ROM) and TTV's conectric butterfly valves. Reliability when it matters for frequent or infrequent use the Rotork ROM electric actuator is there when you need it and offers worldwide customer service and support with an extremely low cost of ownership. The compact and lightweight valve package has a non clucth manual override design and can be operatred without any lever upon power failure. Corrosion protection offered to C5-M (Actuator) as standard. Additional options include Profibus, Modbus & Fieldbus from the ROMpak range of actuated butterfly valves.

Size Range: DN32-DN350 (1 1/4"-14")
Body Materials: B148 C9500 Aluminium Bronze
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

80LM580RPX - Bettis RPX Lugged Actuated Bronze Butterfly Valves

The 80LM580RPX combines a robust 6063T6 aluminium bodied pneumatic actuator and high quality concentric rubber lined butterfly valve from Emerson Bettis & TTV respectively. This brand new actuated butterfly valve package offers a more cost effective solution to that of the Hytork & El-O-Matic from Emerson whilst still incorporating the core values of market leading manufacturers. Pre compressed spring designs and an anti-blowout drive pinion ensure safe operation and maintenance procedures throughout the product life cycle.

Size Range: DN32-DN500 (1 1/4"-20")
Body Materials: B148 C9500 Aluminium Bronze
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Pneumatic, Electric, De-Clutchable Gear, Fail Safe, Spring Return, Battery Backup, Double Acting
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air
