AV-ARES is a compact, lightweight, and cost effective electric valve actuator that has been designed to be easy to install and use. With its simple design and easy installation, you can save time and money on your next project. The AV-L6100 ball valves are silicone free and suitable for use on oils based paint products and applications. This allows complete assurance that the Valve will not apply any contamination to the medium that could effect the end finish. Extremely important in car manufacturing. AV-ARES electric valve actuators provide a more reliable solution that uses components sourced under strict quality requirements. This allows for a life cycle expectancy of 50000 operations, or 50 cycles per day for nearly 3 years without any disruption to your application.

Shop Help Me

Key features and benefits of AV-A6100AR Actuated Ball Valves.

Key Features

AV-ARES line of electric actuators have been designed specifically for industrial applications where space is at a premium. These lightweight units offer all the features and benefits found in standard models with none of associated weight or unwanted size.

Key Features

AV-ARES Electric Actuators offers a digital positioner that allows for precise control of your valves, with operation torques up to 40NM. The instrumentation signals accepted include 4-20mA and 0-10VDC for intelligent control.

Key Features

Fully stainless steel materials. This ball valve package is designed to be used in harsh, external environments and mediums that are aggressive towards the material itself. It can be used for a variety of applications ranging from food & beverage to chemicals & petrochemicals.

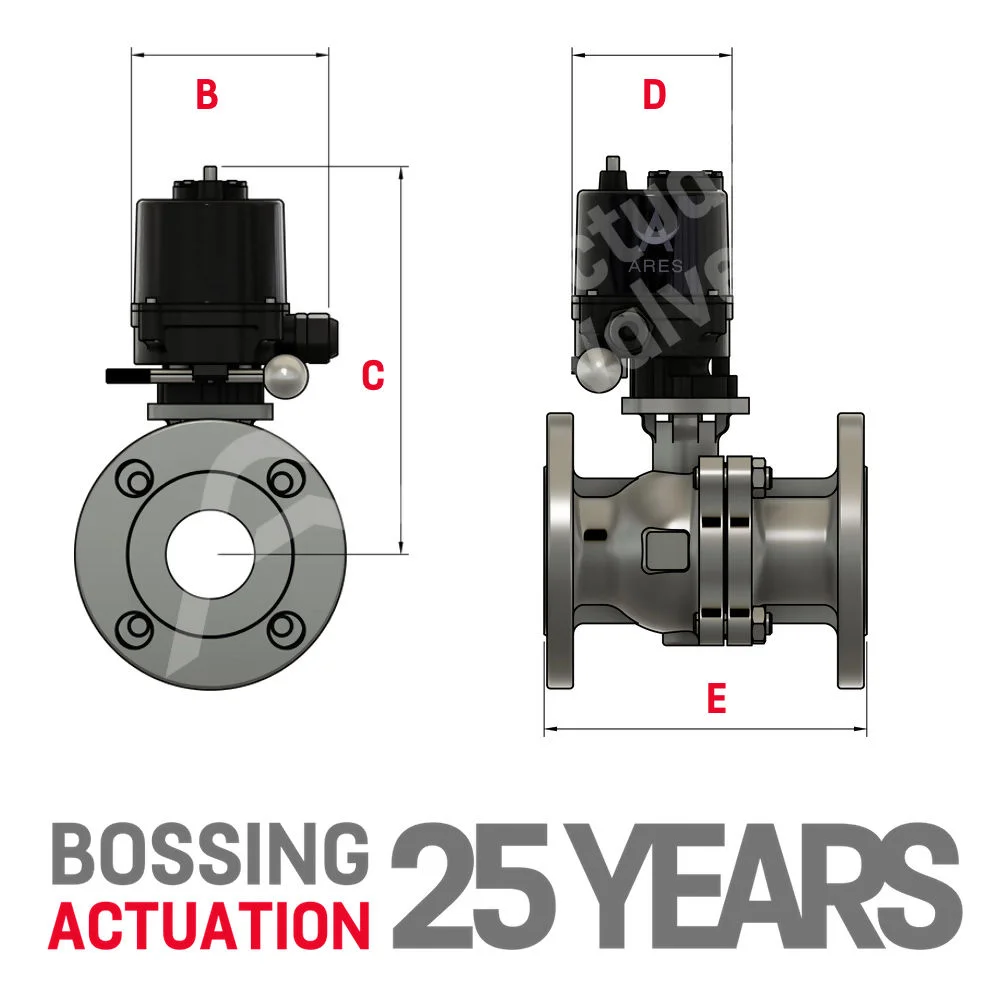

	B	C	D	E	Model

1/2"	115.00	182.00	88.00	108.00	AV-A1
3/4"	115.00	186.00	88.00	117.00	AV-A1
1"	115.00	192.00	88.00	127.00	AV-A1
1 1/4"	115.00	204.00	88.00	140.00	AV-A1
1 1/2"	115.00	274.00	88.00	165.00	AV-A1
2"	115.00	280.00	88.00	178.00	AV-A1
2 1/2"	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA
4"	TBA	TBA	TBA	TBA	TBA
5"	TBA	TBA	TBA	TBA	TBA
6"	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	ASME B16.34
Wall Thickness:	ASME B16.34
Inspection & Testing:	API 598
Face 2 Face:	ASME B16.10

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes, position feedback is included as standard on the AV-ARES range, with switches confirming open and closed positions.

Yes, discounts are usually available on multi-unit or bulk orders of the AV-ARES range. Get in touch with your required quantity and specification and our sales team will confirm the best pricing for your order.

Yes, the AV-ARES range can be supplied with Lloyd's Register certification. Please confirm this requirement when ordering so the correct documentation is issued with your valve.

Yes, we can advise on larger sizes outside the standard AV-ARES range. Send us your line size and process details by email or give us a call and we will confirm availability and lead time.

Yes, we can deliver directly to your customer on a plain, unbranded label. Send us a copy of your delivery note and we will include it with the shipment so your customer receives it under your company name.

Yes, we offer credit accounts for trade and repeat customers, subject to a credit check. Apply on the product page at checkout or contact our sales team directly and we will guide you through the application process.

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.
