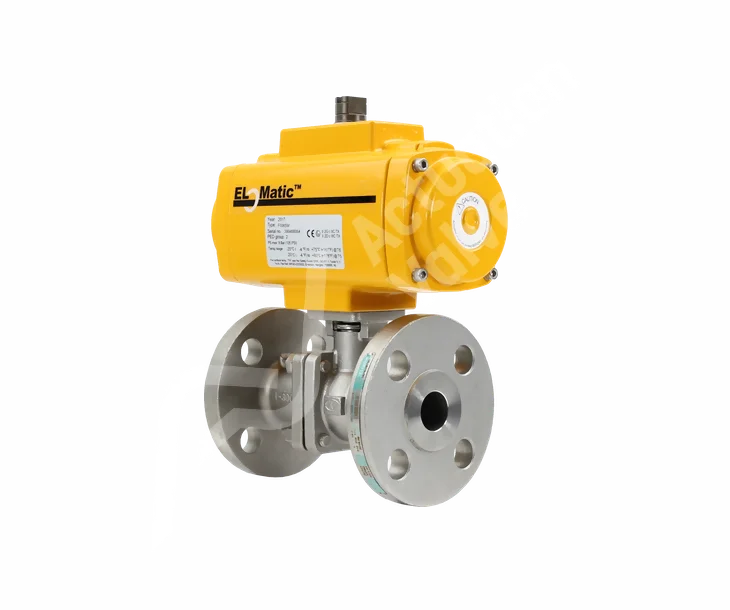

The AV-L6100EL 2 piece full bore actuated ball valves are available in sizes ranging from 1/2" to 8" for next day delivery. This flanged valve body offers installation between two pipeline flanges and end of line service with a reliable shut off performance. The AV-L6100EL actuated ball valve offers TFM 1600 ball seats that are a WRAS & FDA certified material. The ISO 5211 mounting pad allows actuation of the valve without the use of a mounting bracket so all assembly and testing procedures can be processed immediately after your order has been placed.

Shop Help Me

Key features and benefits of AV-L6100EL Actuated Ball Valves.

Key Features

The EL-O-Matic actuator has been designed from the ground up with safety in mind by a team of specialist engineers. It's made of strong materials so it will last longer than most competitors products, while still being lightweight enough to easily install.

Key Features

The El-O-Matic Pneumatic Actuator provides for easy integration with other automation equipment. It can be used in many different industries including manufacturing, food production, material handling, packaging, medical devices/equipment and more.

Key Features

This package is a perfect choice for those who need to deal with medium aggressive water conditions and harsh external environments. It has been designed using only high quality materials from the manufacturer Kingdom Controls.

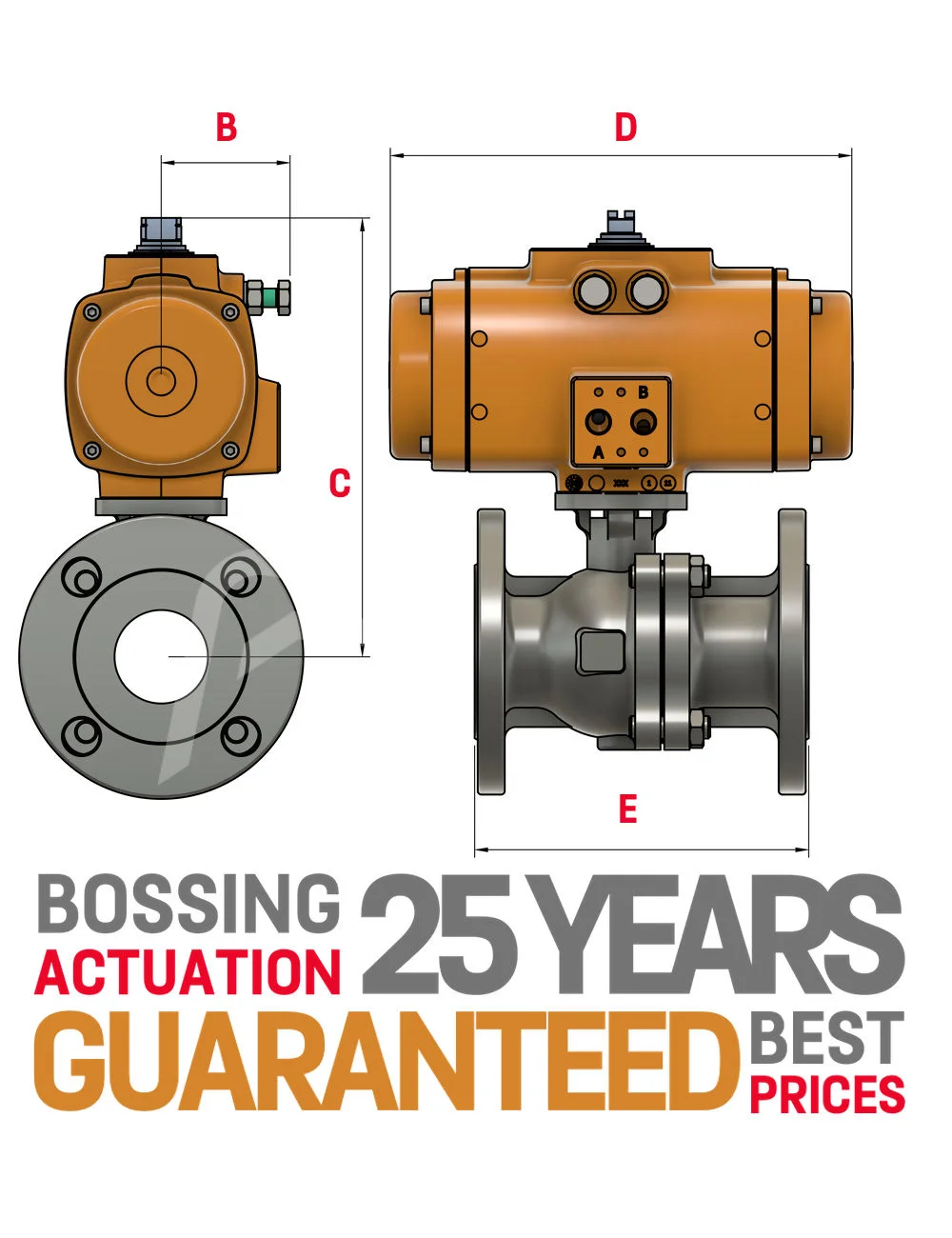

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DA	DA
1/2"	48.00	160.00	166.00	108.00	33.00	129.00	103.00	108.00
3/4"	48.00	164.00	166.00	108.00	48.00	164.00	166.00	117.00
1"	58.00	191.00	192.00	127.00	48.00	170.00	166.00	127.00
1 1/4"	58.00	203.00	192.00	140.00	48.00	182.00	166.00	140.00
1 1/2"	69.00	220.00	217.00	165.00	58.00	208.00	192.00	165.00
2"	69.00	233.00	247.00	178.00	69.00	226.00	217.00	178.00
2 1/2"	75.00	279.00	304.00	190.00	69.00	253.00	247.00	190.00
3"	87.00	295.00	362.00	203.00	75.00	289.00	235.00	203.00
4"	109.00	361.00	385.00	229.00	87.00	323.00	265.00	229.00
5"	132.00	461.00	476.00	356.00	109.00	404.00	284.00	356.00
6"	131.00	502.00	658.00	394.00	132.00	482.00	356.00	394.00
8"	130.00	585.00	732.00	457.00	131.00	551.00	400.00	457.00
10"	TBA	TBA	TBA	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

ZIP
Size 0100

DRAWINGS & SCHEMATICS

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	ASME B16.34
Wall Thickness:	ASME B16.34
Inspection & Testing:	API 598
Face 2 Face:	ASME B16.10

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Yes, in many cases. Please contact us with the valve size, actuator type and quantity required and we will provide a competitive quotation, including any volume discount available for larger orders.

Yes. The AV-L6100EL flanged body is designed for both standard installation between two pipeline flanges and end-of-line service, while maintaining a reliable shut-off. The ISO 5211 mounting pad also allows the actuator to be fitted directly without a separate mounting bracket, simplifying assembly.

Yes. This flanged actuated ball valve range is available across a range of valve and actuator sizes, and larger combinations can be supplied to order. Please contact us with the valve size, pressure rating and control signal required and we will confirm availability and lead time.

Yes. We can deliver directly to your customer on a plain-labelled or unbranded delivery note if required. Please let us know at the time of order and send a copy of your delivery note so we can ensure it is attached to the shipment.

Yes, subject to status. We offer credit accounts to qualifying business customers, allowing you to order now and settle on agreed terms. Please contact our sales team to apply, or complete a credit account application form and we will confirm your terms.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
