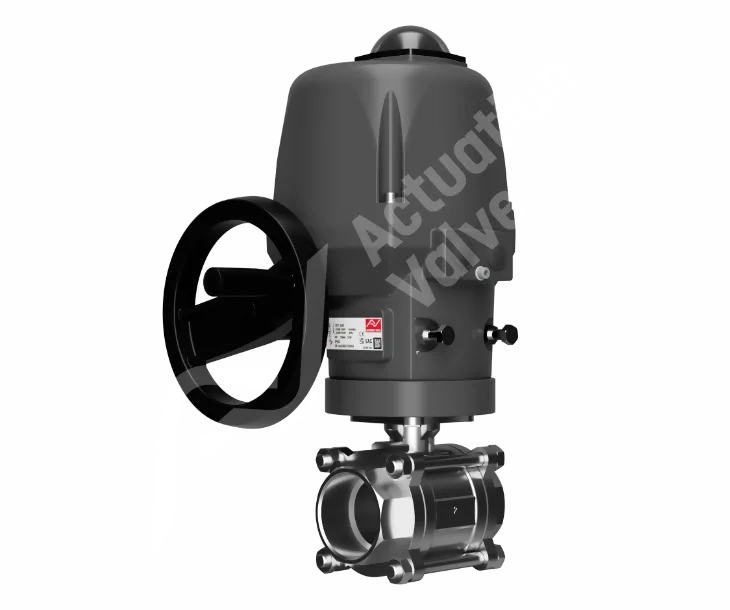

Valpes Actuators Actuated 3 Piece Premium Ball Valves

The AV-L3000VA offers high-quality and efficient control for fluid systems. These valves, integrated with Valpes actuators, ensure reliable performance and precise fluid management. With their advanced design and construction, they are ideal for various industrial applications, guaranteeing durability and smooth operation. Invest in Valpes Actuators Actuated 3 Piece Premium Ball Valves for optimal fluid control solutions.

Key Features

Key features and benefits of the AV-L3000VA 3 Piece Premium Ball Valves

Key Features

The actuators are available in a standard 90° version, providing rotational movement within a 90-degree angle. Additionally, there are options for 180° or 270° versions upon request, allowing customisation based on specific application needs.

Key Features

Utilises advanced electric actuator technology for precise and reliable control in various applications, ensuring accurate valve positioning and automation.

Key Features

The Valpes ER Range features a 90° electric actuator, providing precise and controlled rotational movement for various applications.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Design Standard: MSS SP-110
Wall Thickness: EN 12516-3
Inspection & Testing: MSS SP-110
BSP Ends: (AV-L3000) BSP IS0 7-1 (DIN 2999)
NPT Ends: (AV-L3000) ASME B1.20.1
Socket Weld Ends: (AV-L3100) ASME B16.11
Butt Weld Ends: (AV-L3200) ASME B16.25 (Sch 40)
Pressure Rating: 1000 PSI

Frequently Asked Questions

An electric actuated ball valve is a valve that uses an electric motor to control the flow of a fluid. This type of valve is often used in industrial and commercial applications for precise control and automation of fluid flow.
Electric actuated ball valves use an electric motor to rotate the ball inside the valve. The ball has a bore through it; when the bore is aligned with the flow, the valve is open, and when it's perpendicular, the valve is closed. This allows for efficient control of fluid flow.
The benefits include precise flow control, high reliability, reduced need for manual intervention, compatibility with automated systems, and suitability for a wide range of industrial applications.
Yes, many electric actuated ball valves are designed for both indoor and outdoor applications. They often have robust construction and weatherproof features to withstand various environmental conditions.
These valves can control a variety of fluids, including water, air, gases, and chemicals, making them versatile for different industrial uses.
Yes, they are generally energy-efficient as the electric actuator only consumes power when changing the valve position, unlike pneumatic or hydraulic actuators which may require continuous energy supply.
Selection depends on several factors, including the type of fluid, pressure, temperature, flow rate requirements, and environmental conditions. Consulting with a valve expert or manufacturer is advisable for precise selection.
Absolutely, these valves can be integrated with various control systems using standard protocols, allowing for seamless operation within existing automated setups.
Maintenance typically involves regular inspections, cleaning, and occasional lubrication. The electric actuator may also need checks to ensure electrical connections and motor functionality are intact.
The lifespan varies based on usage and environmental conditions but generally, these valves have a long service life due to their robust construction and minimal wear parts.
While they are primarily designed for industrial and commercial applications, there are models suitable for residential use, especially in sophisticated home automation systems or for specific needs like irrigation.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

Frequently Asked Questions

The Valpes ER Range electric actuator is a precision-engineered device designed to provide controlled 90° rotational movement for a wide range of applications.

Yes, the electric actuator is equipped with a secured manual override, allowing manual operation during power outages or for maintenance purposes.

Valpes electric actuators are available in multiple torque options: 10-20-35-60-100 Nm, providing flexibility to meet diverse application requirements.

Yes, the long operating version also operates within the MULTIVOLT range, offering extended operating times from 34 seconds to 110 seconds for a 90° rotation.

Yes, the Valpes VR Range electric actuators adhere to the CE-ROHS-REACH Directives, ensuring compliance with European standards for safety, environmental protection, and the restriction of hazardous substances. This commitment underscores the dedication to product quality and regulatory standards.

Yes, the electric actuator allows for different possible rotation angles, enhancing its adaptability to diverse application needs.

Valpes electric actuators are designed with a duty rating of S4 50% (IEC34), indicating their suitability for intermittent operation with a duty cycle of 50%.

The Valpes VR Range electric actuators feature a sturdy aluminium housing, providing excellent strength and resistance to environmental factors for enhanced longevity and reliability in various operating conditions.

Valpes electric actuators are designed to operate within a temperature range of -50 °C to +70 °C, ensuring reliable performance in various environmental conditions.

The standard version operates within a voltage range known as MULTIVOLT, with operating times ranging from 6 seconds to 20 seconds for a 90° rotation.

Valpes electric actuators have an IP65, IP65, IP68 enclosure rating, providing protection against dust and water ingress, making them suitable for use in challenging and demanding environments.

Yes, users have the option to choose between a polyamide PA6 UL 94 V-0 or aluminium cover. The polyamide cover offers high flame-retardant properties (UL 94 V-0), suitable for applications where fire safety is a concern, while the aluminium cover provides additional strength and protection for applications with higher mechanical demands.


Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

3 Piece Premium Valpes Actuator Ball Valves
