3-Way Reduced Bore SS Koei UNIC Electric Actuator Valves

Actuation Valve provide fast turnaround times without sacrificing quality or expertise and all orders come with a two page test report detailing all opening/closing times on each valve tested. Whether you need one product or several hundred off-the-shelf parts, we can deliver. Configurable as an L or T Port Operation the AV-L5000 & 5100 3-Way Multi Port Ball Valves will handle the widest variety of applications with minimal pressure drop, minimal cavitation and excellent flow characteristics. Koei UNIC’s unique design is resistant to vibrations from all directions with no additional parts required. This makes it the ideal solution for use in areas where vibrations are an issue such as heavy machinery or drilling equipment.

Key Features

Key features and benefits of AV-L5000EK & AV-L5100EK Actuated Ball Valves.
1

Key Features

The Koei UNIC Electric Actuator provides a vibration resistant and shock absorbent solution for the most compact product on today's market. This actuator will give you smooth operations throughout its entire speed range in high-shock environments.
2

Key Features

Actuators come with a free, comprehensive manual that will help you keep your equipment running at peak performance. All units include general operations information as well as maintenance tips for optimal condition-keeping across the board.
3

Key Features

The AV-L5000 & 5100 Screwed 3-Way Stainless Steel Ball Valve is a versatile, economical and durable valve which has been developed specifically to provide long service life for applications where reliability is key.

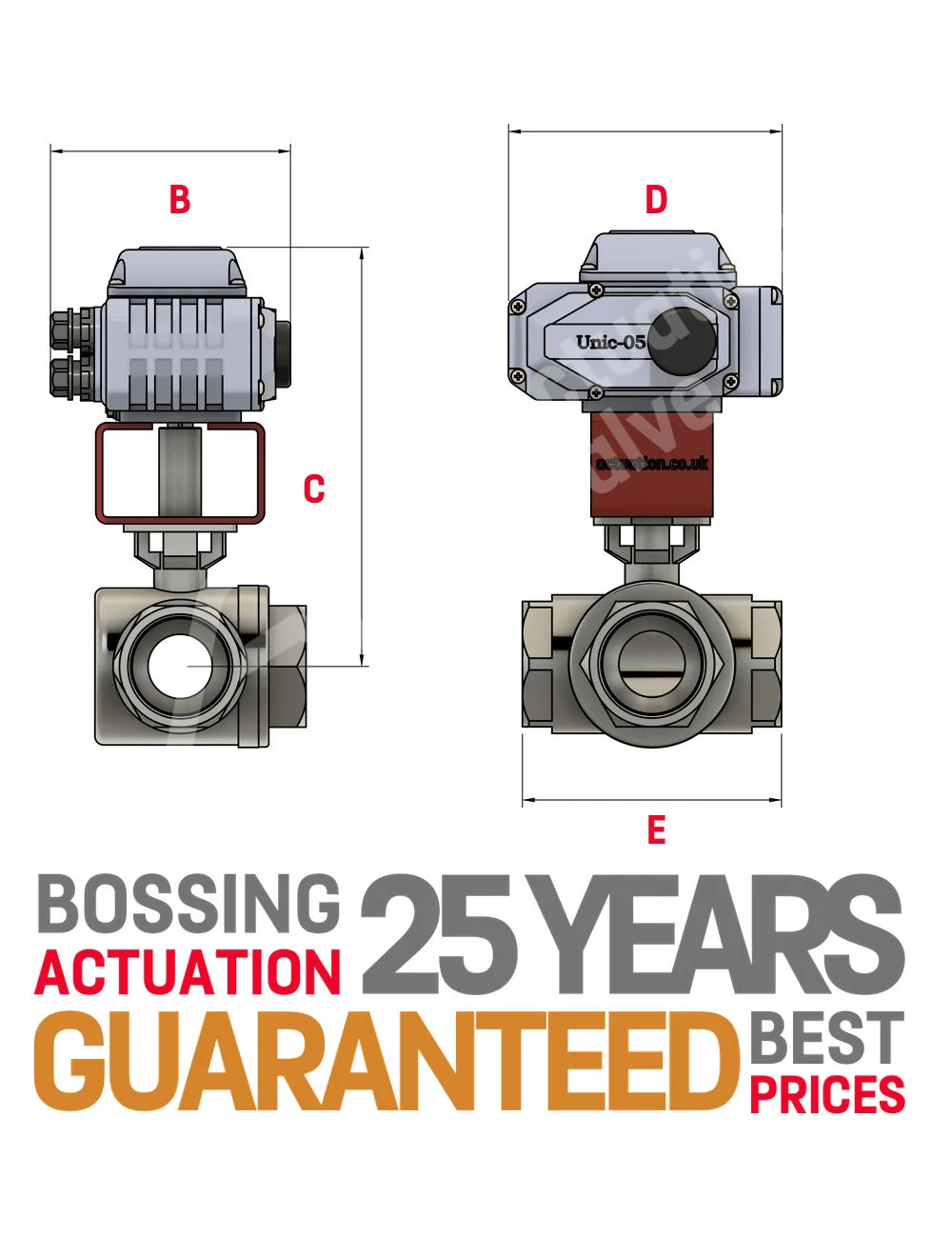

RB 3-Way Ball Valve Technical Stuff

B C D E Model
1/4" 145.00 219.00 159.00 79.00 UNIC 05
3/8" 145.00 219.00 159.00 79.00 UNIC 05
1/2" 145.00 219.00 159.00 79.00 UNIC 05
3/4" 145.00 225.00 159.00 88.00 UNIC 05
1" 145.00 235.50 159.00 108.00 UNIC 05
1 1/4" 145.00 239.00 159.00 124.00 UNIC 05
1 1/2" 145.00 249.50 159.00 135.00 UNIC 05
2" 155.00 284.80 208.00 164.00 UNIC 10
2.5" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA
6" TBA TBA TBA TBA TBA

RB 3-Way Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 228/1

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

3-Way Valve Configuration

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
