Stainless Steel DIN PN16 Elomatic Actuator Valves

The AV-L6K00EL flanged PN16 actuation valves offer a basic quarter turn actuated solution for low to medium pressure requirements with DIN flanged connections (Maximum 16 bar). A range of pneumatic actuator sizes in the FS or FD models allow setups inlcuding fail in position, return to set position and open or closed fail safe. Both spring return and double acting actuation valves can be offered with a range of feedback options for remote position monitoring. A greater detail of control can also be offered with 4-20mA electric or electro-pneumatic positioners.

Key Features

Key features and benefits of AV-L6K00EL Actuated Ball Valves.
1

Key Features

Our stainless steel ball valves come pre-tested so you can get them up and running immediately. You will also receive a two page test report detailing all opening/closing times after your order has been completed.
2

Key Features

The EL-O-Matic actuator has been designed from the ground up with safety in mind by a team of specialist engineers. It's made of strong materials so it will last longer than most competitors products, while still being lightweight enough to easily install.
3

Key Features

EL-O-Matic Pneumatically actuated valves are used in many different industries like the chemical, oil and gas, pharmaceuticals, water treatment and more. They provide quick response time to open or close the flow of media (gases/fluids) through them.

Flanged PN16 Technical Stuff

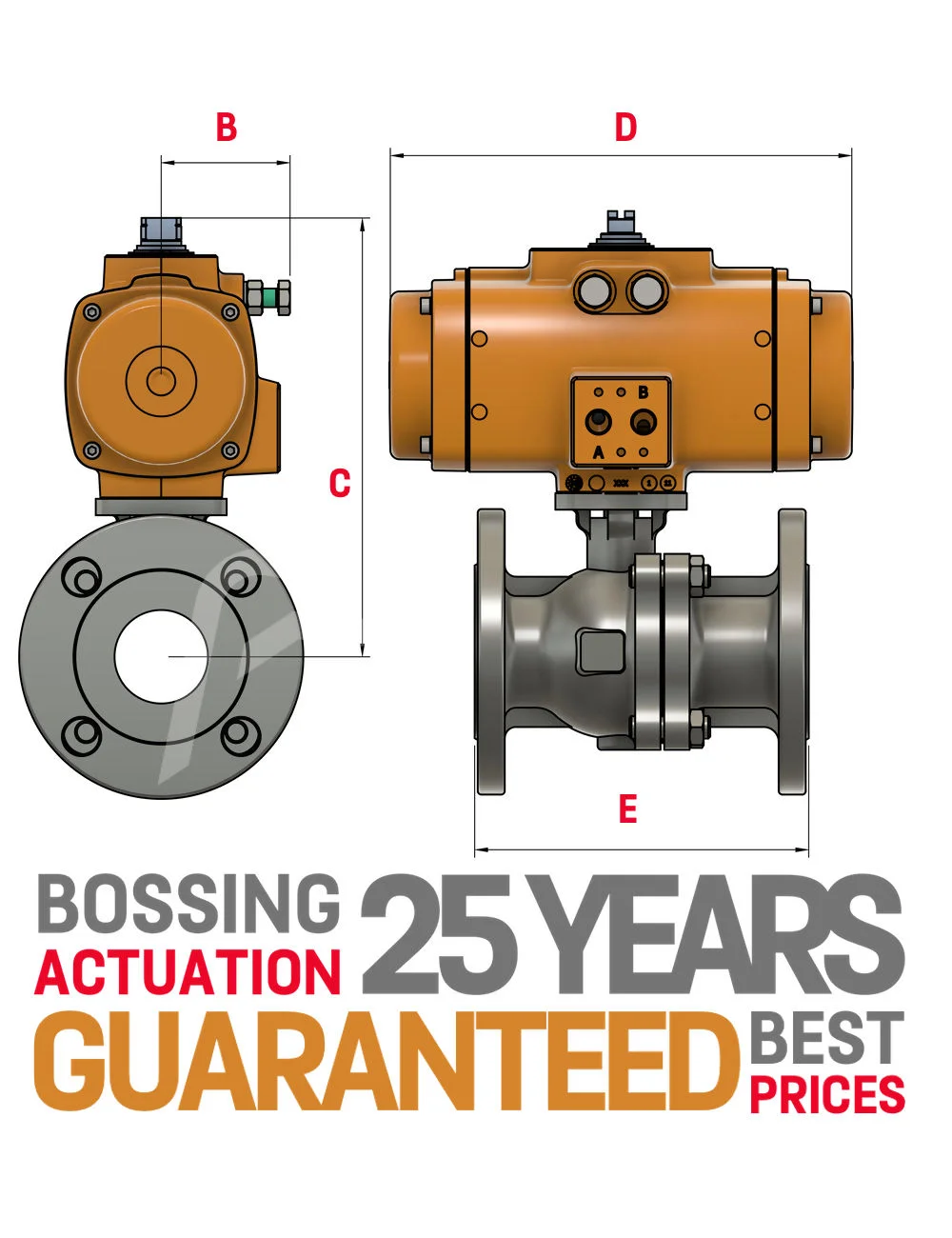

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 48.00 159.00 166.00 115.00 33.00 128.00 103.00 115.00
3/4" 48.00 164.00 166.00 120.00 48.00 164.00 166.00 120.00
1" 58.00 191.00 192.00 125.00 48.00 170.00 166.00 125.00
1 1/4" 58.00 203.00 192.00 130.00 58.00 203.00 192.00 130.00
1 1/2" 69.00 220.00 217.00 140.00 58.00 208.00 192.00 140.00
2" 69.00 236.00 247.00 150.00 69.00 229.00 217.00 150.00
2 1/2" 75.00 279.00 304.00 170.00 69.00 253.00 247.00 170.00
3" 87.00 295.00 362.00 180.00 75.00 289.00 235.00 180.00
4" 109.00 361.00 385.00 190.00 87.00 323.00 265.00 190.00
5" 109.00 404.00 385.00 325.00 87.00 366.00 265.00 325.00
6" 131.00 502.00 658.00 350.00 132.00 482.00 356.00 350.00
8" 130.00 585.00 732.00 400.00 131.00 551.00 400.00 400.00
10" TBA TBA TBA TBA TBA TBA TBA TBA

Flanged PN16 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (2 1/2" - 4") & DIN 3202 F5 (5" - 8")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
