Ductile Iron Butterfly Valves

Ductile Iron Butterfly Valves, encompassing Wafer, Lugged, Flanged, and Double Flanged types, offer versatile solutions for fluid control. The Wafer and Lugged designs provide compact, efficient sealing, while Flanged and Double Flanged models ensure secure, leak-free connections in diverse applications, from water distribution to industrial processes.

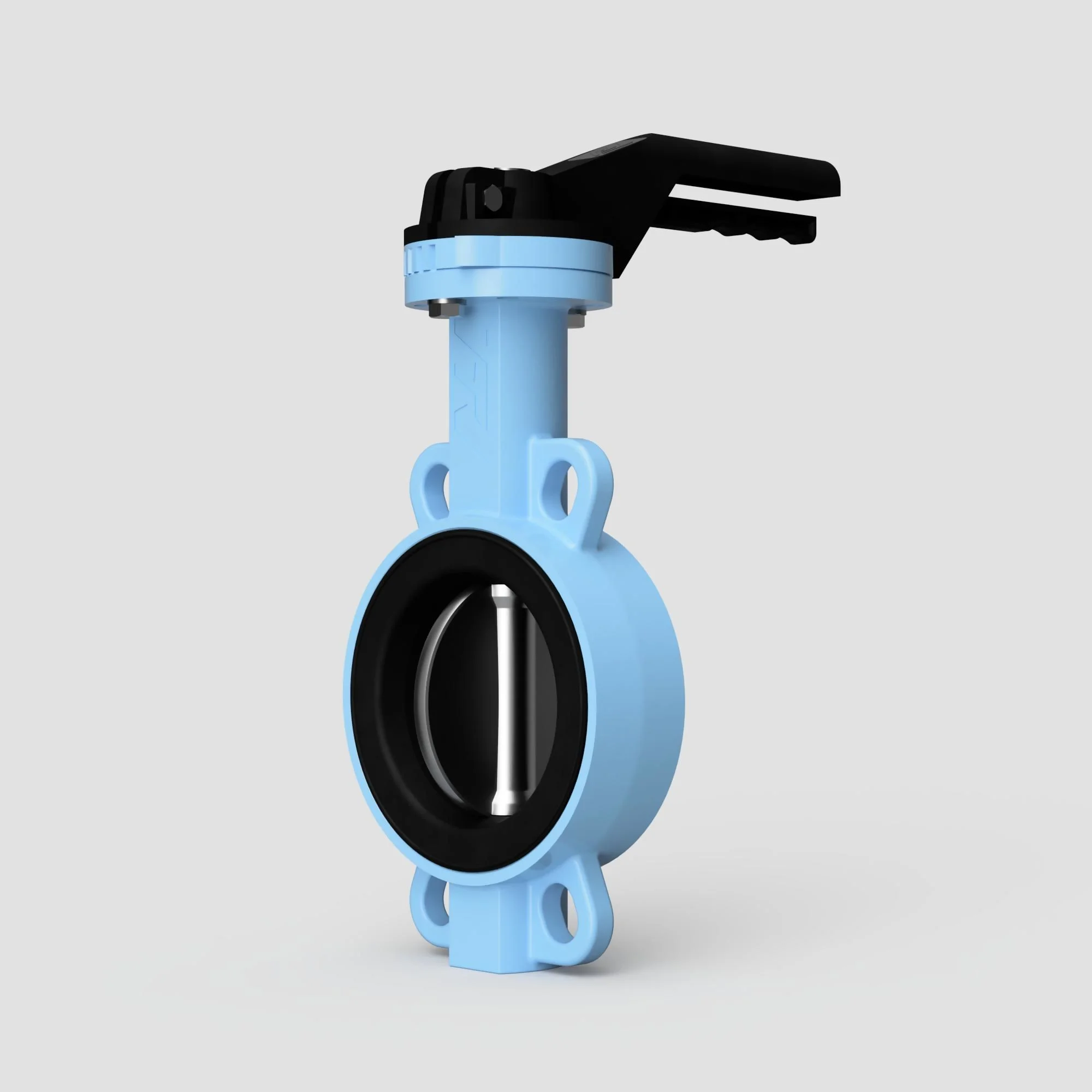

20W3040 Wafer Gear-Lever Operated Butterfly Valves

The TTV 20W3040 Butterfly Valve stands out as the most adaptable option in the TTV concentric design series. It features a high-grade CF8M stainless steel disc and a rubber seat-liner, ensuring durability against diverse mediums and temperatures. Its external ductile iron body, coated with rilsan, offers protection against the elements, enhancing longevity. Standard with a lockable lever operator, the 20W3040 Butterfly Valves are designed for lasting performance.

Size Range: 1.5" to 24"
Pressure Range: ANSI 150, JIS 10K, JIS 16K, PN10, & PN16
Seat Types: EPDM, Silicone, NBR Buna, Viton & More
Actuator Types Extension Gear Box, Extension Lever, Gear Box Hand Wheel, & Lever
Find Out More

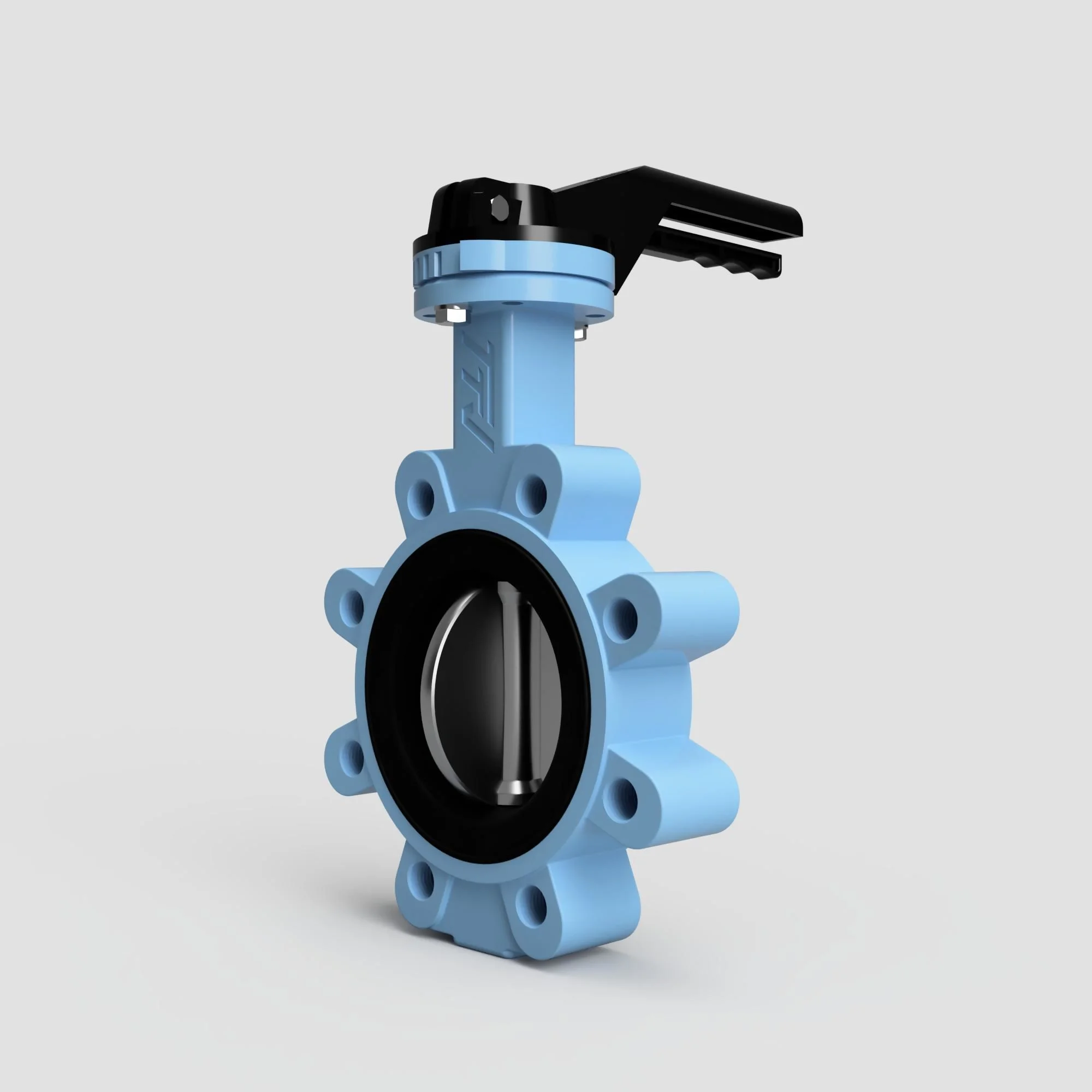

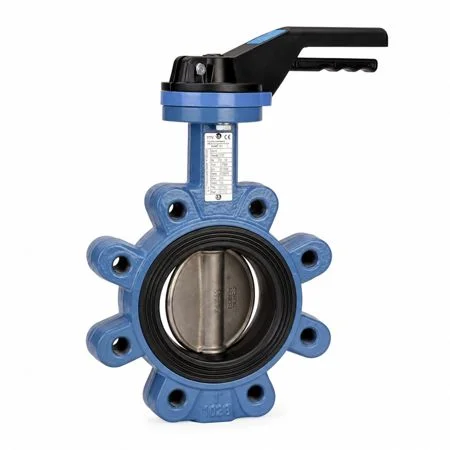

20L3040 Lugged Lever-Gear Operated Butterfly Valves

The TTV 20L3040 Butterfly Valve delivers identical operational functions as the 20W3040, while adding end-of-line isolation and dead-end service capabilities. This feature is especially beneficial for pipelines needing regular disassembly for upkeep or cleaning. Standard models include a lockable hand lever, adjustable across a 0-90 degree range, with gear box and chainwheel operators available on demand. Optional visual and valve position feedback monitors can be tailored to each application.

Size Range: 1.5" to 24"
Pressure Range: ANSI 150, PN10, & PN16
Seat Types: EPDM, Silicone, NBR Buna, Viton & More
Actuator Types: Extension Gear box, Extension Lever, Gear Box Hand Wheel, & Lever
Find Out More

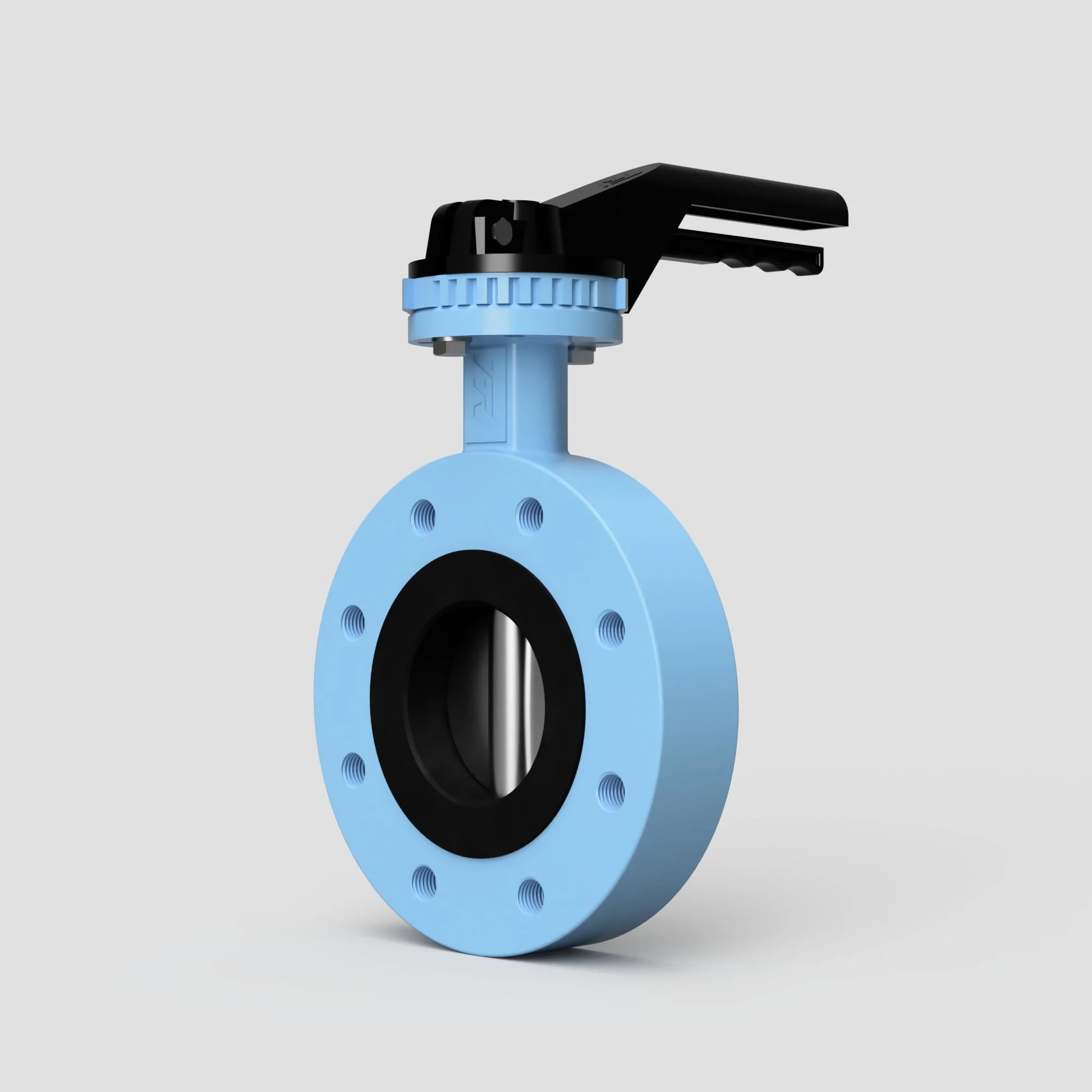

20B3040 Ductile Iron Flanged Butterfly Valves

Double Flanged Butterfly Valves feature a unified, one-piece body with flanges at each end, enhancing their suitability for dead-end service. These TTV Butterfly Valves stand out for their face-to-face interchangeability, meeting global standards for Butterfly and some Gate Valves. This versatility offers a wider range of replacement options in pipelines, making the switch from old Gate to Butterfly Valves increasingly common in certain applications.

Find Out More

20H3040 Double Flanged Butterfly Valves

Double Flanged Butterfly Valves feature a single-piece body with flanges at both ends, enhancing resistance in dead-end service. The TTV Butterfly Valve excels in face-to-face interchangeability, complying with international standards for Butterfly and some Gate Valves, offering users more replacement options. Its hand-polished, streamlined discs deliver superior CV, making it the preferred option for applications demanding peak performance throughout the process.

Size Range: 2" to 24"
Pressure Range: ANSI 150, PN10, & PN16
Seat Types: EPDM, Silicone, NBR Buna, Viton, & More
Actuator Types: Gear Box Hand Wheel & Lever
Find Out More

Top Notch.

All Butterfly Valves come as standard with a Top Notch Lock Plate. Adjustable at set degrees throughout the Valve travel cycle. Are your current supplies as good? We very much doubt it.

Frequently Asked Questions

Actuated butterfly valves offer advantages such as synchronisation of multiple line valves, remote isolation, torque required for opening larger butterfly valves, and security measures to prevent misuse.
The body materials can be GJS500-7 Ductile Iron Rilsan Coated or CF8M Stainless Steel. The disc materials are CF8M Stainless Steel, and the seat materials include EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, and Epichloridine.
The actuated functions include pneumatic, electric, de-clutchable gear, fail-safe, spring return, battery backup, and double-acting.
Actuated butterfly valves can be used for potable/waste water, cooling systems, oil, gases, air, corrosive chemicals, pharmaceuticals, petrochemicals, food and beverage, and various industrial processes.
Wafer pattern valves are designed for installation between two flanges at intermediate points within the process pipeline, while lugged pattern valves use threaded lugs for precise self-centering capabilities and are commonly used as dead-end service valves or for maintenance purposes.
PTFE lining is used in valves intended for highly corrosive environments or high-service temperatures. It provides excellent chemical resistance and a clean, FDA-approved contact surface.
Yes, Actuation Valve offers actuated butterfly valves suitable for marine applications, featuring materials like B148 C9500 Aluminium Bronze and EPDM seats suitable for seawater, cooling systems, desalination, and other marine environments. The 80WM580 & 80LM580 in particular are the most common.
The size ranges vary depending on the valve type, but they generally span from DN32 (1 1/4") to DN1600 (64").
Yes, Actuation Valve can provide various certifications, including witness testing, 3.1 certification, and standard pressure tests. Additional certifications can be arranged upon request.
Yes, Actuation Valve offers sustainable spares and replacement parts for ongoing maintenance schedules.
Depending on the valve, actuator and process type pressure ratings range from PN10, PN16, PN40., ANSI 150 and ANSI 300.
