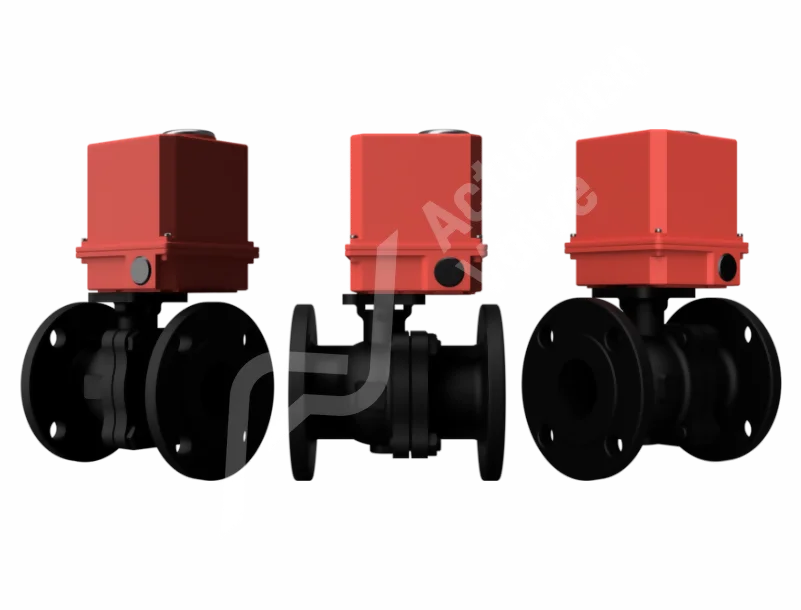

PN16 Carbon Steel AV-Lite® Electric Actuated Ball Valves

The AV-L6KC0-AV Actuated Ball Valves stand as a superb option for deployment in severe or corrosive settings where conventional ranges fall short. With their CF8M body and a BALL crafted from premium stainless steel, these valves exhibit exceptional resilience to the most challenging conditions. We meticulously craft and assess all our products internally, giving us complete control to ensure you receive a durable, top-notch product. Each of our offerings is accompanied by a comprehensive two-page test report, covering every operational aspect, including opening/closing times and pressure ratings.

Key Features

Key features and benefits of the AV-L6KC0-AV Actuated Ball Valves.
1

Key Features

Our Actuated Ball Valves are an excellent choice for use in harsh or corrosive environments that aren't suitable to standard ranges.
2

Key Features

Our product is designed with the end-user in mind and we understand what works best for industrial automation. By switching from conventional ball valves to our low torque AV-L6KC0AV Ball Valve, you'll save money on installation costs and maintenance while improving overall reliability.
3

Key Features

All of our Actuated Valve Assemblies are manufactured in house with the help from automation experts. Every completed unit comes equipped to meet high standards and can be traced back via two page test report detailing opening/closing times.

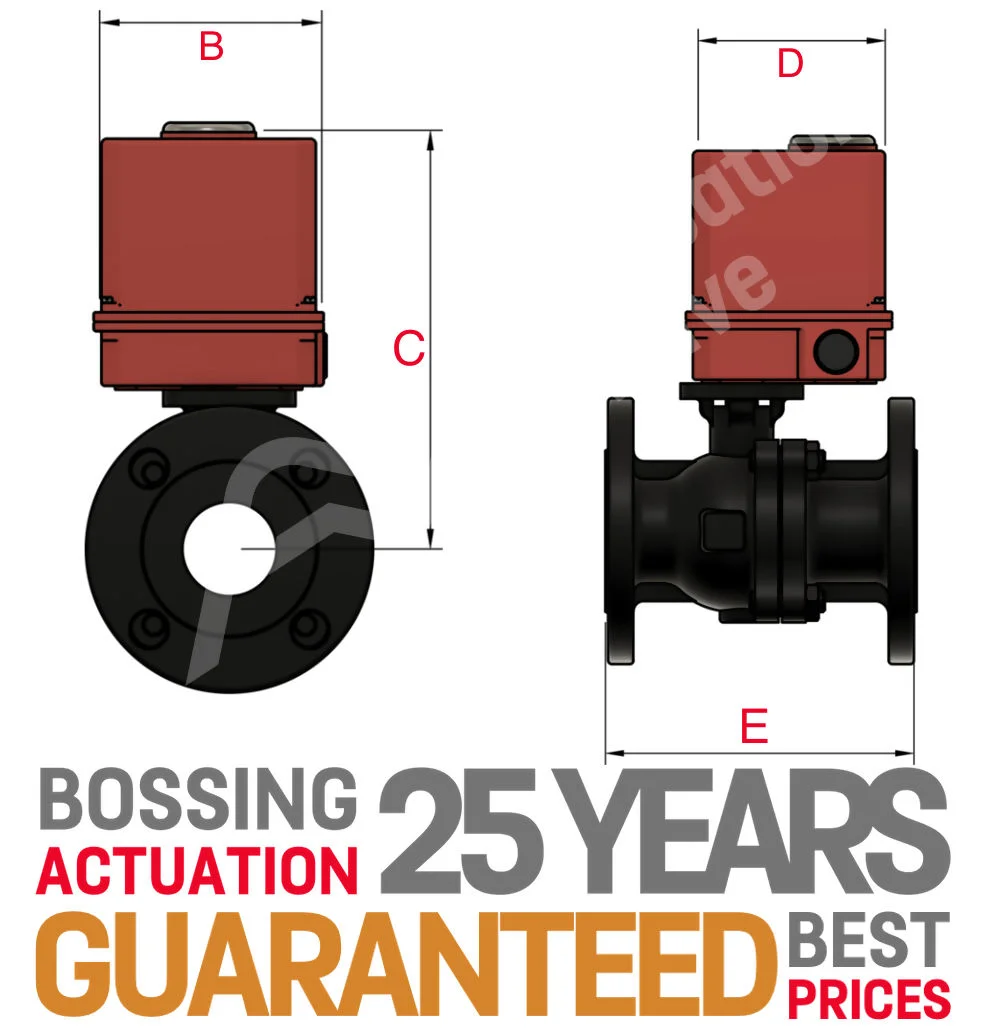

AV-L6KC0AV Ball Valve Technical Stuff

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" 72.00 120.00 137.00 72.00 120.00 137.00 59.00
3/4" 72.00 126.00 137.00 72.00 126.00 137.00 69.00
1" 72.00 130.00 137.00 72.00 130.00 137.00 83.00
1 1/4" 93.00 168.50 203.50 72.00 135.50 137.00 94.00
1 1/2" 93.00 180.00 203.50 84.50 163.00 153.50 102.00
2" 106.00 200.50 153.50 84.50 170.50 153.50 124.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

AV-L6KC0-AV Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Body Seal
Stem Packing Material: Grafoil
Design Standard: EN 12516-1
Wall Thickness: EN 12516-1
Inspection & Testing: EN 12266-1
Face 2 Face: DIN 3202 F-4 (1/2" - 4") DIN 3202 F-5 (5" - 6")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes, position feedback is included as standard on the AV-L6KC0-AV range, with switches confirming open and closed positions.

Yes, discounts are usually available on multi-unit or bulk orders of the AV-L6KC0-AV range. Get in touch with your required quantity and specification and our sales team will confirm the best pricing for your order.

Yes, the AV-L6KC0-AV range can be supplied with Lloyd's Register certification for marine and offshore applications where classification society approval is required. Please confirm this requirement when ordering so the correct documentation is issued with your valve.

Yes, we can advise on larger sizes outside the standard AV-L6KC0-AV range. Send us your line size and process details by email or give us a call and we will confirm availability and lead time.

Yes, we can deliver directly to your customer on a plain, unbranded label. Send us a copy of your delivery note and we will include it with the shipment so your customer receives it under your company name.

Yes, we offer credit accounts for trade and repeat customers, subject to a credit check. Apply on the product page at checkout or contact our sales team directly and we will guide you through the application process.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.
