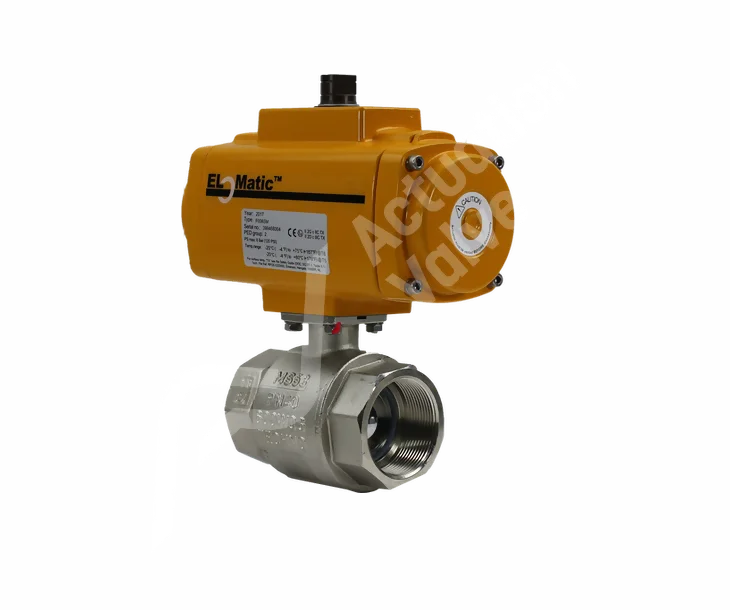

The AV4500EL 2 piece full bore brass ball valve offers a compact, cost effective actuated valve solution for screwed and threaded pipelines. Also with WRAS approval suitable for potable drinking water. The ISO 5211 mounting pad allows actuation of the valve without the use of a mounting bracket so all assembly and testing procedures can be processed immediately after your order has been placed. Express shipping for delivery within 24-48 hours for stock components. WRAS approval certificates with all assemblies at no extra cost.

Shop Help Me

Key features and benefits of AV-L4500EL Actuated Ball Valves.

Key Features

The EL-O-Matic Pneumatic Actuator features a hardened steel piston and utilise high quality materials that do not fail when when exposed to moisture, dust or dirt which makes this product ideal for outdoor use as well as harsh industrial environments where water spray may be present.

Key Features

By using Wras Ball Valves you can make sure your drinking water application complies with current legislation so that you avoid fines from local authorities as well as keeping your customers and end users safe at all times.

Key Features

The pneumatic actuators from EL-O-Matic are designed with the highest standards for quality and safety in mind. It has been tested by TÜV SÜD, one of the world's leading testing companies to ensure that it meets all requirements for safe operation.

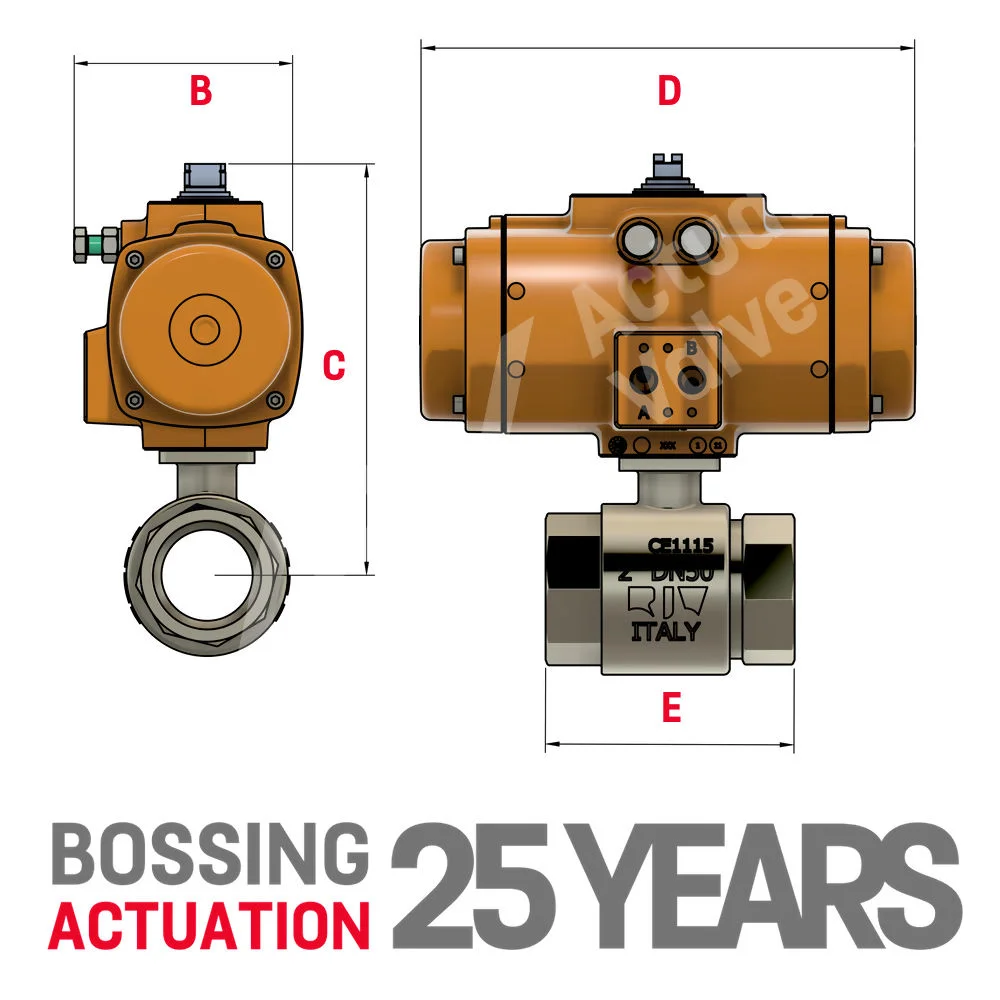

	B	C	D	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA
1/4"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3/8"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
1/2"	83.0	142.00	166.00	60.00	111.00	103.00	59.00
3/4"	83.00	148.00	166.00	60.00	127.00	103.00	69.00
1"	83.00	152.00	166.00	83.00	152.00	166.00	83.00
1 1/4"	96.00	178.50	192.00	83.00	157.50	166.00	94.00
1 1/2"	104.00	202.00	217.00	96.00	190.00	192.00	102.00
2"	104.00	209.50	217.00	96.00	197.50	192.00	124.00
2 1/2"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA	TBA	TBA

WRAS approval is a mandatory requirement for any product that carries or receives drinking water from the public mains in the UK. It provides proof that our products have been tested by an independent body to ensure they meet all relevant standards and requirements as set out by Government. The AV4500 is a Wras Approved Ball Valve suitable for use drinking water.

DRAWINGS & SCHEMATICS

ZIP
Size 0100

DRAWINGS & SCHEMATICS

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	Brass CW 617 N
Seats Material:	PTFE
Shaft Material:	Brass CW 614 N
O-Rings Material:	Viton
Ball Material:	Brass CW 617 N
Approvals:	Wras approved
Mounting:	ISO 5211 Connection
End Connections:	BSPP
Pressure Rating:	PN40

Yes, this Valve is suitable for drinking water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.

No.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Brochures

CERTIFICATES & APPROVALS

Elomatic Actuator Videos

Elomatic Overview

DRAWINGS & SCHEMATICS

TopWorx Elomatic Valve Limit Switch Box available for this product. Keep everything within the Emerson Group of products with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Elomatic Actuator prior to shipping.

Please feel free to request information and advice using the form below or call us on 0151 547 1221

UK 24/48 Hour	£12.00
UK Saturday	£34.00
N. Ireland	£28.00
Insurance	£7.95
