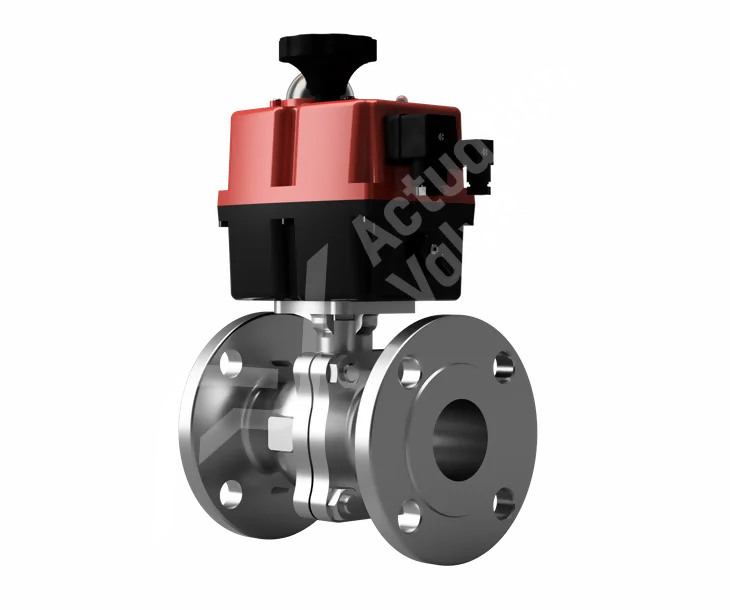

J4CS J&J Electric Actuator Full Bore PN40 Ball Valves SS

Actuation Valve provide fast turnaround times without sacrificing quality or expertise and all orders come with a two page test report detailing all opening/closing times on each valve tested. Whether you need one product or several hundred off-the-shelf parts, we can deliver. The fail safe battery back up option eliminates the need for use of manual override in event of a power or system failure to the actuator which makes it ideal for applications where failure is not an option. The Actuator will return the Valve to either pre set open or closed position. True multi voltage plug and play operation allows for site standardisation without the need for changing models if local voltages change. The J4CS features a built in auto conversion sensor voltage kit capable of receiving 24-240V AC or DC supply.

Key Features

Key features and benefits of AV-L6N00JJ Actuated Ball Valves.
1

Key Features

Low Torque requirements from the AV-L6N00 Ball Valve allow for smooth operation and reduce the costs of Actuated Ball Valves with smaller Actuators able to automate Valves usually demanding large units.
2

Key Features

The AV-L6N00 Actuated Ball Valves are an excellent choice for use in harsh or corrosive environments that aren't suitable to standard ranges. With their CF8M body and disc made from high quality stainless steel, these valves can withstand even the most demanding conditions.
3

Key Features

Modbus connection enables on site plug and play with existing units up to a maximum of 32 actuators or valve assemblies. This is performed through a local ethernet connection or through WIFI of up to 1600 meters without signal boosting technology.

Flanged PN16 Technical Stuff

B C D E Model
1/2" 110.00 219.00 179.00 115.00 J4CS20
3/4" 110.00 224.00 179.00 120.00 J4CS20
1" 110.00 230.00 179.00 125.00 J4CS20
1 1/4" 110.00 242.00 179.00 130.00 J4CS20
1 1/2" 110.00 247.00 179.00 140.00 J4CS35
2" 110.00 281.00 181.00 150.00 J4CS55
2 1/2" 110.00 298.00 181.00 170.00 J4CS85
3" 214.00 371.00 235.00 180.00 J4CS140
4" 214.00 394.00 235.00 190.00 J4CS140
5" 214.00 437.00 235.00 325.00 J4CS140
6" TBA TBA TBA TBA TBA

Flanged PN16 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
