Heavy Duty Carbon Steel Elomatic Ball Valves

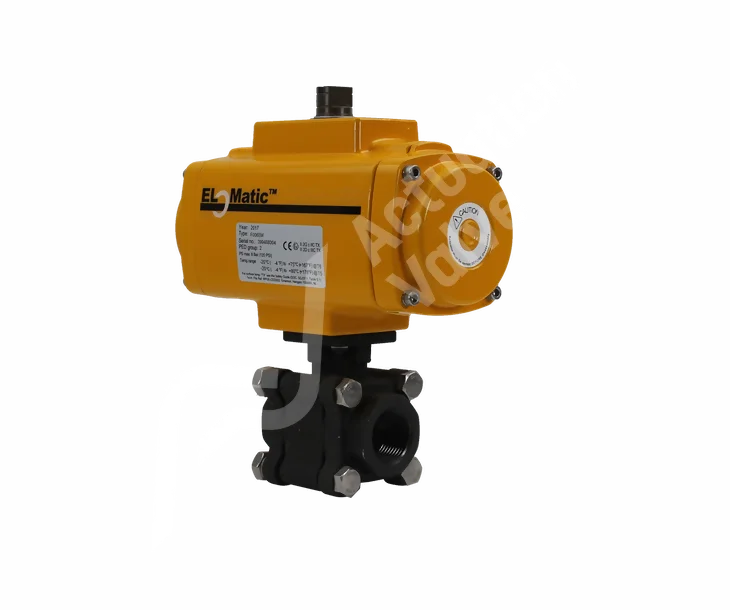

The AV-L8000FCEL and AV-L8200FCEL 3 piece full bore heavy duty actuated ball valves offer a more cost effective option to that of the stainless steel valve for use in less corrosive environments. Valve sizes range from 1/4” to 2”. Ball and seat options include but are not limited to 50% stainless steel filled seats and V-Ball modulation. Silicone seats for oil based paint applications and inspection testing is to MSS SP-110. Additional options included FOC are (Certificate Of Conformity) and a two page full build assembly and Calibration Certificate. Every unit is assembled and tested in house prior to despatch.

Key Features

Key features and benefits of AV-L8000FCEL & AV-L8200FCEL Actuated Ball Valves.
1

Key Features

EL-O-Matic offers innovative solutions for your automation needs. Their pneumatic actuation products help keep your plant running smoothly and safely at all times, no matter how extreme the conditions may get outside or inside your facility.
2

Key Features

We've made it easy for anyone to maintain the valve by replacing individual parts if necessary (Seats & Seals). This makes preventive maintenance much cheaper and easier than traditional ball valves, which require complete disassembly every time something needs to be fixed or replaced.
3

Key Features

EL-O-Matic Pneumatically actuated valves are used in many different industries like the chemical, oil and gas, pharmaceuticals, water treatment and more. They provide quick response time to open or close the flow of media (gases/fluids) through them.

Screwed/Socket Weld Technical Stuff

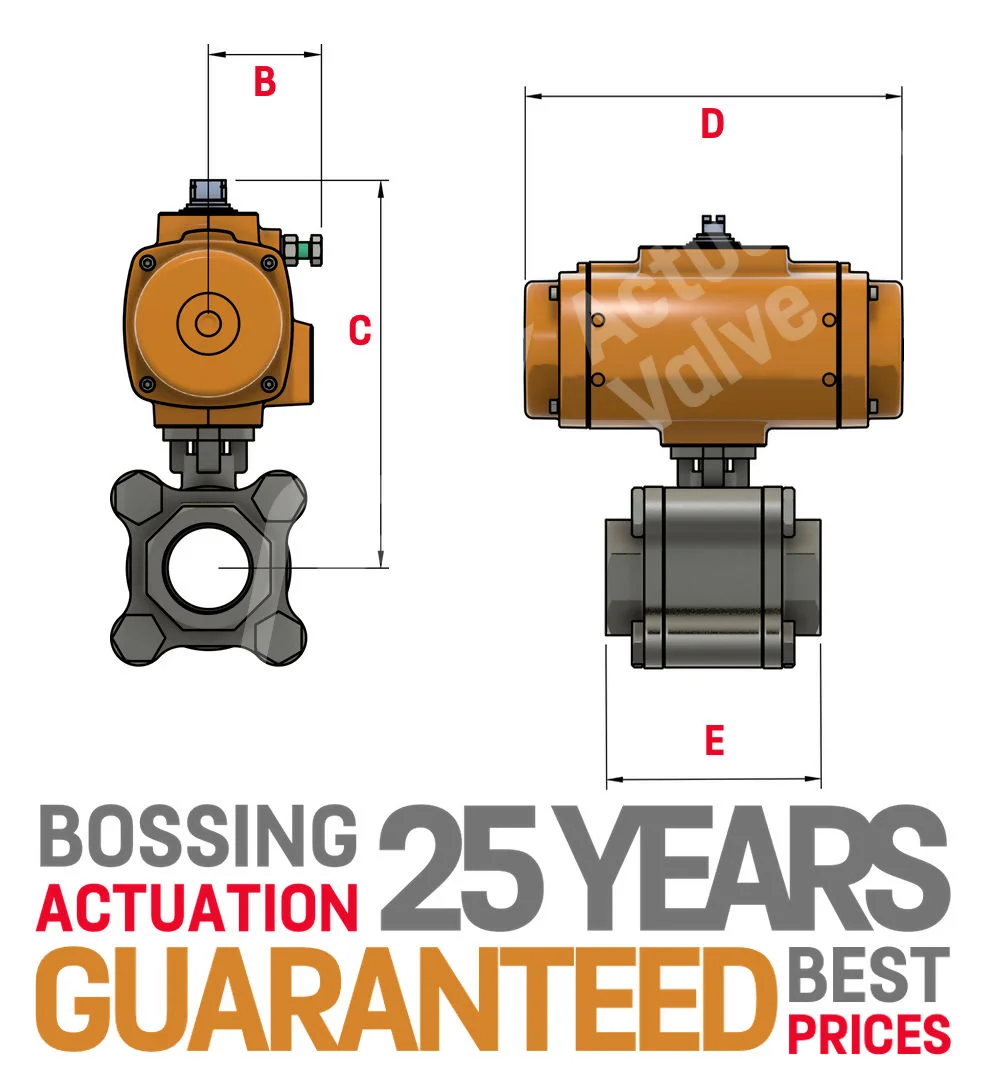

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 48.00 154.00 166.00 75.00 33.00 123.00 103.00 75.00
3/8" 48.00 154.00 166.00 75.00 33.00 123.00 103.00 75.00
1/2" 48.00 154.00 166.00 75.00 33.00 123.00 103.00 75.00
3/4" 48.00 162.00 166.00 80.00 48.00 162.00 166.00 80.00
1" 58.00 190.00 192.00 90.00 48.00 169.00 166.00 90.00
1 1/4" 58.00 195.00 192.00 110.00 58.00 195.00 192.00 110.00
1 1/2" 69.00 219.00 217.00 120.00 58.00 207.00 192.00 120.00
2" 69.00 237.00 247.00 140.00 69.00 230.00 217.00 140.00
2.5" TBA TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA TBA TBA TBA

Screwed/Socket Weld Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Butt Weld Technical Stuff

Butt Weld Valve 3D Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 48.00 154.00 166.00 70.00 33.00 123.00 103.00 70.00
3/8" 48.00 154.00 166.00 70.00 33.00 123.00 103.00 70.00
1/2" 48.00 154.00 166.00 75.00 33.00 123.00 103.00 75.00
3/4" 48.00 162.00 166.00 90.00 48.00 162.00 166.00 90.00
1" 58.00 190.00 192.00 100.00 48.00 169.00 166.00 100.00
1 1/4" 58.00 195.00 192.00 110.00 58.00 195.00 192.00 110.00
1 1/2" 69.00 219.00 217.00 125.00 58.00 207.00 192.00 125.00
2" 69.00 237.00 247.00 150.00 69.00 230.00 217.00 150.00

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A216 WCB Carbon Steel & 304 SS Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 228/1
Socket Weld Ends: ASME B16.11
Silicone Free: Suitable For Oil Based Paints
Anti Static Device: Ball, Shaft & Valve Body

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
