Multi Voltage PN16 SS AV-ARES Actuator Ball Valves

The industry-leading AV-A6K00 Ball Valve has been designed specifically for small to medium sized control systems with reduced torques. This can help reduce costs and increase performance by allowing smooth operation from your valves. The AV-ARES Electric Actuator is the perfect solution for your next industrial automation project. This compact, lightweight actuator is easy to install and use, saving you time and money on your valve actuation next project. If you’re looking for an alternative solution then look no further than our AV-L6K00 Series Actuated Ball Valves. These products offer improved sealing capabilities while also reducing operating costs thanks to their low torque requirements.

Key Features

Key features and benefits of AV-A6K00AR Actuated Ball Valves.
1

Key Features

The AV-A6K00 Ball Valve is an excellent choice for high volume electric systems because it has low torque requirements, which reduce the costs of Actuated Valves with smaller actuators able to automate valves usually demanding large units.
2

Key Features

The valve features a direct mount actuation pad for quick and easy automation. This allows us to get products out of the door to you quicker whilst also reducing the overall footprint of package and most importantly wight and cost.
3

Key Features

The Actuator's rugged construction of high quality Aluminium Body encased with a black polyethylene finish provides protection up to IP67 offering increased durability in harsh condition industries and applications.

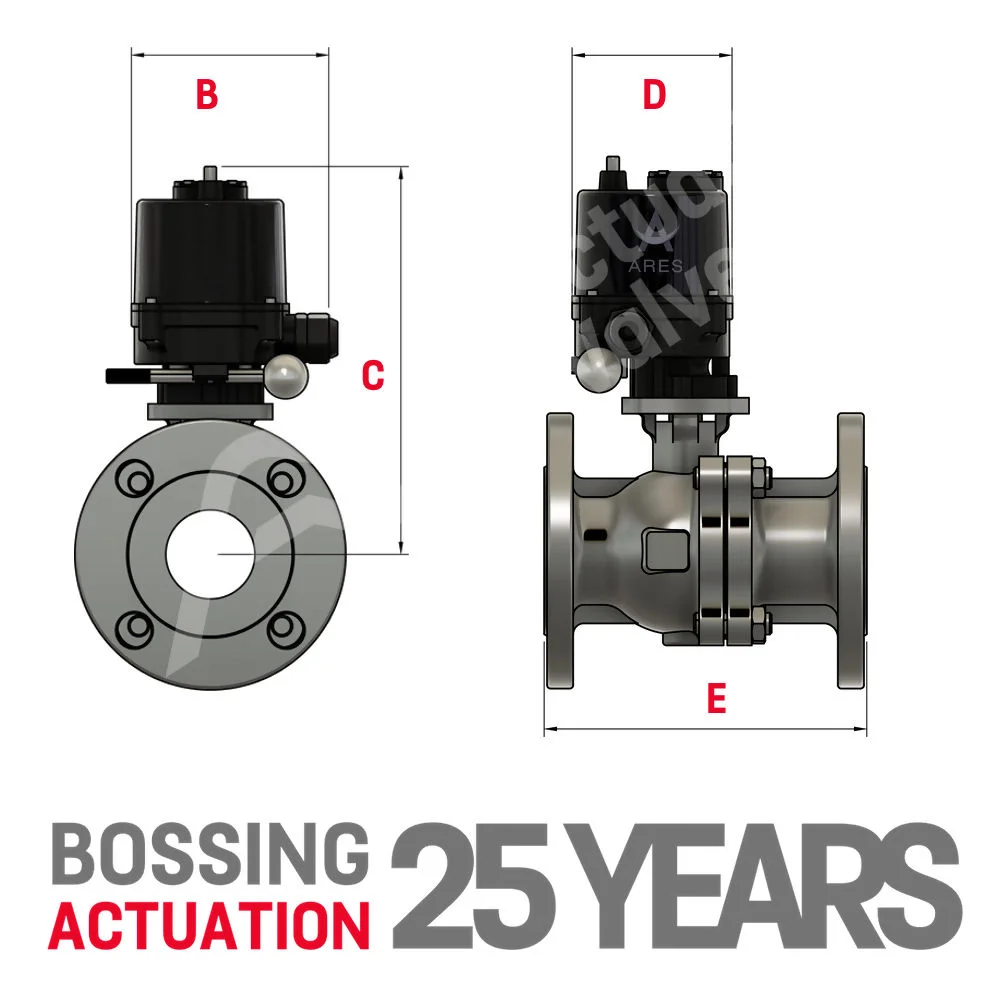

Flanged PN16 Technical Stuff

B C D E Model
1/2" 115.00 181.00 88.00 115.00 AV-A1
3/4" 115.00 186.00 88.00 120.00 AV-A1
1" 115.00 192.00 88.00 125.00 AV-A1
1 1/4" 115.00 269.00 88.00 130.00 AV-A1
1 1/2" 115.00 274.00 88.00 140.00 AV-A1
2" 115.00 283.00 88.00 150.00 AV-A1
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA
6" TBA TBA TBA TBA TBA

Flanged PN16 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (2 1/2" - 4") & DIN 3202 F5 (5" - 8")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
