The AV4500EL 2 piece full bore brass ball valve offers a compact, cost effective actuated valve solution for screwed and threaded pipelines. Also with WRAS approval suitable for potable drinking water. The ISO 5211 mounting pad allows actuation of the valve without the use of a mounting bracket so all assembly and testing procedures can be processed immediately after your order has been placed. Express shipping for delivery within 24-48 hours for stock components. WRAS approval certificates with all assemblies at no extra cost.

Shop Help Me

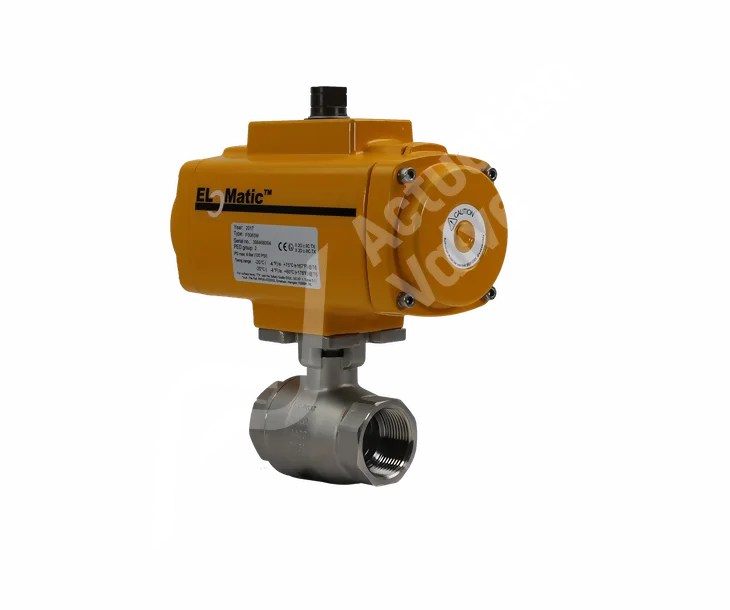

Key features and benefits of AV-L2000EL Actuated Ball Valves.

Key Features

The AV-L2000 Ball Valve is an excellent choice for high volume pneumatic systems because it has low torque requirements, which reduce the costs of Actuated Valves with smaller actuators able to automate valves usually demanding large units.

Key Features

The EL-O-Matic Pneumatic Actuator is an affordable alternative to expensive electrically driven actuators that offer the same functionality at a fraction of the cost. They operate significantly faster than electric units of comparable size.

Key Features

Compliance to NAMUR interface standard allows the actuator to be packaged with a wide range of accessories. This makes it easy to integrate the El-O-Matic Pneumatic Actuator into existing systems where there are already components available for attachment on site.

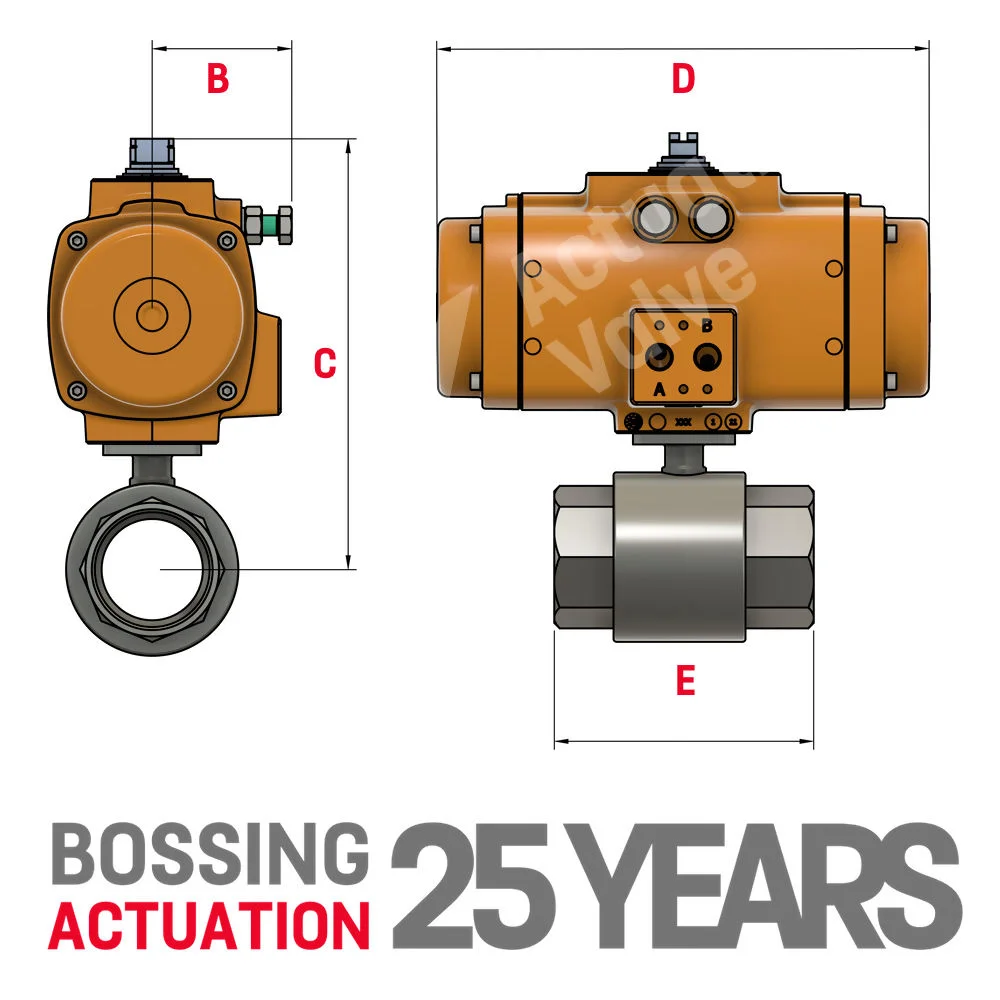

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DA	DA
1/4"	48.00	153.50	166.00	67.00	33.00	122.50	103.00	67.00
3/8"	48.00	153.50	166.00	67.00	33.00	122.50	103.00	67.00
1/2"	48.00	153.50	166.00	67.00	33.00	122.50	103.00	67.00
3/4"	48.00	160.00	166.00	70.40	48.00	160.00	166.00	70.40
1"	58.00	190.00	192.00	85.00	48.00	169.00	166.00	85.00
1 1/4"	58.00	194.50	192.00	94.00	48.00	173.50	166.00	94.00
1 1/2"	58.00	215.50	217.00	105.00	58.00	203.50	192.00	105.00
2"	69.00	229.50	247.00	125.00	69.00	222.50	217.00	125.00
2 1/2"	75.00	277.00	304.00	155.00	69.00	251.00	247.00	155.00
3"	87.00	292.00	362.00	173.00	75.00	286.00	235.00	173.00

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

ZIP
Size 0100

DRAWINGS & SCHEMATICS

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	ASME B16.34
Wall Thickness:	ASME B16.34
Inspection & Testing:	API 598
Face 2 Face:	ASME B16.10
Pressure Rating:	1000 PSI

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Yes, in many cases. Please contact us with the valve size, actuator type and quantity required and we will provide a competitive quotation, including any volume discount available for larger orders.

These valves are manufactured to ASME B16.34, with inspection and testing carried out to API 598 and face-to-face dimensions to ASME B16.10. Certification options including PED 2014/34/EU, ATEX, SIL 2 and NACE MR-0175 can be provided, with Lloyd's Register approval also available depending on the specification required - please confirm your requirements when ordering.

Yes. This AV-L2000EL 2-piece ball valve range is available across a range of valve and actuator sizes, and larger combinations can be supplied to order. Please contact us with the valve size, pressure rating and control signal required and we will confirm availability and lead time.

Yes. We can deliver directly to your customer on a plain-labelled or unbranded delivery note if required. Please let us know at the time of order and send a copy of your delivery note so we can ensure it is attached to the shipment.

Yes, subject to status. We offer credit accounts to qualifying business customers, allowing you to order now and settle on agreed terms. Please contact our sales team to apply, or complete a credit account application form and we will confirm your terms.h.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

Brochures

CERTIFICATES & APPROVALS

Elomatic Actuator Videos

Elomatic Overview

DRAWINGS & SCHEMATICS

TopWorx Elomatic Valve Limit Switch Box available for this product. Keep everything within the Emerson Group of products with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Elomatic Actuator prior to shipping.

Please feel free to request information and advice using the form below or call us on 0151 547 1221
