All of our Actuated Valve Assemblies are manufactured in house with the help from automation experts. Every completed unit comes equipped to meet high standards and can be traced back via two page test report detailing opening/closing times. When you need a high quality valve that can stand up to the toughest conditions and last through years of continuous use, look no further than our AV-L8000FS Heavy Duty Ball Valve! This model features PTFE TFM 4215 ball seats with grafoil stem sealing. Compact and simple yet effective design the Actreg range of pneumatic actuators offer easy integration of both new and existing systems. Direct Mount capabilities and simple mounting kit assemblies which can be provided to suit your valve.

Shop Help Me

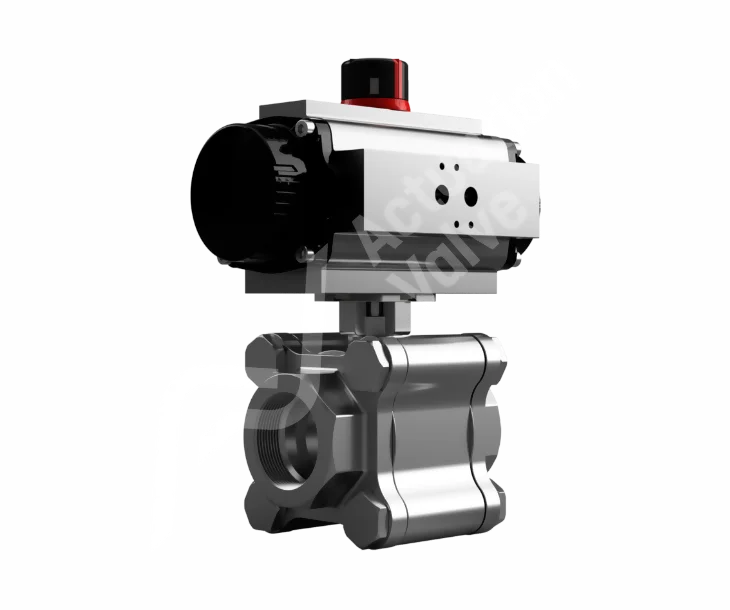

Key features and benefits of AV-L8000AC, AV-L8100AC & AV-L8200AC Actuated Ball Valves.

Key Features

By switching from conventional ball valves to our low torque AV-L8000FS Ball Valve, you'll save money on installation costs and maintenance while improving overall reliability. Our product is designed with the end-user in mind and we understand what works best for industrial automation.

Key Features

Each individual actuator retains its full traceability all the way back to the factory with a unique serial number. All assemblies performed by Actuation Valve in house also detail and cross reference this serial number with accompanying valves and accessories in a build sheet format.

Key Features

The AV-L8000FS Ball Valve is an excellent choice for high volume pneumatic systems because it has low torque requirements, which reduce the costs of Actuated Valves with smaller actuators able to automate valves usually demanding large units.

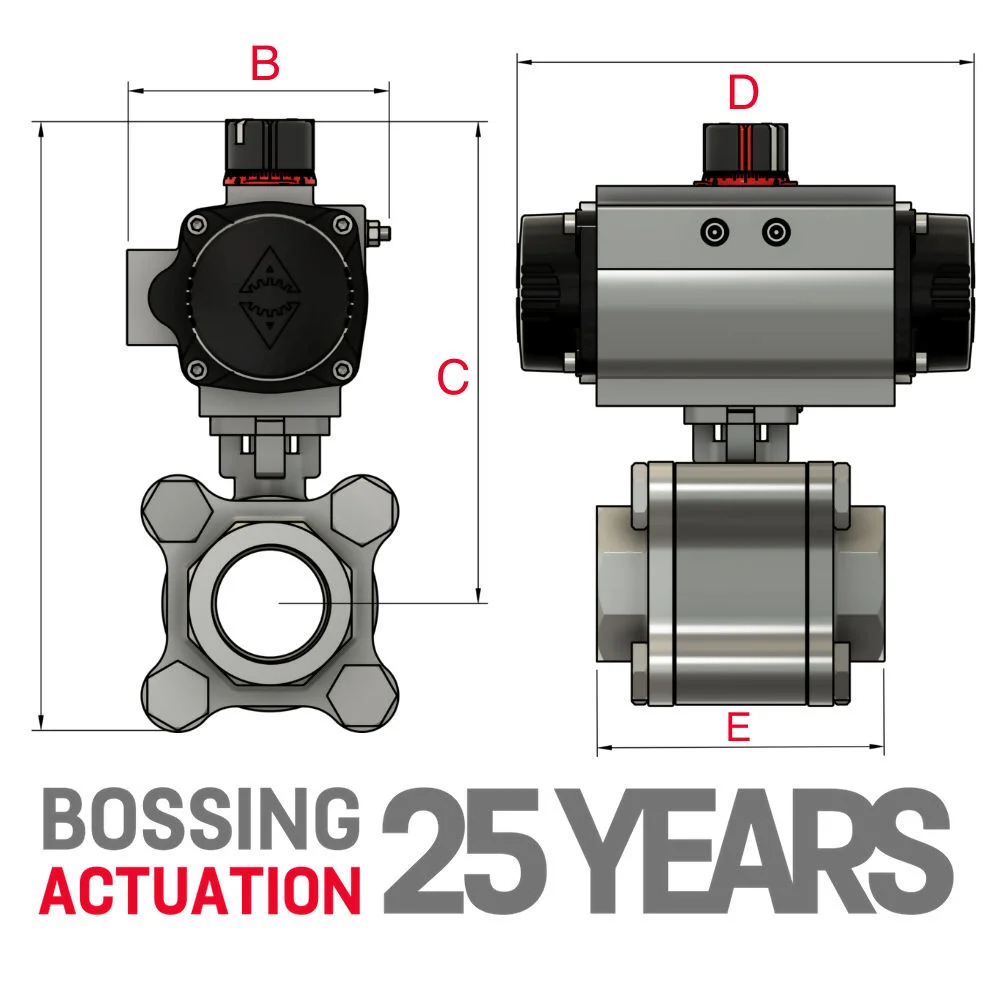

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DA	DA
1/4"	81.00	139.00	163.00	75.00	81.00	139.00	145.00	75.00
3/8"	81.00	139.00	163.00	75.00	81.00	139.00	145.00	75.00
1/2"	81.00	139.00	163.00	75.00	81.00	139.00	145.00	75.00
3/4"	81.00	147.00	163.00	80.00	81.00	147.00	145.00	80.00
1"	96.00	173.00	195.00	90.00	96.00	173.00	158.00	90.00
1 1/4"	96.00	178.00	195.00	110.00	96.50	178.00	158.00	110.00
1 1/2"	116.00	212.00	217.00	120.00	116.00	212.00	177.00	120.00
2"	116.00	223.00	217.00	140.00	116.00	223.00	177.00	140.00

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 4215® (25% Carbon Filled TFM)
Design Standard:	MSS SP-110
Wall Thickness:	ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing:	MSS SP-110
BSP Ends:	ISO 7-1 (DIN 2999)
NPT Ends:	ASME B1.20.1
Socket Weld Ends:	ASME B16.11
Butt Weld Ends:	ASME B16.25 (Sch 80)

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.

No.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
