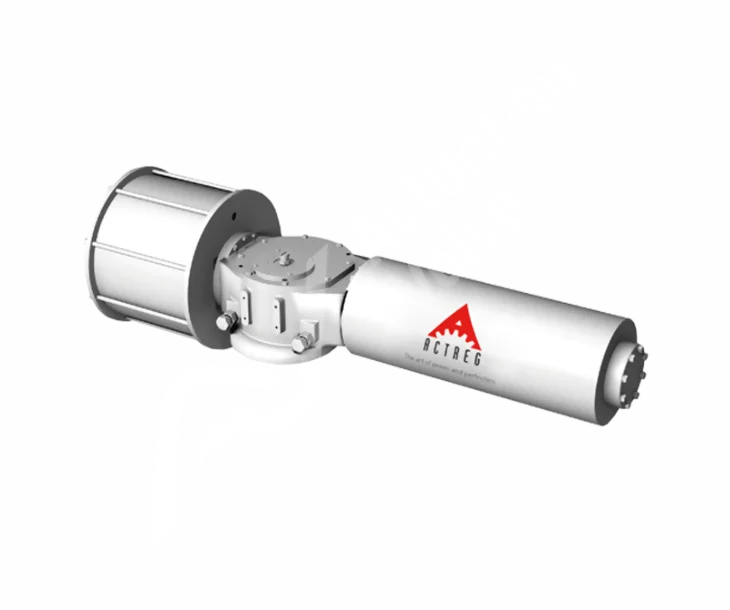

The Actreg Scotch Yoke Actuators boast external travel stop screws that facilitate precise valve angular stroke adjustments. This allows operators to tailor the actuator's performance with precision, enabling angular stroke adjustments ranging between 80º to 100º. This adaptability ensures optimal functioning tailored to the specific requirements of the application. Scotch Yoke actuators feature a modular design, allowing for the attachment of pneumatic or hydraulic cylinders on one or both sides. Additionally, for emergency shutdown (ESD) purposes, a spring cylinder can be installed on either side. With ample stock of finished and semi-finished components, actuators can be swiftly assembled and delivered reliably.

Key Features

Key features and benefits of Actreg Scotch Yoke Actuators.

Key Features

With a focus on durability, weather resistance, and precise control, these actuators stand as a reliable choice for applications demanding high performance in diverse and challenging conditions.

Key Features

Actreg Scotch Yoke Actuators ensure the proper alignment of the piston rod, contributing to the longevity and accuracy of the actuator's performance.

Key Features

This robust design is fortified with O-rings to provide robust water ingress protection, safeguarding the internal components from adverse environmental conditions.

Pressure and Torque

HYDRAULIC PRESSURE: Hydraulic pressure refers to the force exerted by hydraulic fluid within a system. With a hydraulic valve actuator, pressures can reach up to 100 bar (equivalent to approximately 1449 pounds per square inch or psi). This level of pressure is significant and allows hydraulic actuators to generate considerable force, making them suitable for heavy-duty applications where high force output is required, such as in large industrial machinery, construction equipment, and hydraulic systems in marine and aerospace industries.

PNEUMATIC PRESSURE: Pneumatic pressure, on the other hand, is the force exerted by compressed air within the system. Pneumatic valve actuators typically operate at pressures up to 10 bar (approximately 145 psi). While pneumatic systems generally operate at lower pressures compared to hydraulic systems, they offer advantages such as simplicity, cost-effectiveness, and suitability for applications where cleanliness or explosion-proof operation is essential. Pneumatic actuators find widespread use in industries such as manufacturing, automotive, food processing, and pharmaceuticals.

TORQUE OUTPUT: Torque output refers to the rotational force exerted by the actuator's output shaft. Pneumatic valve actuators can deliver substantial torque outputs, with capabilities of up to 250,000 Nm (Newton-meters), which is equivalent to approximately 184,229 pound-feet (lbf). This high torque output enables pneumatic actuators to operate large valves and industrial equipment efficiently. It's crucial for applications where precise control over the rotational movement of valves or other mechanisms is necessary, such as in oil and gas pipelines, power plants, and chemical processing facilities.

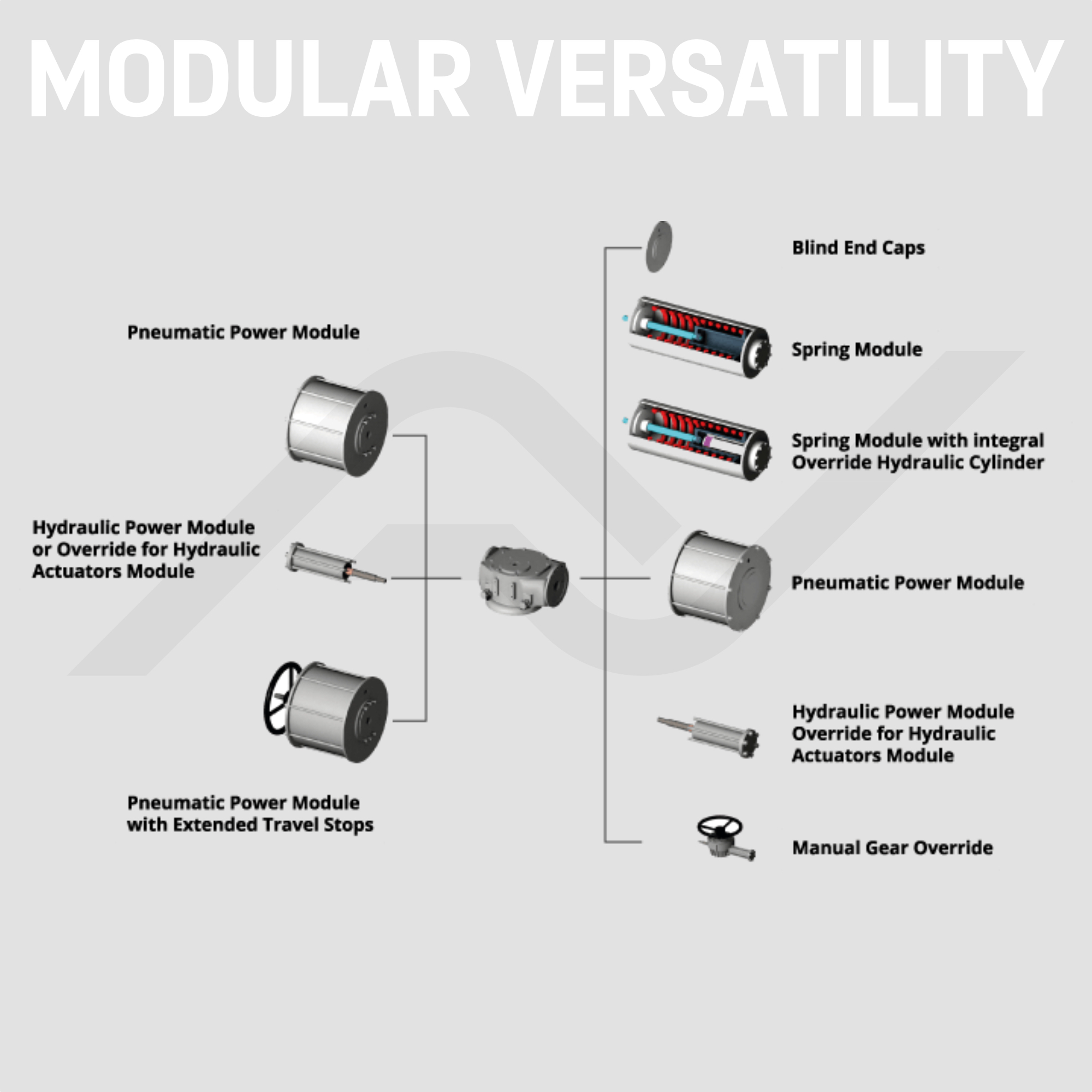

Modular Versatility

Frequently Asked Questions

The Actreg Scotch Yoke Actuator is meticulously crafted with a focus on durability, utilising high-quality materials and robust engineering to guarantee prolonged and efficient operation, minimising the need for frequent maintenance.

Actreg Scotch Yoke Actuators come equipped with a totally enclosed weatherproof center-body and caps, fitted with o’rings to provide effective protection against water ingress, ensuring optimal performance even in challenging environmental conditions.

The center-body includes a guide that supports transverse forces of the scotch and yoke mechanism, ensuring the correct alignment of the piston rod and enhancing the overall efficiency and reliability of the actuator.

External travel stop screws enable precise valve angular stroke adjustment, providing flexibility within the range of 80º to 100º to suit specific operational requirements.

The Actreg Scotch Yoke Actuator is available in 10 different sizes, ranging from F10 (500 Nm) up to F60 (250,000 Nm), catering to a diverse set of torque demands across various applications.

Internal o’rings are incorporated to safeguard against water ingress, enhancing the actuator's resilience and ensuring reliable performance over an extended service life.

Yes, the Actreg Scotch Yoke Actuator adheres to NAMUR standards across all sizes, facilitating the assembly of switch boxes and positioners for seamless integration into control systems.

Threaded parts are conveniently located on both the front and back sides of the body, simplifying the assembly process of a pneumatic control panel and providing ease of installation.

Yes, the actuator allows for precise adjustments through the possibility of venting valves, which prevent internal overpressures caused by mechanical movements and safeguard against the entry of water or corrosive elements.

Actreg ensures reliability in harsh environments by incorporating a weatherproof center-body and caps, along with robust construction materials and engineering, guaranteeing optimum performance even in challenging conditions.
