Aluminium Bronze Wafer Actuated Butterfly Valves

Actuation Valve offer a range of 80WM580 Actuated Butterfly Valves with various methods of Actuation. This can be Pneumatic, Electric, Hydraulic & Electro-Pneumatic. The 80WM580 Aluminium Bronze Butterfly Valve is commonly used in external environments that are exposed to corrosive mediums such as seawater. Where as standard Iron or Steel Valves would have an extremely small life expectancy in these conditions the 80WM580 offers longevity and reliability for an extremely cost effective overall package and total life cost.

80WM80AC - Actreg Marine Duty Bronze Actuated Butterfly Valves

Visually, the Actreg Actuator offers a clear indication of its state. The different end caps for double or single acting for fast and safety identification without the need to read the label. End caps are epoxy coated as standard protecting them against environment corrosion. Bronze and aluminium bronze valves offer a high level of corrosion resistance to mediums such as water and salt water. These characteristics make bronze andaluminium bronze valves an ideal choice for applications in which corrosion can be a problem. Actuation Valve have provided numerous Bronze Valve & Actuator solutions to marine and land based applications for over 25 years. While the primary application is flow control to marine industry, we have also supplied bronze actuated valves for a number of other processes.

Size Range: DN32-DN600 (1 1/4"-24")
Body Materials: B148 C9500 Aluminium Bronze
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Sea Water, Desalination, Cooling Water, Ballast, Oil, Gases, Ship Side
Find Out More

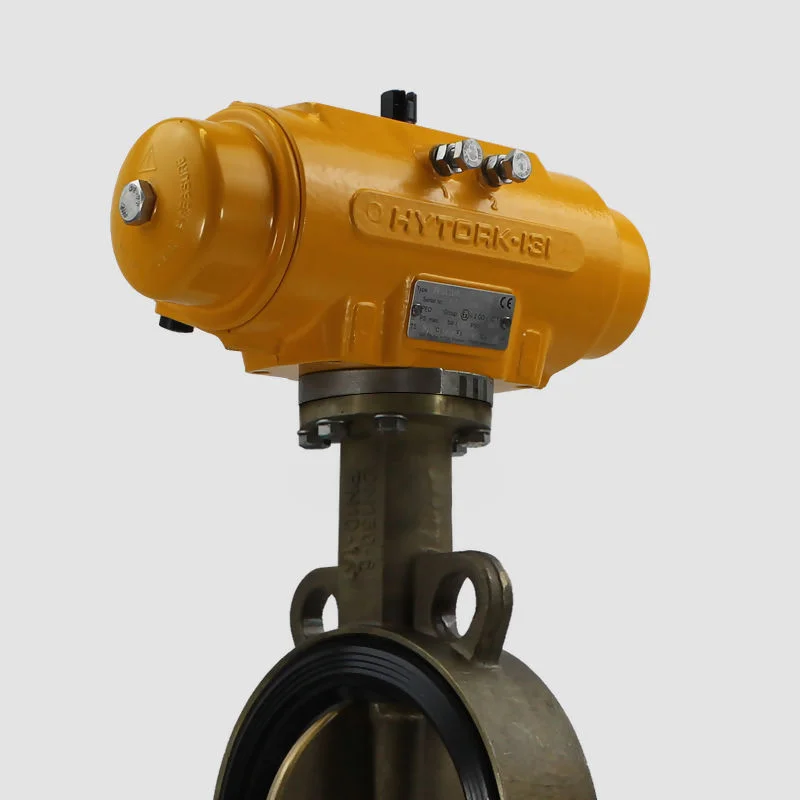

80WM580XL - Hytork Marine Duty Bronze Actuated Butterfly Valves

Aluminium Bronze is favoured for its corrosion resistance and used in marine applications where it may be subject to salt water or brackish conditions. Ali Bronze maintains long term stability and is used on fire protection, potable water, cooling, ballast & HVAC systems. High-quality pneumatic components drastically improve your production line's efficiency. The Hytork XL range comes standard with a powder-coated surface treatment providing extra protection against aggressive environments. TTV Butterfly Valves feature an innovative disc design that greatly increases Cv values resulting in lower energy costs and improved efficiency with no sacrifice in performance or durability compared to other manufacturers valves on the market.

Size Range: DN32-DN500 (1 1/4"-20")
Body Materials: B148 C9500 Aluminium Bronze
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Sea Water, Desalination, Cooling Water, Ballast, Oil, Gases, Ship Side
Find Out More

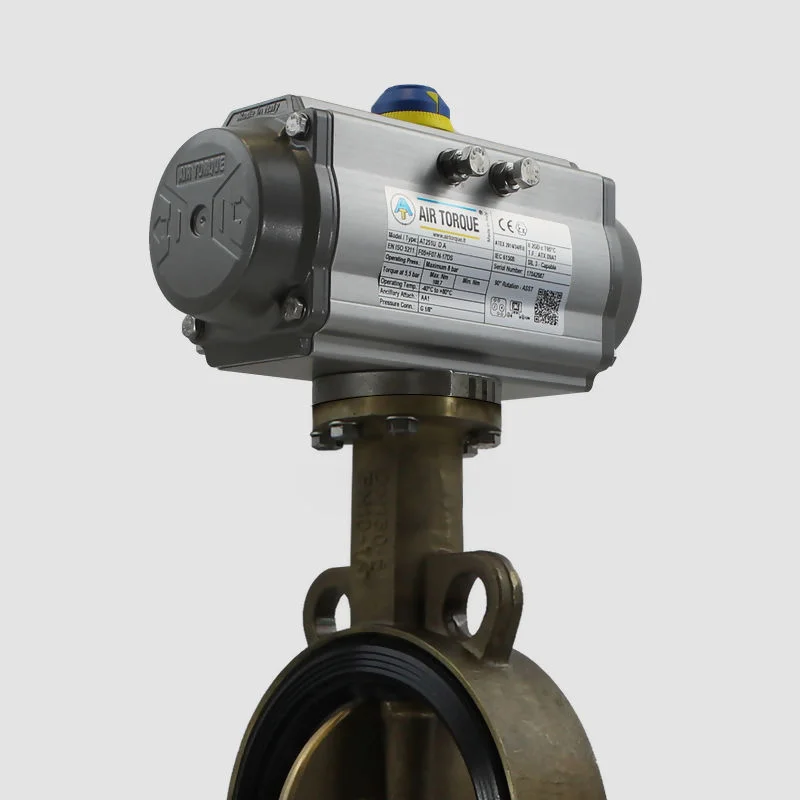

80WM580AT - Air Torque Marine Duty Bronze Actuated Valves

A combination of the TTV 80WM580 and Air Torque actuator. Currently our most popular marine actuated butterfly valve assembly that outperforms most others on the market for efficiency, cost and corrosion resistance. The aluminium bronze body and disc butterfly valve provides superior external protection to factors such as sea water spray and chemicals. A replaceable valve seat and actuator rated to SIL3 complete a robust general purpose package that will go the distance and provide maximum life capacity. The Air Torque actuator is in field convertible should you ever require a change from the spring return and double acting functionalities.

Size Range: DN32-DN600 (1 1/4"-24")
Body Materials: B148 C9500 Aluminium Bronze
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Sea Water, Desalination, Cooling Water, Ballast, Oil, Gases, Ship Side
Find Out More

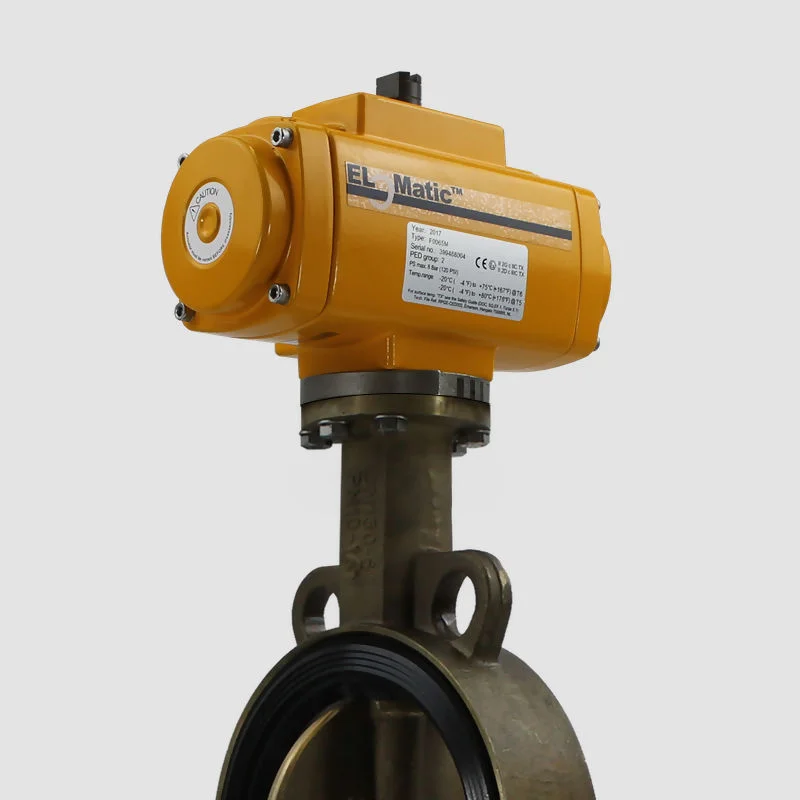

80WM580EL - Elomatic Marine Duty Bronze Actuated Butterfly Valves

The TTV wafer pattern bronze butterfly valve is particularly suited to the marine industry where corrosion resistance is paramount. Bronze body and Monel stem offers a high resistance to corrosion and seawater with additional soft seat material to suit a range of fluids and mediums. The design of this unique pneumatic actuator incorporates features which make it suitable for use under adverse conditions such as high and Low temperatures and exposure to corrosive chemicals including salt water, acids and other contaminants found in industrial environments. Actuated butterfly valves are a cost-effective and efficient way to control your water valve. We offer both the fail safe close/open position as well as several features that can be specified at time of order including manual overrides.

Size Range: DN32-DN500 (1 1/4"-20")
Body Materials: B148 C9500 Aluminium Bronze
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Sea Water, Desalination, Cooling Water, Ballast, Oil, Gases, Ship Side
Find Out More

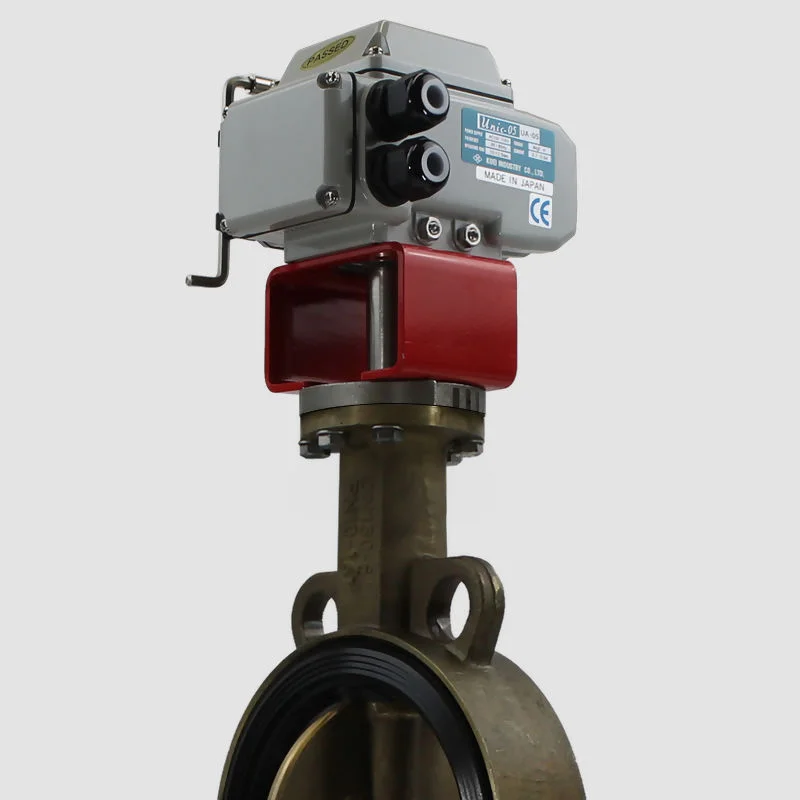

80WM580EK - Koei Marine Duty Bronze Actuated Butterfly Valves

Construction materials including Bronze, Aluminium Bronze and Monel and additional High Alloy materials make Actuation Valve the first choice supplier to many leading Marine based companies with the ability to deliver rapid solutions for almost any application. Our UNIC line of electric actuators have been designed specifically for industrial applications where space is at a premium. These lightweight units offer all the features and benefits found in standard models with none of associated weight or unwanted size. Extensive range of stocked butterfly valves lets us provide many materials. With component form availability, we're able to interchange disc and seat components accordingly so that you can get the exact specification you require with quick turnaround.

Size Range: DN32-DN350 (1 1/4"-14")
Body Materials: B148 C9500 Aluminium Bronze
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air
Find Out More

80WK80MC - ASAHI Marine Duty Bronze Actuated Butterfly Valves

The Asahi electric actuator features a thermally bonded powder coated corrosion resistant housing (Series 92) rated to Nema 4X with stainless steel trim. ABS Product Type Approved for use in Marine and Offshore Applications. Asahi electric actuators are provided with gear trains pre-lubricated at the factory prior to despatch. The specially formulated lubricant offers extended life cycles whilst also covering a wide range of temperature options for various ambient and operating requirements, as well as reducing wear. Motors used with the Asahi Electric Actuator housings are CE compliant and stamped for all 120VAC and 220VAC electric actuator motors. Extended duty cycles offer versatility to modulate high operation/cycle requirements, while providing sturdiness needed in harsh environments.

Size Range: DN32-DN350 (1 1/4"-14")
Body Materials: B148 C9500 Aluminium Bronze
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

Be Happy. Best Prices Guaranteed

Best pricing or we will donate some cash to a local dog charity. We like dogs, sorry cats. Loads of terms apply. Ask us for details. No fake rubbish Valves considered.

80WK80ROM - Rotork Marine Duty Bronze Actuated Butterfly Valves

A quality package from both Rotork (ROM) and TTV's conectric butterfly valves. Reliability when it matters for frequent or infrequent use the Rotork ROM electric actuator is there when you need it and offers worldwide customer service and support with an extremely low cost of ownership. The compact and lightweight valve package has a non clucth manual override design and can be operatred without any lever upon power failure. Corrosion protection offered to C5-M (Actuator) as standard. Additional options include Profibus, Modbus & Fieldbus from the ROMpak range of actuated butterfly valves.

Size Range: DN32-DN350 (1 1/4"-14")
Body Materials: B148 C9500 Aluminium Bronze
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

80WK80RPX - Bettis Marine Duty Bronze Actuated Butterfly Valves

The 80WM580RPX combines a robust 6063T6 aluminium bodied pneumatic actuator and high quality concentric rubber lined butterfly valve from Emerson Bettis & TTV respectively. This brand new actuated butterfly valve package offers a more cost effective solution to that of the Hytork & El-O-Matic from Emerson whilst still incorporating the core values of market leading manufacturers. Pre compressed spring designs and an anti-blowout drive pinion ensure safe operation and maintenance procedures throughout the product life cycle.

Size Range: DN32-DN500 (1 1/4"-20")
Body Materials: B148 C9500 Aluminium Bronze
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

40W4040VA - TTV Valpes Wafer Butterfly Valves - Stainless Steel

A combination of the TTV 40W4040 and Valpes Electric Valve Actuator. A full CF8M stainless steel material valve with 316 stainless steel shaft. This particular actuated butterfly valve package is suitable for aggressive mediums and external environments with specific marine  application coatings on request. A replaceable valve seat and actuator rated to rated to IP68 complete a robust offering that will go the distance and provide maximum life capacity. The Valpes Electric Actuator offers fail in position as well as battery backup failsafe return for critical applications. Modbus-RTU & bluetooth versions are also available on a short lead time with CE, DNV-GL, CSA/UL & EAC Approvals.

Size Range: DN32-DN600 (1 1/4"-24")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 12VDC, 24VDC/AC, 110V/230VAC, Modbus-RTU, Bluetooth
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air, Corrosive, Chemical
Find Out More

80WM580JJ - JJ Marine Duty Bronze Actuated Butterfly Valves

The TTV wafer pattern bronze butterfly valve  is made of high quality bronze with bubble tight shutoff, strong corrosion resistance, long service life and is widely used in various industries including petroleum, chemical industry and marine. Password protected diagnostics directly available through bluetooth technology connection allow the end user technical information relating to the operations as well as current status, read parameters or functional errors. A total of 50 devices are connectable within a 20 meter distance. True multi voltage plug and play operation allows for site standardisation without the need for changing models if local voltages change. The J4CS features a built in auto conversion sensor voltage kit capable of receiving 24-240V AC or DC supply.

Size Range: DN32-DN450 (1 1/4"-18")
Body Materials: B148 C9500 Aluminium Bronze
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Sea Water, Desalination, Cooling Water, Ballast, Oil, Gases, Ship Side
Find Out More

80WM580FE - Festo Marine Duty Bronze Actuated Butterfly Valves

The TTV wafer pattern bronze butterfly valveis made of high quality bronze with bubble tight shutoff, strong corrosion resistance, long service life and is widely used in various industries including petroleum, chemical industry and marine. The Festo pneumatic rack-and-pinion is ideal for use in applications where space is at a premium or where it needs to be mounted close to the drive unit due to mounting restrictions such as vibration requirements or limited depth available behind an enclosure. The quarter turn action offers quick opening or closing with ease of operation and the valve has good flow control characteristics. In the wide open position, the only obstruction to flow is that due to the thickness of the disk, so the pressure drop across the valve is small.

Size Range: DN32-DN450 (1 1/4"-18")
Body Materials: B148 C9500 Aluminium Bronze
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Sea Water, Desalination, Cooling Water, Ballast, Oil, Gases, Ship Side
Find Out More

Frequently Asked Questions

An Aluminium Bronze Actuated Butterfly Valve is a type of valve that uses a disc, or "butterfly," to control the flow of fluid in a pipeline. It's made from aluminium bronze, a corrosion-resistant alloy, and can be operated remotely through an actuator.

These valves are often used in industries where resistance to corrosion and seawater is crucial, such as marine, offshore, and chemical processing applications.

They offer excellent corrosion resistance, low maintenance, and precise flow control. Their lightweight design and quick operation make them a cost-effective choice.

Selecting the right valve size depends on factors like pipe diameter and flow rate. It's advisable to consult with a professional or refer to the valve manufacturer's guidelines.

Yes, Aluminium Bronze Actuated Butterfly Valves can be equipped with actuators for remote and automated operation. This is particularly useful for large systems.

Some models are suitable for potable water applications, but it's essential to check the valve specifications and ensure they meet the required standards for drinking water.

Regular inspection and lubrication are recommended to ensure smooth operation. The specific maintenance schedule can vary based on usage and environmental conditions.

Yes, these valves typically offer a variety of end connections, including flanged, wafer, and lug styles to suit different piping systems.

The pressure-handling capability depends on the valve's design and specifications. Some models are suitable for high-pressure systems, but it's important to confirm this with the manufacturer.

Yes, Actuation Valve offers sustainable spares and replacement parts for ongoing maintenance schedules.

It's important to follow proper safety guidelines when operating or maintaining these valves, including wearing appropriate personal protective equipment and adhering to industry safety standards.
