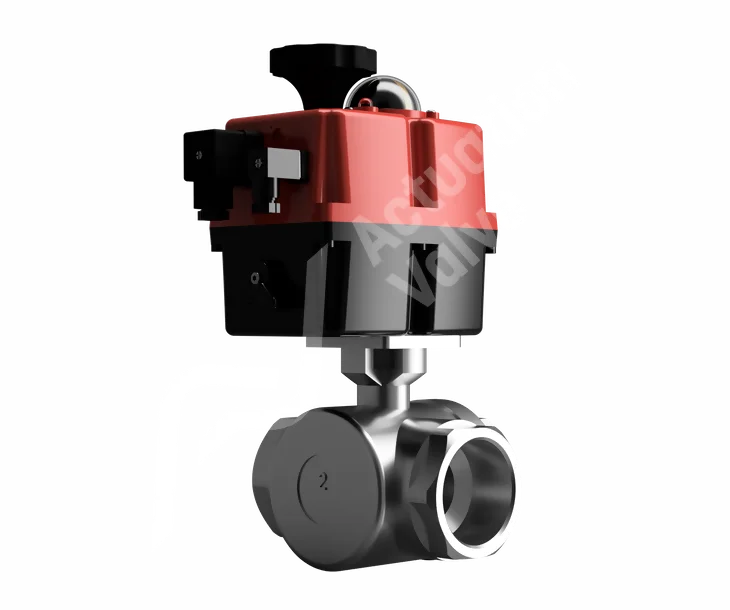

J4CS J&J Electric Actuator 3-Way Full Bore Ball Valves

The AV-L5300 & 5400 Full Bore 3-Way Ball Valves are silicone free and suitable for use on oils based paint products and applications. This allows complete assurance that the Valve will not apply any contamination to the medium that could effect the end finish. The J4S product line features an affordable electric actuator that works seamlessly with any IOS or Android device without the need for additional hardware or software. This makes it easy to connect your application directly to your smart phone, tablet or computer. 3-Way Ball Valves can be used to divert flow from one fluid flow path to another in industrial process systems. 3-Way Ball Valves are typically used in the process industry to connect, disconnect or redirect flow between two or more fluid flow paths.

Key Features

Key features and benefits of AV-L5300JJ & AV-L5400JJ Actuated Ball Valves.
1

Key Features

Our team has decades of experience working with complex automation systems, which means we can provide high quality products quickly and affordably. Simply tell us what you need, and we'll take care of everything else.
2

Key Features

Low Torque requirements from the AV-L5300 & 5400 Full Bore 3-Way Ball Valve allow for smooth operation and reduce the costs of Actuated Ball Valves with smaller Actuators able to automate Valves usually demanding large units.
3

Key Features

J&J electric actuators feature a highly visible 360 degree visual position indicator that offers immediate local valve open or closed identification. With this technology, you'll always have clear valve position visibility available at all times.

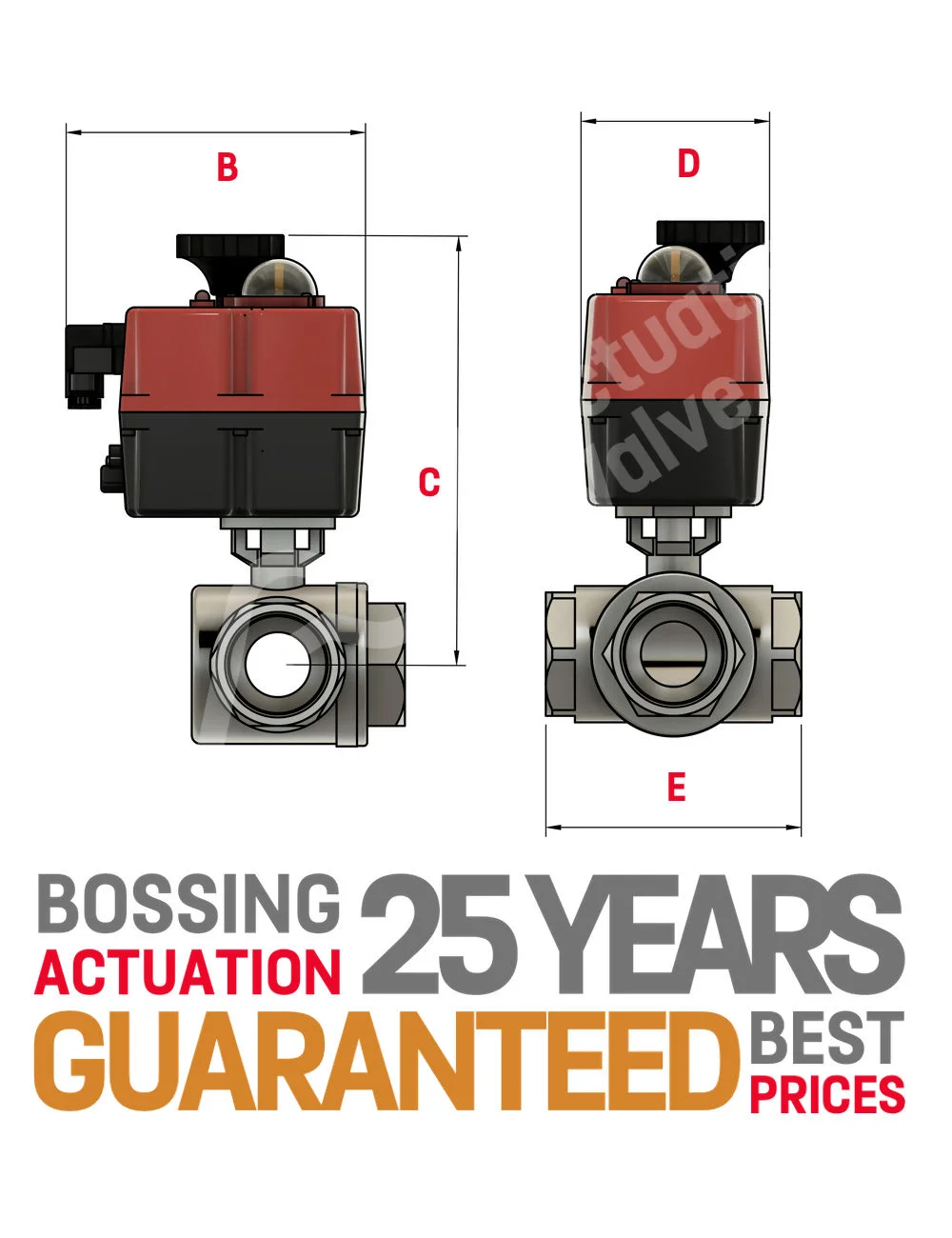

RB 3-Way Ball Valve Technical Stuff

B C D E Model
1/4" 179.00 214.00 110.00 79.00 J4CS20
3/8" 179.00 214.00 110.00 79.00 J4CS20
1/2" 179.00 214.00 110.00 79.00 J4CS20
3/4" 179.00 220.00 110.00 88.00 J4CS20
1" 179.00 230.50 110.00 108.00 J4CS20
1 1/4" 179.00 234.00 110.00 124.00 J4CS20
1 1/2" 179.00 244.50 110.00 135.00 J4CS35
2" 181.00 278.80 110.00 164.00 J4CS55
2.5" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA
6" TBA TBA TBA TBA TBA

RB 3-Way Ball Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 7-1
Body Seal Material: PTFE
Stem Packing Material: PTFE

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

3-Way Valve Configuration

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
