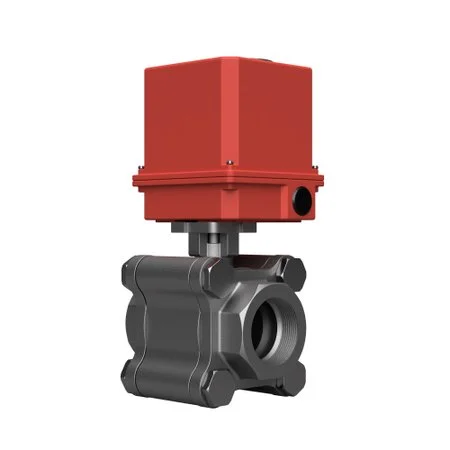

Heavy Duty Carbon Steel AV-Lite® Electric Ball Valves

The AV-L8000FCAV Heavy Duty Carbon Steel Ball Valve is designed for use on heavy duty industrial applications where higher pressure ranges or temperatures may be required. This ball valve features PTFE TFM 4215 ball seats with grafoil stem sealing and carbon steel body. The Carbon Steel Ball Valve is affordable enough for residential use and durable enough for commercial applications. It's made from high quality materials that will last for many years without excessive wear seen in some other Manufacturers Valves. This isolation Ball Valve features an innovative 3 piece body design that allows for future proof preventive maintenance schedules by easily removing one section of the body at a time for seal replacements instead of having to take apart the entire valve each time your schedule requires.

Key Features

Key features and benefits of AV-L8000FCAV & AV-L8200FCAV Actuated Ball Valves.
1

Key Features

Our team has decades of experience working with complex automation systems, which means we can provide high quality products quickly and affordably. Simply tell us what you need, and we'll take care of everything else.
2

Key Features

Low Torque requirements from the AV-L8000FC Ball Valve allow for smooth operation and reduce the costs of Actuated Ball Valves with smaller Actuators able to automate Valves usually demanding large units.
3

Key Features

These ball valves are available in screwed connections NPT & BSP and they work great in any application where a flow control device is needed. They're fully compliant with safety standards so they'll keep your workplace safe while being easy on your budget at the same time.

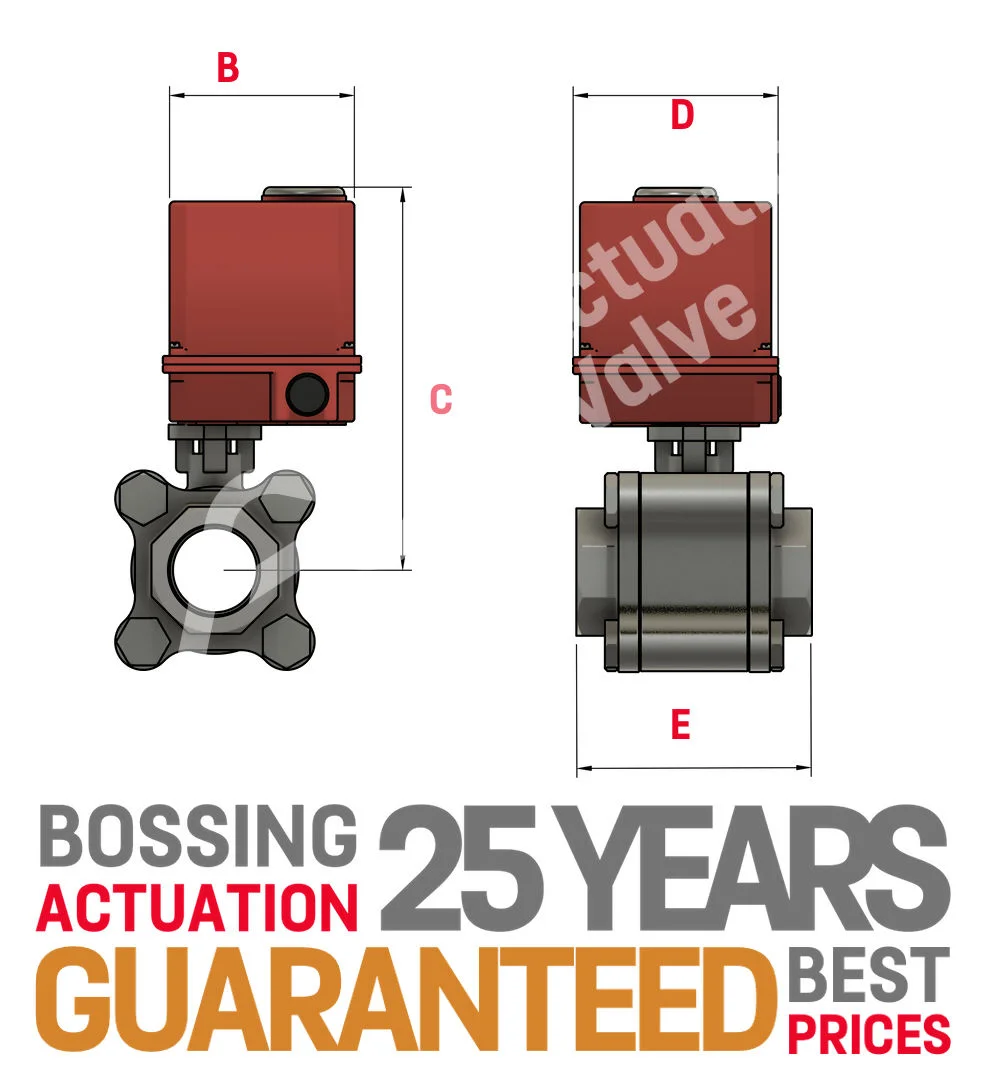

Screwed/Socket Weld Technical Stuff

B C D E Model
1/4" 100.00 153.50 145.00 75.00 AV-02
3/8" 100.00 153.50 145.00 75.00 AV-02
1/2" 100.00 153.50 145.00 75.00 AV-02
3/4" 100.00 161.50 145.00 80.00 AV-02
1" 100.00 168.50 145.00 90.00 AV-02
1 1/4" 100.00 173.50 145.00 110.00 AV-02
1 1/2" 121.90 216.50 117.00 120.00 AV-03
2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA

Screwed/Socket Weld Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A216 WCB Carbon Steel & 304 SS Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 228/1
Socket Weld Ends: ASME B16.11
Silicone Free: Suitable For Oil Based Paints
Anti Static Device: Ball, Shaft & Valve Body

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
