Stainless Steel Fully Lugged Actuated Butterfly Valves

The TTV Stainless Steel Butterfly Valves are a great choice for those with demanding environmental conditions. They can withstand harsh or corrosive environments that would not be suitable to standard ranges, thanks in part to their CF8M body made of high quality stainless steel. Their lugged design offers an added advantage. Should one side of the pipework need repairs it is easy enough just disconnect the individual section until works are complete. The 40L4040 is available with both Pneumatic & Electric Actuation.

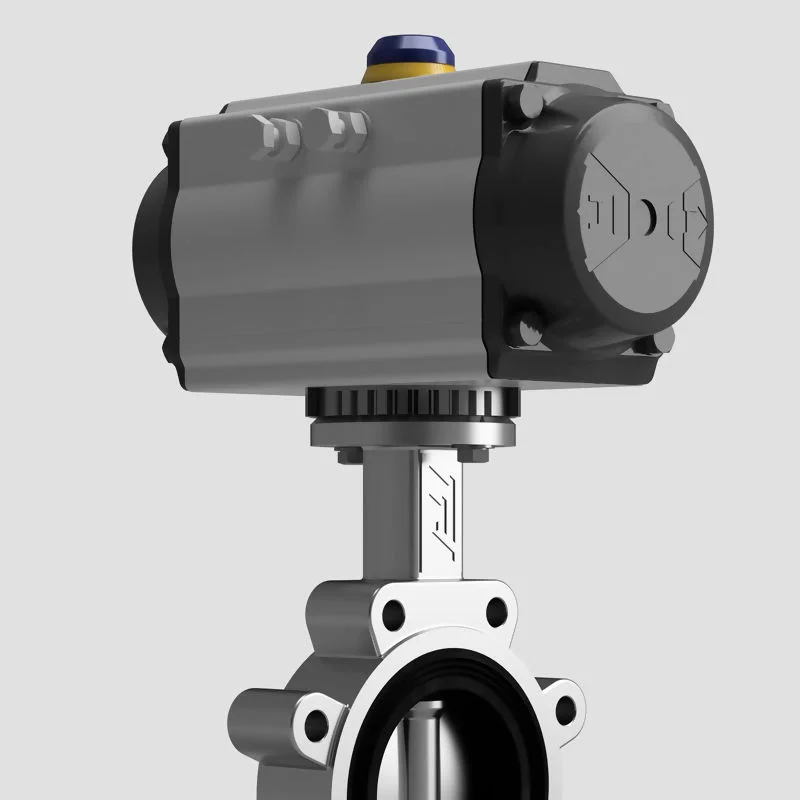

40L4040AT - Fully Lugged Stainless Steel Actuated Butterfly Valves

The Stainless Steel Butterfly Valves from TTV are a perfect fit for any application that requires an extremely durable and versatile concentric design. These valves can handle harsh conditions like those found in chemical plants due to their CF8M stainless steel body. Certificate of conformities can be supplied by Air Torque along with your actuator or actuated valve package and each individual actuator is factory tested and inspected prior to packing and despatch to us in the UK form their Italian factory. The Lugged Valve Bodies have threaded inserts on both sides with the design allowing you to easily disconnect either side of the piping system without having to remove the valve itself.

Size Range: DN32-DN600 (1 1/4"-24")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air
Find Out More

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

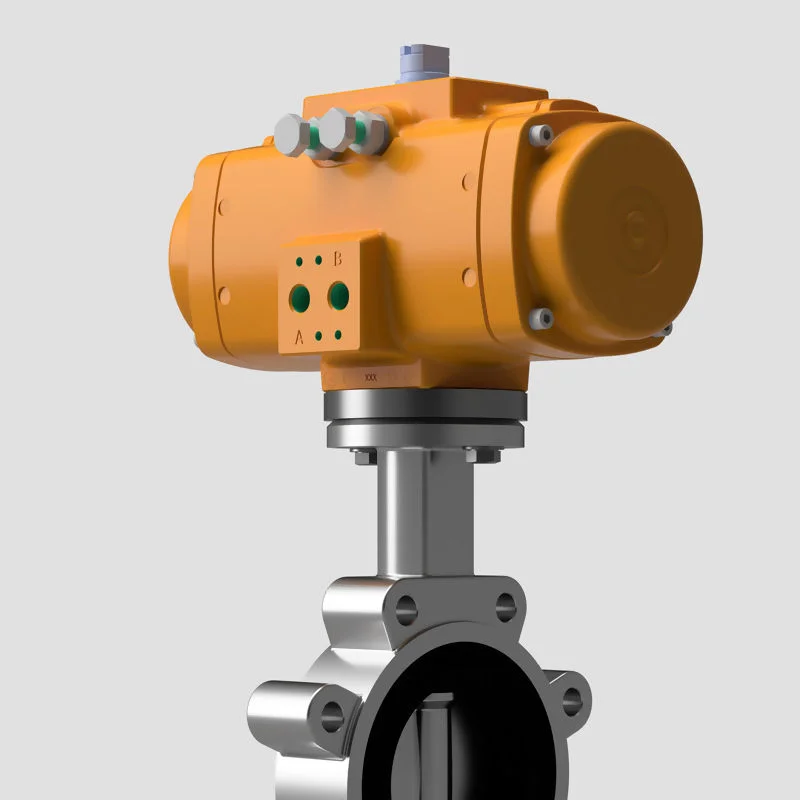

40L4040EL - Fully Lugged Stainless Steel Elomatic Butterfly Valves

The Stainless Steel Butterfly Valves from TTV are a perfect fit for any application that requires an extremely durable and versatile concentric design. These valves can handle harsh conditions like those found in chemical plants due to their CF8M stainless steel body, or other industries where high-quality equipment is needed withstanding rigorous use over time such as power generation. The NAMUR standard interfaces allows for quick and easy fitting of additional ancillary products such as solenoid valves and and valve limit switch position boxes. A perfect addition to the EL-O-Matic actuator would be Asco solenoid valves and TopWorx limit switch boxes.

Size Range: DN32-DN500 (1 1/4"-20")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air
Find Out More

40L4040FE - Festo Actuated Lugged Stainless Steel Butterfly Valves

The Festo TTV Stainless Steel Butterfly Valves are designed to provide corrosion resistance in harsh and environments. These valves have an incredibly versatile concentric design, which can be used for many different applications whether you're operating at standard or high temperatures. With their pneumatic actuators providing quality solutions that offer long service life combined with low wear rates even under harsh conditions these products make a great choice for any industry including chemical, water, food & beverage and power generation.

Size Range: DN32-DN450 (1 1/4"-18")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air
Find Out More

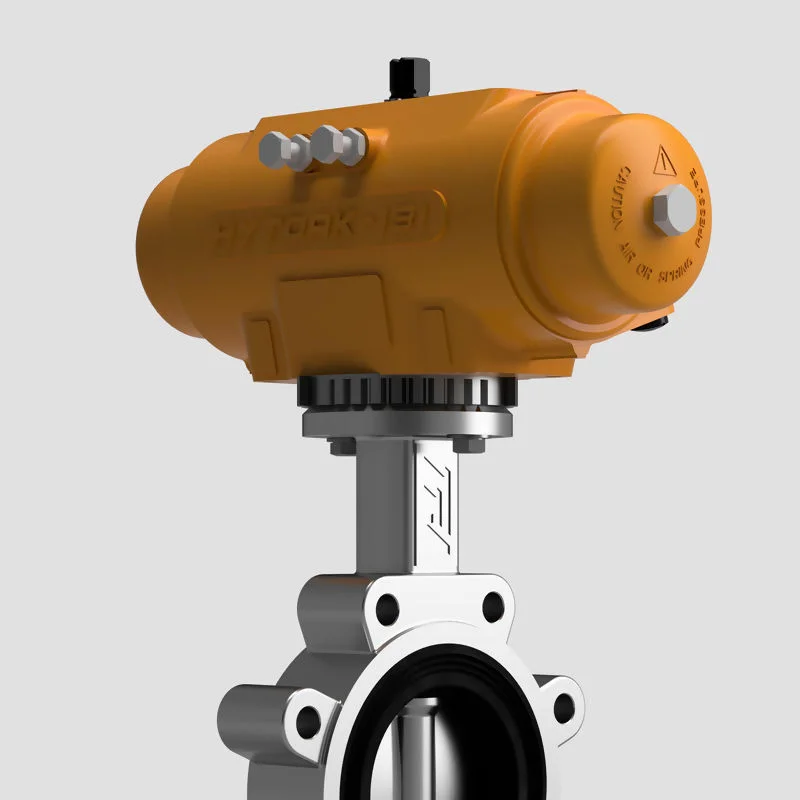

40L4040XL - Hytork XL Actuated Lugged SS Butterfly Valves

TTV Lug-style stainless steel butterfly valves have threaded inserts at both sides of the body that allow them to be installed with only bolts and no nuts. The valve is placed between two flanges, one on each side. This setup permits either piece of piping to be disconnected without affecting the complete process. Combined with the XL range of Hytork Pneumatic Actuators the combination is a fit and forget solution preventing expensive product stoppages and additional unforeseen costs with zero downtime. Spares kits are readily available for both Valve and Actuator preventative maintenance schedules as required.

Size Range: DN32-DN450 (1 1/4"-18")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air
Find Out More

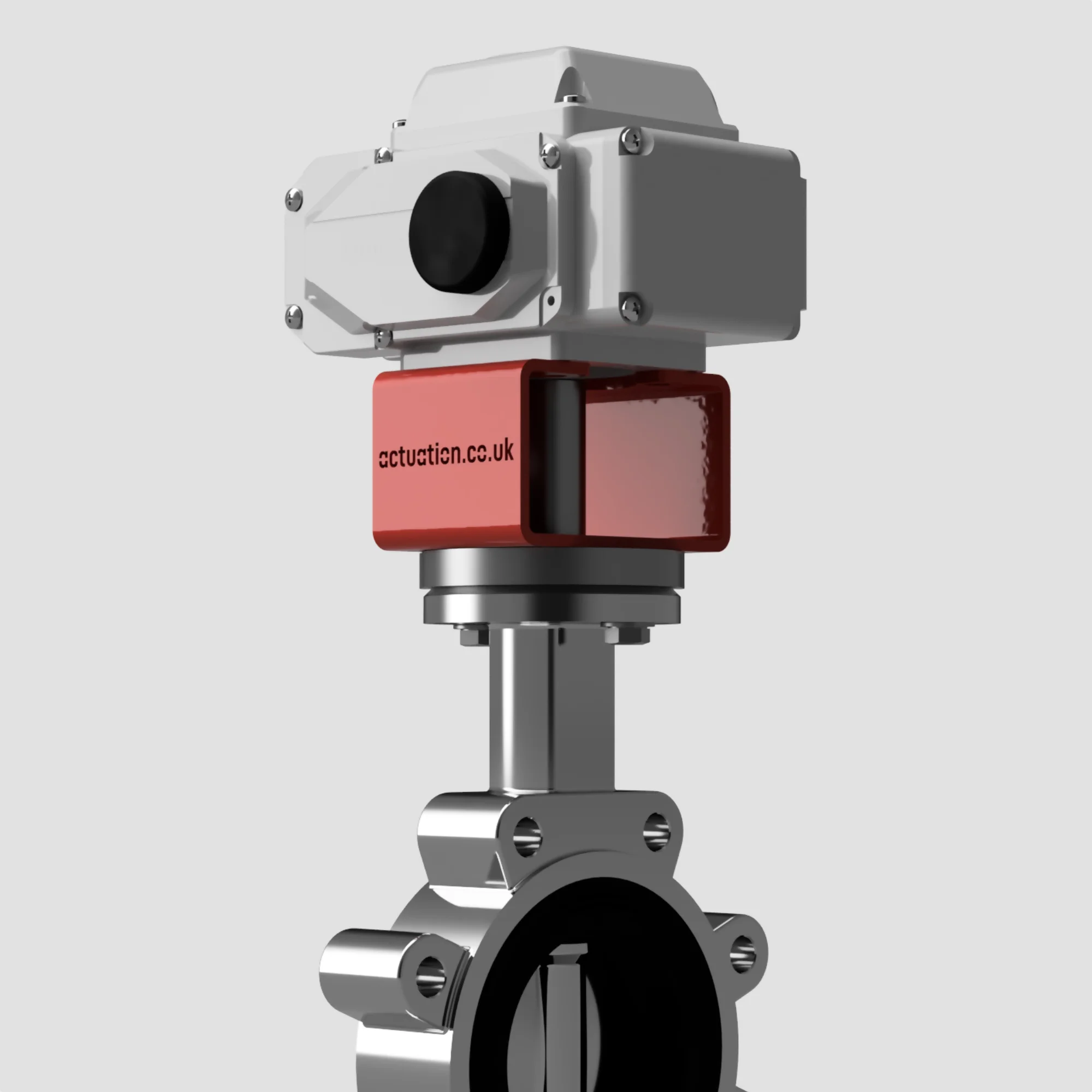

40L4040EK - Koei UNIC Actuated Lugged Stainless Steel Valves

The TTV Stainless Steel Butterfly Valves are perfect for use in harsh or corrosive environments that aren't suitable to standard ranges. With their CF8M body and disc made from high quality stainless steel, these valves can withstand even the most demanding conditions, including those where you might need a little extra protection against corrosion. The Koei UNIC electric actuator offers excellent performance with an extremely wide range of applications. The unit helps save energy while eliminating costly downtime. All units come complete with general operations and maintenance manuals as standard and free after sales support.

Size Range: DN32-DN350 (1 1/4"-14")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air
Find Out More

40L4040MC - Master Chief SS Fully Lugged Actuator Butterfly Valves

The Asahi electric actuator features a thermally bonded powder coated corrosion resistant housing (Series 92) rated to Nema 4X with stainless steel trim. ABS Product Type Approved for use in Marine and Offshore Applications. Asahi electric actuators are provided with gear trains pre-lubricated at the factory prior to despatch. The specially formulated lubricant offers extended life cycles whilst also covering a wide range of temperature options for various ambient and operating requirements, as well as reducing wear. Motors used with the Asahi Electric Actuator housings are CE compliant and stamped for all 120VAC and 220VAC electric actuator motors. Extended duty cycles offer versatility to modulate high operation/cycle requirements, while providing sturdiness needed in harsh environments.

Size Range: DN32-DN350 (1 1/4"-14")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

40L4040MA - MAX Air Actuated Stainless Steel Valves Butterfly

Combining the MT range of actuators from Max Air Technologies and TTV's 40L4040 butterfly valve provides an extremely cost effective automated shut off solution. The Max Air actuator utilizes the same body design and end caps for both double acting and spring return applications allowing customizable stock profiles. This allows us to offer large quantities on short lead times with all assmebly and testing performed in house. Attention to detail features special epoxy coated internal springs to increase corrosion resistance. Your perfect choice for pneumatic butterfly valves on a restricted budget.

Size Range: DN32-DN450 (1 1/4"-18")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

Be Happy. Best Prices Guaranteed

Best pricing or we will donate some cash to a local dog charity. We like dogs, sorry cats. Loads of terms apply. Ask us for details. No fake rubbish Valves considered.

40L4040ROM - Rotork ROM SS Actuated Lugged Butterfly Valves

A quality package from both Rotork (ROM) and TTV's conectric butterfly valves. Reliability when it matters for frequent or infrequent use the Rotork ROM electric actuator is there when you need it and offers worldwide customer service and support with an extremely low cost of ownership. The compact and lightweight valve package has a non clucth manual override design and can be operatred without any lever upon power failure. Corrosion protection offered to C5-M (Actuator) as standard. Additional options include Profibus, Modbus & Fieldbus from the ROMpak range of actuated butterfly valves.

Size Range: DN32-DN350 (1 1/4"-14")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

40L4040RPX - Bettis RPX Air Actuated SS Lugged Butterfly Valves

The 40L4040RPX combines a robust 6063T6 aluminium bodied pneumatic actuator and high quality concentric rubber lined butterfly valve from Emerson Bettis & TTV respectively. This brand new actuated butterfly valve package offers a more cost effective solution to that of the Hytork & El-O-Matic from Emerson whilst still incorporating the core values of market leading manufacturers. Pre compressed spring designs and an anti-blowout drive pinion ensure safe operation and maintenance procedures throughout the product life cycle.

Size Range: DN32-DN450 (1 1/4"-18")
Body Materials: CF8M 316 Stainless Steel
Disc Materials: CF8M 316 Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air
