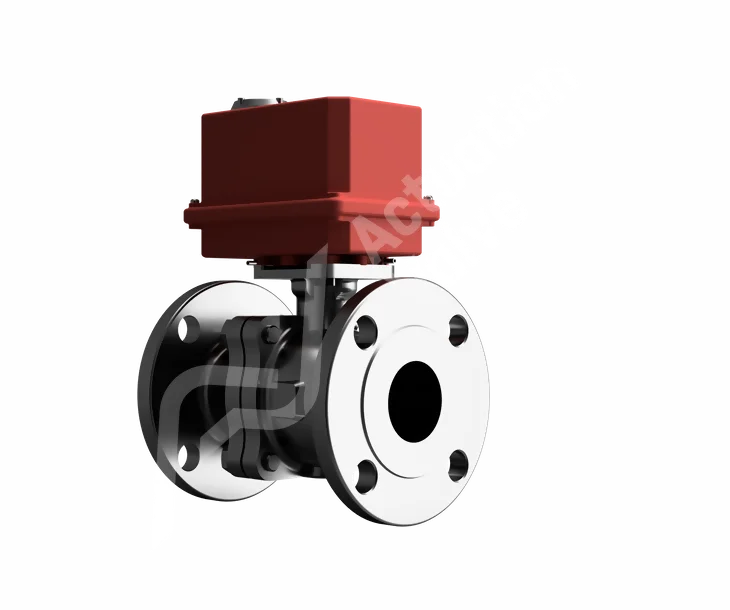

Electric PN16 Stainless Steel AV-Lite Actuator Ball Valves

The AV-L6K00AV Actuated Ball Valves are an excellent choice for use in harsh or corrosive environments that aren't suitable to standard ranges. With their CF8M body and BALL made from high quality stainless steel, these valves can withstand even the most demanding conditions. The AV-L6K00AV stainless steel ball valves can be used on oils based paints and coatings applications such as automotive refinishing. They're 100% silicone free so they won't contaminate your product or leave behind residue which can ruin your finish over time. We assemble and test all of our products in-house so we can control everything and make sure you get a high quality product that will last. All of our products come with a two page test report detailing every aspect of operation including opening/closing times and pressure ratings.

Key Features

Key features and benefits of AV-L6K00AV Actuated Ball Valves.
1

Key Features

By switching from conventional ball valves to our low torque AV-L6K00 Ball Valve, you'll save money on installation costs and maintenance while improving overall reliability. Our product is designed with the end-user in mind and we understand what works best for industrial automation.
2

Key Features

The AV-L6K00 Ball Valve is an excellent choice for high volume pneumatic systems because it has low torque requirements, which reduce the costs of Actuated Valves with smaller actuators able to automate valves usually demanding large units.
3

Key Features

The AV-L6K00 is an affordable line of high-quality stainless steel ball valves that won't break your budget. These durable products will give you years of trouble-free service at a fraction of the price that other companies charge for similar products.

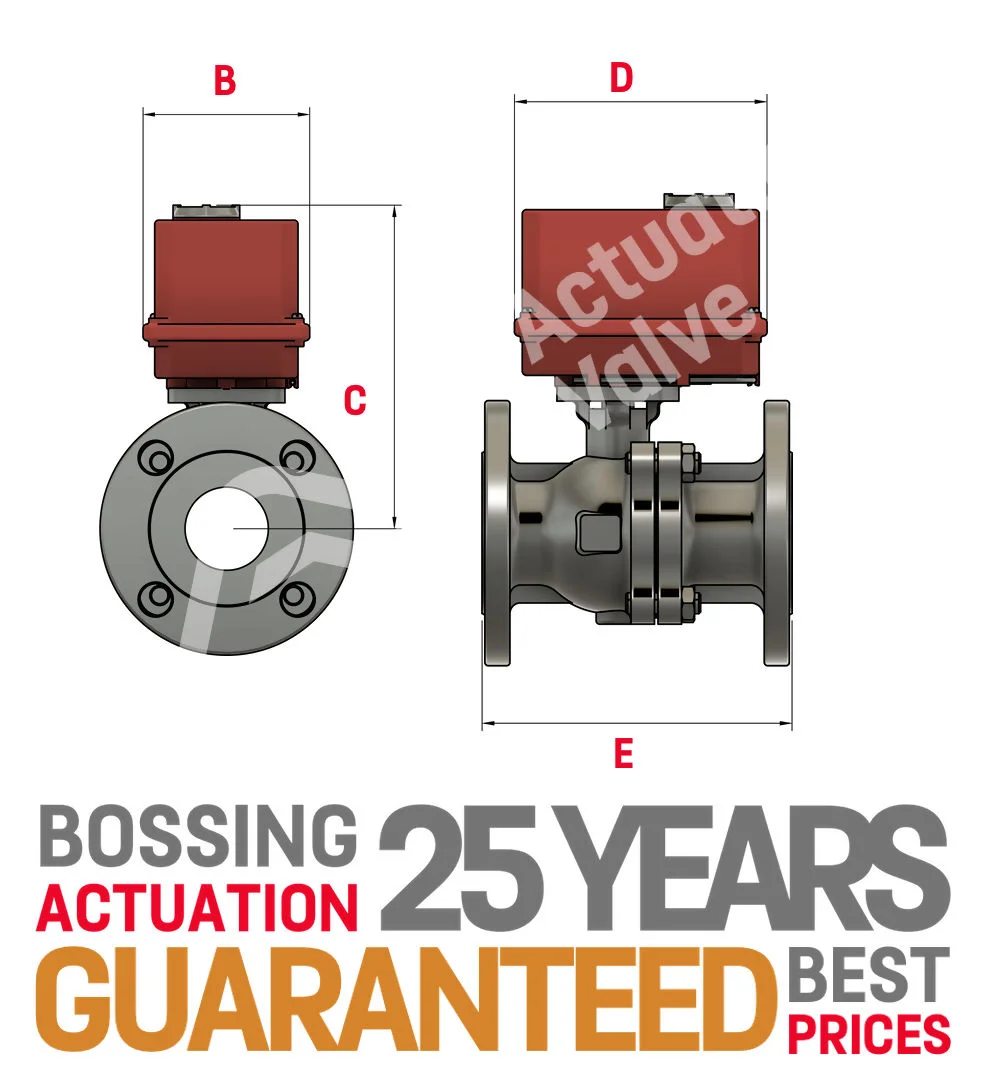

Flanged PN16 Technical Stuff

B C D E Model
1/2" 100.00 158.50 145.00 115.00 AV-02
3/4" 100.00 163.50 145.00 120.00 AV-02
1" 100.00 169.50 145.00 125.00 AV-02
1 1/4" 100.00 181.50 145.00 130.00 AV-02
1 1/2" 121.90 217.50 117.00 140.00 AV-03
2" 121.90 226.50 117.00 150.00 AV-03
2 1/2" TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA
6" TBA TBA TBA TBA TBA

Flanged PN16 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: DIN3357 1,2, EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (2 1/2" - 4") & DIN 3202 F5 (5" - 8")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
