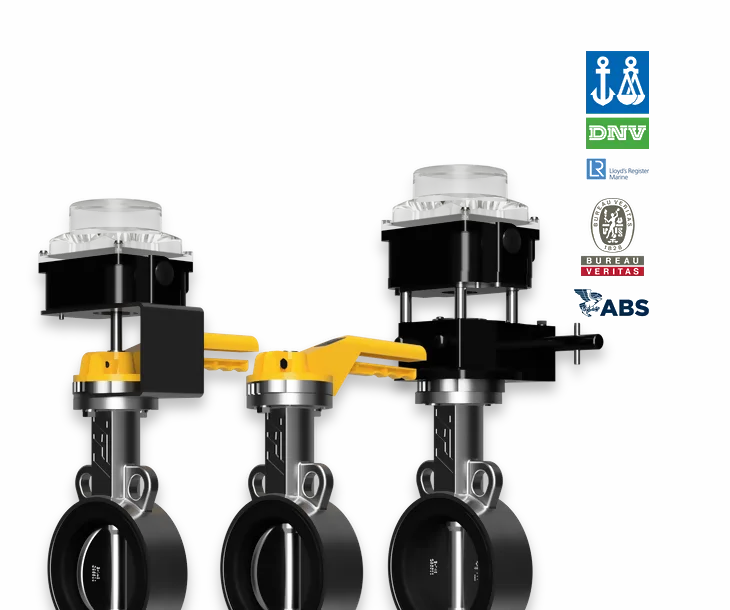

Wafer Lever-Gear Operated Butterfly Valves SS

The TTV 40W4040 Butterfly Valve features a highly corrosion resistant CF8M stainless steel body and disc material. The can be greatly rewarding for harsh environments and medium requirements where epoxy coated ductile or cast iron would not offer the longevity required to exposed external factors. More commonly used in the chemical and offshore industries this versatile butterfly valve is also seeing a surge in popularity due its competitive pricing. All units come as standard with 3.1 material certification at no additional cost.

Key Features

Key features and benefits of the 40W4040 Wafer Pattern Butterfly Valves.
1

Key Features

Generally classed as an economical and general purpose solution the wafer pattern butterfly valve features a single Piece body with four flanged hole drillings for easy maintenance and installation between flanges at desired locations within the pipeline.
2

Key Features

The concentric design of the butterfly valves allows for an elastic, replaceable seat that takes on both shape and size to form a perfect seal. This TTV Butterfly Valve is suitable for use in either off or throttling applications with no loss of functionality.
3

Key Features

Our extensive range of stocked butterfly valves enable us to provide many materials. With component form availability we can interchange Disc and Seat materials accordingly giving us flexibility and quick turnaround for sizes.

Choose Your Rubber

Material Applications Temperature
EPDM Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines -20°C +110°C
High Temperature EPDM Super Heated Water -20°C +130°C
NBR Buna Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air -10°C +80°C
Hypalon Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions -10°C +80°C
Viton Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels -5°C +180°C
Polyisoprene Water, Alcohols, Abrasive Substances (Call To Check), Ketones, -10°C +60°C
Silicone Low & High Temperature Resistance Applications -30°C +150°C
High Temp Silicone Super Heated Water -50°C +160°C
Epichlorohydrin Ozone Resistance, Hydrocarbons, Aromatic Oils -25°C +145°C

Take A Seat

Stainless Steel Valve Gear Box

316 Stainless Steel Butterfly Valve Gear Box. Sealed to IP67 with single piece input shaft and worm gear with axial needle bearings. Additional options for RAL powder coatings and offshore paint specifications. Your perfect corrosive environment Butterfly Valve Gear Operator.

Valve Standards & Stuff

Body Material: CF8M 316 Stainless Steel
Seats Material: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard: Concentric, Soft Seat
Face To Face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, 100% Tight Shut Off, API 598

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Yes. We have a number of options including chain wheel operators. They come as standard with a quick link chain connection and safety cable kit.

It certainly does. All of our TTV butterfly valves come complete with a full set of operations and maintenance manuals. We can also send this electronically in advance.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.

YES! How hilarious would that be. For an extra cost obviously. Get in touch.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Job done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.
