Actuated Lugged Type Full PTFE Lined Butterfly Valves

Some valves are so advanced that they can survive in the most demanding environments. One example is TTV's PTFE range of lugged butterfly valves, which have been designed from years worth research and development with chemical manufacturers who produce aggressive fluids. Lugged butterfly valves are also very common in the chemical industry. The valves can be installed on either side of a pipe and allow maintenance one side without disturbing the rest of the system. This is especially important if there's still pressure in one part of the line.

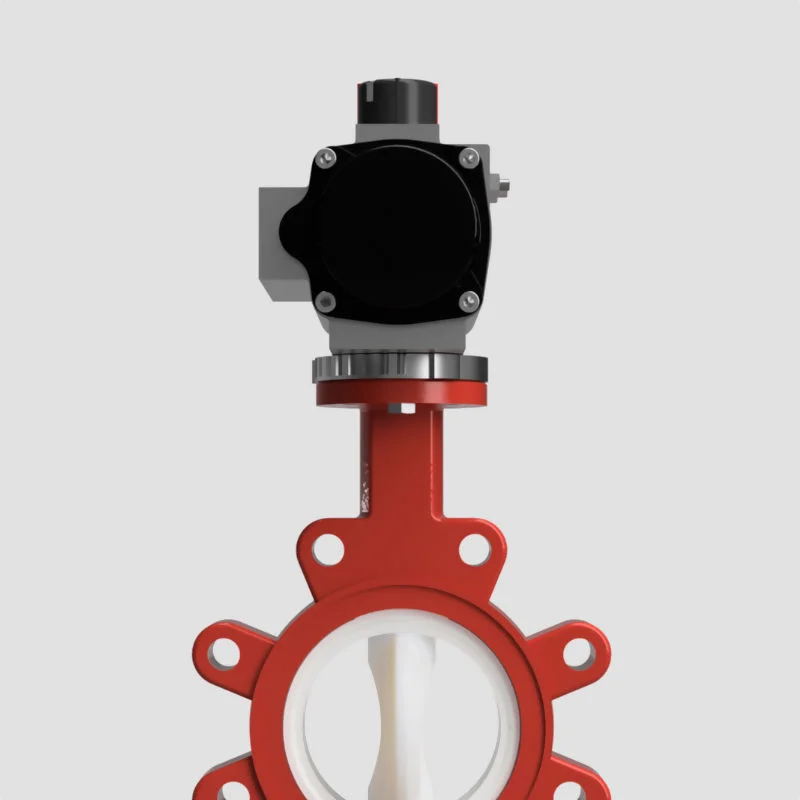

20LP4040F0TAT - Lugged Actuated Air Torque PTFE Lined Valves

We’ve got you covered with the best valves around. Our High Performance Lugged Pattern PTFE Butterfly Valve is a high-temperature, chemical resistant unit that can handle extreme conditions and aswell as having a non toxic material for sensitive applications. Air torque pneumatic actuators have been optimised for performance and durability at every stage of its development, from design through production and testing. With over 30 years of experience designing durable, reliable components, you can trust us with your project's success.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

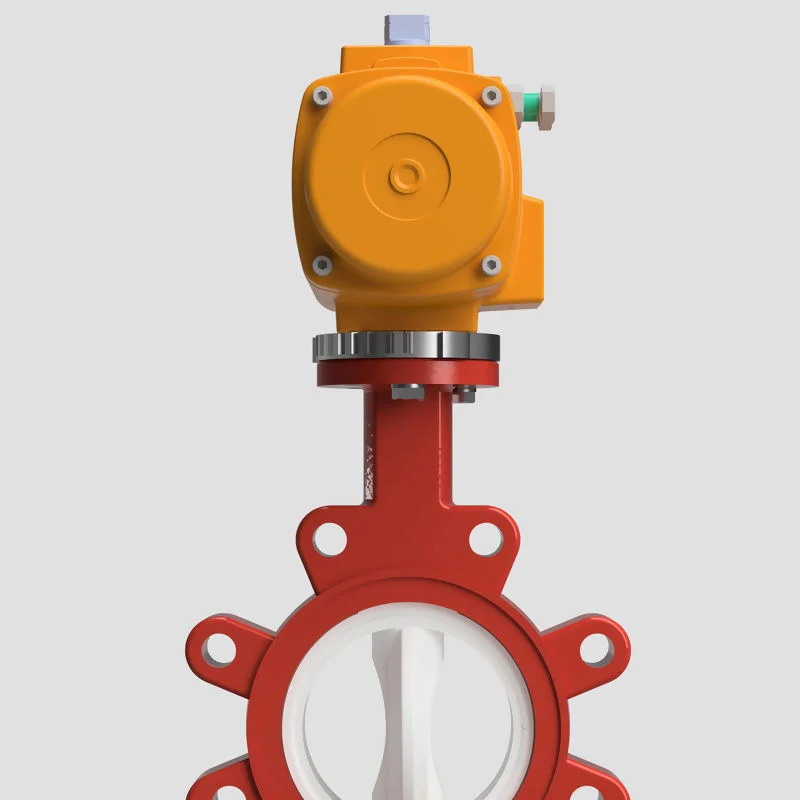

20LP4040F0TEL - Lug Type Actuated Elomatic PTFE Lined Valves

The PTFE seat and lined butterfly valves provide reliable shut off performance on highly corrosive, aggressive process mediums. They are suitable for use with liquids or slurries as well as bulk solids. EL-O-Matic use standard mounting interfaces that are compatible with commonly used industry standards like ISO5211 for valve mounting interface and VDE/VDI3845 (NAMUR) so there is no need to modify existing systems during the installation process. Low operational torque reduces the costs of actuation with low friction contact extending the life of the self cleaning seal.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

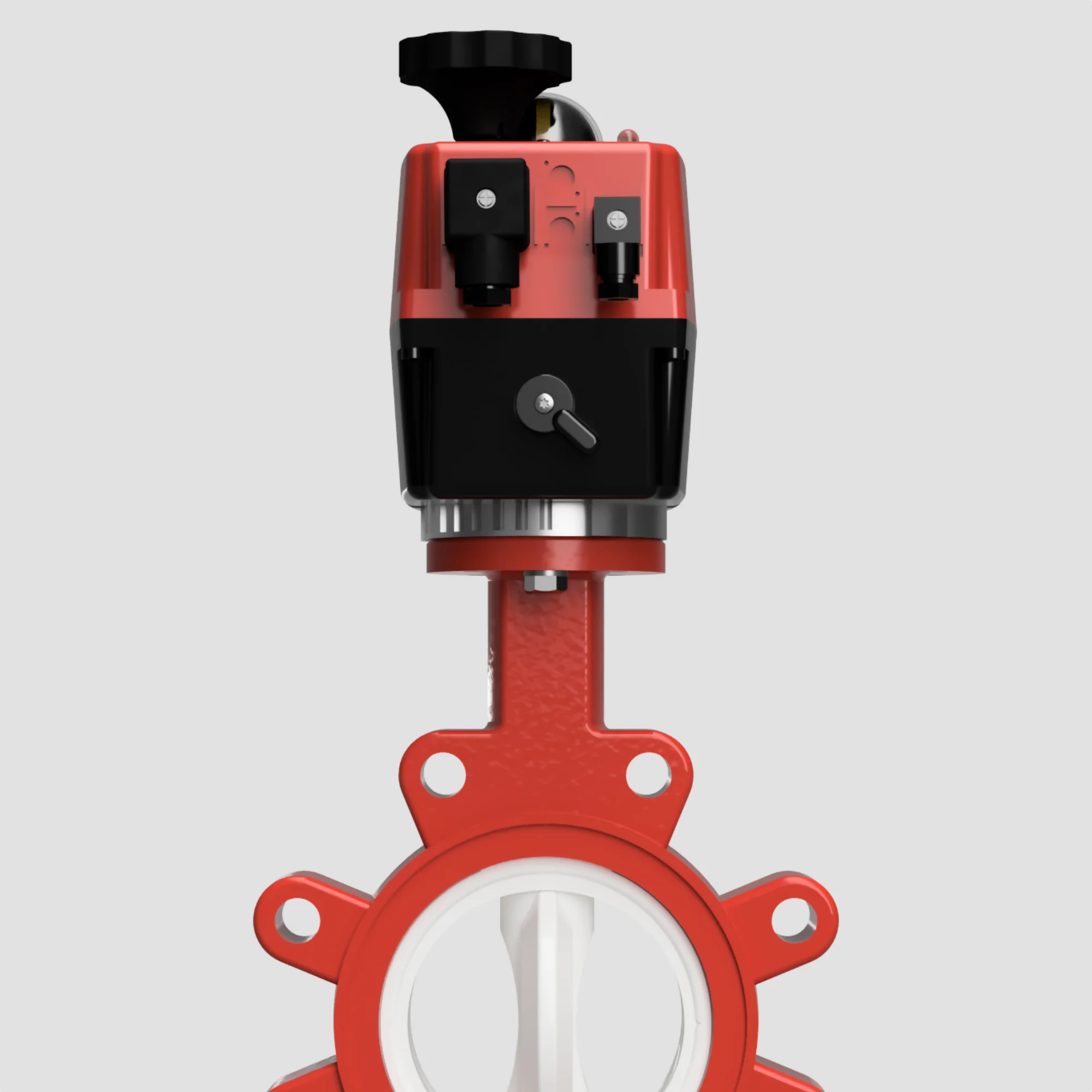

20LP4040F0TFE - Fully Lugged Type Actuated Festo PTFE Lined Valves

The PTFE Seat of the TTV Butterfly Valve is designed to avoid any possibility for cross contamination providing an extremely resistant valve that can handle chemicals and solvents with complete insolubility up until 300°C. The UHMWPE optional seat material adds even more protection from abrasion for applications that require further protection. Festo’s pneumatic actuation technology provides an affordable alternative that is easy to install, operate and maintain. Our products offer exceptional performance at a fraction of the cost you'd expect from traditional designs.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

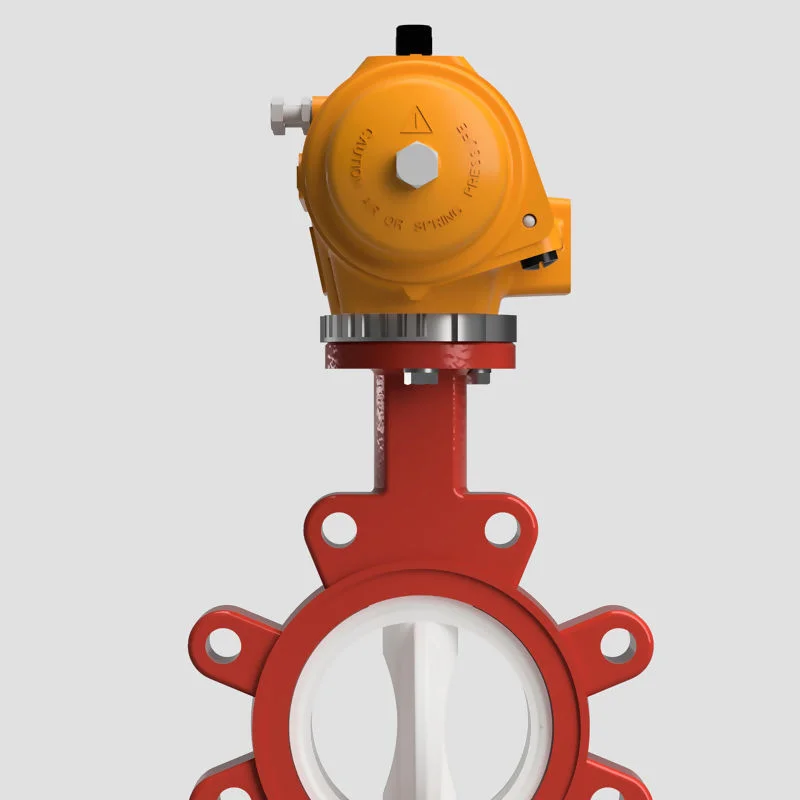

20LP4040F0TXL - Lugged Actuated Hytork PTFE Lined Butterfly Valves

For applications where you need your butterfly valve seals protected from corrosion and heat, our TTV PTFE Butterfly Valve Design offers the perfect solution by using specially designed components made out of PTFE which can withstand even the most extreme operating conditions. Hytork Pneumatic Actuators provide a more efficient design that keeps air flowing freely through the internal orifices while also allowing for faster operation speeds than before. This is made possible due to larger internal air passages and patented design features.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

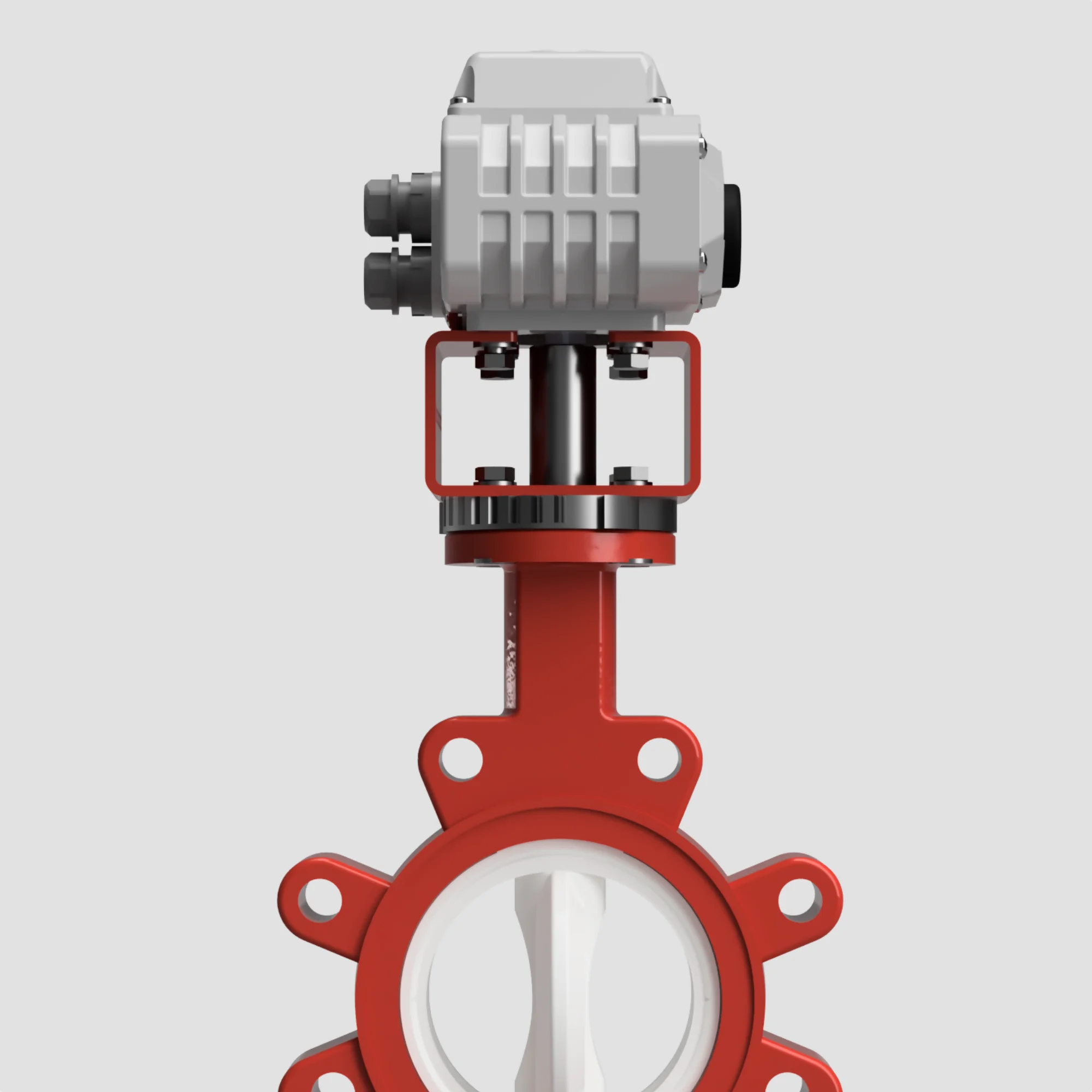

20LP4040F0TEK - Lug Electric Koei UNIC PTFE Actuated Butterfly Valves

Lugged butterfly valves are a great choice for applications where you need to be able disconnect the piping from either side of the valve. These lugged connect style butterflies feature built in alignment guides through its bolt holes on both sides. Our Koei UNIC line electric actuator has been designed specifically with industrial uses in mind. These lightweight units offer all of the features and benefits found within standard electric actuator models without any unwanted weight or size. Perfect if space is at a premium. The PTFE Lined Butterfly Valves satisfy the requirements for a reliable shut off performance on highly corrosive and aggressive process mediums.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

20LP4040F0TMC - Lugged Asahi Master Chief PTFE Butterfly Valves

The Asahi electric actuator features a thermally bonded powder coated corrosion resistant housing (Series 92) rated to Nema 4X with stainless steel trim. ABS Product Type Approved for use in Marine and Offshore Applications. Asahi electric actuators are provided with gear trains pre-lubricated at the factory prior to despatch. The specially formulated lubricant offers extended life cycles whilst also covering a wide range of temperature options for various ambient and operating requirements, as well as reducing wear. Motors used with the Asahi Electric Actuator housings are CE compliant and stamped for all 120VAC and 220VAC electric actuator motors. Extended duty cycles offer versatility to modulate high operation/cycle requirements, while providing sturdiness needed in harsh environments.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

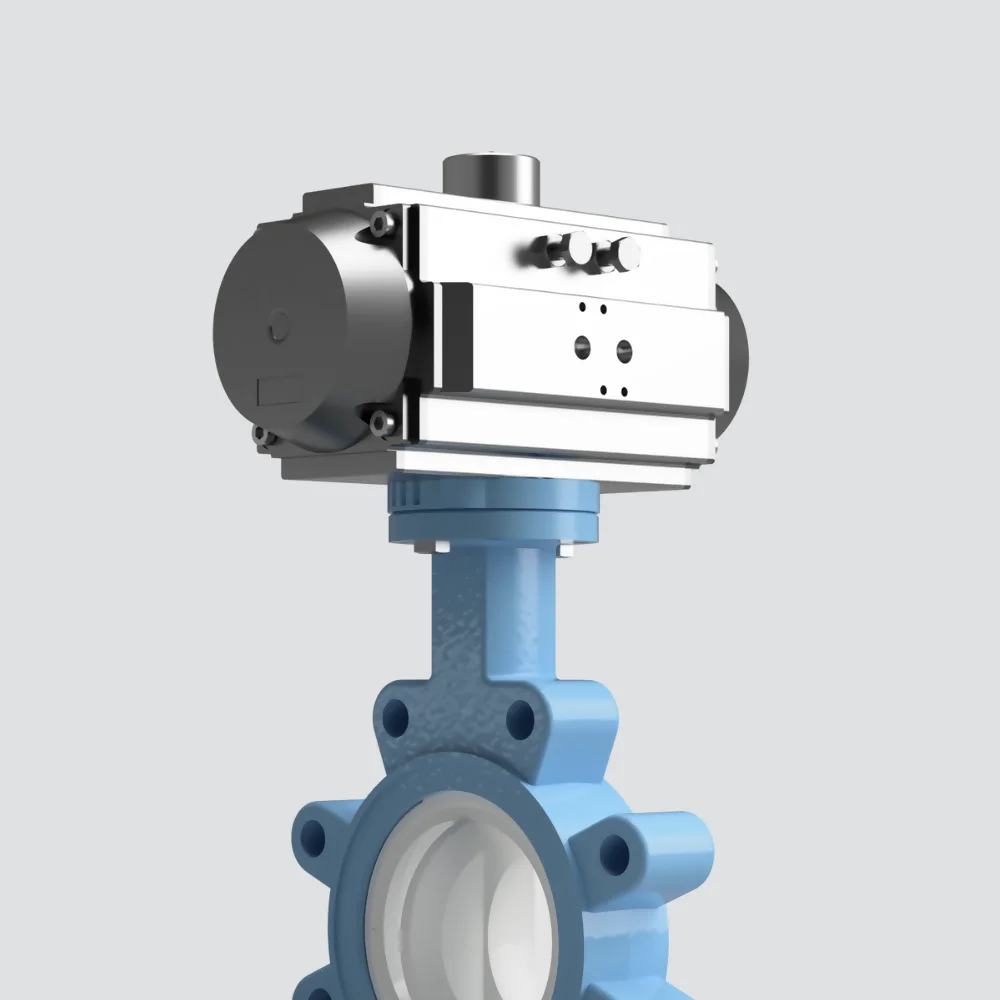

20LP4040F0TMA - Lugged MAX Air PTFE Lined Actuated Butterfly Valves

Combining the MT range of actuators from Max Air Technologies and TTV's 20LP4040F0T butterfly valve provides an extremely cost effective automated shut off solution. The Max Air actuator utilizes the same body design and end caps for both double acting and spring return applications allowing customizable stock profiles. This allows us to offer large quantities on short lead times with all assmebly and testing performed in house. Attention to detail features special epoxy coated internal springs to increase corrosion resistance. Your perfect choice for pneumatic butterfly valves on a restricted budget.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

Be Happy. Best Prices Guaranteed

Best pricing or we will donate some cash to a local dog charity. We like dogs, sorry cats. Loads of terms apply. Ask us for details. No fake rubbish Valves considered.

20LP4040F0TROM - Lugged Rotork ROM PTFE Lined Butterfly Valves

A quality package from both Rotork (ROM) and TTV's conectric butterfly valves. Reliability when it matters for frequent or infrequent use the Rotork ROM electric actuator is there when you need it and offers worldwide customer service and support with an extremely low cost of ownership. The compact and lightweight valve package has a non clucth manual override design and can be operatred without any lever upon power failure. Corrosion protection offered to C5-M (Actuator) as standard. Additional options include Profibus, Modbus & Fieldbus from the ROMpak range of actuated butterfly valves.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

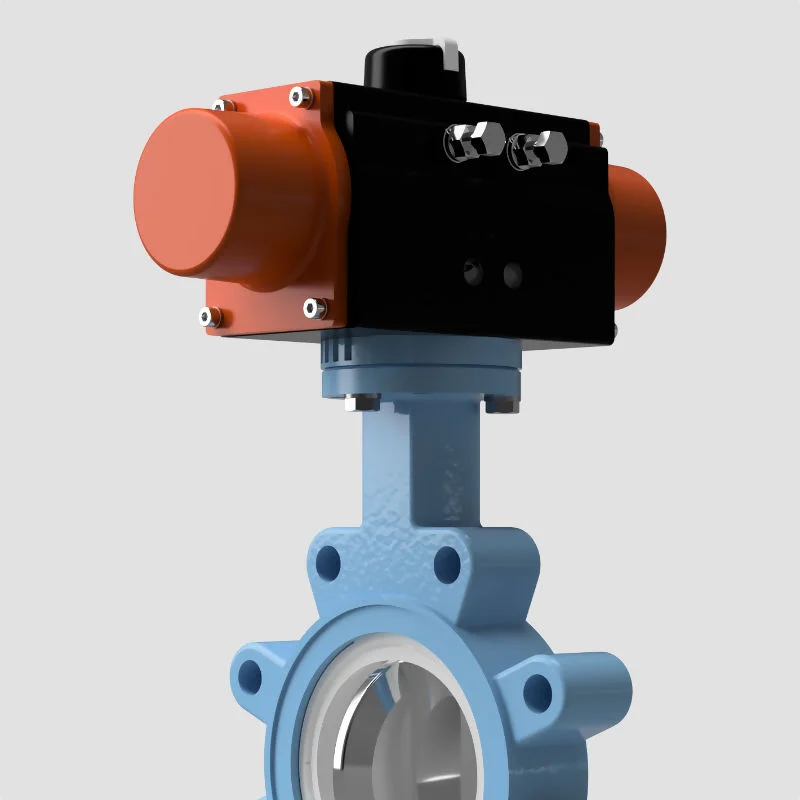

20LP4040F0TRPX - Lugged Bettis RPX PTFE Lined Butterfly Valves

The 20LP4040F0TRPX combines a robust 6063T6 aluminium bodied pneumatic actuator and high quality concentric PTFE Lined butterfly valve from Emerson Bettis & TTV respectively. This brand new actuated butterfly valve package offers a more cost effective solution to that of the Hytork & El-O-Matic from Emerson whilst still incorporating the core values of market leading manufacturers. Pre compressed spring designs and an anti-blowout drive pinion ensure safe operation and maintenance procedures throughout the product life cycle.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air

20LP4040F0TVA - Lugged Actuated Air Torque PTFE Lined Valves

We’ve got you covered with the best valves around. Our High Performance Lugged Pattern PTFE Butterfly Valve is a high-temperature, chemical resistant unit that can handle extreme conditions and aswell as having a non toxic material for sensitive applications. A rilsan coated body butterfly valve and high durability coated aluminium actuator provide external protection for most  external application factors with specific coatings on request. A replaceable valve seat and actuator rated to IP68 complete a robust offering that will go the distance and provide maximum life capacity. The Valpes Electric Actuator offers fail in position as well as battery backup failsafe return for critical applications. Modbus-RTU & bluetooth versions are also available on a short lead time with CE, DNV-GL, CSA/UL & EAC Approvals. With over 30 years of experience designing durable, reliable components, you can trust us with your project's success.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 12VDC, 24VDC/AC, 110V/230VAC, Modbus-RTU, Bluetooth
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
