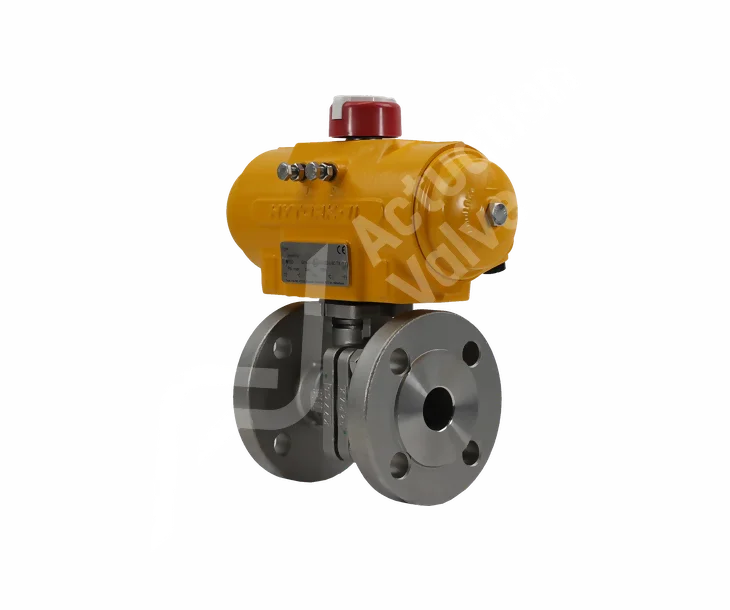

Stainless Steel High Pressure PN40 Hytork Actuator Valves

The AV-L6N00XL DIN PN40 actuated ball valves provide a high pressure full flow operation with a bore of up to 6 inches. The actuated ball valves connections offer installation between two alternate flanges within a pipleine. Valve approvals include DNV, SIL 2, Lloyds Register & Nace MR-0175. Additional ball valve options include an upstream and cavity relief hold drilled into the ball and high temperature spindle extension for insulation and steam actuation. Express shipping for delivery within 24-48 hours for stock components.

Key Features

Key features and benefits of AV-L6N00XL Actuated Ball Valves.
1

Key Features

Low Torque requirements from the AV-L6N00 Ball Valve allow for smooth operation and reduce the costs of Actuated Ball Valves with smaller Actuators able to automate Valves usually demanding large units.
2

Key Features

3D CAD and Step files readily available for new product line and system designs allowing integration within minutes. We also offer various mounting options including direct and bespoke box section kits so you can get the right fit for your project needs.
3

Key Features

The Hytork XL range of pneumatic actuators offer suitable alternative to hydraulic. The high torque output units are quiet, clean, precise and easy to install. Whether you are an OEM looking for small or large scale production requirements we have the manufacturing capabilities to deliver.

High Pressure PN40 Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 97.00 152.50 165.00 115.00 97.00 152.50 165.00 115.00
3/4" 97.00 157.50 165.00 120.00 97.00 157.50 165.00 120.00
1" 116.50 181.40 221.80 125.00 97.00 163.50 165.00 125.00
1 1/4" 116.50 193.40 221.80 130.00 116.50 193.40 221.80 130.00
1 1/2" 116.50 198.40 221.80 140.00 116.50 198.40 221.80 140.00
2" 133.50 223.40 292.00 150.00 116.50 207.40 221.80 150.00
2 1/2" 143.10 246.05 331.60 170.00 133.50 240.40 292.00 170.00
3" 158.50 276.09 349.80 180.00 143.10 261.05 331.60 180.00
4" 174.00 309.00 462.00 190.00 158.50 299.90 349.80 190.00
5" 174.00 352.00 462.00 325.00 158.50 342.90 349.80 325.00
6" 240.00 438.00 647.00 350.00 190.00 408.00 324.00 350.00
8" 246.00 502.00 696.00 400.00 240.00 487.00 396.00 400.00
10" TBA TBA TBA TBA TBA TBA TBA TBA

High Pressure PN40 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: DIN3357 1,2,EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Hytork Actuator Videos

TopWorx Limit Switch Box

TopWorx Valve Limit Switch Box available for this product. Keep everything within the Emerson Group of products with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Pneumatic Actuator prior to shipping.
