Rotary Plug & Segmented Ball Control Valves

Rotary plug control valves offer precise fluid regulation in various industrial processes. They excel in managing flow rates and maintaining pressure levels, making them essential in sectors like oil and gas, petrochemicals, and water treatment. These valves feature a rotary plug mechanism that allows for accurate adjustments, ensuring optimal performance and efficiency. With their versatility and reliability, rotary plug control valves contribute significantly to enhancing operational control and system integrity in critical applications.
Enquire

Key Features

Key features and benefits of SAMSON Rotary Plug & Segmented Ball Control Valves
1

Key Features

SAMSON Rotary Plug Control Valves contribute to operational efficiency by optimising fluid flow. This leads to energy savings, reduced waste, and enhanced productivity. In industries where energy costs are significant, these valves can have a substantial impact on cost reduction.
2

Key Features

SAMSON valves are known for their quality and compliance with industry standards and regulations, ensuring safety and performance excellence. This quality assurance is crucial in industries where product quality, safety, and environmental considerations are paramount.
3

Key Features

These valves are versatile and adaptable to a wide range of industries and applications, making them suitable for diverse operational needs. Whether in petrochemicals, pharmaceuticals, or other sectors requiring precise fluid control, SAMSON valves provide a reliable solution.

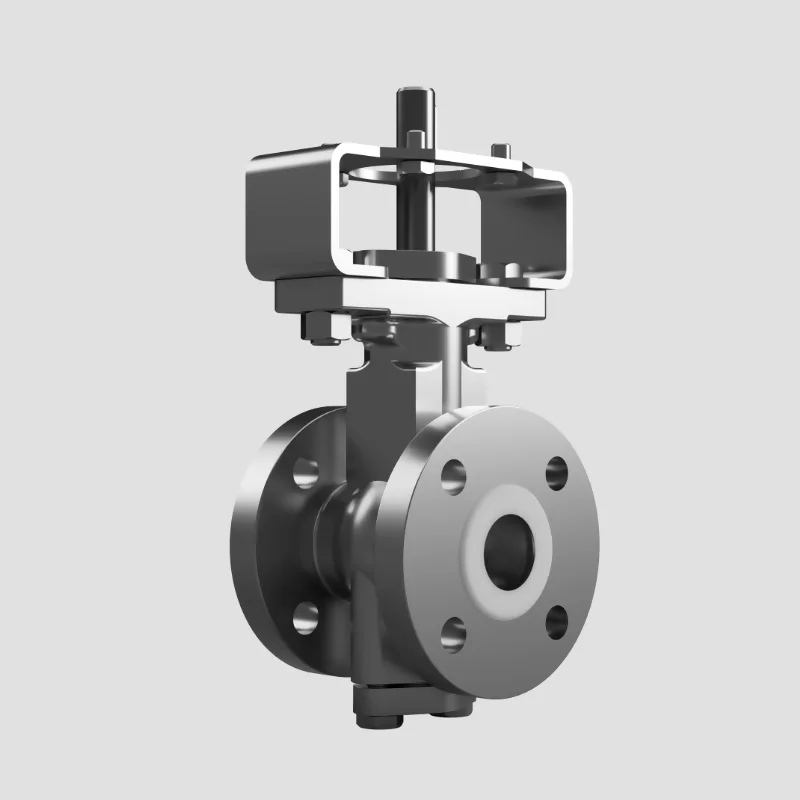

3310 Type Segmented Ball Valves

The Type 3310 segmented ball valve caters to a wide range of general service applications within the PN40 pressure class rating. It adeptly handles typical process events prevalent in various industries, including erosion and abrasion challenges. Available in sizes ranging from 1" to 12" and ANSI Classes 150 to 300, it offers versatility in installation. Constructed from Stainless Steel or Cast Steel, it ensures durability and reliability. Operating within a temperature range of –51 to 842°F (-46 to 450°C), it guarantees consistent performance under varying conditions.

Size Range: 1" to 12"
ANSI Class Range: 150 to 300
Materials Available: Cast Steel, & Stainless Steel
Temperature Range: –51 to 842°F (-46 to 450°C)
Find Out More

62.7 Type Light Duty Rotary Plug Control Valves

The Vetec 62.7 Type Light Duty Rotary Plug Control Valve is optimally engineered for basic general service applications within the ANSI 300 pressure class rating, effectively managing erosion, abrasion, corrosion, cavitation, and flashing common in diverse process control industries. Featuring a double eccentric rotary plug design, it enhances flow capacities while minimally affecting pressure recovery, proving to be an ideal alternative to linear globe control valves even under challenging cavitation and flashing process conditions. With sizes ranging from 1" to 8" and ANSI Class from 150 to 300, and constructed from Carbon Steel, Low temp. Carbon Steel, or Stainless Steel, it efficiently operates within a temperature range of -76 to 42°F (-60 to 220°C).

Size Range: 1" to 8"
ANSI Class Range: 150 to 300
Materials Available: Carbon Steel, Low temp. Carbon Steel, & Stainless Steel
Temperature Range: -76 to 428°F (-60 to 220°C)
Find Out More

72.3 Type Rotary Plug Control Valves (Long Pattern)

The Vetec 72.3 double eccentric rotary plug control valve, available in sizes ranging from 1" to 20" and ANSI Class 150 to 300, is tailored for general service applications within the ANSI 300 pressure class rating. Suited for industries facing erosion, abrasion, corrosion, cavitation, and flashing issues, this valve offers enhanced flow capacities without compromising pressure recovery, making it a viable alternative to linear globe control designs, especially in challenging process conditions. Constructed from Carbon Steel or Stainless Steel, it operates within a temperature range of -148 to 75°F (-100 to 40°C).

Size Range: 1" to 20"
ANSI Class Range: 150 to 300
Materials Available: Carbon Steel, & Stainless Steel
Temperature Range: -148 to 75°F (-100 to 400°C)
Find Out More

72.4 Type Rotary Plug Control Valves (Flangeless)

The Vetec 72.4 Type rotary plug control valves, flangeless, are engineered for diverse industrial applications within the ANSI 300 pressure class rating. These applications encompass erosion, abrasion, corrosion, cavitation, and flashing phenomena typical in process control. Featuring a double eccentric rotary plug design, they enhance flow capacities with minimal impact on pressure recovery, proving advantageous over linear globe control valves, even in cavitation and flashing conditions. Available in sizes ranging from 1" to 12" and ANSI classes 150 to 300, with standard materials including carbon steel and stainless steel, and a temperature range spanning from -148 to 752°F (-100 to 400°C).

Size Range: 1" to 12"
ANSI Class Range: 150 to 300
Materials Available: Carbon Steel, & Stainless Steel
Temperature Range: -148 to 752°F (-100 to 400°C)
Find Out More

82.7 Type Rotary Plug Control Valves

The Vetec 82.7 Type Rotary Plug Control Valve is tailored for both standard and critical service applications, adept at managing erosion, abrasion, corrosion, cavitation, and flashing in processes. Its double eccentric rotary plug design enhances flow capacity while maintaining a high pressure recovery factor, making it a favourable alternative to linear globe control valves, particularly under cavitation and flashing conditions. Available in sizes ranging from 1" to 10" and ANSI Class 150 to 300, and constructed from materials like Cast Steel, Stainless Steel, and Low Temp Carbon Steel, this valve operates within a temperature range of -148 to 752°F (-100 to 400°C).

Size Range: 1" to 10"
ANSI Class Range: 150 to 300
Materials Available: Cast Steel, Stainless Steel, & Low Temp Carbon Steel
Temperature Range: –148 to 752 °F (-100 to 400°C)
Find Out More

Frequently Asked Questions

Control Valves FAQs

Oil and Gas, Chemical, Power Generation, Water Treatment, & Pharmaceuticals

Yes, our valves come with clear installation instructions for hassle-free setup.
No, SAMSON valves are designed for minimal maintenance, reducing downtime.
Yes, our control valves are designed to handle high-pressure systems with ease.
Our expert team can assist you in selecting the perfect size based on your specific requirements. Contact us for personalised guidance.
Yes, our control valves are compatible with automation systems for seamless operation and control.
Yes, we maintain a stock of spare parts to ensure minimal downtime in case of replacements.
Our control valves are built to last, with a typical lifespan of 10 years or more, depending on usage and maintenance.

Yes, we offer a range of control valves designed to handle corrosive fluids and extreme temperature environments. Contact us for the appropriate solution.

A globe control valve is a type of control valve used in fluid systems to regulate the flow of liquids or gases. It gets its name from its globe-shaped body and is commonly used for precise control of flow rates.

A rotary control valve is a type of control valve used in industrial applications to regulate the flow of fluids (liquids or gases) by using a rotating or swivelling mechanism.
