The AV-L8000FCXL and AV-L8200FCXL 3 piece full bore heavy duty actuated ball offer a more cost effective option to that of the stainless steel valve for use in less corrosive environments. Valve sizes range from 1/4” to 2” nominal bore with ATEX and firesafe API 607 certification. Options include 50% stainless steel filled seats and V-Ball modulation. Silicone seats for oil based paint applications and inspection testing is to MSS SP-110.

Shop Help Me

Key features and benefits of AV-L8000FCXL & AV-L8200FCXL Actuated Ball Valves.

Key Features

The AV-L8000FC full bore ball valves are an excellent choice for use in environments that aren't suitable for standard brass ball valves. The body is made from high quality A216 WCB carbon steel and stainless steel ball that can withstand demanding applications.

Key Features

Hytork Pneumatic Actuators provide a more efficient design that keeps air flowing freely through the internal orifices while also allowing for faster operation speeds than before. This is made possible due to larger internal air passages and patented design features.

Key Features

The bi-directional travel stops allow easy setting of the valve stroke which prevents premature valve failures. Our Pneumatic Actuators can be used with other common ancillary components such as solenoid valves, position switches, gauges and pressure regulators.

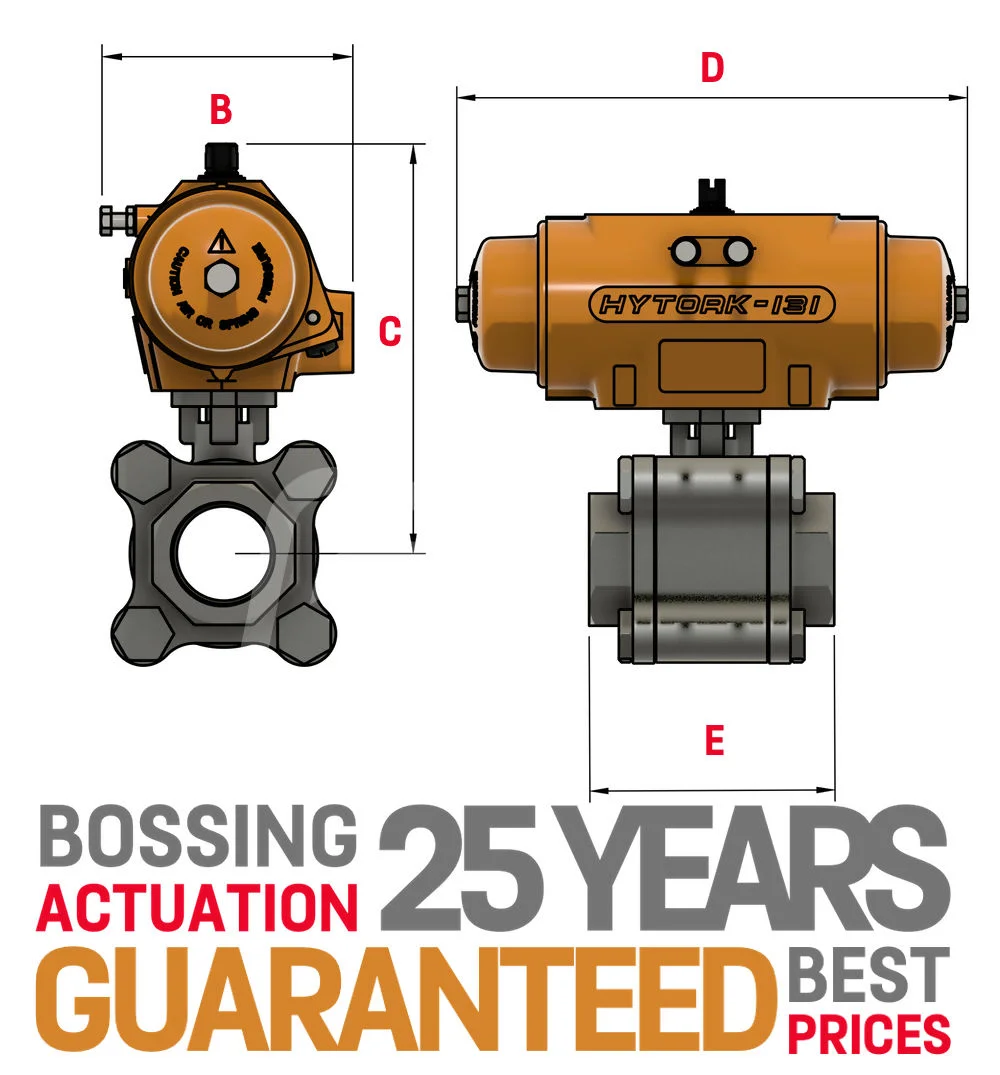

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DA	DA
1/4"	97.00	147.50	165.00	75.00	97.00	147.50	165.00	75.00
3/8"	97.00	147.50	165.00	75.00	97.00	147.50	165.00	75.00
1/2"	97.00	147.50	165.00	75.00	97.00	147.50	165.00	75.00
3/4"	97.00	155.50	165.00	80.00	97.00	155.50	165.00	80.00
1"	116.50	180.40	221.80	90.00	97.00	162.50	165.00	90.00
1 1/4"	116.50	185.40	221.80	110.00	116.50	185.40	221.80	110.00
1 1/2"	116.50	197.40	221.80	120.00	116.50	197.40	221.80	120.00
2"	133.50	224.40	292.00	140.00	133.50	224.40	292.00	140.00
2.5"	TBA	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA	TBA	TBA	TBA
4"	TBA	TBA	TBA	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	ASTM A216 WCB Carbon Steel & 304 SS Trim
Seats Material:	TFM 4215® (25% Carbon Filled TFM)
Design Standard:	MSS SP-110
Wall Thickness:	ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing:	MSS SP-110
BSP Ends:	BSPP IS0 228/1
Socket Weld Ends:	ASME B16.11
Silicone Free:	Suitable For Oil Based Paints
Anti Static Device:	Ball, Shaft & Valve Body

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Yes, discounts are usually available on multi-unit or bulk orders of the AV-L8000FCXL and AV-L8200FCXL range. Get in touch with your required quantity and specification and our sales team will confirm the best pricing for your order.

Yes, the AV-L8000FCXL and AV-L8200FCXL range can be supplied with ATEX certification for use in hazardous area applications. Please confirm this requirement when ordering so the correct documentation is issued with your valve.

Yes, we can advise on larger sizes outside the standard AV-L8000FCXL and AV-L8200FCXL range. Send us your line size and process details by email or give us a call and we will confirm availability and lead time.

Yes, we can deliver directly to your customer on a plain, unbranded label. Send us a copy of your delivery note and we will include it with the shipment so your customer receives it under your company name.

Yes, we offer credit accounts for trade and repeat customers, subject to a credit check. Apply on the product page at checkout or contact our sales team directly and we will guide you through the application process.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
