Bronze Disc Actuated Butterfly Valves

The 20W3080 and 20L3080 Bronze Disc Actuated Butterfly Valves excel in seawater environments, featuring a protective "Dry Shaft" design that isolates the disc and seat from corrosive media, greatly extending their durability and reducing maintenance costs. These valves are versatile, suitable for a range of applications from desalination to cooling systems, and are available in sizes DN32-DN600.

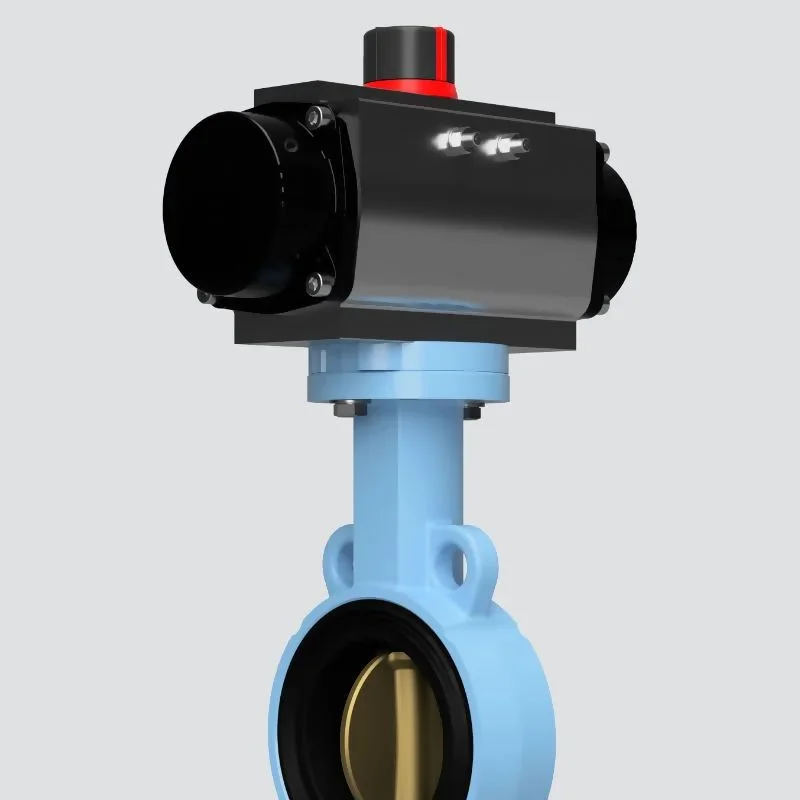

Bronze Disc Wafer Actuated Butterfly Valves

The 20W3080 Bronze Disc Actuated Butterfly Valves are ideally suited for seawater applications, specifically designed to keep the valve's external body shielded from corrosive environments. These valves incorporate a "Dry Shaft" design which prevents the medium from contacting any materials other than the disc and seat, thereby significantly enhancing the valve's lifespan. This design feature also considerably reduces the maintenance costs compared to those associated with full Aluminium Bronze Bodied Butterfly Valves.

Actuators: Actreg, Hytork, Air Torque, Elomatic, Koei UNIC, Bettis, Ventus, J-J, & Festo
Size Range: DN32-DN600 (1 1/4"-24")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: B148 C9500 Aluminium Bronze
Applications: Sea Water, Desalination, Cooling Water, Ballast, Oil, Gases
Find Out More

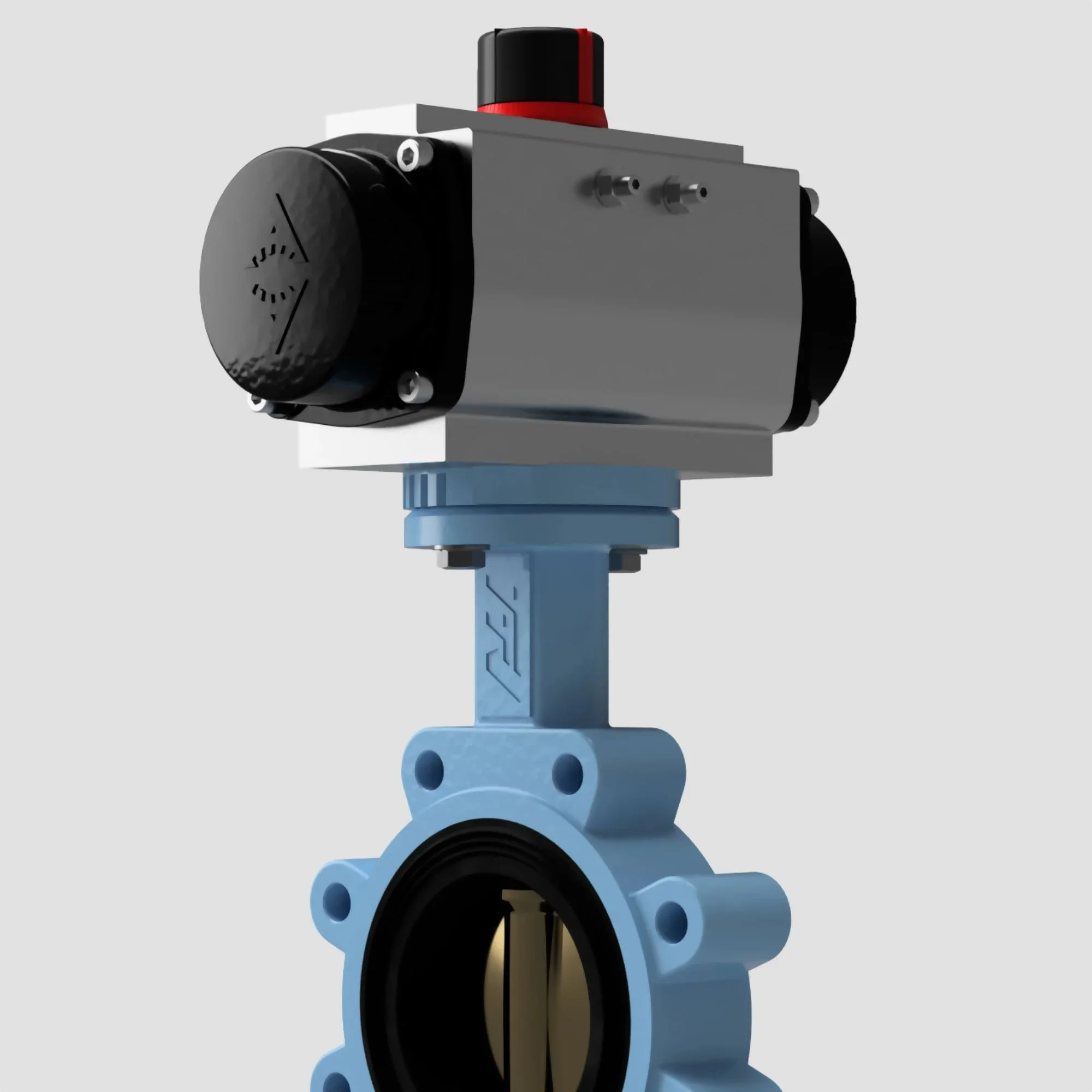

Bronze Disc Lugged Actuated Butterfly Valves

The 20L3080 Bronze Disc Actuated Butterfly Valves are ideal for seawater applications, designed to keep their external body shielded from corrosive environments. These valves incorporate a "Dry Shaft" design, ensuring that the medium only contacts the Disc & Seat, thus significantly prolonging the valve's lifespan. This design also offers a cost-effective alternative to a full Aluminium Bronze Bodied Butterfly Valve.

Actuators: Actreg, Hytork, Air Torque, Elomatic, Koei UNIC, J-J, & Valpes
Size Range: DN32-DN600 (1 1/4"-24")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: B148 Aluminium Bronze
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air
Find Out More

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Frequently Asked Questions

An actuated butterfly valve is a type of quarter-turn valve that uses an actuator to control the flow of fluids or gases. The actuator can be electric, pneumatic, or hydraulic and automates the operation of the butterfly valve, providing precise and consistent flow control.

A lugged actuated butterfly valve has threaded inserts (lugs) on both sides, allowing it to be used in systems where downstream piping can be removed without affecting the upstream side. This feature makes maintenance easier and allows for dead-end service.

A wafer-style actuated butterfly valve is designed to fit between two flanges and is held in place by bolts that surround the valve body. This design is compact and lightweight, making it ideal for systems where space is limited.

A double-flanged actuated butterfly valve features flanges on both ends, providing a secure connection to the pipeline. This design is especially beneficial in high-pressure applications or when frequent maintenance requires the valve to be removed easily.

Actuated butterfly valves are commonly used in industries such as water treatment, chemical processing, oil and gas, power generation, food and beverage, and HVAC due to their reliable flow control and automation capabilities.

Butterfly valves can be equipped with electric, pneumatic, or hydraulic actuators. Electric actuators are suitable for precise control, pneumatic actuators are ideal for fast operation, and hydraulic actuators are best for high-torque applications.

Key benefits include automated flow control, compact design, cost-effectiveness, and versatility in handling various fluids. Their low-pressure drop and quarter-turn operation make them ideal for on/off and throttling applications.

To select the right size, consider the flow rate, pressure rating, and pipeline diameter. Ensure the valve's Cv (flow coefficient) aligns with your system's flow requirements, and consult manufacturer guidelines for accurate sizing.

Yes, actuated butterfly valves can handle high temperatures with the appropriate choice of materials. For instance, valves with stainless steel bodies and high-temperature seals (like PTFE or Viton) can withstand temperatures up to 400°C.

Routine maintenance includes regular inspection for wear and tear, checking for leaks, lubricating moving parts, and ensuring the actuator functions properly. Replace worn-out seals and gaskets to maintain optimal performance.

Yes, actuated butterfly valves are suitable for throttling applications due to their ability to control the flow precisely. However, ensure that the valve is designed and rated for throttling to prevent damage to the disc or seat.

Actuated butterfly valves should comply with standards such as API 609, ISO 5752, ASME B16.34, and AWWA C504. Additionally, valves used in food, pharmaceutical, or chemical industries may need to meet FDA or specific industry standards.
