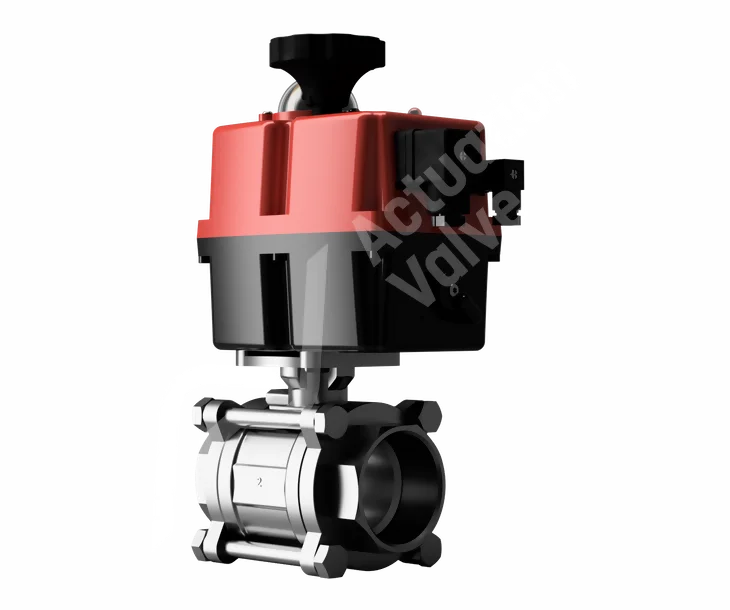

J4CS J&J Electric Actuator 3 Piece Full Bore Ball Valves

The AV-L3000 stainless steel ball valves can be used on oils based paints and coatings applications such as automotive refinishing. They're 100% silicone free so they won't contaminate your product or leave behind residue which can ruin your finish over time. Fail Safe Battery Backup option eliminates the need for use of the manual override in the event of a power or system failure to the actuator. Commonly used in critical application lines where failure is not an option. The Actuator will return the Valve to either open or closed position. Adaptable to existing site infrastructures featuring support for modbus communications protocol. Modbus is an open protocol that allows the connection of multiple industrial electronic devices capable of transmitting information or data over serial lines.

Key Features

Key features and benefits of the AV-L3000JJ, AV-L3100JJ & AV-L3200JJ Actuated Ball Valves.
1

Key Features

True multi voltage plug and play operation allows for site standardisation without the need for changing models if local voltages change. The J4CS features a built in auto conversion sensor voltage kit capable of receiving 24-240V AC or DC supply
2

Key Features

J&J Electric's DPS Kits are a great option for applications that require fine control of valves. The digital positioner allows for precise adjustment of valve operation, and the kit is compatible with both S and B model actuators.
3

Key Features

Featuring a three piece body design and future Proof preventive maintenance schedules, this ball valve is fully maintainable. The centre section provides an easy drop out area for seal replacements while maintaining its reliability in use!

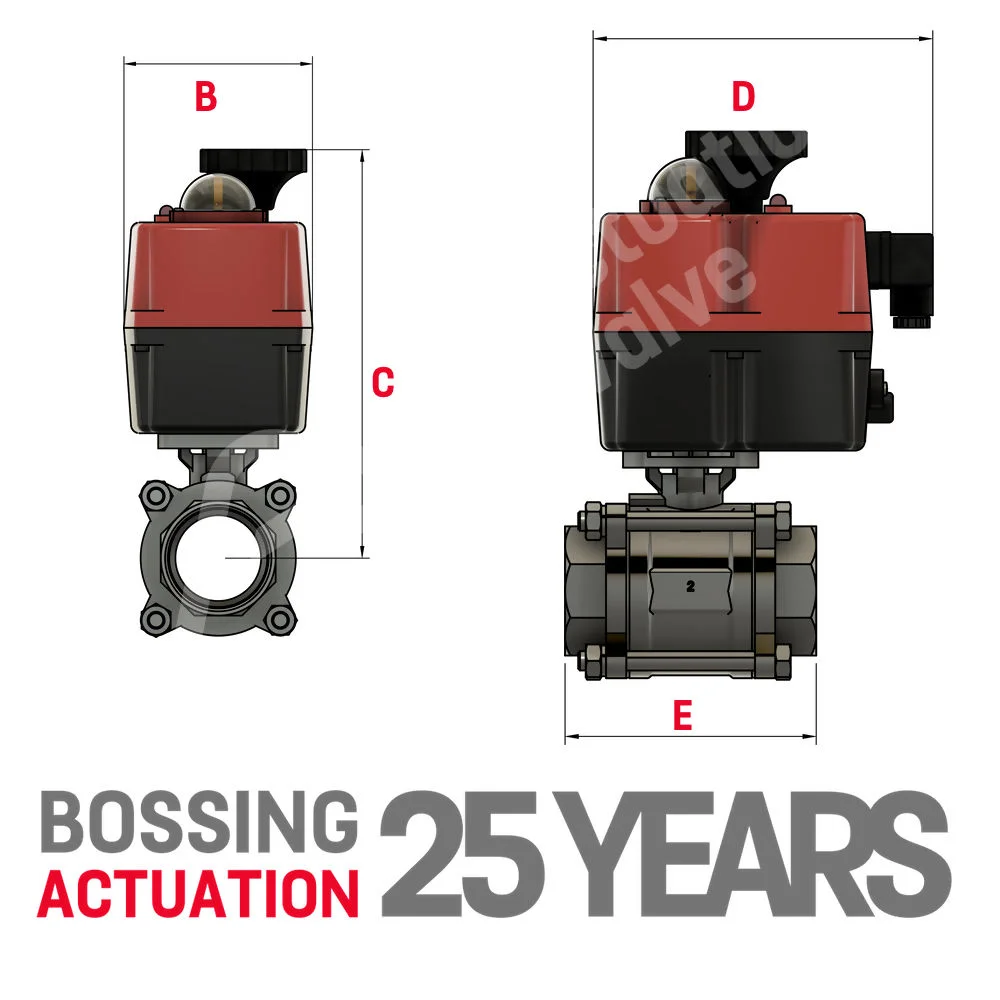

Screwed/Socket Weld Technical Stuff

B C D E Model
1/4" 110.00 213.00 179.00 75.00 J4CS20
3/8" 110.00 213.00 179.00 75.00 J4CS20
1/2" 110.00 213.00 179.00 75.00 J4CS20
3/4" 110.00 219.50 179.00 80.00 J4CS20
1" 110.00 229.50 179.00 90.00 J4CS20
1 1/4" 110.00 234.00 179.00 110.00 J4CS20
1 1/2" 110.00 242.30 179.00 120.00 J4CS35
2" 110.00 274.20 181.00 140.00 J4CS35
2 1/2" 110.00 296.00 181.00 185.00 J4CS85
3" 214.00 362.50 235.00 205.00 J4CS140
4" 214.00 394.00 235.00 240.00 J4CS140

Screwed/Socket Weld Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Butt Weld Valve 3D Stuff

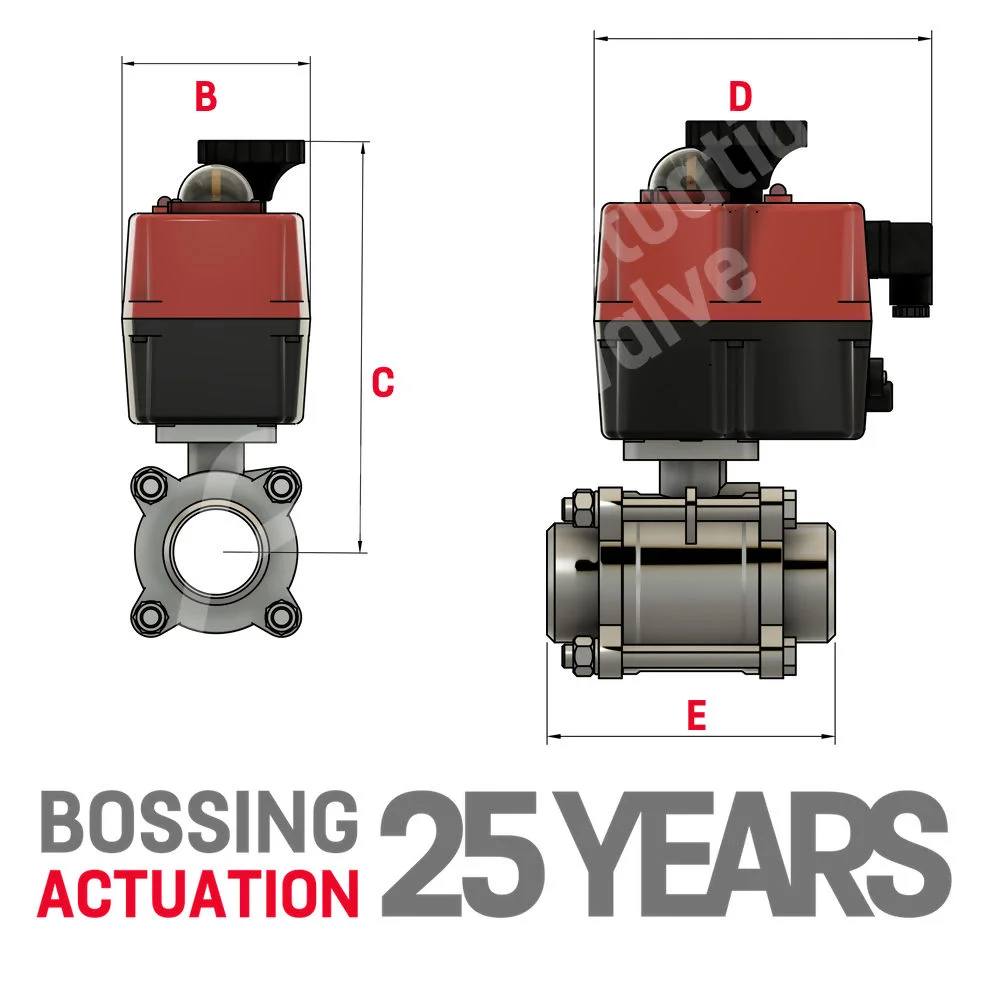

Butt Weld Valve Technical Stuff

B C D E Model
1/4" 110.00 213.00 179.00 70.00 J4CS20
3/8" 110.00 213.00 179.00 70.00 J4CS20
1/2" 110.00 213.00 179.00 75.00 J4CS20
3/4" 110.00 219.50 179.00 90.00 J4CS20
1" 110.00 229.50 179.00 100.00 J4CS20
1 1/4" 110.00 234.00 179.00 110.00 J4CS20
1 1/2" 110.00 242.30 179.00 125.00 J4CS35
2" 110.00 274.20 181.00 150.00 J4CS55
2 1/2" 110.00 296.00 181.00 190.00 J4CS85
3" 214.00 362.50 235.00 220.00 J4CS140
4" 214.00 394.00 235.00 270.00 J4CS140

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Design Standard: MSS SP-110
Wall Thickness: EN 12516-3
Inspection & Testing: MSS SP-110
BSP Ends: (AV-L3000) BSP IS0 7-1 (DIN 2999)
NPT Ends: (AV-L3000) ASME B1.20.1
Socket Weld Ends: (AV-L3100) ASME B16.11
Butt Weld Ends: (AV-L3200) ASME B16.25 (Sch 40)
Pressure Rating: 1000 PSI

Frequent Interrogation

A 3 Piece Premium Ball Valve is a type of ball valve consisting of three main components: a central ball with a hole through it, and two end caps. It is known for its durability and ease of maintenance.

These valves are commonly used in various industries for controlling the flow of fluids, including water, oil, gas, and chemicals. They are ideal for isolation and throttling applications.

Premium ball valves often feature high-quality materials, precision machining, and better sealing capabilities, making them more reliable and suitable for critical applications.

Yes, many premium ball valves are available in materials resistant to corrosion, such as stainless steel, making them suitable for handling corrosive substances.

Yes, 3 Piece Premium Ball Valves are often designed to withstand high-pressure environments, making them suitable for industrial and process control systems.

Maintenance typically involves periodic cleaning, lubrication, and replacement of seals or gaskets when necessary. Refer to the manufacturer's guidelines for specific maintenance instructions.

They provide excellent flow control, tight shut-off, and minimal pressure drop, making them a preferred choice for many applications. Their disassembly for maintenance without cutting into the pipeline is another advantage.

Yes, many of these valves can be automated by adding actuators, making them suitable for remote or automated control systems.

The temperature range depends on the materials used, but many premium ball valves can handle temperatures from -20°C to 200°C or higher, depending on the design and materials.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
